Views: 8 Author: Site Editor Publish Time: 2026-03-19 Origin: Site

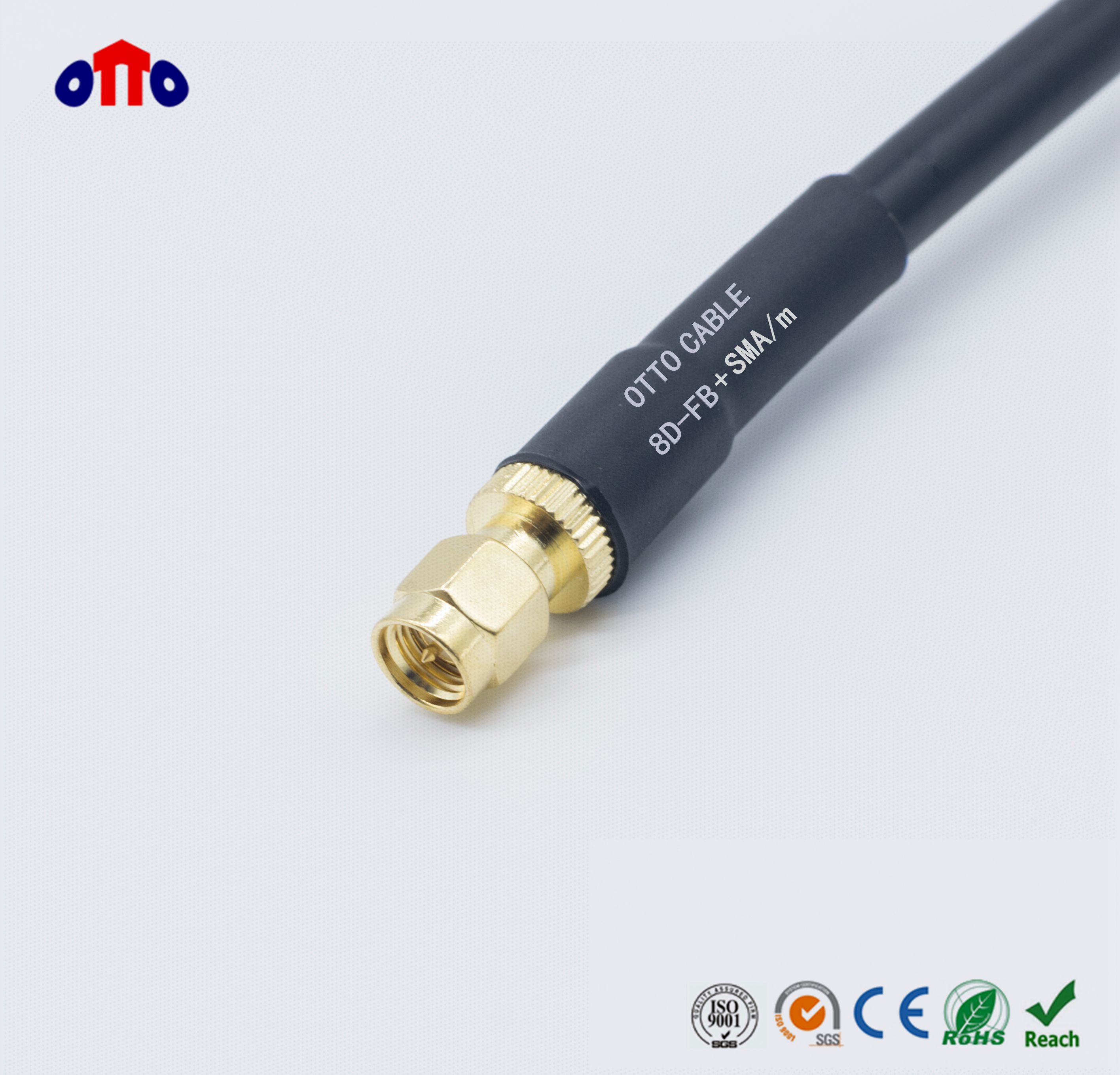

When engineers and procurement workers around the world talk about solid RF transmission options, the 8D-FB Coaxial Cable is always at the top of the list. This cutting-edge cable technology solves important problems with signal integrity in antenna installs, cellular amplification systems, and RF switching uses that work up to 6 GHz. People trust these cables because they are well-made. They have a foam polyethylene insulator, dual-layer shielding, and steady 50-ohm impedance properties that make them work very well in tough wireless communication settings.
When you look at RF transmission lines' technical layout, you can see how well they were designed. Modern wireless communication systems need parts that can keep the signal strong even when they are exposed to electromagnetic radiation and weather stresses.
A well-designed conductor is the first step toward dependable RF performance. In our 8D-FB designs, the inner cables are either bare copper or copper-clad metal and have a diameter of 2.80 mm. This standard makes sure that the maximum amount of current can flow while reducing the skin effect losses that happen at higher frequencies.
The dielectric layer is a very important new development in cable technology. At 7.80 mm in diameter, the foam polyethylene (PE) construction offers great insulation qualities and an amazing 83% speed of propagation. Compared to solid insulator options, this foam structure greatly lowers signal loss. This makes it especially useful for long-distance installs where signal integrity is very important.
Multiple defense levels are needed for effective electromagnetic security. The dual-shielding method uses aluminum tape foil (8.10 mm wide) as the first barrier, followed by tin copper braid or tin copper wrapped aluminum braid (8.70 mm wide). This setup has a return loss performance of ≥22 dB, which means it is better at blocking outside sources of interference that could lower the quality of the signal.
The outer jacket completes the safety system. It can be made of PVC, PE, or LSZH materials and has a width of 10.60 mm. These different clothing styles can be used in a range of settings, from normal indoor settings to outdoor settings that need UV protection or fire safety that meets ECE R118 standards.
Cellular infrastructure projects and the introduction of antenna systems come with their own set of problems that need tried-and-true answers. People like these specific cables because they can fix real-world speed problems that come up in current wireless networks.
Signal loss is a problem that keeps coming up in the design of RF systems. Most of the time, traditional solid dielectric cables cause too many losses, which hurt system performance and coverage areas. This problem is fixed by the foam polyethylene construction, which has lower dielectric constant qualities that keep signal degradation to a minimum across the operating frequency range.
With a capacitance of 83 pF/m, the impedance behavior is reliable, and the 50-ohm nominal resistance meets the standards for industry-standard equipment. This exact matching gets rid of the reflected losses that happen a lot at connection points and where cables change directions.
When cellphone base stations and antennas are set up outside, the cables are exposed to harsh weather. Changing temperatures, getting wet, and UV light can all hurt the performance of cables over time. The tough jacket choices and sealed construction make it reliable for a long time in these tough conditions, especially when using 8D-FB Coaxial Cable, which is designed to withstand these challenges effectively.
With a voltage withstand capable of 1300V, it is safe to use even in high-power transfer situations. This standard is especially useful for cellular amplification systems, where power levels can change depending on how much reach is needed and how busy the network is.
These days, wireless systems can work over a wider range of radio bands. The 8D-FB design keeps its electricity performance stable from DC to 6 GHz, so it can work with current cell phone bands and leave room for future technology improvements, such as 5G uses.
To make sure that the best cost-performance rates are used when making procurement choices, all of the available options must be carefully considered. Engineers can choose the best option for each application by knowing the differences between the different types of cables.
A comparison with RG-series lines shows that the 8D-FB has better absorption properties, especially at frequencies above 1 GHz. The foam dielectric design has real benefits in long cable runs where losses add up and have a big effect on how well the system works.
Compared to other LMR-400 options, the 8D-FB has comparable loss numbers and offers more freedom for installations that need to be able to bend with a small radius. This versatility comes in handy in equipment rooms that are already full and in tower setups where there isn't much room for cable handling.
The cost of buying good RF cables up front needs to be weighed against the benefits they will provide in the long run. When compared to cheaper options, higher-quality cables like the 8D-FB usually last longer and need less upkeep. When you look at the whole lifetime of the machine, this means a lower total cost of ownership.
In different placement situations, certain cable properties are more useful than others. For indoor spread antenna systems, flexibility and fire safety may be the most important things, while for outdoor base station setups, the most important things are weather resistance and UV stability. The different clothing choices make it possible to meet all of these different needs.
To do strategic buying, you need to know about both the technology needs and the supply chain issues. To make sure the job is a success, successful buying means looking at more than just the first price quotes.
Quality approvals are an important way to make sure that a product is reliable and meets all regulations. Getting ISO9001 and ISO14000 badges shows that you care about quality control and the environment. More agreement with CE, RoHS, and REACH standards makes sure that the product is accepted by regulators in all global markets, and the 8D-FB Coaxial Cable is no exception, meeting these high standards for quality and compliance.
Manufacturing capacity affects how reliably deliveries happen and how projects are scheduled. The facilities that make 150 km of cable every day and work in three shifts can handle big jobs and keep quality standards high. Digital management tools, such as ERP, MES, and OMS systems, make it possible to precisely track quality and control production.
Engineers often need to work together on complicated RF projects and come up with their own answers. Suppliers that offer separate research and development and patent files show that they have the technical know-how and ability to come up with new ideas. This is especially helpful when normal store items need to be changed to fit a certain purpose.
Procedures for testing and validating a product make sure it works well before it is released. All cables are thoroughly tested before they are sent out. This prevents problems during installation in the field that could slow down the project's finish. Quality assurance programs with contracts that last at least three years give you extra safety against broken goods.
The schedule for a project rest on shipping promises that can be kept. Standard wait times of 12 to 15 days are long enough for most planning needs, but if you need something quickly, you can speed up production and get it to you in 10 days or less. During the procurement phase, knowing about these skills keeps the plan from getting behind.
To build trusting relationships with suppliers, you need to carefully look at their skills and past performance. Because RF systems are so complicated, you need people who understand both the technology needs and the business goals.
Quality methods that cover everything are the first step to making great products. Full testing procedures are used by suppliers to make sure that every batch of their products meets environmental standards, electrical performance, and mechanical requirements. This methodical technique stops field breakdowns that could make the system less reliable, and 8D-FB Coaxial Cable is rigorously tested to ensure it performs flawlessly under these demanding conditions.
Certification compliance includes more than just basic safety rules. It also includes more specific rules that are needed for certain uses. Fire resistance testing according to ECE R118 makes sure that transportation and building code rules are followed, and testing can be done in a way that fits the needs of each individual project.
Standard store items might not meet all of your needs in every situation. For certain projects, suppliers that offer OEM and ODM services can make changes to the building, use special clothing materials, or come up with their own color schemes. When putting cables into complicated systems that have their own needs, this freedom comes in handy.
Working together as engineers during the planning step helps make sure that the cable specs are best for each application. Suppliers with a lot of experience can suggest the right building variations based on the climate, the frequency needs, and the installation limitations.
When RF projects go well, they often need to be maintained and expanded over time. Building ties with suppliers who offer regular product availability and expert help is the best way to make sure that future parts go smoothly. This is especially important for big setups that might need new cables or more space years after they were first put in place.
The quality of the connections that connect RF and radio systems is a key factor in how reliable they are. People trust the 8D-FB Coaxial Cable because it has been used in difficult situations like cellular infrastructure and high-precision test equipment and has always worked well. Its foam polyethylene dielectric structure, dual-layer shielding, and strong jacket choices make it possible for signals to be sent reliably. When used with the right provider, choosing one based on quality certifications, production capabilities, and technical support, these cables provide the consistent performance needed for RF operations to go smoothly.
A: From DC to 6 GHz, the 8D-FB cable keeps working well, so it can be used for most cellular bands, WiFi uses, and general RF test tools. The foam polyethylene insulator has very little loss over a very wide frequency range.
A: The cable is made with sealed designs that can handle changes in temperature, wetness, and outdoor contaminants, as well as jackets that are resistant to UV light. If you choose the right jacket, your radio placements and base station deployments will work reliably outside.
A: Full testing includes checking the resistance, measuring the attenuation, making sure the return loss is correct, and making sure the voltage can handle it. Every batch of cables from a good source is tested, and they provide proof paperwork that says the cables meet electrical and mechanical standards.
A: Yes, you can customize the jacket by choosing from different materials, colors, and lengths, and testing can be done specifically for your purpose. OEM and ODM features allow for improvement based on specific system or environmental conditions.
A: Professional-grade providers usually offer warranties that cover defective products and work for at least three years. When a product is broken, a good manufacturer will usually repair it for free and provide full expert help during the warranty time.
OTTO CABLE offers reliable 8D-FB coaxial cable options by combining decades of experience making RF cables with a wide range of quality standards. Our ISO9001-certified factories make 150 km of cable every day while keeping strict quality standards and offering quick lead times of 10 to 15 days.
We are a well-known company that makes 8D-FB coaxial cables. All of our goods come with full customization options, thorough testing, and guarantees that last at least 3 years. Get in touch with us right away to talk about the details of your project and get full technical paperwork that is made just for you.
