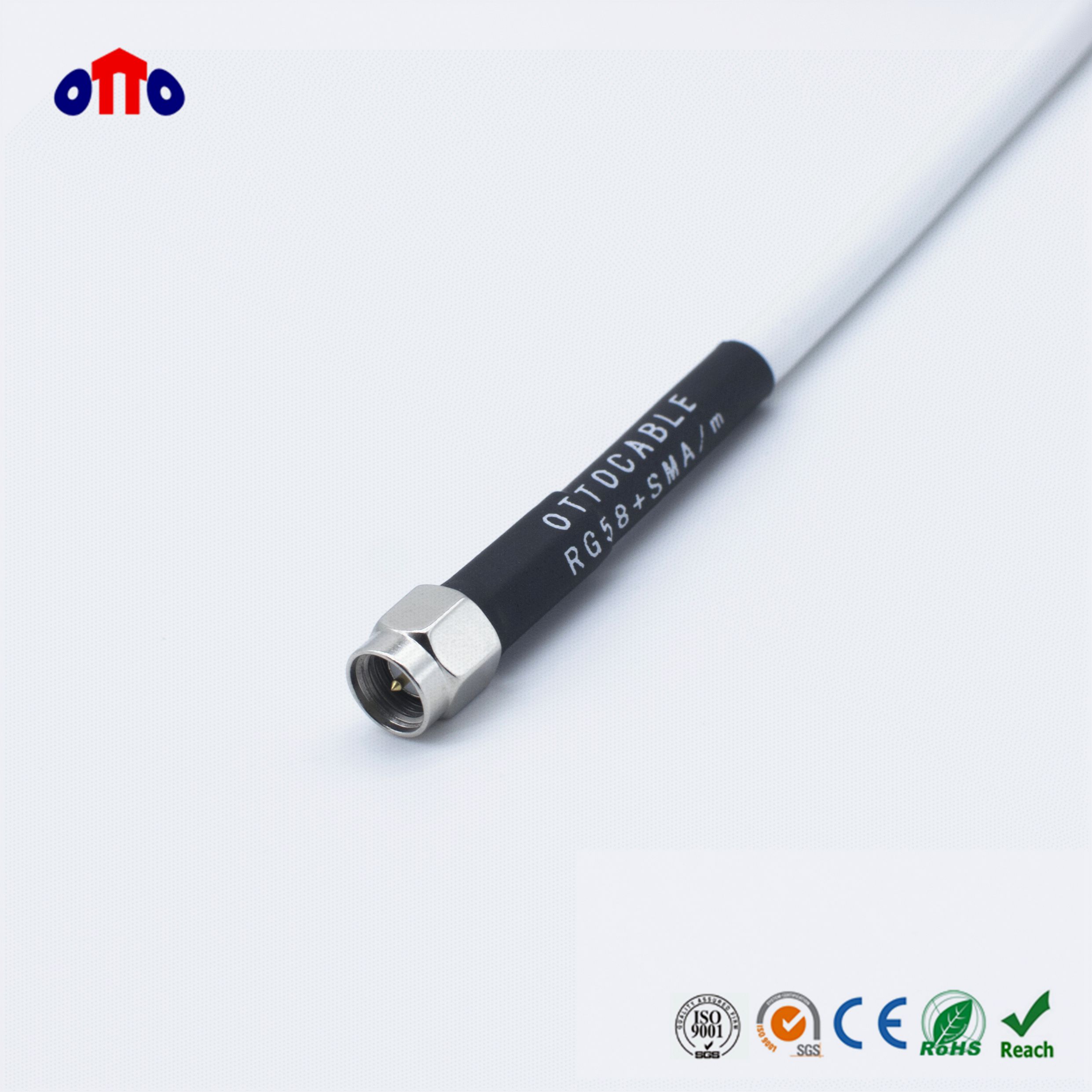

The RG58 Cable is a basic type of coaxial cable that is designed for low-power RF and wireless communication uses. This 50-ohm impedance cable is an important part of wireless systems because it has a stranded copper conductor, a solid polyethylene insulator, and copper braided protection to protect it. The cable makes it easier for signals to be sent between antennas, transceivers, and other RF parts. It does this while keeping the purity of the signals by having carefully controlled electrical properties and a strong build that is made for a variety of wireless communication settings.
The technology behind RG58 coaxial cable comes from the way it was carefully designed to match 50-ohm impedance across a wide range of cellular uses. If procurement managers and tech teams need solid RF connectivity options, they need to understand these specs.
RG58 cables are made up of several specialized layers that work together to send signals as efficiently as possible. Stranded bare copper, stranded copper-clad aluminum (CCA), or stranded copper-clad steel (CCS) are used in the inner conductor to make it flexible while still keeping its conductivity. This stranded design can bend around corners better than solid conductor options, which makes it perfect for mobile installs and situations where route is limited.
The dielectric layer is made up of solid polyethylene, which provides a stable dielectric constant and helps the cable move at a speed of 66%. This choice of material makes sure that the resistance stays the same even when the temperature changes, and it also keeps the signal loss low for long periods of time.
The electrical properties of RG58 cable have a direct effect on how well it works in wireless systems. The cable meets the standard requirements for RF devices because it has a typical impedance of 50 ohms and a capacitance of 101 pF/meter. The return loss requirement of ≥20dB makes sure that signals don't reflect too much, which stops standing wave problems that could hurt system performance.
Depending on the type, shielding can cover anywhere from 70% to 95% of the area. Either bare copper or CCA braiding can protect against electromagnetic interference. Higher insulation percentages provide better safety in places with a lot of electrical noise, which is why they are necessary for sensitive wireless uses.
The attenuation behavior of RG58 cable can be predicted across a range of frequency bands, but performance is best below 1 GHz generally. At VHF frequencies around 150 MHz, signal loss is usually between 6 and 8 decibels per 100 feet. At UHF frequencies around 450 MHz, signal loss is usually between 10 and 12 decibels per 100 feet.
Because it attenuates signals, RG58 is good for short to medium-length runs in wireless systems where freedom and low cost are more important than ultra-low loss. Knowing these limits helps engineers choose the right cable lengths and figure out when they need to use other low-loss connections.
To choose the best cable type, you need to know how RG58 Cable stacks up against other coaxial and networking cable choices. Based on its resistance, frequency response, and physical properties, each type of cable is best for a certain job.
RG58 is different from 75-ohm cables like RG59 and RG6 because it has a 50-ohm resistance. These cables are used for video and broadcasting. This difference in resistance makes it necessary to match in important ways that have a direct effect on system performance. Using 75-ohm connections in 50-ohm wireless systems causes major VSWR (Voltage Standing Wave Ratio) issues, which can lead to power loss and device damage.
RG174 has the same 50-ohm properties as RG58 but comes in a smaller diameter package. This makes it good for uses with limited room where flexibility isn't needed. RG174, on the other hand, can only be used for very short links or low-frequency tasks because its conductors are smaller, which makes them less effective.
RG8 and RG213 cables are better at handling power and have less loss than RG58 cables. This makes them the best choice for high-power emitters or long cable runs. While RG8 can handle several times as much power as RG58 and still lose less data, it does so at the cost of having a larger diameter and less freedom.
When choosing a cable, you have to think about how much power it can handle, how much loss it has, and how flexible it is mechanically. RG58 cables work great in situations where they need to be moved around a lot, installed in portable devices, or bent around tight corners, where bigger cables wouldn’t work.
RG58 is not at all like Cat5, Cat6, or other Ethernet lines; it is used for very different things. Ethernet cables send digital data using differential pairs, but RG58 cables handle analog radio frequency signals that need exact control of resistance and protection.
Coaxial links are often needed for radio feedlines, RF distribution, and test equipment connections in wireless systems where impedance matching and signal purity are very important. Ethernet lines can't be used instead of coaxial cables in these situations because their impedances don't match up and their RF protection isn’t good enough.
RG58 cables need to be in good shape and tested properly in order for wireless systems to work consistently. Testing on a regular basis finds possible problems before they affect the dependability of the system.
Continuity checking is the simplest way to make sure that the center cable stays electrically connected from one end to the other and that the shield is properly isolated. These tests can be done with a regular voltmeter, but specialized RF tools gives a more complete picture.
To make sure the cable keeps its 50-ohm characteristic impedance along its length, impedance testing needs special tools like time-domain reflectometers (TDR) or network analyzers. Changes in impedance can be caused by physical damage, water getting in, or mistakes in the manufacturing process that could make RF performance worse.
Water getting into RG58 cables is one of the biggest problems they can have because it changes the impedance qualities and greatly increases loss. Moisture-related problems can be avoided in outdoor setups by properly sealing connectors with the right weatherproofing materials.
Too much bending, compression, or strain on a cable can change its shape forever, which can change how it works electrically. Setting minimum bend radius standards and using the right strain release methods can help keep mechanical damage from happening during service and installation.
To install a connection correctly, you need to pay close attention to how the shield is terminated and how the center cable is prepared. When shield connections aren't done right, ground loops form and electromagnetic interference security is lowered. Also, a middle conductor that isn't the right length can change the impedance matching at the connector interface.
Visual checks done on a regular basis can find early signs of harm to the jacket, corrosion in the connectors, or physical stress that could affect the electrical performance. Setting up inspection schedules based on the surroundings and how the system is used can help keep important wireless systems from breaking down without warning.
To successfully buy RG58 cable, you need to know what the seller can do, what the quality standards are, and how much the whole thing will cost, not just the initial purchase price. Strategic methods to buying meet the best needs for both short-term and long-term operations.
Quality licenses like ISO 9001, RoHS compliance, and UL listings show that the maker is dedicated to making sure that the standards of output are always met. In fields like aerospace, defense, and medicine, where a broken cable could have dangerous effects, these licenses become very important.
Suppliers can meet the needs of particular projects by making cables in tailored lengths, with different ways to terminate them, and from special jacket materials. When suppliers offer pre-terminated parts, installation time is cut down and quality issues related to field termination are eliminated.
Understanding how prices are set can help you make better decisions about what to buy for projects of all sizes. Volume price usually lowers costs a lot for big projects, but custom standards may come with extra costs that affect how much money is budgeted.
When you figure out the total cost of ownership, you should include the labor costs for fitting, the costs of tests, and the expected service life. Better shielding and building in higher-quality cables may be worth the extra cost over time because they require less upkeep and are more reliable.
Lead time needs change a lot from one provider to the next. Usually, standard configurations can be delivered faster than custom specs. Planning procurement plans around project goals keeps things on track and cuts down on the costs of speeding things up.
With the right shipping methods and paperwork, global supply chain skills let suppliers help with foreign projects. International setups can go more smoothly if you know about the rules for customs and shipping.
Choosing well-known makers with a history of producing good products greatly lowers the risks of getting fake goods and inconsistent quality. Reputation and licenses show how well a company can make things and how committed they are to quality standards. The same goes for RG58 Cable, which is trusted for its reliability and consistent performance in a variety of applications.
Manufacturers with a good reputation have thorough quality control systems that make sure that the same characteristics are found in all production lots. ISO 9001 certification shows that quality control is done in a planned way, while industry-specific certifications like MIL-SPEC compliance show that the product can meet strict performance standards.
Electrical and mechanical specs can be checked by a third party through testing and approval by well-known labs. These test reports give purchasing managers clear proof that the product meets the stated requirements.
Longer warranty terms show that the maker trusts the product's reliability and protect against breakdowns that happen too soon. Most of the time, comprehensive warranties cover both material flaws and performance degradation. This lowers the total cost of ownership for important uses.
Technical support services, such as application engineering help and problem-solving in the field, add a lot of value after the product is bought. Manufacturers with expert teams with a lot of knowledge can give advice on how to put things correctly and fix problems.
Fake connections are very dangerous to the safety and performance of wireless systems because they are often made of low-quality materials and aren’t built to last in normal use. To keep customers safe from fake goods, reputable companies use tracking methods like serialization, holographic marks, and verification systems.
Procurement teams should build ties with approved wholesalers and set up processes for getting inspections to make sure the products are real. Reviewing licenses and test reports along with other paperwork helps find questionable goods before they are installed.
For radio communication systems that need flexible, low-cost RF connection, RG58 Cable is still a safe choice. When you combine its 50-ohm resistance with its solid polyethylene dielectric construction and copper braided shielding, it works consistently in a wide range of settings, from mobile radio setups to lab tests. For implementation to go well, you need to know the cable's electrical specifications, how to test it correctly, and how to choose reputable makers who offer quality guarantee through certifications and support services. Instead of just looking at the starting cost, it's better for the procurement process to judge suppliers based on their ability to make things, their track record with deliveries, and their specialized knowledge.
A: RG58 works best below 1 GHz, but it can also work well up to about 2.4 GHz for small cable runs of less than 3 meters. Higher frequencies cause a lot more attenuation, so low-loss options like LMR-195 work better for microwave uses.
A: No, RG58 and RG59 have different impedances (50 ohms and 75 ohms, respectively). When you use RG58 instead of RG59, the impedances don't match, which leads to signal reflections and worse performance in video and television systems that are built to work with 75-ohms.
A: How much power it can handle varies on the frequency and temperature of the environment. RG58 can usually handle 500 to 600 watts at high frequencies around 30 MHz. For VHF uses around 150 MHz, this drops to about 300 watts. If you go over these limits, the insulator could break down and cause lasting damage.
A: Real RG58 has the right markings that show the maker, specs, and certifications. A visual check should show uniform jacket quality, adequate shield covering, and correct conductor size. Buying from approved sellers and asking for proof of certification can help you be sure that the product you're buying is real.
With high-quality coaxial cables designed for tough wireless uses, OTTO CABLE is your reliable RG58 Cable maker. Our manufacturing methods are ISO 9001 approved, which means they always have the same 50-ohm impedance and work reliably in military, aircraft, and telecommunications setups. With a wide range of certifications, such as CE, RoHS, and REACH compliance, our RG58 cables meet strict international standards and offer great value by being priced competitively and delivered quickly. Email us to talk about your unique needs and find out how our custom solutions can improve the performance of your wireless system.
1. Institute of Electrical and Electronics Engineers, "IEEE Standard for Coaxial Cable Specifications," IEEE Standards Association, 2019.
2. Military Specification MIL-C-17, "Radio Frequency Coaxial Cable, Flexible," Department of Defense Standard, 2018.
3. Electronic Industries Alliance, "Commercial Building Standard for Telecommunications Pathways and Spaces," TIA-569-D, 2015.
4. International Electrotechnical Commission, "Coaxial Communication Cables - Part 1: Generic Specification," IEC 61196-1, 2017.
5. Society of Cable Telecommunications Engineers, "RF Transmission Systems and Equipment Performance Standards," SCTE Technical Standards, 2020.
6. Telecommunications Industry Association, "Coaxial Cable Standards for Wireless Communication Systems," TIA-TSB-5021, 2016.
