What Are Cat7 Cables?

Are you ready to elevate your network performance? Cat7 cables are revolutionizing how we connect.

These advanced cables offer superior speed and reliability compared to older standards like Cat5 and Cat6.

In this post, you’ll learn about the unique features of Cat7 cables, their importance in today’s networking, and insights from leading manufacturers like Otto Cable Technology.

Introduction to Cat7 Cables

What is a Cat7 Cable?

A Cat7 cable is a type of high-performance Ethernet cable designed for advanced networking. It’s defined by the ISO/IEC 11801 standard as Class F, which means it can support data transmission speeds of up to 10 Gbps over distances of 100 meters. The cable features four pairs of individually shielded twisted wires, minimizing interference and ensuring stable signal quality.

Key Features of Cat7 Cables:

● Speed: Capable of handling up to 10 Gbps.

● Bandwidth: Supports frequencies up to 600 MHz.

● Shielding: Uses S/FTP construction for enhanced protection against electromagnetic interference (EMI).

Brief History and Development of Cat7 Cables

Cat7 cables were introduced in the early 2000s as a response to the growing demand for faster and more reliable network connections. As technology evolved, so did the need for cables that could support higher data rates and bandwidths. Cat7 cables were engineered to address these requirements, offering significant improvements over their predecessors.

Why are Cat7 Cables Important?

In today’s digital world, the demand for high-speed internet and reliable connections is at an all-time high. Cat7 cables play a crucial role in meeting these needs. They are particularly important for environments where data traffic is heavy, such as data centers, enterprise networks, and smart homes.

Importance in Modern Networking:

1.  High-Speed Data Transfer: Cat7 cables support faster data transmission, making them ideal for applications like streaming and gaming.

2.  Reduced Interference: Their advanced shielding technology minimizes interference, ensuring stable connections.

3.  Future-Proofing Networks: As technology progresses, Cat7 cables provide the bandwidth necessary for upcoming advancements in networking.

Comparison with Previous Cable Categories

When comparing Cat7 cables to earlier standards like Cat5, Cat6, and Cat6a, the differences become clear.

Cat7 cables not only match the speeds of Cat6a but also exceed its bandwidth capabilities. This makes them a superior choice for high-demand applications.

Leading Brands Manufacturing Cat7 Cables

Several companies specialize in producing high-quality Cat7 cables. One notable brand is Otto Cable Technology, known for its commitment to quality and compliance with international standards such as CE, RoHS, and REACH. Otto Cable’s Cat7 products are designed to meet the rigorous demands of modern networking environments, providing customers with reliable and efficient solutions.

By choosing reputable brands like Otto Cable, users can ensure they are investing in durable and high-performance networking solutions.

Technical Specifications of Cat7 Cables

Speed and Bandwidth

Cat7 cables are designed for high-speed data transmission, making them ideal for demanding networking environments. They can support maximum data transmission speeds of up to 10 Gbps over a distance of 100 meters. In specialized setups, these cables can even reach speeds of 40 Gbps at 50 meters and 100 Gbps at 15 meters, showcasing their impressive capabilities.

Bandwidth Capabilities

The bandwidth of Cat7 cables can reach up to 600 MHz, which is significantly higher than that of previous cable categories. This enhanced bandwidth allows for more data to be transmitted simultaneously, reducing latency and improving overall network performance.

Structural Design

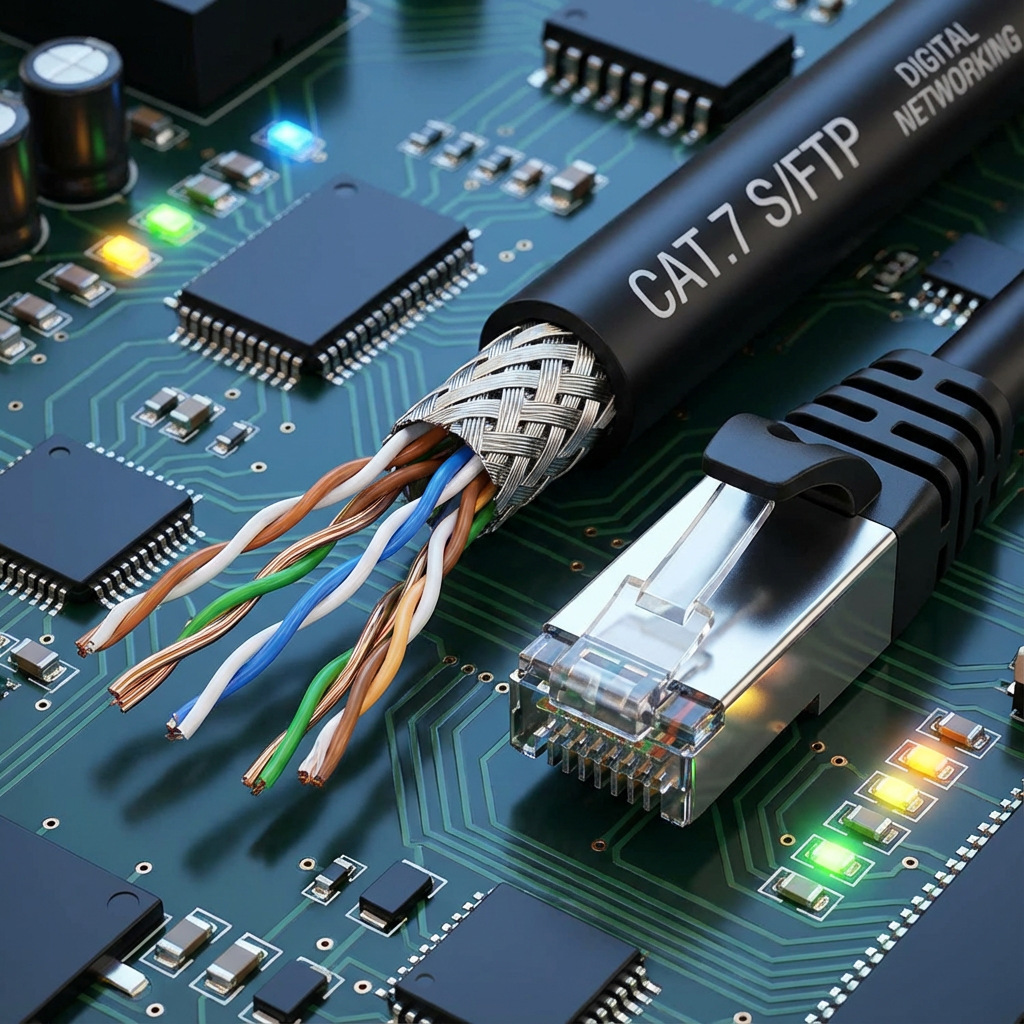

The structural design of Cat7 cables is a key factor in their performance. Each cable consists of four pairs of twisted wires, which are individually shielded. This design minimizes electromagnetic interference (EMI) and ensures stable signal quality.

Description of Twisted Pairs and Shielding

● Twisted Pairs: Each pair of wires is twisted together to reduce crosstalk and improve data integrity.

● Shielding (S/FTP): The S/FTP (Shielded Foiled Twisted Pair) construction means each pair is shielded, and there is an additional overall shield. This multi-layer shielding effectively protects against external interference, making Cat7 cables suitable for high-interference environments.

Connectors and Compatibility

Cat7 cables utilize specific connectors to ensure optimal performance. The most common types include RJ45, GG45, and TERA connectors.

Backward Compatibility

One of the advantages of Cat7 cables is their backward compatibility. They can work seamlessly with lower-category cables like Cat5, Cat5e, and Cat6. This feature allows users to upgrade their networks without completely overhauling existing infrastructure.

Otto Cable Offerings

Leading manufacturers like Otto Cable Technology provide a range of Cat7 cables that meet international standards. Their products are designed to deliver high performance while ensuring compliance with regulations like CE and RoHS. Otto Cable’s Cat7 solutions are tailored for various applications, ensuring users can find the right fit for their networking needs.

By investing in high-quality Cat7 cables from reputable brands, users can enhance their network performance significantly.

Performance Metrics of Cat7 Cables

Distance and Signal Quality

When it comes to performance, the distance a Cat7 cable can maintain optimal signal quality is crucial. These cables can effectively transmit data over a maximum distance of 100 meters while still delivering impressive speeds of up to 10 Gbps. Beyond this distance, however, signal degradation can occur, leading to slower speeds and potential data loss.

Signal Degradation and Interference

Signal degradation is often caused by factors such as cable length, environmental conditions, and interference from other electronic devices. For instance, longer runs may experience more attenuation, which weakens the signal. To combat this, Cat7 cables are designed with advanced shielding to maintain signal integrity even in challenging conditions.

EMI and RFI Protection

One of the standout features of Cat7 cables is their ability to minimize electromagnetic interference (EMI) and radio frequency interference (RFI). This capability is essential in environments where multiple devices operate simultaneously, such as offices and data centers.

How Cat7 Cables Minimize Electromagnetic Interference

Cat7 cables use a combination of twisted pairs and extensive shielding to reduce EMI. Each pair is individually shielded, and there is an overall shield that protects against external noise. This design ensures that the data transmitted remains clear and uninterrupted, even in high-interference settings.

Importance of Shielding in High-Interference Environments

In high-interference environments, such as industrial settings or areas with numerous electronic devices, the importance of shielding cannot be overstated. Effective shielding not only protects against interference but also enhances overall network reliability. This is why Cat7 cables are often recommended for critical applications where consistent performance is necessary.

By utilizing Cat7 cables, users can ensure a robust and reliable network, capable of handling high data rates without compromising on quality or performance.

Applications of Cat7 Cables

Ideal Use Cases

Cat7 cables are designed for high-performance applications, making them suitable for various environments. Their advanced specifications make them a top choice for several key areas:

Data Centers and Enterprise Networks

In data centers, where large amounts of data are processed and transferred, Cat7 cables provide the necessary speed and reliability. They support high bandwidth and minimize latency, which is essential for server-to-server communication. For instance, Otto Cable’s Cat7 cables are frequently used to connect servers and switches, ensuring optimal performance under high load.

Industrial Settings and Smart Homes

In industrial environments, Cat7 cables excel due to their robust shielding against electromagnetic interference. This makes them ideal for factories and manufacturing plants where machinery operates. Additionally, in smart homes, these cables are perfect for connecting devices like smart TVs, gaming consoles, and home automation systems, providing seamless connectivity for high-definition streaming and gaming.

High-Performance Gaming and 4K Streaming

Gamers and streaming enthusiasts benefit greatly from Cat7 cables. They allow for ultra-fast data transfer rates, which reduce lag and buffering. Whether it’s for online gaming or streaming 4K content, using Cat7 cables ensures a smooth experience. The high bandwidth capabilities mean multiple devices can operate without impacting performance.

Comparative Analysis

When comparing Cat7 cables to other categories like Cat6a and Cat8, the differences become evident.

When to Choose Cat7 Over Other Categories

Choosing Cat7 over Cat6a is ideal when you need higher bandwidth for applications like 4K streaming or when setting up a data center. While Cat8 offers even higher speeds, it might be overkill for typical home or small business needs. Cat7 provides a balance of performance and cost, making it a smart choice for many users.

By understanding these applications and comparisons, users can make informed decisions when selecting the right Cat7 cables for their specific needs.

Installation and Maintenance of Cat7 Cables

Installation Guidelines

Installing Cat7 cables requires careful planning to ensure optimal performance. Here are some best practices to follow:

1.  Plan Your Layout: Before installation, map out where the cables will run. This helps minimize unnecessary bends and ensures efficient routing.

2.  Avoid Sharp Bends: Cat7 cables are sensitive to sharp bends. Maintain a bending radius of at least four times the cable diameter to prevent signal loss.

3.  Use Quality Connectors: Ensure that high-quality connectors compatible with Cat7 specifications, such as RJ45 or GG45 connectors, are used to maintain connection integrity.

Common Pitfalls to Avoid

● Ignoring Cable Length Limits: Exceeding the maximum distance of 100 meters can lead to significant signal degradation. Always measure your runs accurately.

● Neglecting Shielding: Cat7 cables have advanced shielding. Avoid stripping too much insulation, which can expose the shielding and reduce performance.

● Overloading Cable Paths: Running too many cables in a single conduit can cause overheating and signal interference. Keep pathways organized and manageable.

Maintenance Tips

Maintaining your Cat7 cables is essential for ensuring longevity and performance over time. Here are effective maintenance strategies:

● Regular Inspections: Check cables periodically for signs of wear or damage. Look for frayed ends or kinks, which can affect performance.

● Keep Cables Clean: Dust and debris can accumulate on connectors. Regularly clean connectors with a soft, dry cloth to maintain a good connection.

● Avoid Excessive Force: When connecting or disconnecting cables, avoid using excessive force, as this can damage the connectors and the cable itself.

Troubleshooting Common Issues

If you encounter issues, here are some common problems and solutions:

By following these installation and maintenance guidelines, users can maximize the performance of their Cat7 cables, ensuring reliable connectivity for years to come.

Future of Cat7 Cables

Evolving Standards in Networking

The landscape of networking is constantly evolving, and Ethernet standards are no exception. Over the years, we've seen significant advancements, from the early days of 10 Mbps Ethernet to the current capabilities of 10 Gbps and beyond. As technology progresses, we can expect even more changes, including potential new standards that could redefine how we think about data transmission.

Discussion on the Evolution of Ethernet Standards

Ethernet standards have progressed through various phases, each improving speed, bandwidth, and reliability. For instance, the introduction of Cat6a and Cat7 cables brought higher bandwidth capabilities, which were essential for supporting data-heavy applications. As we look ahead, standards like 25GBASE-T and 40GBASE-T may become more prevalent, pushing the boundaries of what Cat7 cables can achieve.

Potential Advancements and Future Developments

Future developments may include enhancements in cable materials and design, leading to even better performance. Innovations such as improved shielding techniques could further reduce electromagnetic interference, making Cat7 cables even more reliable in high-demand environments. Additionally, advancements in connector technology could enhance compatibility with future networking devices.

Role of Cat7 in Upcoming Technologies

As new technologies emerge, Cat7 cables will play a crucial role in their implementation. The rise of the Internet of Things (IoT) and 5G networks presents exciting opportunities for Cat7 cables to support these advancements.

Integration with Emerging Technologies

IoT devices require robust and reliable connections to function effectively. Cat7 cables, with their high-speed capabilities and minimal interference, are well-suited for connecting a multitude of devices in smart homes and industrial settings. Similarly, the rollout of 5G technology will demand high-performance cabling to support the increased data traffic and low latency requirements.

Predictions for Cat7 Cables in the Next Decade

Looking ahead, we can expect Cat7 cables to remain relevant as networking demands increase. They will likely serve as a vital component in the infrastructure supporting smart cities, autonomous vehicles, and advanced telecommunications. As organizations upgrade their networks to accommodate these technologies, Cat7 cables will be at the forefront, ensuring seamless connectivity.

By understanding the future trajectory of Cat7 cables, users can make informed decisions about their networking needs and prepare for the advancements on the horizon.

Conclusion

Cat7 cables are advanced networking solutions designed for high-speed data transmission. They support up to 10 Gbps speeds and offer excellent shielding against interference.

These cables are ideal for data centers, smart homes, and high-performance gaming. As technology evolves, Cat7 cables will remain essential for future networking needs.

Consider Cat7 cables for a reliable, future-proof solution. Otto Cable is a trusted source for high-quality Cat7 cables.

FAQ

Q: What are the main differences between Cat7 and Cat6 cables?

A: Cat7 cables support higher speeds (up to 10 Gbps) and greater bandwidth (600 MHz) compared to Cat6 cables (1 Gbps and 250 MHz).

Q: Are Cat7 cables worth the investment?

A: Yes, they provide superior performance, reduced interference, and future-proofing for high-demand applications.

Q: Can I use Cat7 cables for residential purposes?

A: Absolutely! Cat7 cables are ideal for smart homes, gaming, and streaming.

Q: What is the cost range for Cat7 cables?

A: Cat7 cables typically range from $20 to $100, depending on length and quality.

Q: How do I choose the right Cat7 cable for my needs?

A: Consider factors like length, shielding type, and compatibility with your devices.
