Views: 5 Author: Site Editor Publish Time: 2026-03-13 Origin: Site
RG8 Cable serves as the backbone for reliable mobile and base station antenna systems. It ensures strong signal transfer, which is important for communication engineers and buying pros. This heavy-duty cable option solves important performance problems in wireless infrastructure by offering high power handling, low signal loss, and excellent rejection of electromagnetic interference. RG8 Cable is an important part of cellular networks, radio stations, and industrial wireless applications because it matches 50-ohm resistance and has an advanced shielding design that keeps signals safe even in harsh communication environments.
RG8 coaxial wire is a major step forward in radio frequency transmission technology. It was first created to meet the needs of growing high-power communication systems, as required by military standard MIL-C-17. This special transmission medium is better at carrying radio data than regular consumer-grade cables like RG6 used in cable TV uses. It also has great electrical performance qualities.
The engineering design of RG8 wire includes a complex multi-layer structure that sends signals reliably over a wide range of frequencies. The inner conductor is usually made of bare copper or copper-clad metal, which is very good at conducting electricity while still being flexible enough for placement. This center conductor is surrounded by a foam polyethylene dielectric material that has better insulation qualities and a velocity of propagation rate of 86%, which makes signal transfer much faster than with solid dielectrics.
The dual shielding method uses aluminum tape foil as the main protection against electromagnetic interference. Tin copper braid or aluminum braid is then used as the secondary shielding. This complete security system blocks outside noise very well, which is very important for keeping signals clear in RF settings with a lot of noise. The top jacket, which can be made of PVC, PE, or LSZH, protects against mechanical damage and can be installed in a variety of ways and in a variety of environments.
RG8 wire always has a 50-ohm characteristic impedance, which is important for antenna systems that need to move power efficiently and have a low voltage standing wave ratio (VSWR). The 75 pF/m capacitance rating makes sure that the frequency response stays stable across the working bandwidth. The 300 V RMS maximum voltage rating gives enough safety margins for high-power transmission uses. The return loss standard of ≥20 dB shows that the impedance stays very stable along the length of the wire.
RG8 cable performance is very important for modern transmission systems in a wide range of situations. Cables that can handle high-frequency data with little loss are great for cellular base stations and mobile communication networks because they provide wireless communication. The strong construction can handle the mechanical stresses that come with installing towers and putting up mobile antennas.
The low loss of RG8 wire makes it ideal for short antenna feeder uses because it ensures the best signal transfer between transceivers and radiating elements. It can be used for GPS systems, land mobile radio (LMR) networks, wireless local area networks (WLAN), wireless internet service providers (WISP), WiMax deployments, SCADA systems, and mobile antenna installations because it is flexible and long-lasting.
To choose the right type of RG8 cable, you need to carefully look at the system needs, the surroundings, and the performance goals. Professionals in procurement have to look at a lot of different technical factors to make sure that the products they buy work well, are cost-effective, and will last for a long time.
Before making a choice, all the system requirements must be carefully looked at, paying special attention to the frequency range, power levels, and transfer distance. When it comes to loss, UHF and VHF mobile communication systems need different properties than microwave uses. Base station installations usually need cables that can handle more power, so it's important to carefully check the cable's thermal management qualities and voltage breakdown limits.
Environmental factors are very important when choosing cables, especially for locations outside that will be subject to high temperatures, moisture, and UV rays. Choosing the right jacket material is important for making sure it works well over time. LSZH options are best for indoor setups where fire safety rules apply, while PE jackets are better for outdoor uses because they can handle the weather better.
Getting the best impedance matching along the whole transmission line cuts down on signal echoes and improves the efficiency of power transfer. The steady 50-ohm impedance of RG8 wire makes it work well with most antenna sets and RF equipment. The frequency response characteristics must match the practical bandwidth needs to make sure stable performance over the whole range of interest.
Knowing the changes in performance between RG8 and other types of coaxial wires helps you make smart purchases. RG58 wires have a smaller width and more flexibility, but they can't handle as much power and lose more signal over longer distances. RG213 wires have the same electrical properties as RG8 cables, but they can handle bad weather better thanks to better jacket materials.
LMR-400 wires have better low-loss performance, especially at higher frequencies, but they cost more and need to be installed in a certain way. In broadband uses, RG11 cables work great, but they might cause impedance mismatches in 50-ohm systems made for amateur radio and business communication.
Procurement strategies that work well weigh the original costs of cables against their long-term operating benefits. Premium low-loss cables may cost more up front, but because they don't lose as much data, you may not need any extra tools to boost the sound, which saves money on the total cost of the system. Buying in bulk can save you a lot of money on large-scale deployments, especially when you have to coordinate buying across multiple project stages.
Correct construction methods and regular repair schedules have a direct effect on how well a system works and how long its parts last. Standardized processes must be put in place by engineering teams to keep signal loss to a minimum and to keep cables from breaking early, which could disrupt important communication services.
Planning the way and evaluating the surroundings are the first steps to installing cables successfully. The construction path should keep people from coming into contact with sharp edges, moving too much, and other things that could cause mechanical stress. Cable passing through ducts, cable trays, and support structures necessitates close attention to the minimum bend radius requirements to avoid differences in dielectric compression and impedance.
When installing something outside, where water can damage the material and make it less effective, weather-proofing becomes very important. Long-term dependability depends on choosing the right connectors and installing them correctly, paying special attention to matching the resistance and making sure the connectors are stable under wind loading and temperature changing.
To get the best signal transfer, you have to pay close attention to how you place the connectors and handle the cables. Using the wrong crimping or gluing methods on connectors can cause big impedance gaps, which raises VSWR and lowers system efficiency. Specialized fitting tools make sure that the connectors are always attached correctly while keeping the electrical properties of the wire.
Electromagnetic interference sources, such as power lines, fluorescent lights, and electrical equipment, should be avoided at all costs during wire routing. Using the right grounding methods and making sure that the protection stays in place throughout the installation stops ground loops and makes it less vulnerable to interference from outside sources.
Preventive repair plans make sure that cables work the same way for as long as they are used. Visual checks done on a regular basis find problems like damaged jackets, corroded connectors, and weakening support structures before they affect how the system works. Using time-domain reflectometry (TDR) and vector network analyzers for electrical testing gives a quantitative measure of performance, which lets you repair damaged connections before they get worse.
Environmental tracking systems keep an eye on high temperatures, amounts of moisture, and mechanical stress factors that could make cables age faster. Keeping records of installation details, test results, and upkeep tasks helps with troubleshooting and makes it easier to file a guarantee claim when something fails early.
To get things done in the complicated world of buying, you need to know about suppliers' skills, how they set prices, and how they make sure quality. Evaluating suppliers is an important part of good buying management because it affects both the short-term success of a project and its long-term costs.
The price of RG8 cable changes a lot depending on the quality of the construction, the approval standards, and the number of cables that are ordered. When you figure out the cost-per-foot, you have to include the total cost of installation, which includes fittings, labor, and any tests that need to be done. A lot of the time, bulk buying programs offer big price cuts, especially for standard wire lengths and connector types.
To make custom specifications, the minimum order quantity (MOQ) is usually between 1,000 and 5,000 meters. Standard goods may have more buying choices. Long-term framework deals keep prices stable and give priority during times of high demand. This is especially helpful for projects with multiple stages that last for years.
Some of the best known makers, like Belden, Times Microwave, and CommScope, are known for consistently high quality and new technology. Most of the time, these providers offer full professional support, which can include help with application engineering and the ability to make custom products. Product approvals like UL listing, RoHS compliance, and military specs make sure that the quality is good and that the product meets all the rules.
New providers may be able to offer reasonable prices while still keeping good quality, especially for standard uses that don't need high-end performance features. When evaluating a supplier, you should look at their producing skills, quality control methods, and customer service systems to make sure that you can always get products and expert help.

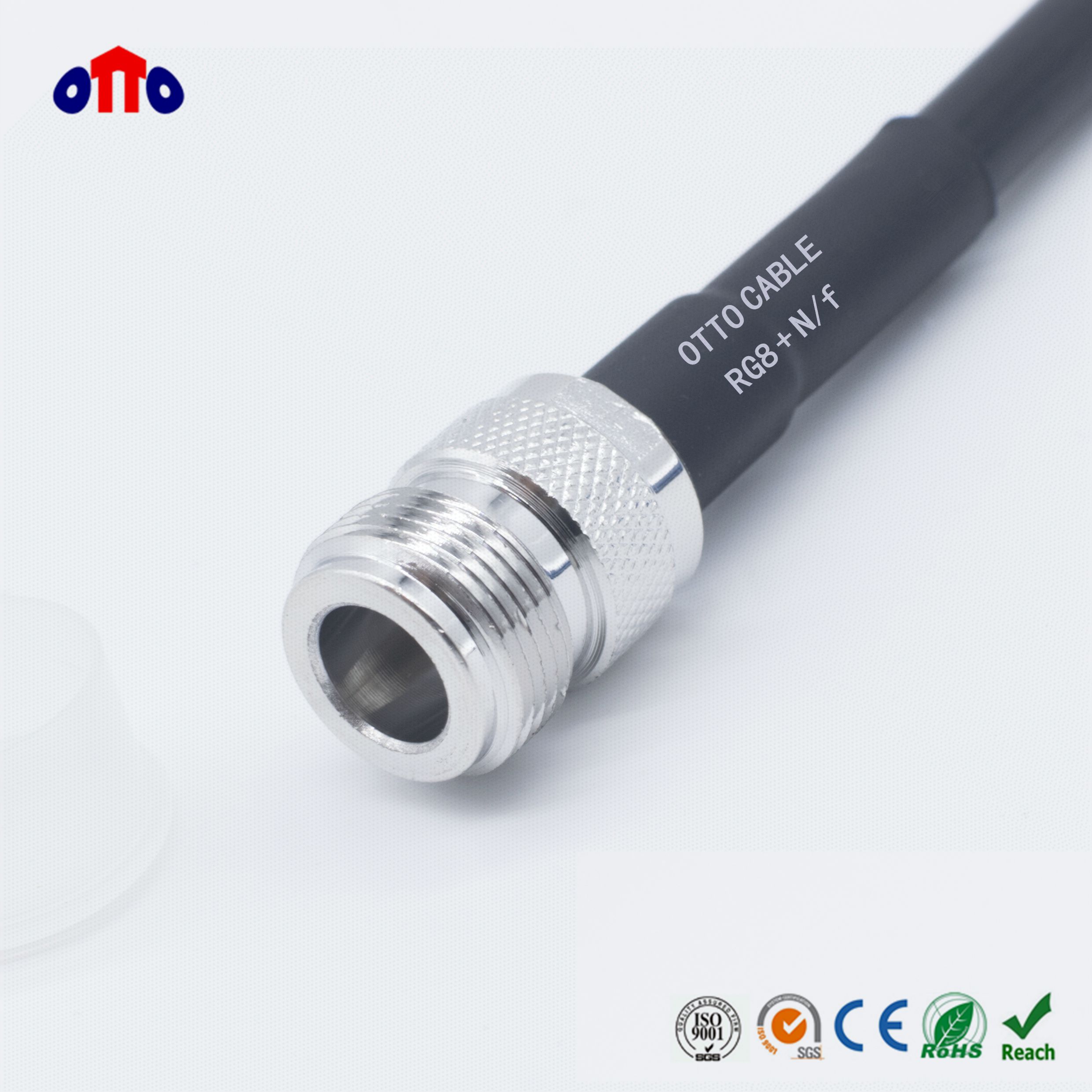

Field termination is not needed for pre-terminated wire assemblies, which also make sure uniform electrical performance and weather sealing. Custom length choices make the best use of materials and simplify installation, especially for uses that need exact wire lengths to keep signal reflections to a minimum. Options that are fire-resistant and low-smoke meet certain government rules for setups inside of businesses and schools.
In addition to the cost of the product itself, technical support services like application planning, installation training, and help with field testing add a lot of value. Quality assurance and legal compliance checks are made easier when suppliers provide full paperwork, such as test certificates and installation instructions.
RG8 Cable is still an important part of mobile and base station radio systems because it provides the reliable performance that today's communication infrastructure needs. Its excellent electrical qualities, such as matching 50-ohm impedance, low signal loss, and high shielding efficiency, make it the best choice for mission-critical uses. The cable can be used in a lot of different situations, such as wireless communication systems, GPS networks, and mobile antenna installations. This makes it a reliable option for procurement workers who need to meet a wide range of technical needs while also keeping costs low and stability high over time.
RG8 Cable works great in base station settings because it can handle a lot of power (up to 1.5 kW at HF bands), doesn't lose signal strength easily, and is built to last. The dual shielding system blocks electromagnetic interference well, and the 50-ohm impedance makes sure that it works well with standard RF equipment found in radio and cell phone setups.
When it comes to mobile messaging, RG8 Cable works much better than RG58 Cable, especially when it comes to handling power and signal loss. RG58 is more flexible and has a smaller diameter, but RG8 has a bigger conductor and better shielding, which means it works better in high-power uses like those found in mobile base stations and lower loss over long cable runs.
Important installation factors include keeping the bend radius as small as possible to avoid dielectric compression, making sure the connectors are installed correctly to maintain impedance continuity, and making sure the connections are properly sealed against the weather for outdoor use. While proper grounding methods ensure maximum shielding effectiveness, cable route should reduce exposure to interference sources and mechanical stress.
OTTO CABLE is ready to help you with your antenna system projects by providing the best RG8 Cable options, which are designed to work better and last longer. Our wide range of production skills, backed by ISO9001 and ISO14000 certifications, guarantee stable quality that meets the tough needs of mobile and base station applications. Our engineering team has more than 20 years of experience developing 50-ohm RF cables. They can help you with your project by giving you technical advice and making changes to the cables to fit your needs. Contact us to talk about your needs with our skilled RG8 Cable manufacturer team and find out how our advanced manufacturing processes, strict quality control, and 3-year warranty commitment can improve the reliability of your communication infrastructure while lowering the costs of your project.
1. Institute of Electrical and Electronics Engineers. "IEEE Standard for Coaxial Cable Specifications for Radio Frequency Applications." IEEE Standards Association, 2019.
2. Federal Communications Commission. "Guidelines for RF Cable Performance in Mobile Communication Systems." FCC Technical Bulletin, 2021.
3. Telecommunications Industry Association. "ANSI/TIA-568-C.1 Commercial Building Telecommunications Cabling Standard." Arlington: TIA, 2020.
4. International Electrotechnical Commission. "IEC 61196-1 Coaxial Communication Cables - Part 1: Generic Specification." Geneva: IEC Publications, 2018.
5. Society of Cable Telecommunications Engineers. "RF Cable Testing and Performance Verification in Antenna Systems." SCTE Technical Manual, 2022.
6. National Institute of Standards and Technology. "Measurement Techniques for Radio Frequency Coaxial Cables in Communication Applications." NIST Special Publication 500-295, 2020.
