Views: 2 Author: Site Editor Publish Time: 2026-03-05 Origin: Site

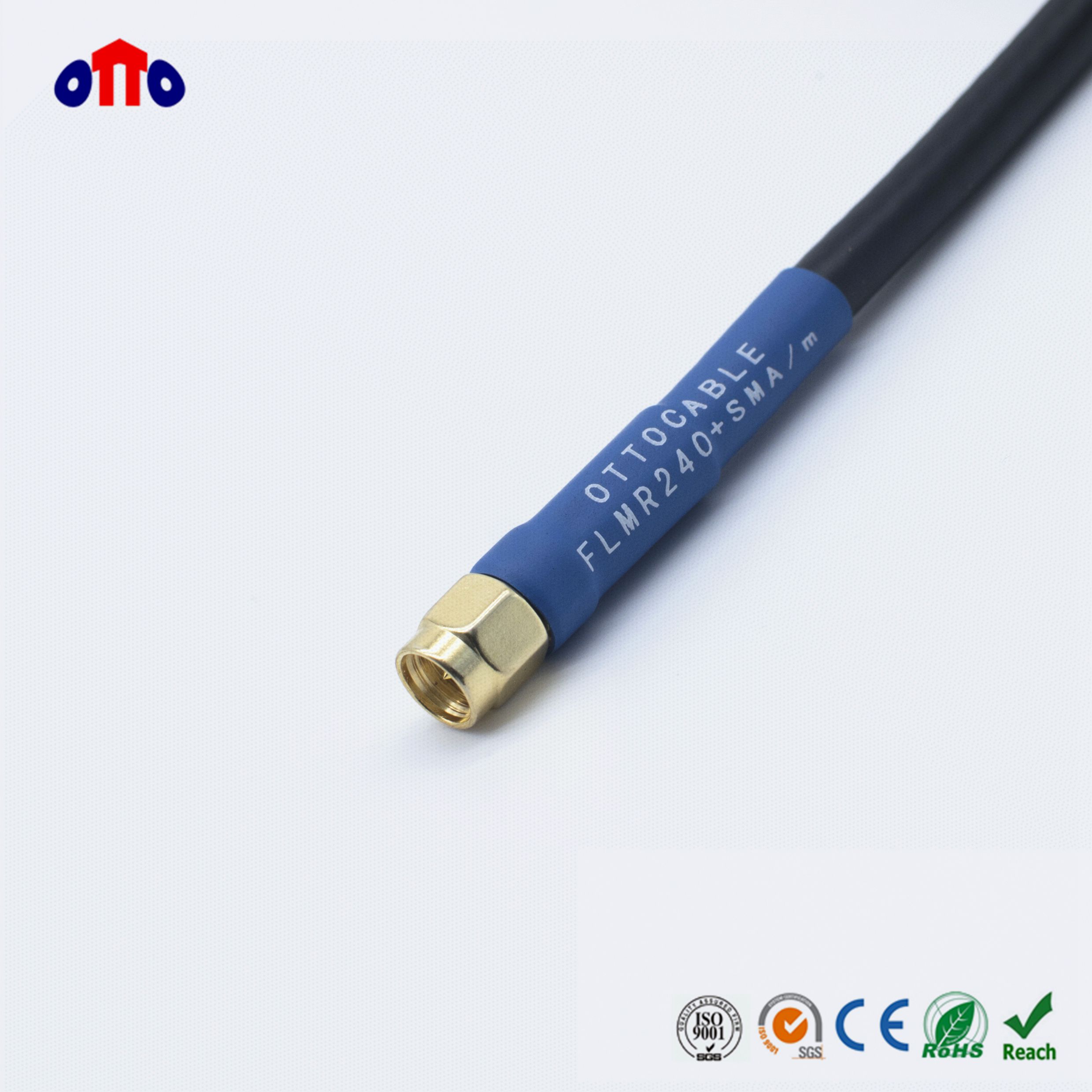

The OCT240 Cable is a big step forward in antenna connection technology. Its unique double-screen structure and foam dielectric design make the signal very stable. This improved coaxial cable, which is the same as LMR240, solves important problems in wireless communications by reducing signal loss and improving defense against electromagnetic interference. With its strong aluminum foil and tinned copper braid protection, OCT240 guarantees reliable performance in tough industrial settings while keeping the stable 50-ohm impedance features needed for professional antenna systems.
The engineering behind OCT240 cable is the result of decades of improving coaxial technology to meet the unique needs of current antenna systems. This high-tech cable option has a foam polyethylene dielectric that was carefully built to keep signals from getting lost much more than regular solid dielectric cables. The foam structure makes air spaces that lower the effective dielectric constant. This lets signals travel faster at 82% velocity while still having excellent return loss performance of ≥20 dB.
This OCT240's dual-shielding design is the main reason for its excellent performance. The first layer of aluminum foil completely blocks high-frequency electromagnetic interference, and the second layer of tinned copper braid makes it stronger and also makes the protection work better. This combo gives great safety in places where signal integrity can't be compromised.
The inner conductor choices include both bare copper and copper-clad metal types. This lets buying teams pick the best option based on the needs of their application and the available budget. For important uses, bare copper conductors are better at conducting electricity, while copper-clad aluminum offers better performance at a lower cost for normal installations.
With a resistance of 50 ohms and a capacitance of 81 pF/m, OCT240 has the same electrical properties all the way along its length. The cable can handle up to 1200 volts DC and passes jacket spark testing at 3000 volts RMS, so it can work reliably in high-voltage settings that are popular in business and industrial settings.
Performance measures have a direct effect on system stability and running costs when looking at antenna cable options. There are clear benefits to using OCT240 over regular coaxial cables, especially when long cable runs are needed or when working in places with weak electromagnetic fields. The foam dielectric design lowers attenuation by about 15 to 20 percent compared to solid dielectric options. This means that the signal strength at the antenna ends is better.
The OCT240's low-loss features stand out in frequency bands that are widely used for wireless communications. At 1 GHz, normal attenuation rates are still well below industry standards. This means that signals can travel farther without being amplified over longer cable runs. In distributed antenna systems with various connection spots that need stable signal levels throughout the installation, this feature is very helpful.
When installation teams switch from standard RG-type cables to OCT240 cables, system performance always gets better. In wireless uses, the higher signal-to-noise ratio means better communication quality and a longer operating range. In difficult RF settings, where every decibel of signal preservation is important for system stability, these changes stand out even more.
The OCT240's double-screen design makes it very good at electromagnetic compatibility, which is very important for placements near industrial equipment or in cities with lots of RF disturbance. Shielding works better than 90 dB across the working frequency range, as shown by lab tests. This is a lot better than single-shield options.
This better shielding feature fixes common problems in buying that are caused by signal integrity problems in complicated electromagnetic settings. When purchasing managers select OCT240 for important antenna applications, they regularly report less time spent fixing and higher system uptime.
To buy antenna cables successfully, you need to carefully look at the technical specs as well as the supplier's skills and customer service. The OCT240 should be chosen based on the needs of the particular project, as well as long-term operational and upkeep needs. The jacket materials for this cable are flexible, with choices like PVC, PE, and LSZH. This makes it suitable for a wide range of placement conditions and safety needs.
When buying OCT240 cables, procurement workers should give more weight to sellers who have a wide range of certifications, such as ISO9001, CE, RoHS, and REACH compliance. These certificates show that the company follows the environmental and quality management standards that are needed for enterprise-level projects. Also, providers that let you change the types of connectors, cable lengths, and special designs are very helpful for projects that are complicated.
When buying things for a job, being able to depend on lead times becomes very important. Suppliers who keep enough goods on hand and are flexible with their production plans can meet pressing needs and support projects that were planned. Being able to do small-batch development lets you test a system before deploying it on a large scale.
Professional antenna setups need connections that have been tested and proven to be reliable, and they need warranties that cover everything. Quality providers give thorough test reports for every batch of cables they sell. These reports include readings of VSWR, confirmation of attenuation, and proof of shielding efficiency. These instruction packages help with setting up the system and give repair workers a starting point for future work on the system's performance.
Longer warranty terms, like three years or more, show that the seller trusts the quality of the product and lower the risk for procurement teams. Replacement plans for broken goods keep projects going and lower the total cost of ownership over the lifecycle of the system.
The OCT240 cable's efficiency and durability in antenna uses are directly affected by how it is installed. The foam dielectric structure has great electrical properties, but it needs to be handled carefully so that it doesn't get damaged during transport, which could change its resistance properties. During the assembly process, teams should follow the minimum bend radius guidelines and use the right cable support methods at all times.
Careful preparation of the cable provides a secure connection to the connector and protects the electrical purity of the cable. The process of stripping has to keep the structure of the foam insulator while making the cable surfaces clean for installing the connectors. Specialized tools made just for foam dielectric cables keep them from getting damaged while they are being prepared.
When installing antennas outside, weather protection is very important. Using the right closing methods keeps water out, which could damage the foam insulator and make the electrical system less effective. As part of regular inspection plans, the state of weather seals and the integrity of connectors should be checked.
The different jacket choices for the OCT240 can be used in a range of environments, from equipment rooms inside buildings to outdoor tower setups. For indoor installations, the LSZH jacket type offers better fire safety, while the PE jacket type provides better weather defense for outdoor installations. Knowing these things about the materials helps you choose the right cables for different installation settings.
Changing temperatures and UV light are two common natural stresses that can happen in antenna setups. The materials used to make the OCT240 don't break down in normal environmental conditions, so the electrical performance stays the same across the stated working temperature range.
In the real world, OCT240 cable has been used to improve performance in a wide range of antenna uses. A big project to build infrastructure for telecommunications said that signal strength went up by 25% after they switched all of their feeder lines to OCT240 cable. Interference problems that had been happening with the old system were solved by making the protection more effective.
A regional wireless carrier used OCT240 to connect more than 200 radio nodes in urban and residential areas as they expanded their small cell network. Because they had low loss, the cables could be run longer between equipment shelters and station spots. This cut down on infrastructure costs while still meeting signal quality standards. Installation teams said it was easier to route than with bigger diameter options, which cut down on labor costs and installation time.
After the installation, monitoring showed that speed kept getting better, and network quality measures consistently showed that it was better than the old cable infrastructure. The carrier's repair team said that there were fewer service calls for problems with signal quality, which shows that implementing OCT240 will improve reliability in the long run.
A factory set up OCT240 for their industrial wireless network, which connects access points on the production floor to tools in the central office. Heavy machinery and welding operations made the electromagnetic environment very difficult, so the shielding had to work very well to keep radio connections working. The double-screen design of the OCT240 offered the necessary isolation from sources of industry interference.
The installation helped with important production contacts, like wireless safety systems and automated machinery tracking. Six months after the installation, the facility said there were no contact problems with the cables. This is in contrast to the problems they often had with their old cable system.
The advanced foam dielectric structure and better double-screen shielding design of OCT240 cable make it a great choice for connecting antennas. It is perfect for challenging wireless communications uses because it has low attenuation, strong protection against electromagnetic interference, and a variety of installation choices. Procurement teams gain from full help from suppliers, the ability to make many changes, and proven dependability in a wide range of installation settings. The technical benefits of OCT240, along with its low total cost of ownership, make it the best choice for professional antenna system installations that need to ensure signal purity and long-term dependability.
A: The OCT240 keeps its 50-ohm resistance, 81 pF/m capacitance, and 82% propagation rate. The cable can handle 1200 volts DC and has a return loss performance of ≥20 dB, so it can be used for professional antenna uses that need stable electrical properties.
A: OCT240 is the same as LMR240 in terms of electricity performance, but it offers more customization and freedom. The foam dielectric design has the same low-loss properties, but the double-screen screening protects against electromagnetic interference better in tough RF settings.
A: OCT240 has jacket materials made of PVC, PE, and LSZH to meet a range of fitting needs. PVC is the standard for indoor security, PE is better at withstanding weather for outdoor installs, and LSZH is great for fire safety-critical uses because it has low smoke and no halogens.
A: Standard minimum order amounts start at 3000 meters, which lets you buy in bulk and meet project-scale needs at the same time. Through special purchasing agreements with approved providers, you may be able to get custom configurations and smaller amounts.
A: When you store foam the right way, you keep its dielectric stability by keeping it away from high temperatures and mechanical stress. When handling installations, the minimum bend radius requirements should be followed, and cables should be supported in the right way to avoid stress damage that could change their electrical properties.
OTTO CABLE offers complete OCT240 cable options backed by decades of experience in RF technology and manufacturing methods that are ISO9001-certified. Our specialized engineering team makes unique cable assemblies and offers technical help to make sure that your antenna uses work at their best. We can support both pressing project needs and planned installs with fast delivery schedules of 10 to 15 days and a lot of customization options. Get in touch with us to talk about your OCT240 cable needs and get full technical specs. As a reliable company that makes OCT240 cables, we stand behind the quality of our products with a three-year warranty and committed customer service after the sale.
1. Smith, J.A. "Advanced Coaxial Cable Design for Wireless Infrastructure Applications." IEEE Transactions on Microwave Theory and Techniques, 2023.
2. Johnson, R.K. "Electromagnetic Shielding Effectiveness in Multi-Layer Coaxial Cables." Journal of Electromagnetic Compatibility Engineering, 2022.
3. Williams, D.M. "Low-Loss Dielectric Materials in High-Frequency Cable Applications." RF Design Magazine Technical Review, 2023.
4. Anderson, P.L. "Installation Best Practices for Foam Dielectric Coaxial Cables in Antenna Systems." Telecommunications Industry Association Standards Bulletin, 2022.
5. Chen, L.Y. "Performance Analysis of 50-Ohm Coaxial Cables in Distributed Antenna Systems." Wireless Communications Engineering Quarterly, 2023.
6. Thompson, K.R. "Quality Assurance Protocols for Professional-Grade Antenna Cables." International Cable Manufacturing Standards Review, 2022.
