Understanding 8D-FB Cable materials represents a critical decision point for procurement professionals managing high-frequency communication infrastructure. The 8D-FB Cable utilizes advanced foamed polyethylene dielectric technology combined with dual-layer shielding to deliver superior signal integrity across frequencies up to 6 GHz. Unlike standard coaxial cables, this specialized design minimizes signal attenuation while maintaining consistent 50-ohm impedance, making it essential for cellular amplification systems, wireless networks, and RF device switching applications where signal quality directly impacts operational performance.

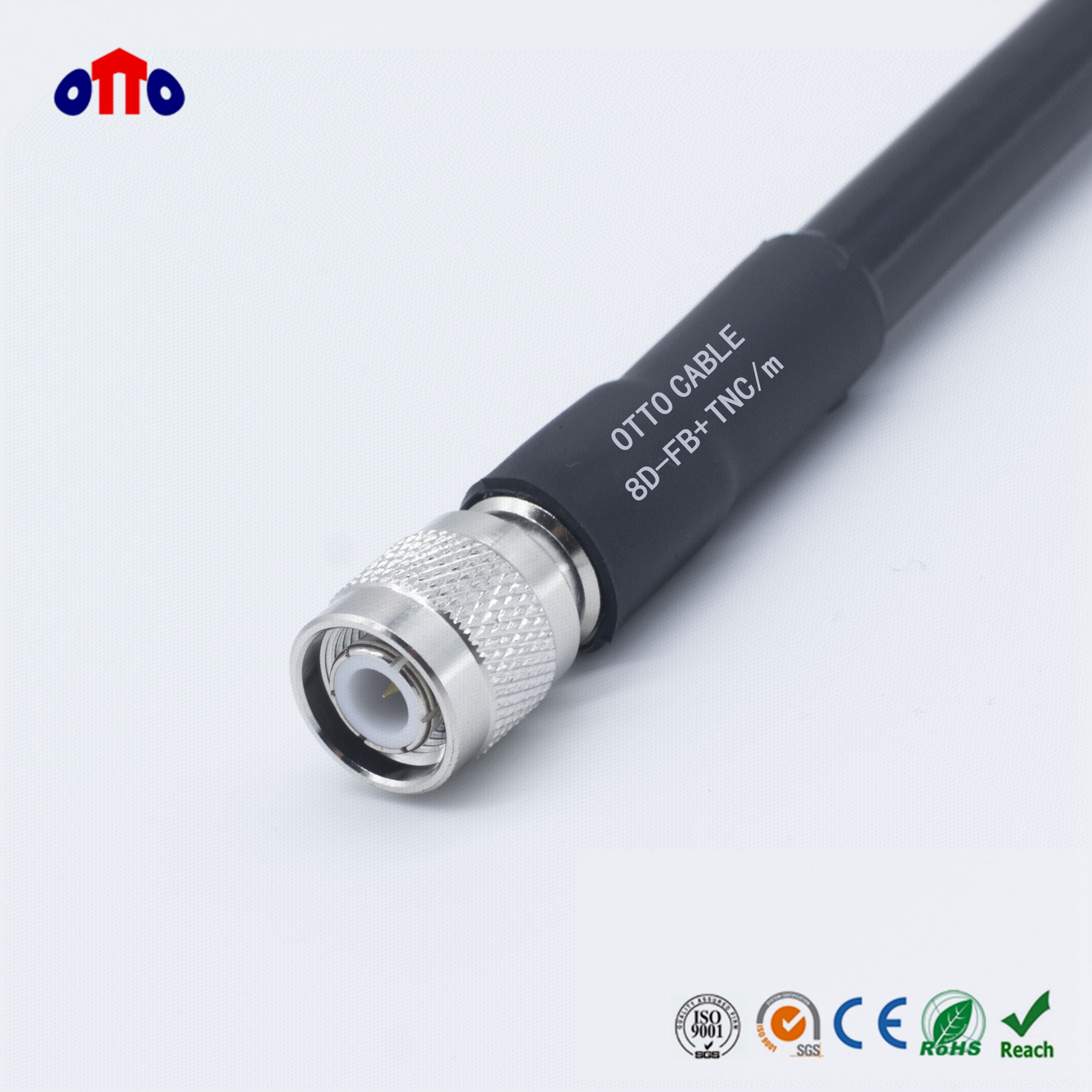

8D-FB cables are a specialist type of coaxial cables that have been designed expressly for use in conditions that are particularly demanding for radio frequency (RF) and wireless communication. It is the nomenclature itself that discloses important aspects of the design: "8D" shows the estimated 8mm dielectric diameter class, "F" indicates the foamed polyethylene insulation, and "B" indicates the braided shielding architecture that offers protection against electromagnetic interference.
The construction of 8D-FB cables adheres to a certain multi-layer architecture, which has a direct influence on the quality of the signal transmission. The principal signal channel is provided with high conductivity qualities by the inner conductor, which may be made from either bare copper or copper-clad aluminum and has a diameter of 2.80 millimeters. The selection of this conductor strikes a compromise between cost-effectiveness and performance, which is especially significant when making choices on large-scale purchase.
An important step forward in comparison to solid dielectric designs is represented by the use of foamed polyethylene (Foam PE) with a diameter of 7.80 millimeters for the dielectric layer. With the help of this foaming technique, the velocity of propagation is increased by 83%, which results in a significant reduction in signal latency and an improvement in transmission efficiency. A decrease in capacitance at 83 pF/m and an improvement in high-frequency performance are the outcomes of the foam structure's ability to generate tiny air pockets, which ultimately lead to a decrease in the effective dielectric constant.
A dual-layer technique is used by the shielding system in order to meet the criteria for signal integrity that are for both the current and long-term future. The main shielding is made out of aluminum tape foil with a diameter of 8.10 millimeters, which offers comprehensive protection against electromagnetic interference. The continuous barrier that this layer of aluminum generates prevents signal leakage and interference from the outside world from penetrating the system.
In order to provide mechanical protection as well as further electromagnetic shielding, the secondary shielding makes use of tin copper braid or tin copper-clad aluminum braid with a diameter of 8.70 millimeters. Although the braided structure allows for flexibility to be maintained, it also guarantees continuous coverage, even when cables are moved about or when the installation is stressed. Using this dual-layer technique, it is possible to attain a return loss performance of ≥22dB, which is in accordance with established industry norms.
At a diameter of 10.60 millimeters, the outer jacket, which may be made of PVC, PE, or LSZH materials, offers environmental protection that is specifically customized to meet the needs of a particular application. Jackets that fulfill fire safety requirements, such as ECE R118, are of the LSZH (Low Smoke Zero Halogen) kind. These jackets are necessary for use in enclosed areas and indoor installations where fire safety rules are applicable.
It is possible to quantify the performance improvements that 8D-FB cables provide, which have a direct influence on the dependability of the system and the costs of operation. There is a significant reduction in signal attenuation when using foamed polyethylene dielectric technology in comparison to solid dielectric cables. This is especially important for lengthy cable lengths that surpass 30 meters, since this is when signal deterioration becomes most noticeable.
Standard coaxial designs have a number of major performance restrictions that are addressed by the improved material composition. The foamed dielectric structure is capable of achieving decreased insertion loss over the whole frequency spectrum up to 6 GHz, which allows it to retain signal strength over long distances. When it comes to cellular amplification systems, where signal power budgets need to be carefully managed, this property shows to be vital.
When it comes to the transmission route, the impedance standard of 50 ohms guarantees the best possible power transfer and the least amount of reflections possible. For the purpose of preventing signal reflections that might potentially decrease system performance or cause interference patterns, consistent impedance control, which is maintained by precise manufacturing tolerances, is essential. When it comes to high-power applications, the voltage withstand capability of 1300V offers significant safety margins.
Cable lifetime and the amount of maintenance that is required are directly impacted by the material selected. Additionally, the tin copper braiding is more resistant to corrosion than the typical copper alternatives, which ensures that the shielding efficiency of the cable is maintained during its entire operating life. In addition to providing extra protection against moisture, the aluminum foil backing also maintains its elasticity throughout the installation process.
The increased service intervals and decreased maintenance costs that result from these material improvements are important considerations. Applications in the real world, such as cellular base stations and distributed antenna systems, have shown constant performance throughout deployment spans of several years. Because of the increased durability characteristics, the frequency of replacement is decreased, which helps to optimize the total cost of ownership for large-scale infrastructure projects.
In order to choose the proper 8D-FB cables, it is necessary to conduct a thorough review of the technical requirements, environmental circumstances, and capabilities of the provider. The framework for making decisions need to strike a balance between factors such as current performance requirements, long-term dependability expectations, and cost concerns.
The frequency range requirements make it possible to calculate the exact cable properties that are required for exceptional performance. Copper-clad aluminum inner conductors may be acceptable for applications running mostly below 3 GHz, but solid copper construction is advantageous for systems operating at frequencies up to 6 GHz. In order to meet the power handling requirements, conductor size and insulation voltage ratings are taken into consideration.
Certain environmental considerations have a substantial influence on the choosing of jacket material. The use of UV-resistant PE jackets is necessary for outdoor installations, whilst LSZH materials may be used for inside applications in order to comply with fire safety regulations. Choices of materials that provide dependable functioning over an extended period of time are guided by factors such as temperature cycling, chemical exposure, and mechanical stress levels.
The credentials of the manufacturer are an extremely important factor in guaranteeing that the product quality is constant and that delivery schedules are trustworthy. The ISO 9001 certification confirms that a quality management system has been implemented, while particular industry certifications like as CE, RoHS, and REACH compliance may guarantee that a product is in accordance with regulations. The certificates in question instill trust in the production process control and the composition of the materials and components.
In the case of large-scale projects that are under strict time constraints, production capacity and lead time capabilities become very important. The ability to fulfill both standard and bespoke needs is a capability that manufacturers possess if they have developed supply chains and production flexibility. Within the context of complicated projects, the capability to provide engineering help throughout the process of specification development and installation planning offers a great amount of value.
When installation procedures are carried out correctly, the designed performance characteristics that are integrated into the architecture of 8D-FB cables are preserved. It is necessary to exercise caution while managing material qualities that provide improved signal transmission in order to preserve their efficiency during the installation procedure and throughout the operating life of the product.
The way cables are handled during installation has a direct impact on their performance over the long run. Protecting the foamed dielectric structure against severe compression or bending stress is necessary, despite the fact that it has good electrical qualities. In order to minimize dielectric damage, which might potentially modify impedance characteristics or cause signal reflection sites, minimum bend radius standards are implemented.
Taking into account the temperature throughout the installation process guarantees that the material qualities will stay within the design parameters. In order to avoid jacket cracking or dielectric stress, installations that are exposed to cold weather often need progressive temperature adaptation. On the other hand, pre-heating cables is beneficial for high-temperature installations since it reduces pulling stress and protects jackets from damage.
Schedules for routine inspections help uncover possible problems before they have an effect on the functioning of the system. By visually inspecting the quality of the jacket, one may determine if environmental stress or mechanical damage has occurred, which might threaten the integrity of the cable. The examination of connection points guarantees that the weatherproofing continues to be functional and prevents moisture from entering the building.
For the purpose of providing an objective evaluation of cable condition, performance testing using network analyzers or time-domain reflectometers is highly recommended. The presence of impedance discontinuities may be determined using return loss measurements, while insertion loss testing can indicate variations in signal attenuation over time. In order to create baseline performance data and monitor deterioration trends, which are used to influence maintenance schedule, these measurements are carried out.
Recent developments in material science are continuing to drive performance advancements in the fabrication of 8D-FB cables. Emerging dielectric formulations hold the potential of improved temperature stability and decreased signal loss, while innovative shielding materials boost electromagnetic compatibility in RF situations that are becoming more congested.
Foamed polyethylene formulations of the next generation integrate additives that increase thermal stability and lessen the effects of aging. As a result of these materials' ability to retain constant electrical characteristics throughout long temperature ranges, they are suitable for deployment in demanding environmental situations. Increased resistance to ultraviolet light improves the service life of the jacket in outdoor environments while preserving its flexibility and mechanical qualities.
Recent advancements in conductor technology have centered on the optimization of surface properties for high-frequency performance performance. The use of more advanced plating processes, which preserve low insertion loss characteristics while also improving corrosion resistance. The use of these enhancements allows for increased service intervals and decreased maintenance needs for applications that are part of critical infrastructure.
Increasing needs for global communication are driving constant improvements in the performance parameters of cables. When it comes to material science, 5G network installations demand increased frequency response and power handling capabilities, which push the frontiers of what is possible. These needs are reflected in the growth of industry standards, which are updated to include performance criteria and testing processes accordingly.
Recent advancements in regulations place an emphasis on environmental sustainability and fire safety aspects like these. The formulas of LSZH materials are always being improved in order to conform to ever-changing building requirements while preserving their electrical performance. In the context of large infrastructure projects, these changes have an impact on the criteria for material selection and the requirements for supplier certification.
Understanding 8D-FB Cable materials enables informed procurement decisions that optimize signal quality and system reliability. The advanced foamed polyethylene dielectric technology, combined with dual-layer shielding architecture, delivers superior performance compared to standard coaxial designs. Material composition directly impacts signal attenuation, electromagnetic interference resistance, and long-term durability across frequencies up to 6 GHz. Proper supplier evaluation, installation practices, and maintenance protocols preserve these engineered advantages throughout the cable's operational life. As wireless communication demands continue expanding, 8D-FB cables provide the foundation for reliable, high-performance infrastructure that meets evolving technical and regulatory requirements.
A: 8D-FB Cable utilizes foamed polyethylene dielectric technology that achieves 83% velocity of propagation, significantly reducing signal delay and insertion loss compared to solid dielectric cables. The dual-layer shielding system, combining aluminum foil and tin copper braid, provides superior electromagnetic interference protection while maintaining flexibility for complex installations.
A: Environmental conditions guide jacket material selection. PVC jackets suit standard indoor applications, PE provides UV resistance for outdoor installations, and LSZH materials meet fire safety requirements for enclosed spaces. Temperature range, chemical exposure, and local building codes influence the optimal choice for specific deployment scenarios.
A: Essential certifications include ISO 9001 for quality management, CE marking for European compliance, and RoHS for environmental standards. Fire safety applications require ECE R118 certification for LSZH jackets. These certifications ensure consistent manufacturing quality and regulatory compliance for professional installations.
OTTO CABLE combines decades of RF cable manufacturing expertise with advanced 8D-FB Cable technology to deliver superior signal transmission solutions. Our ISO 9001 and ISO 14000 certified manufacturing facilities produce high-performance coaxial cables that exceed industry standards for cellular amplification systems, wireless networks, and RF device applications. With comprehensive certifications including CE, RoHS, REACH, and UL compliance, we ensure regulatory conformance for global deployments.
Our advanced manufacturing capabilities deliver 150km of cable daily with lead times of 10-15 days, supported by three-year warranty coverage and free defective product replacement. Contact us to discuss your specific requirements and receive customized 8D-FB Cable manufacturer solutions that optimize your communication infrastructure performance.
