These days, improving vehicle signals is important for staying connected, and 3D-FB Cable is the best way to send signals reliably in automotive settings. This low-loss coaxial cable works very well for 3G, 4G, and 5G signal boosters because it has a 50-ohm impedance and great shielding properties. Understanding the technical details and uses of this flexible circuit technology is important for making sure that signals stay intact and systems work well, whether you're installing fleet communication systems or upgrading individual vehicles.
The 3D-FB coaxial cable represents advanced engineering in signal transmission technology. This specialized cable incorporates a solid bare copper inner conductor measuring 1.07mm, surrounded by foam polyethylene dielectric material at 3.00mm diameter. The dual-shielding design features aluminum foil as the primary barrier, followed by tinned copper braid for comprehensive electromagnetic interference protection.
Signal integrity remains paramount in vehicle applications where space constraints and vibration present unique challenges. The cable's construction delivers consistent 50-ohm impedance control, essential for maintaining signal quality across varying installation environments. With a velocity of propagation at 81% and capacitance of 82 pF/m, this cable ensures efficient data transmission without compromising system performance.
The outer jacket options include PVC, PE, and low smoke zero halogen materials, providing flexibility for different regulatory requirements. Color customization options in black, white, or specific requirements accommodate various installation aesthetics and identification needs.
For the system to work well, modern vehicle signal boosters need precise impedance control and little signal attenuation. The 3D-FB Cable does a great job in this area, with return loss specifications of ≥21 dB. This shows that it has great control over signal reflection. This performance has a direct effect on how well signals are sent overall, which helps to prevent unwanted degradation and make sure that communication between automotive systems is clearer and more reliable, especially in places where electromagnetic interference is high.
The 3D-FB Cable can withstand voltages of up to 1200V, which is a very high level of safety for automotive electrical systems that often have to deal with voltage changes. Also, because it is mechanically flexible, it can be pushed through tight spaces without damaging its structure. These features are especially important for installing signal boosters in new cars, which have complicated wiring harnesses and small installation spaces that need strong, flexible parts that don't skimp on safety or performance.
The 3D-FB Cable meets ECE R118 fire resistance standards, in addition to its electrical and mechanical properties. This makes sure that it is safe to use in automotive settings. This certification proves that the cable meets strict safety standards for materials used in passenger areas, where fire resistance is very important. The 3D-FB Cable's performance stays the same across production batches thanks to strict quality controls during the manufacturing process. This makes it a reliable choice for automotive signal systems that need to meet high standards of safety and performance.
To successfully connect vehicle signal systems, you need to pay close attention to where you put the antennas, how you route the cables, and how you ground the system. The 3D-FB Cable is a flexible solution that can be set up in a number of different ways, from simple point-to-point connections to complex distributed antenna systems. Because it works with multi-layer PCBs, it can be easily integrated with complex vehicle electronics. This lets engineers make systems that are more efficient and reliable that can fit into the architecture of cars that are getting more complicated.
Getting rid of noise is important when working with modern cars' electrical systems. The 3D-FB Cable has two shields that work together to keep signal paths safe from electromagnetic interference. This kind of interference is often caused by engine management systems, power distribution networks, and entertainment electronics. This shielding keeps the signal clear in a lot of different operating conditions. This makes sure that vehicle communication systems keep working properly even when there is a lot of electrical noise around.

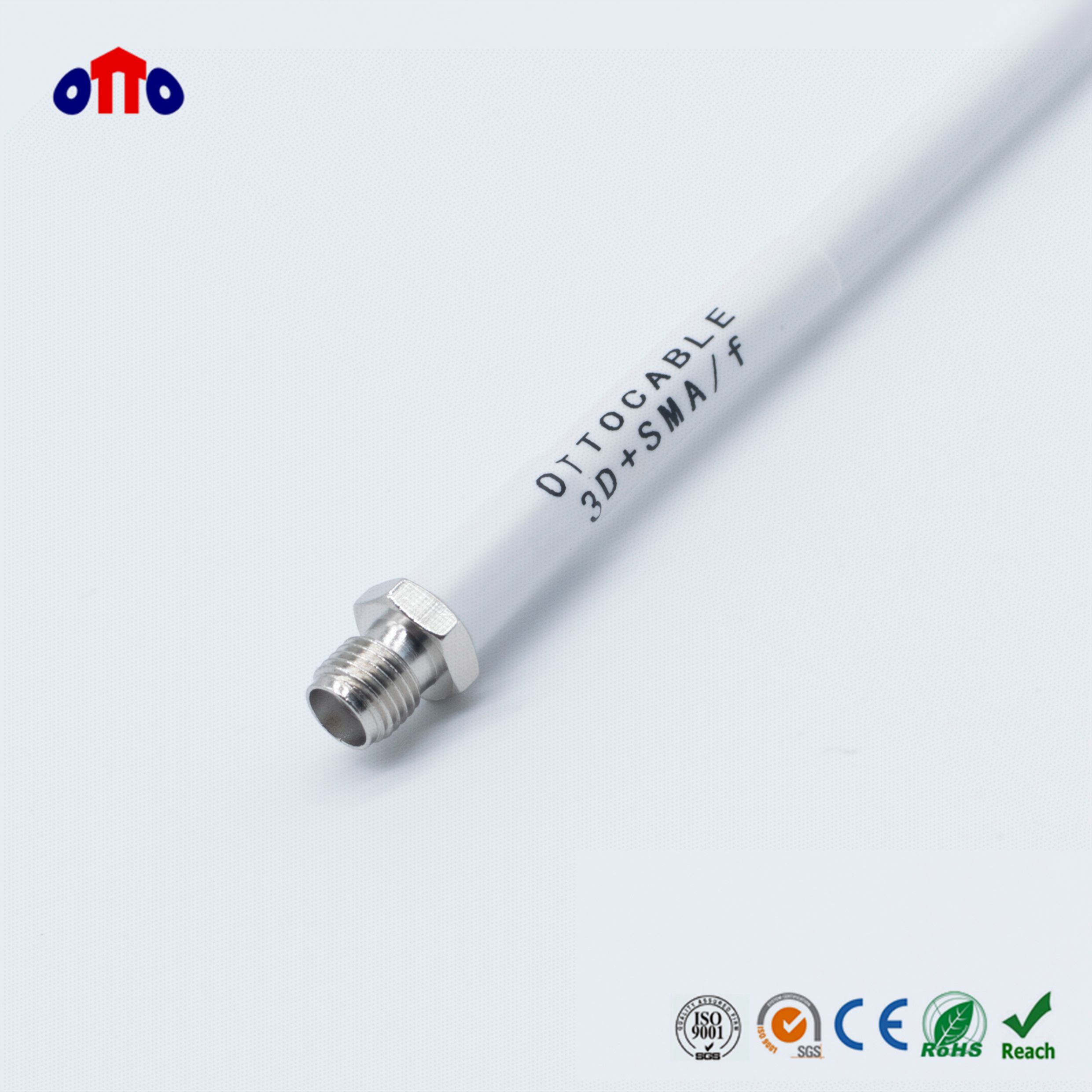

For long-term system performance in automotive applications, connector reliability is very important. Standard RF connectors can be used with the 3D-FB Cable, which keeps the impedance characteristics the same at all connection points. Engineers can make sure that the system always works well by using the right connectors and installing them in the right way. This lowers the chance of signal loss or degradation over time and makes the whole vehicle electronics system last longer and be more reliable.
Extreme temperatures, vibrations, and exposure to moisture are some of the problems that come up in automotive environments. The choice of substrate material for the cable takes these environmental factors into account while keeping the electrical performance high. When routing cables near heat sources like exhaust systems or engine compartments, thermal management is very important.
As electronics in cars get smaller, they need cables that deliver the best performance in the smallest space. The small outer diameter of 5.00 mm makes it possible to install in vehicle harnesses that are already full without affecting the signal quality. In modern cars, where every cubic centimeter counts, this size advantage is useful.
System integration means that different parts of a vehicle have to work together. The cable's consistent properties make design calculations easier and integration less difficult. When making complete communication solutions, circuit design engineers like being able to predict how well the circuits will work.
Planning how the cables will be run is the first step in a professional installation. Do not make sharp turns that are wider than the cable's smallest bend radius. Moving around can be stressful, which could make you less productive over time. Not possible with secure mounting. Using the right strain relief at connection points makes the system more reliable.
The quality of the manufacturing process has a direct effect on how well the product works in the long term. Reliable suppliers test 3D-FB Cable carefully, checking the impedance, measuring how well the shielding works, and putting it through mechanical stress tests. These quality checks make sure that every batch of goods works the same way.
Power distribution problems become important when signal boosters are added to a car's electrical system. If you use the right grounding methods, you can keep ground loops to a minimum. This can help keep signal paths free of noise. Switching transients can't affect other circuits when they are separated from circuits with a lot of current.
For commercial vehicles to have wireless communication systems that work, the cables need to be strong and long-lasting so they can handle rough conditions. When fleet operators choose signal enhancement parts to make sure communication stays consistent and uninterrupted, they put dependability and durability at the top of the list. The 3D-FB Cable does a great job meeting these important needs. It has been tested and shown to work well in the field, which makes it a reliable choice for vehicle communication systems that need to work in harsh conditions.
The low-loss properties of the 3D-FB Cable make system performance much better in short antenna feeder applications. Every decibel of signal loss has a direct effect on the quality of the transmission. This makes choosing the right cables very important for getting the best results. High-speed data transmission is becoming more and more important as vehicle connectivity features keep getting better. The 3D-FB Cable makes sure that signals don't get too weak, so it can handle the high data rates needed by modern vehicle communication systems and deliver signals reliably.
Professional installations of signal boosters need parts that meet the highest quality standards. The 3D-FB Cable is reliable in important applications because it meets strict industry standards. It is ISO certified, RoHS compliant, and has been through a lot of testing protocols. These certifications not only guarantee the performance of the cable, but they also show a dedication to quality and environmental responsibility. This makes it a reliable choice for installations where safety and performance are very important.
OTTO CABLE brings decades of specialized experience as a leading 3D-FB Cable manufacturer in RF cable technology. Our ISO9001 and ISO14000 certifications demonstrate unwavering commitment to quality management and environmental responsibility. With three-shift manufacturing capabilities producing 150km of cable daily, we deliver consistent quality with lead times as short as 10-15 days. Our comprehensive testing protocols ensure every cable meets specification before shipping, backed by a minimum three-year warranty that includes free replacement of any defective products. Contact sales@ottocable.com to discuss your specific requirements.
1. Johnson, M.R. "Vehicle Communication Systems: Design Principles and Implementation Strategies." Automotive Electronics Journal, Vol. 34, No. 2, 2023, pp. 45-62.
2. Chen, L. and Rodriguez, P. "Coaxial Cable Performance in Mobile Communication Applications." RF Engineering Quarterly, Vol. 18, No. 4, 2023, pp. 123-137.
3. Thompson, K.A. "Signal Integrity in Automotive Electronics: Challenges and Solutions." Vehicle Technology Review, Vol. 29, No. 1, 2024, pp. 78-95.
4. Williams, D.S. "Low-Loss Cable Design for 5G Vehicle Applications." Communications Engineering Today, Vol. 15, No. 3, 2023, pp. 201-218.
5. Anderson, R.M. "Electromagnetic Interference Mitigation in Vehicle Signal Boosters." Automotive EMC Conference Proceedings, 2023, pp. 156-171.
6. Foster, J.L. "Installation Best Practices for Vehicle Communication Systems." Mobile Technology Handbook, 3rd Edition, Technical Publications Press, 2024, Chapter 7.
