When setting up a network, choosing the right Ethernet cable is crucial. Cat5e vs Cat6—which one should you choose? While both are popular, they offer distinct differences in performance.
In this article, we will explore these differences in detail. You'll learn about bandwidth, speed, and overall suitability for various network setups.
The world of Ethernet cables is vast, with various standards available to meet different networking needs. Cat5e vs Cat6 is one of the most frequently debated topics when it comes to selecting an Ethernet cable. In this guide, we’ll break down the main differences between these two types of cables to help you decide which one is most appropriate for your network setup. By the end, you'll understand the factors that influence performance, such as bandwidth, speed, and resistance to interference, and how to future-proof your network for years to come.
Cat5e, or Category 5 Enhanced, is an improvement over the older Cat5 standard, introduced in 2001. The key upgrade in Cat5e was its ability to support Gigabit Ethernet (1 Gbps) speeds. This was achieved by improving the twisting of the copper pairs inside the cable to reduce crosstalk (unwanted signal interference) and minimize data loss. Cat5e is still widely used in many home and small business networks, where network speeds of up to 1 Gbps are more than sufficient for tasks such as web browsing, streaming, and online gaming.
Cat6, or Category 6, was introduced a few years after Cat5e and offers several performance enhancements over its predecessor. One of the most significant improvements is that Cat6 cables support higher frequencies—up to 250 MHz—allowing for faster data transmission rates and better resistance to interference. While Cat6 can support Gigabit Ethernet over distances of up to 100 meters, it can also handle 10-Gigabit Ethernet over shorter distances (up to 55 meters). This makes it ideal for high-speed, high-performance networks that demand more bandwidth and lower latency.
The primary difference between Cat5e and Cat6 lies in their bandwidth capabilities. Cat5e cables are designed to operate at frequencies up to 100 MHz, which is sufficient for most home networks. However, Cat6 cables operate at 250 MHz, which allows for greater data throughput. The higher bandwidth of Cat6 allows it to carry more data at once, resulting in faster and more stable connections. Think of it like a two-lane highway (Cat5e) versus a four-lane highway (Cat6)—while both can handle traffic, the four-lane highway accommodates more vehicles without slowing down.
Why bandwidth matters: Higher bandwidth allows for faster data transmission, making Cat6 the better choice for large networks, high-bandwidth applications like video conferencing, or businesses where large data files are frequently transferred.
While Cat5e supports speeds up to 1 Gbps, Cat6 can support 10 Gbps speeds over short distances (up to 55 meters). This difference in speed becomes particularly important in environments where large data files need to be transferred quickly, such as data centers or offices with heavy traffic. For home users with standard internet connections, Cat5e is more than sufficient. However, for businesses or networks that require faster speeds, Cat6 provides significant advantages, especially as internet speeds and demands continue to increase.
Practical implication: In most home environments, Cat5e is more than capable of handling daily internet usage. But if you're planning to build a network that may need to handle 10 Gbps traffic in the future, Cat6 is a more future-proof investment.
Crosstalk is the interference between the twisted pairs of wires in the cable, which can result in signal degradation. Cat5e offers decent resistance to crosstalk, but Cat6 provides significantly better protection due to its improved construction. Cat6 cables often feature a nylon spline that separates the twisted pairs, reducing crosstalk and providing better noise isolation. This extra level of isolation makes Cat6 better equipped to handle higher frequencies and reduces signal loss, ensuring faster and more reliable performance.

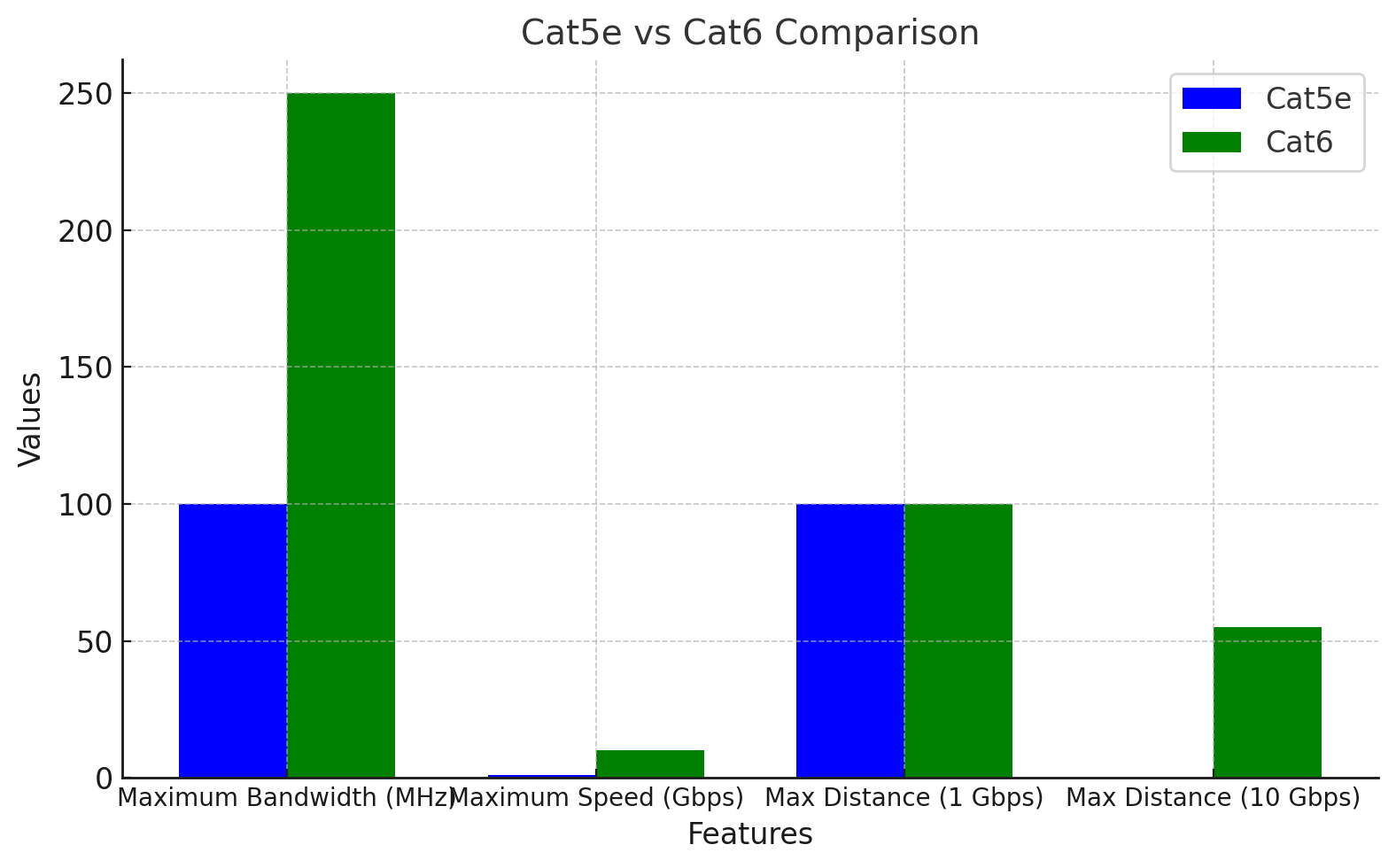

Feature | Cat5e | Cat6 |
Maximum Bandwidth | 100 MHz | 250 MHz |
Maximum Speed | 1 Gbps | 10 Gbps (Short Distances) |
Supported Network Types | Gigabit Ethernet | Gigabit & 10-Gigabit Ethernet |
Maximum Length | 100 meters | 100 meters (1 Gbps) / 55 meters (10 Gbps) |
Feature | Cat5e | Cat6 |
Bandwidth Supported | 100 MHz | 250 MHz |
Maximum Speed Supported | 1 Gbps | 10 Gbps (Up to 55 meters) |
Noise and Crosstalk Resistance | Weaker, suitable for low-demand | Stronger, suited for high-bandwidth applications |
Best Use Case | Small Home or Office | Large Networks, High-Performance Applications |
Performance Limitations | Decreases over time | Speed drops over long distances |
Both Cat5e and Cat6 can maintain their performance up to 100 meters in network segments, which is the maximum recommended distance for Ethernet cables. Beyond this length, performance starts to degrade, leading to slower speeds or even a dropped connection. However, when used in 10-Gigabit Ethernet setups, Cat6 faces a limitation: it only supports 10 Gbps speeds up to 55 meters. Beyond that, the speed drops to 1 Gbps, making Cat6 less effective for 10 Gbps over long distances.
For Cat5e, the maximum length of 100 meters supports 1 Gbps speeds, which is generally sufficient for most small networks. If your network requires higher speeds, especially in larger or more complex setups, consider Cat6 for shorter distances or Cat6A (Augmented Category 6) for full 100-meter support at 10 Gbps.
If your network segments exceed 100 meters, repeaters or switches can be used to extend the signal. This is particularly useful in large office environments or data centers where network cables must run over long distances. For Cat6 cables, it’s also crucial to maintain a distance of no more than 55 meters for 10 Gbps speeds. For longer runs, Cat6A should be used, as it can support 10 Gbps over the full 100 meters.
Practical tip: If you're setting up a network with long cable runs, consider using switches or repeaters to ensure optimal performance.
Cable Type | Max Distance (1 Gbps) | Max Distance (10 Gbps) |
Cat5e | 100 meters | Not Supported |
Cat6 | 100 meters | 55 meters (10 Gbps) |
Cat5e cables are generally thinner than Cat6 cables, as Cat6 uses thicker copper wires (usually 23 AWG compared to 24 AWG in Cat5e). The thicker wires in Cat6 help handle higher data transfer rates and reduce noise, but they also make the cable less flexible and harder to install in tight spaces. Additionally, Cat6 often incorporates a nylon spline, a plastic separator that keeps the twisted pairs apart to reduce crosstalk.
The category of Ethernet cables is typically printed on the outer jacket. However, when this is absent, it can be difficult to differentiate between Cat5e and Cat6 by appearance alone. Cat6 cables are often thicker due to the larger copper conductors and the inclusion of the nylon spline, but both cables use RJ45 connectors and four twisted pairs of wires. Always check the cable’s labeling or purchase from a trusted supplier to ensure you're getting the right type.
The price difference between Cat5e and Cat6 cables is generally not huge, typically ranging from 10% to 20% more for Cat6. The increased cost is often worth it for the additional performance and future-proofing that Cat6 offers. However, if your network does not demand higher speeds or bandwidth, Cat5e may provide a more cost-effective solution without sacrificing performance for everyday use.
Cat6 is the better investment for high-performance networks or future-proofing your infrastructure. It’s ideal for environments that require PoE (Power over Ethernet), as the thicker conductors in Cat6 are better at handling the heat dissipation required in such applications. Cat6 also offers superior performance in noisy environments with lots of electrical interference, such as data centers or industrial setups.
Cat5e is suitable for home networks, small businesses, or light-duty applications. If you're running a few devices, such as computers, printers, and basic IoT devices, Cat5e is more than sufficient to handle the data traffic at a cost-effective price.
If you’re planning to scale your network or need better performance for high-demand applications (like video streaming, large file transfers, or gaming), Cat6 is the more future-proof option. It's also ideal if you need to support more devices in your network or require a reliable connection in electrically noisy environments.
When choosing between Cat5e vs Cat6, it’s essential to assess your needs. Cat5e works well for home users and small setups, while Cat6 is ideal for high-performance networks and future-proofing.
As network demands grow, Cat6 becomes the better investment. Although Cat5e is still reliable, Cat6 ensures your network can handle higher speeds and greater bandwidth.
For top-quality Ethernet cables, OTTO offers durable solutions, ensuring reliable performance and future-proofing your network.
A: Cat5 vs Cat6 mainly differs in bandwidth and speed. Cat5e supports up to 100 MHz and 1 Gbps, while Cat6 can handle 250 MHz and up to 10 Gbps over short distances.
A: Yes, Cat5e is suitable for most home setups. However, Cat6 is better for high-performance needs or future-proofing, especially in business environments with heavy data traffic.
A: If you need faster speeds or plan for future network upgrades, Cat6 is worth the extra investment. It provides better bandwidth and is ideal for high-demand applications.
A: Both Cat5e and Cat6 support up to 100 meters. However, Cat6 can handle 10 Gbps speeds only up to 55 meters, while Cat5e is sufficient for 1 Gbps up to 100 meters.
A: For most home internet needs, Cat5e is sufficient. However, for high-speed internet or large network setups, Cat6 offers better future-proofing and performance.
A: Cat6 provides higher bandwidth, less interference, and can handle faster speeds, making it more suitable for business environments with heavy data needs compared to Cat5e.
