Views: 5 Author: Site Editor Publish Time: 2026-03-18 Origin: Site
If you want to choose RG213 for better data quality, you need to know that this heavy-duty coaxial cable works very well in tough business settings. RG213 coaxial cable made for the military is the best choice for radio communications, broadcast systems, and high-power RF uses because it reliably transmits 50-ohm signals with little signal loss. Its strong construction with a stranded bare copper cable and a solid polyethylene insulator keeps the signal strong in a wide range of weather conditions. When building long-term communication infrastructure that needs reliable connection solutions, engineering teams and procurement managers know that RG213 is a good choice because it has a good mix of mechanical durability, electrical performance, and cost-effectiveness.
The layered construction of RG213 coaxial cable is carefully designed to provide excellent signal transfer performance. The bare copper inner conductor that is stranded gives the cable freedom while still being very good at conducting electricity for high-frequency uses. This stranded design is much better than solid conductors because it can handle the mechanical stress and repeated bending cycles that are typical in professional installs.
The thick polyethylene dielectric around the cable keeps the 50-ohm resistance constant over a wide range of frequencies. This steady dielectric material doesn't absorb much water and stays stable at high and low temperatures, so it works well in a wide range of weather conditions. The cable can handle up to 5000V of energy, which is a very high level. This is because of the dielectric thickness and the qualities of the material.
Bare copper braiding shielding protects well against electromagnetic radiation while keeping the cable flexible. This protection setup has great return loss performance of ≥21dB, which means that signal echoes that lower transmission quality are kept to a minimum. Different fitting needs can be met by the PVC, PE, or LSZH jackets, and the colors can be changed to fit the needs of each project.
RG213's better signal transmission skills are based on key electrical specs. Standard RF equipment needs a 50-ohm resistance, which makes sure that power is transferred efficiently and signals are reflected as little as possible. The cable sends high-frequency data well with little phase distortion thanks to its capacitance value of 101 pF/m and velocity of propagation of 66%.
RG213 is great for medium to long cable runs where signal integrity is still important because it has low loss. The cable can handle frequencies well into the gigahertz range, which is useful for current communication systems that need to be able to send data over long distances quickly. Temperature stability makes sure that workplace settings, from outdoor sites to climate-controlled buildings, all have the same level of performance.
When looking at different types of coaxial cable, RG213 has clear benefits over other types. Because it has a bigger conductor width and better dielectric qualities, RG213 has much less signal loss than RG58. This difference in performance is especially clear in setups longer than 50 meters, where RG213 keeps the signal strong while thinner cables lose a lot of signals.
When you compare it to the LMR400, you can see that speed and usability are not always equal. Even though LMR400 has lower loss numbers, its hard design makes installation less flexible and makes ending more difficult. The stranded conductor design of RG213 makes it possible to handle difficult routes and repeated handling without mechanical failure. This makes it perfect for situations where repair needs to be done regularly or where equipment needs to be moved.
RG214 and RG213 are about the same size, but RG214 doesn't meet the strict military standards that guarantee long-term dependability. RG213's MIL-C-17 compliance ensures uniform standards for material and manufacturing quality, which is important for professional installs. This adherence to specifications means reliable performance and longer service life in systems that are hard on components.
RG213's balanced performance qualities make it good for professional broadcast setups because it handles power well and allows for easy installation. Radio communication systems use the low-loss transfer of the cable to keep signals clear over long distances. The 50-ohm impedance perfectly fits the requirements for most antenna systems and transmission tools.
RG213's electromagnetic protection is necessary for keeping signals intact in places with a lot of electrical noise for industrial automation systems that need to send data reliably. The cable is built to last and can handle harsh industrial circumstances while still providing reliable electrical performance. The different clothing choices, including LSZH versions that meet strict safety standards, are useful for medical equipment.
To choose the right RG213 cable, you must first carefully look over the needs of your unique job. Frequency range determines if the cable's electrical properties match the conditions for the device to work. In order to avoid harm from heat or a loss of signal, power handling needs must take into account both normal and peak transmission levels.
Environmental factors have a big impact on choices about which cables to use. For setups outside, you need clothing materials that are resistant to UV light and better moisture protection. For use underground, direct burial-rated versions may be needed, along with substances that stop water from getting in. Extreme temperatures make it important to check that the electrical parameters are stable across the predicted working range.

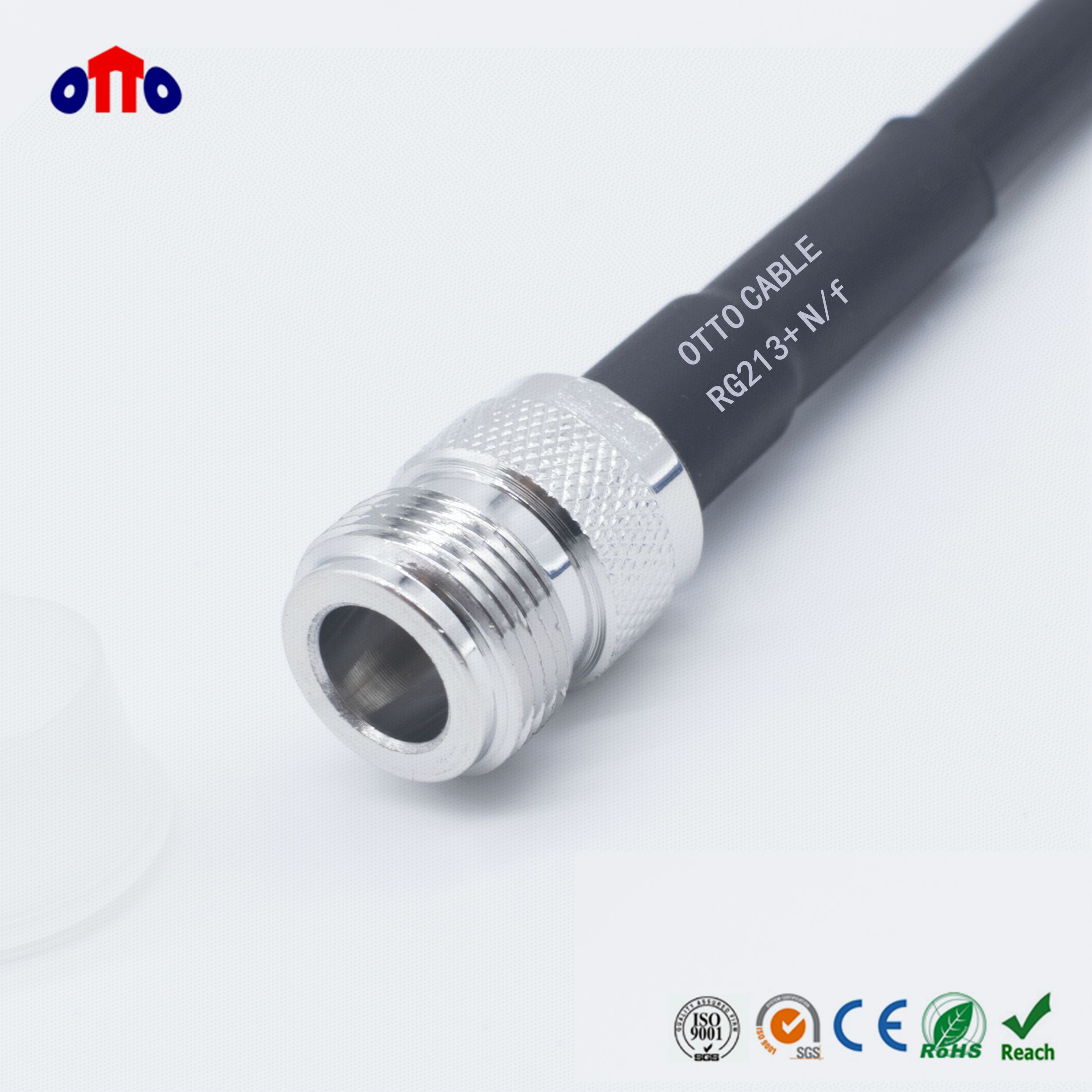

For connectors to work together, the cable width and conductor design need to be carefully thought out. Standard RG213 works with popular RF connector types, such as PL-259, N-type, and BNC versions that are made for cables with a width of 10.3 mm. The right choice of connectors guarantees the best electrical performance and mechanical dependability for the entire life of the work.
Reputable makers strictly follow military standards, which makes sure that the quality of their products is always the same. As part of verifying certification, compliance paperwork for ISO standards, environmental laws, and safety rules must be looked over. Established sellers offer detailed technical datasheets that help buyers make smart choices based on tested performance factors.
Aside from the original requirements, quality assurance also includes making sure that the product is manufactured consistently and will last for a long time. When suppliers offer longer warranty terms, it shows that they are sure their goods will last and work well. When dealing with installation problems or speed problems, having access to technical help becomes very important.
Customization options let you make improvement fit the needs of a specific job. Options for cable length reduce signal loss and failure places at joins and contacts. Jackets are made of special materials that can handle different weather situations or government rules. Bulk ordering can save you money and make sure that all of your big setups get the same product specs.
When you put something correctly, you protect the signal quality and make sure it will work for a long time. Cable routing must avoid sharp turns that are wider than the minimum bend radius stated by the maker, which for RG213 is usually 6 to 8 times the cable diameter. Gradual arcs keep the shape of the cable and stop dielectric compression, which hurts electrical performance.
To get the best electrical link and mechanical safety, connector termination needs to be done with great care. The right strip lengths show the right measurements of the cable and dielectric for a safe connector connection. To keep the polyethylene insulator from getting damaged and to make sure that the electrical connections are stable, the soldering process must follow temperature guidelines.
Support spacing keeps cables from sagging too much, which can cause mechanical stress over time. If there is enough strain relief at the connection places, cable movement or temperature changes won't be able to damage the connectors. When projects are outside, weather sealing is very important. This means using the right seals and taking other precautions to keep water out.
Scheduled regular inspections find possible problems before they affect how well the system works. A visual inspection shows signs of mechanical stress, damaged jackets, or corroded connectors that need care. Electrical testing with network analyzers or time-domain reflectometers measures the strength of signal transfer and finds spots where impedance changes.
Changes in weather, UV exposure, and water getting into the cable all have an effect on its performance. Protective steps, like installing conduit or resealing it every so often, keep the working conditions at their best. By writing down the installation settings, you can keep track of how performance changes over time and plan when to replace things before they break.
The way the market is right now supports buying in bulk using supplier relationships and big savings. When buying something from another country, regional supply chain issues can affect wait times and shipping costs. Suppliers that have been around for a while keep enough inventory on hand to be able to deliver quickly for urgent projects and offer low prices for planned setups.
Quality testing methods make sure that the goods that are received meet the requirements that were set. During the incoming inspection process, electrical parameters and physical traits are checked against the buy specs. A certificate of compliance paper gives records of quality control and tracking that are needed for warranty claims and regulatory compliance.
Product quality and expert help are always available when you work with the same supplier for a long time. Preferred seller deals set stable prices and make sure that supplies are distributed first when there are shortfalls. Regular checks of suppliers make sure that they continue to meet quality standards and have the manufacturing skills to meet project needs.
Full cost analysis covers how much cables cost, how much they cost to ship, and how much work is needed for installation. When you buy in bulk, the cost per meter goes down, and the administrative costs of buying go down as well. Strategic inventory management weighs the costs of keeping items on hand against their usefulness for fixes or growth projects that need to be done quickly.
The total cost of ownership includes more than just the initial buy price. It also includes how hard it is to install, how much upkeep it needs, and how long it is expected to last. The higher price of higher-quality cables is justified by the fact that they last longer and fail less often. Warranty security adds to the value of an item by protecting it from early failure or production flaws.
For professional data transmission tasks, RG213 coaxial cable is the best combination of speed, reliability, and value for money. Its military-grade construction makes sure that the electrical properties stay the same, and the placement is flexible, which is important for complicated projects. The strong design of the cable solves common problems in the industry, like signal loss, limited power handling, and needs for long-lasting performance in harsh environments. When you choose the right cable technology for your project and have it installed by a professional, you can get the most out of its many benefits in a wide range of communication and broadcasting uses.
A: The military-grade design (MIL-C-17) of RG213 and its solid polyethylene dielectric and stranded bare copper cable ensure high signal clarity. The cable's 50-ohm impedance and good shielding guard against electromagnetic interference and transmission loss. Its strong design can handle high power levels of up to 5000V while still being adaptable to complicated setups.
A: The strong PVC cover and solid dielectric design of RG213 make it great for use outside. The cable is better at resisting damage from UV light and water absorption than foam insulating options. Temperature stability makes sure that the electricity works the same way in a wide range of temperatures, so it can be used for long-term outdoor setups.
A: The 10.3mm diameter of RG213 fits PL-259, N-type, and BNC connections that are made for this cable size. Stranded cables need different types of connections than solid conductors, like crimp or clamp-style connectors. Choosing the right connectors is important for both electrical performance and mechanical dependability.
A: With normal amounts of attenuation, RG213 can send signals up to 1 GHz. The cable can work at higher frequencies, but above this range, signal loss gets a lot worse. The solid polyethylene insulator keeps the cable's electrical properties fixed over its useful frequency range.
A: Look for providers that have ISO 9001 approval, follow RoHS rules, and meet military specifications (MIL-C-17). CE marking makes sure that European rules are followed, and REACH approval makes sure that chemical safety standards are met. Full test results check electrical factors and material requirements.
Otto Cable offers top-notch RG213 coaxial cable options backed by decades of experience in RF technology and ISO-certified production excellence. Our modern production methods allow us to make 150 km of high-quality cables every day, so we can get them to you quickly—within 10 to 15 days for your important projects. As a reliable RG213 provider, we offer a wide range of customization choices, such as jackets made from special materials, lengths that are cut to order, and connector kits that are made exactly how you want them. Get in touch with us to talk about your needs and see how our dedication to high quality, low prices, and unbeatable expert support has made us the first choice for top makers around the world.
1. Electronic Industries Alliance. "Coaxial Cable Standards and Performance Specifications for Professional Applications." Technical Publication EIA-490, 2018.
2. Institute of Electrical and Electronics Engineers. "Standard for Coaxial Communication Cable Performance Requirements." IEEE Standard 287-2015.
3. Military Communications Research Laboratory. "Analysis of RG213 Cable Performance in High-Power RF Transmission Systems." Defense Technical Information Center, 2019.
4. International Telecommunications Union. "Transmission Line Characteristics and Signal Integrity in Professional Communication Systems." ITU-T Recommendation G.703, 2017.
5. Society of Cable Telecommunications Engineers. "Best Practices for Coaxial Cable Installation and Maintenance in Professional Environments." SCTE Standards Report 254-2020.
6. National Institute of Standards and Technology. "Electromagnetic Compatibility Guidelines for Coaxial Cable Systems." NIST Technical Publication 1297, 2018.
