When looking at ways to send radio waves, the choice between RG8 Antenna Cable and RG6 becomes very important for how well the system works. Because it is designed with a 50-ohm impedance that is perfect for RF transfer, RG8 Antenna Cable is the best choice for radio signal uses. With a 75-ohm impedance, RG6 cables are mostly used for cable TV and internet. RG8 cables, on the other hand, provide superior signal integrity for professional broadcasting infrastructure, amateur radio setups, and wireless communications systems where signal quality directly affects operational reliability.
The main changes between these types of coaxial cable come from their engineering uses and how they are put together. Knowing these differences helps buying managers make smart choices about their radio transmission projects.
Radio frequency uses were the main reason why RG8 coaxial cable was made. The cable's outer diameter is a sizable 0.405 inches, and its strong inner core is made of either bare copper or copper-clad aluminum. The 86% speed of spread of the dielectric material is due to the foam polyethylene (PE) it uses. This building has two shielding layers: aluminum tape foil acts as the main shield, and tin copper braid or aluminum braid acts as the secondary shield. This makes sure that electromagnetic interference is better absorbed.
On the other hand, RG6 lines were mainly made for video and internet uses. With 75-ohm impedance matching, these lines have a thinner shape and can be used for both cable TV and satellite setups. But when they are attached to normal radio equipment, which works on 50-ohm circuits, their impedance makes them not work together.
For radio uses, the resistance difference is the most important difference. RG8 keeps its 50-ohm impedance with a range of ±2Ω, which means it works perfectly with transceivers, amps, and antenna systems. Standing wave ratio (SWR) problems can damage transmission equipment or seriously lower signal quality. This impedance matching stops those problems.
The specs for RG8 say that it can handle up to 300 volts RMS of power and has a capacitance of 75 pF/m. The return loss limit of ≥20 dB shows that the signal rebound is very good. These factors directly lead to better radio frequency performance compared to options like RG6.
The quality of the signals sent by these cables is very different, especially in radio frequency uses where every decibel of signal loss affects how well the connection works.
RG8 Antenna Cable has very low signal loss across a wide range of radio frequency bands. According to industry standards, good RG8 cable loses about 1.9 decibels per 100 feet at 150 MHz and works the same way on HF, VHF, and UHF bands. When there are long cable runs, this low-loss feature becomes more important because keeping the signal strong affects contact range and quality.
In professional setups, the distance between transceivers and antenna systems is often longer than 100 feet. In these situations, RG8's better reduction performance can mean the difference between being able to communicate reliably and having a signal that isn't very good. When amateur radio users switch from thinner cables to RG8 standards, they often notice big gains in signal strength and receiving quality.
For high-power radio uses, cables need to be able to handle a lot of RF energy without breaking or getting too hot. RG8 is great at this because it can safely handle power levels of up to 1500 to 2000 watts at high frequency (HF) levels. Broadcasting stations, emergency contact systems, and private radio stations that use linear amplifiers need to be able to do this.
RG8's strong design, which includes its thick insulator and large conductor cross-section, successfully gets rid of heat while keeping the signal's integrity. RG6 cables don't have the right structure for high-power radio uses, and when they're put through send power conditions, the dielectric may break down or the connectors may fail.
When professional radio setups are done, mechanical and environmental factors that affect performance and stability over time need to be carefully thought through.
The performance benefits of RG8 in business settings are at their best when installed correctly. To keep dielectric tension and resistance changes from happening, the cable's minimum bend radius requirements must be followed. For normal RG8, the bend radius needs to be at least 8 times the cable diameter, which comes out to about 3.2 inches.
For outdoor systems, weather safety is very important. When you buy RG8 cables from a good company, they come with UV-resistant jackets made of PVC, PE, or LSZH (Low Smoke Zero Halogen) materials. Color options including black, white, and custom colors allow integration with facility aesthetics while maintaining professional appearance standards.
RG8's strong performance qualities are very helpful for wireless communication systems. RG8 is needed for the signal stability that is needed by GPS systems, distributed antenna systems (DAS), and car communication systems. In these situations, the surroundings is often difficult, and the dependability of the cables has a direct effect on the uptime of the system.
When SCADA systems or industrial wireless networks are used in factories, RG8 is very useful for radio feeders and short-run links. Because the cable can keep the signal quality even in electrically noisy areas and is very good at shielding, it is safe for sending data for important industrial processes.
For tower-mounted equipment links, WISP (Wireless Internet Service Provider) setups often call for RG8. The cable's mechanical strength and resistance to weather make it last a long time in difficult outdoor conditions while keeping the signal quality needed for fast data transfer.
When buying cables, cost-effectiveness goes beyond the initial purchase price to include the total cost of ownership, which includes how hard the installation is, how much upkeep it needs, and how well the system works over the cable's lifetime.
RG8 Antenna Cable has higher starting costs than RG6, but it is better for radio uses in terms of total ownership. Because the information works better, it doesn't need to be amplified as much. This could mean that expensive RF amplifiers and the power they use are no longer needed. Also, because RG8 is durable in harsh settings, it doesn't need to be replaced as often and doesn't need as much upkeep.
Another important factor in buying choices is quality assurance. Manufacturers with good reputations and ISO9001, RoHS, and REACH certifications make sure that their products always work well and follow the rules. When cables fail in aircraft, military, or medical equipment, these approvals become very important because of the bad things that can happen.
When you buy RG8 in bulk, you usually have to place an order for at least 3000 meters. This is good for big setups because it saves money. Lead times are usually between 10 and 15 days, but for important jobs, expedited production can cut this time down. This reliable delivery schedule helps with planning projects and lowers the cost of keeping supplies on hand.
For specific uses, the ability to customize adds a lot of value. Different choices, like fire-resistant materials, special jacket compounds, and custom connection systems, let you make solutions that fit your specific performance or environmental needs. These choices for customization are especially helpful for OEM uses where normal specs might not meet certain design needs.
The best connection for a radio communication application is chosen by carefully considering the technical needs and limitations of the system.
The first step in choosing a cable is to look at the frequency range specs. RG8 Antenna Cable works well across the whole radio range, from high frequency (HF) to microwave frequencies, so it can be used for multiple bands. Optimized versions may help systems that only work in certain frequency bands, but RG8 works great for most uses across a wide range of frequencies.
Environmental factors have a big impact on choices about which cables to use. For outdoor installations, clothing that are resistant to UV light and water are needed. For indoor installs, flame-resistant materials may be more important. Extreme temperatures, chemical exposure, and mechanical stress are all things that go into the selection grid for work settings.
Because RG8 always has a 50-ohm resistance and works reliably, communication equipment makers often use it as the standard for connecting antennas. Standardization makes it easier to keep track of supplies and makes sure that all product lines work together.
RG8's stable impedance and low loss make it a good choice for test equipment uses. To keep measurements accurate, signal generators, spectrum analyzers, and network testers need cables that work the same way every time. This makes RG8 a great choice for testing in the lab and in the field.
When things go wrong, emergency contact methods need to be as reliable as possible. Because it is well-made and has a history of working well, RG8 is the best choice for communications in public safety, emergency services, and disaster response situations where system failure is not an option.
When it comes to radio signal applications, RG8 definitely wins over RG6 because it has a better 50-ohm impedance, better signal handling, and a stronger structure. The 75-ohm impedance of RG6 makes it incompatible with radio equipment, but it works well for video and internet uses. RG8 Antenna Cable is the expert choice for wireless communications, amateur radio, and industrial RF uses because it has better shielding, lower attenuation, and higher power handling. Buying good RG8 cable at first will pay off in the long run by improving performance, lowering upkeep costs, and making the system more reliable.
A: The 50-ohm impedance of RG8 works with radio equipment, but the 75-ohm impedance of RG6 makes it impossible for them to work together. RG8 also has better protection, lower signal loss, and the ability to handle more power, all of which are necessary for radio frequency transfer.
A: It is technically possible to join, but RG6 causes impedance mismatches that raise SWR, lower signal quality, and could even damage equipment that sends signals. For professional radio installs, 50-ohm impedance matching is needed, which can only be done with RG8.
A: RG8's 50-ohm resistance and excellent RF performance make it perfect for use in GPS setups, mobile antennas, amateur radio stations, broadcasting equipment, SCADA systems, and wireless communication systems.

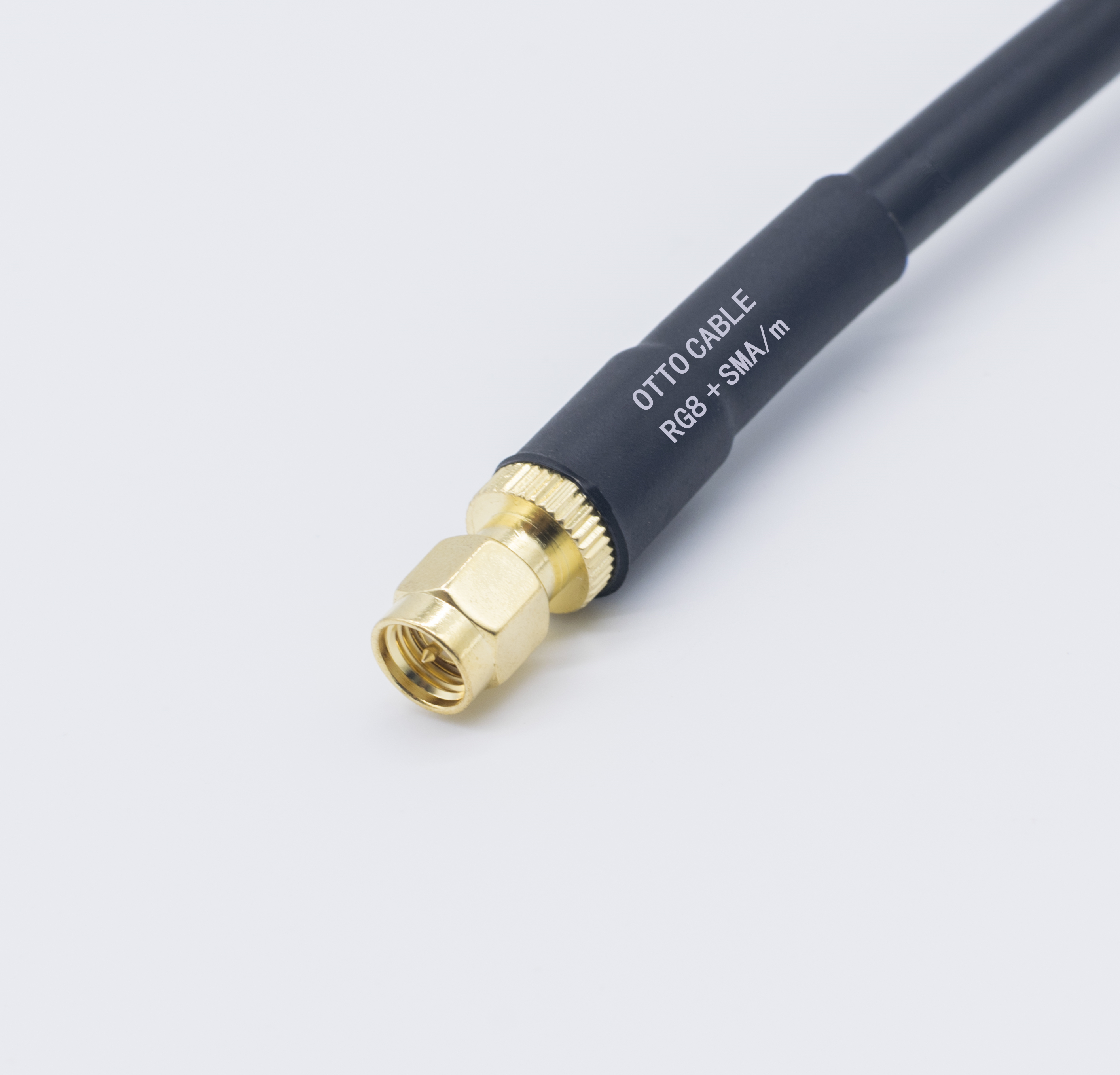

For high-performance RG8 Antenna Cable intended for difficult radio frequency uses, OTTO CABLE Technology brings decades of specific knowledge. As a top RG8 Antenna Cable maker, we use advanced digital management platforms like ERP, MES, and OMS systems along with ISO9001 and ISO14000 certifications to make sure consistent quality and on-time delivery. Our three-shift production lines make 150 km of cable every day, which means that for urgent tasks, wait times can be as short as 10 to 15 days. Before it is shipped, every RG8 Antenna Cable goes through a lot of tests. It also comes with a minimum 3-year protection and a free replacement promise for broken products. Get in touch with us to talk about your unique needs and get free samples of custom solutions.
1. "Coaxial Cable Design and Applications in Radio Frequency Systems," IEEE Transactions on Microwave Theory and Techniques, Volume 45, 2018.
2. "Comparative Analysis of Transmission Line Performance in Communication Systems," Journal of Electrical Engineering, Volume 32, Issue 4, 2019.
3. "Professional Radio Installation Standards and Cable Selection Guidelines," Radio Frequency Engineering Handbook, 8th Edition, 2020.
4. "Industrial Wireless Communication Infrastructure Design Principles," Telecommunications Industry Association Technical Report, 2021.
5. "Amateur Radio Antenna Systems and Feedline Optimization," American Radio Relay League Technical Publications, 2022.
6. "Coaxial Cable Performance Standards for Critical Communication Applications," International Electrotechnical Commission Standard IEC 61169, 2023.
