RG6 Vs. RG58 Vs. RG59 Vs. RG11 Coaxial Cables

Have you ever wondered how your TV and internet signals travel seamlessly? Coaxial cables play a crucial role in modern communication systems. In this article, we’ll explore the differences between RG6, RG58, RG59, and RG11 coaxial cables. You’ll learn about their specifications, applications, and which one is right for your needs.

Understanding Coaxial Cables

What is a Coaxial Cable?

A coaxial cable, often referred to as coax, is a type of electrical cable used for transmitting data, video, and audio signals. It consists of an inner conductor surrounded by an insulating layer, a metallic shield, and an outer insulating layer. This design helps minimize interference and maintain signal integrity over long distances.

Structure and Components of Coaxial Cables

The structure of coaxial cables is essential for their performance. Here’s a breakdown of the key components:

● Inner Conductor: Usually made of copper or aluminum, it carries the signal.

● Dielectric Insulator: This layer separates the inner conductor from the outer shield, preventing signal loss.

● Shielding: Typically made of braided copper or aluminum foil, it protects against external electromagnetic interference (EMI).

● Outer Jacket: The protective layer that encases the entire cable, made from durable materials like PVC or PE.

How Coaxial Cables Work

Coaxial cables function by transmitting electrical signals through the inner conductor while the outer shield serves as a ground. This design allows for high-frequency signals to travel efficiently, making coaxial cables ideal for various applications. The shielding minimizes noise and interference, ensuring a clear signal.

When a signal travels through a coaxial cable, the electromagnetic field is contained within the dielectric material. This containment allows for less signal degradation, especially over long distances. Unlike twisted pair cables, coaxial cables can handle higher frequencies, making them suitable for broadband internet and high-definition television.

Common Applications of Coaxial Cables

Coaxial cables are widely used across different industries, thanks to their versatility and reliability. Here are some common applications:

Use in Television Broadcasting

In television broadcasting, coaxial cables are essential for transmitting signals from antennas to TVs. They support both analog and digital signals, ensuring viewers receive high-quality images and sound. RG6 cables are particularly popular in this application due to their low signal loss and ability to handle high-frequency signals.

Applications in Internet and Data Transmission

Coaxial cables are also crucial for internet connectivity. Many cable internet providers use RG6 cables to deliver high-speed internet to homes and businesses. The low attenuation of RG6 allows for faster data transmission, making it an ideal choice for broadband services. Additionally, coaxial cables can be used in networking setups, connecting modems and routers to ensure stable internet connections.

Role in Security Systems (CCTV)

In security systems, coaxial cables are commonly used to connect CCTV cameras to recording devices. They provide a reliable connection for transmitting video signals without significant loss of quality. RG59 cables are often used in these setups due to their flexibility and ability to transmit video signals effectively over short distances.

In summary, coaxial cables are versatile components in modern communication systems, playing a vital role in television broadcasting, internet connectivity, and security applications. Their unique structure and reliable performance make them a preferred choice in various industries.

Overview of RG6, RG58, RG59, and RG11 Coaxial Cables

What are RG6, RG58, RG59, and RG11?

RG6, RG58, RG59, and RG11 are specific types of coaxial cables designed for various applications. Each type has unique characteristics that make it suitable for different uses in communication systems. Understanding these differences can help you choose the right cable for your needs.

● RG6: This is a 75-ohm coaxial cable widely used for cable television and internet connections. It features a larger inner conductor and enhanced shielding, which reduces signal loss over long distances.

● RG58: A 50-ohm coaxial cable primarily used in radio communications and thin Ethernet networks. It’s more flexible than RG6, making it suitable for tight spaces and portable applications.

● RG59: Also a 75-ohm cable, RG59 is typically used for video and security applications, such as connecting CCTV cameras. It has a smaller diameter than RG6, which can make it easier to handle in certain installations.

● RG11: This is another 75-ohm cable designed for long-distance signal transmission. It’s thicker than RG6 and RG59, which allows it to maintain signal integrity over greater distances, making it ideal for main trunk lines in cable systems.

Key Specifications and Characteristics of Each Cable Type

Here’s a closer look at the specifications of these coaxial cables:

Brand Examples

One notable manufacturer of these coaxial cables is Otto Cable Technology. They produce high-quality RG6, RG58, RG59, and RG11 cables, ensuring that they meet industry standards. Otto Cable is certified under ISO9001, CE, and RoHS, which guarantees their commitment to quality and environmental safety.

Their production capabilities are impressive, with advanced manufacturing processes that allow for a daily output of 150 kilometers of cables. This means they can meet large orders efficiently, providing reliable solutions for various applications. Otto Cable also offers OEM and ODM services, allowing for customized cable solutions tailored to specific needs.

With a strong focus on research and development, Otto Cable Technology ensures that their products not only meet but often exceed industry standards, making them a trusted choice for professionals in the field.

By understanding the specifications and applications of RG6, RG58, RG59, and RG11 coaxial cables, you can make informed decisions for your projects, ensuring optimal performance and reliability.

Detailed Comparison of RG6, RG58, RG59, and RG11

Impedance

Impedance is a key factor in coaxial cables, influencing how signals are transmitted. It refers to the resistance a cable presents to the flow of alternating current (AC). For coaxial cables, impedance is usually measured in ohms, and the right impedance ensures minimal signal reflection and maximum power transfer.

In coaxial cables, impedance is determined by the dimensions of the inner conductor and the dielectric material surrounding it. Each type of coaxial cable has a specific impedance value, which is crucial for its intended application.

A mismatch in impedance can lead to signal reflections, causing distortion and loss of quality. For example, using a 75-ohm cable like RG6 in a 50-ohm system can result in poor performance, especially in high-frequency applications where signal integrity is critical.

Center Conductor Gauge

The center conductor gauge refers to the thickness of the inner conductor in coaxial cables, measured using the American Wire Gauge (AWG) system. The lower the AWG number, the thicker the wire. Thicker wires can carry more current but may also be less flexible.

The gauge of the center conductor affects both signal loss and flexibility. Thicker cables like RG11 (14 AWG) can transmit signals over longer distances with lower loss, while RG58 (20 AWG) offers greater flexibility but may experience higher signal loss.

Signal Loss (Attenuation)

Signal loss, or attenuation, refers to the reduction in signal strength as it travels through a cable. This loss is measured in decibels (dB) and significantly impacts cable performance. High attenuation means the signal weakens more quickly over distance, leading to poor performance in applications like video transmission or internet connectivity.

Here’s a look at the attenuation rates for RG6, RG58, RG59, and RG11 at various frequencies:

According to Otto Cable’s specifications, RG11 exhibits the lowest signal loss, making it ideal for long-distance applications. Higher signal loss can lead to issues such as blurred images in video feeds or slow internet speeds. Understanding these rates helps in selecting the right coaxial cable for specific applications, ensuring optimal performance.

Frequency Range and Applications

Different coaxial cables support varying frequency ranges. Here’s a brief overview:

● RG6: Up to 3 GHz

● RG58: Up to 1 GHz

● RG59: Up to 1 GHz

● RG11: Up to 3 GHz

When selecting a coaxial cable, consider the application, distance, and frequency requirements. For high-definition video and long runs, RG11 is recommended. For standard cable TV, RG6 is often sufficient. RG58 is a good choice for radio communications, while RG59 works well for CCTV setups. Understanding these factors ensures you choose the best cable for your needs.

Pros and Cons of Each Coaxial Cable Type

RG6

Advantages of RG6

RG6 coaxial cable is widely recognized for its low signal loss and versatility. It features a thicker center conductor and superior shielding, which helps maintain signal integrity over longer distances. This makes RG6 an excellent choice for high-frequency applications, including cable TV and internet services. Its flexibility also allows for easier installation in various environments.

Use Cases:

● Cable TV: RG6 is the standard choice for connecting cable boxes to televisions.

● Satellite TV: Its ability to handle high-frequency signals makes it ideal for satellite installations.

● Internet Modems: Many broadband providers recommend RG6 for reliable internet connections.

Disadvantages of RG6

While RG6 is a strong performer, it does have some limitations. In situations where extreme flexibility is required, such as in tight spaces or complex installations, RG6 can be cumbersome due to its thicker diameter. Additionally, RG6 may not be the best option for very low-frequency applications, where other cables might perform better.

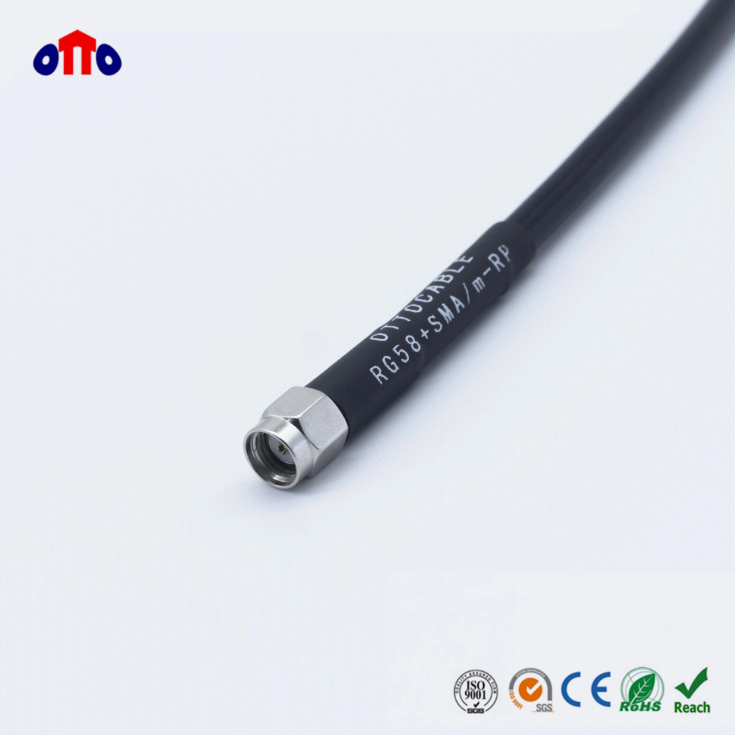

RG58

Advantages of RG58

RG58 is a 50-ohm coaxial cable known for its flexibility and lightweight design. It is particularly well-suited for radio communications and thin Ethernet networks, making it a popular choice among hobbyists and professionals alike. Its smaller size allows for easier handling in portable applications.

Use Cases:

● CB Radios: Often used in Citizen Band radio setups for clear communication.

● Amateur Radio: Favored by amateur radio operators for its performance in various conditions.

● Thin Ethernet Networks: Suitable for older networking standards, providing reliable connections.

Disadvantages of RG58

Despite its advantages, RG58 has a significant drawback: it experiences higher signal loss compared to RG6 and RG11. This can limit its effectiveness in long-distance applications, particularly where high-frequency signals are involved. As a result, RG58 is often not recommended for modern high-speed data transmission needs.

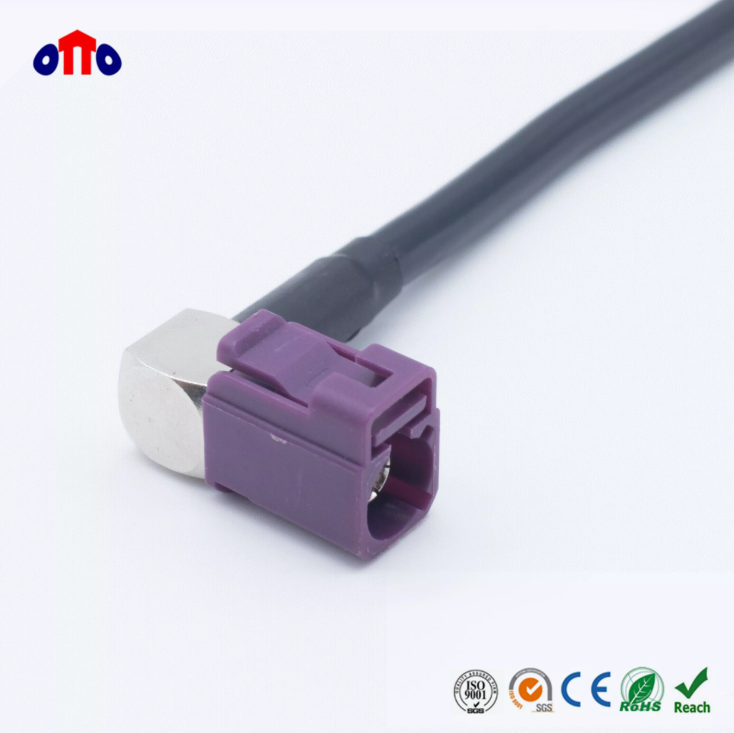

RG59

Advantages of RG59

RG59 is a 75-ohm coaxial cable that performs well in short-distance, low-frequency applications. It is commonly used in older CCTV systems and analog video signals, where its characteristics are sufficient. The cable is relatively easy to install and handle, making it a practical choice for many users.

Use Cases:

● Older CCTV Systems: RG59 is often found in security camera setups that do not require high-definition video.

● Analog Video Signals: It is suitable for transmitting standard definition video signals.

Disadvantages of RG59

One of the main disadvantages of RG59 is that it has largely been replaced by RG6 for high-frequency needs. While it works well for lower frequencies, it cannot match the performance of RG6 in terms of signal loss and distance. This makes RG59 less desirable for modern applications requiring higher fidelity and longer runs.

RG11

Advantages of RG11

RG11 is known for its excellent performance in long-distance signal transmission. With a thicker gauge and lower attenuation, RG11 is ideal for large-scale CATV networks, where maintaining signal quality over long distances is critical. Its robust construction allows it to handle high-frequency signals effectively.

Use Cases:

● Large-Scale CATV Networks: Commonly used in cable television infrastructure to deliver signals over extensive distances.

● Broadcasting Applications: Suitable for professional broadcasting setups requiring reliable signal quality.

Disadvantages of RG11

However, RG11 does have its downsides. Its thickness can make installation challenging in tight spaces, where flexibility is needed. This can complicate routing in residential or commercial settings, where space constraints are a concern. Additionally, its heavier weight may require more robust support structures during installation.

By weighing these pros and cons, you can make an informed choice about which coaxial cable best suits your specific needs.

Choosing the Right Coaxial Cable for Your Needs

Factors to Consider When Choosing a Coaxial Cable

Selecting the appropriate coaxial cable involves several critical factors. Understanding these can help you make an informed decision tailored to your specific requirements.

Application Requirements

The first thing to consider is the application requirements, which include distance and frequency. For instance, if you're setting up a cable TV connection, RG6 is often the best option due to its low signal loss over long distances. Conversely, if you're working with short-range radio communications, RG58 may be more suitable due to its flexibility.

Environmental Factors

Environmental conditions also play a significant role in your choice of coaxial cable. If the cable will be used outdoors, it should be rated for outdoor use, meaning it can withstand UV exposure and temperature variations. For indoor applications, standard cables may suffice. Moreover, consider whether the installation will be in a location prone to moisture or physical stress, as this may necessitate additional protective features.

Budget Considerations

Your budget is another crucial factor. Coaxial cables vary significantly in price, depending on their type and specifications. While RG6 and RG11 may come at a higher cost due to their advanced features, they often provide better performance and longevity, making them a worthwhile investment. On the other hand, RG58 and RG59 are more budget-friendly options, suitable for less demanding applications.

Expert Recommendations

When it comes to selecting the best coaxial cable for your specific scenarios, expert guidance can be invaluable. Here are some recommendations based on common use cases:

● For High-Definition Video: Choose RG6 for its superior performance in maintaining signal quality over long distances.

● For Radio Communication: Opt for RG58, especially in portable setups where flexibility is essential.

● For Security Systems: RG59 is often adequate for older CCTV systems, while RG11 is recommended for newer, high-definition cameras that require longer runs.

● For Outdoor Installations: Use cables rated for outdoor use, such as RG6 or RG11, to ensure durability against environmental factors.

Customized Solutions from Otto Cable

If you have unique requirements, consider reaching out to Otto Cable Technology. They offer OEM and ODM services, allowing for customized coaxial cable solutions tailored to your specific needs. Whether you need cables designed for particular applications or environmental conditions, Otto Cable can work with you to develop the right product.

By considering these factors and expert recommendations, you can confidently choose the coaxial cable that best meets your needs, ensuring optimal performance and reliability for your applications.

Conclusion

In this article, we explored the key differences between RG6, RG58, RG59, and RG11 coaxial cables.

RG6 is best for high-definition applications, while RG58 excels in radio communication. RG59 is suitable for older CCTV systems, and RG11 performs well in long-distance networks.

Choosing the right coaxial cable is crucial for optimal performance. It ensures reliable signal transmission and meets specific application needs.

FAQ

Q: What is the difference between 50-ohm and 75-ohm coaxial cables?

A: 50-ohm cables, like RG58, are ideal for radio communications, while 75-ohm cables, like RG6 and RG59, are suited for video applications.

Q: Can I use RG6 in place of RG58?

A: Yes, but RG6 is better for high-frequency signals, while RG58 is more flexible for radio applications.

Q: What is the maximum distance for coaxial cable runs?

A: Maximum distance varies; RG11 can run up to 500 feet, while RG6 and RG58 are effective up to 300 feet.

Q: How do I properly install coaxial cables?

A: Ensure connections are tight, avoid sharp bends, and use appropriate connectors for the cable type.

Q: What tools do I need for coaxial cable installation?

A: You’ll need a coaxial cable stripper, crimping tool, connectors, and a multimeter for testing.
