Which coaxial cable should you choose—RG59 or RG6? The choice between these two cables could make or break the performance of your communication system.
In this article, we will explore the key differences between RG59 and RG6 cables. You'll learn about their construction, applications, and which one is best suited for your specific needs.
By the end, you'll know how to select the right coaxial cable for your TV, internet, or CCTV system.
Coaxial cables are designed to transmit electrical signals while maintaining signal integrity and reducing interference. These cables consist of four main components:
1. Center Conductor: The central copper wire that transmits the electrical signal.
2. Dielectric Insulation: A plastic layer that insulates the center conductor and maintains the cable’s impedance.
3. Shielding: A braided or foil layer that protects the signal from external interference.
4. Outer Jacket: The protective outer layer that shields the cable from environmental damage and physical wear.
Coaxial cables are widely used in various sectors such as telecommunications, networking, video surveillance (CCTV), and audio systems. They are highly valued for their ability to deliver clear signals over long distances, with minimal loss and interference. These cables are found in applications such as cable TV, satellite communications, internet connections, and security camera systems.
The term "RG" stands for "Radio Guide," a designation originally used by the military to categorize coaxial cables based on their frequency capabilities and construction. RG ratings are assigned numbers to identify specific cable types. For example, RG59 and RG6 represent two widely used coaxial cables, each with distinct characteristics suited to different tasks. While these ratings might seem similar, their differences are significant when choosing the right cable for a particular application.
RG59 and RG6 coaxial cables differ significantly in construction. RG6 cables feature a thicker center conductor (18 AWG) and thicker dielectric insulation, providing better signal transmission and resistance to signal loss over longer distances. On the other hand, RG59 has a thinner conductor (20 AWG or 22 AWG) and less insulation, making it more flexible but less effective at high frequencies and over long distances.
The shielding in coaxial cables plays a critical role in protecting signals from electromagnetic interference (EMI). RG6 typically features dual shielding, combining both foil and braided layers, which helps protect against a broader range of interference. RG59, however, often has a single braided shielding layer that provides less protection, making it more suitable for low-frequency signals but less reliable in environments with high EMI.
RG6 coaxial cables support higher frequencies (up to 3 GHz) compared to RG59, which supports frequencies up to 1 GHz. The ability of RG6 to handle higher frequencies makes it ideal for modern applications like cable TV, satellite TV, and broadband internet, which require high bandwidth to transmit high-definition video and fast internet data. In contrast, RG59, which is limited to low-frequency applications, is suitable for CCTV systems and analog video signals.
Signal loss, or attenuation, occurs when a signal weakens as it travels along the cable. RG59 experiences more signal loss compared to RG6, especially over long distances. For instance, at 100 MHz, RG59 loses more than 3 dB per 100 feet of cable, whereas RG6 loses around 2.3 dB at the same distance. This makes RG6 the better choice for long-distance applications, ensuring that signal degradation is minimized.
RG59 is commonly used for low-bandwidth applications such as CCTV and analog video transmission. It is suitable for short-distance runs, typically under 100 feet, where high-frequency signals are not necessary. Its flexibility makes it easy to install in tight spaces, but the limited signal quality and higher attenuation make it less suitable for modern, high-definition video and internet services.
RG6 is the preferred choice for high-definition video, broadband internet, and satellite TV. Its enhanced shielding, thicker conductor, and better insulation make it the go-to cable for long-distance runs, minimizing signal loss. RG6 is widely used for cable TV, satellite dishes, and high-speed internet connections, ensuring reliable signal transmission for both residential and commercial setups.
RG59 is more flexible than RG6, making it easier to bend and maneuver in tight spaces. This makes RG59 a great choice for indoor installations where flexibility is essential. On the other hand, RG6 is stiffer due to its thicker insulation and larger conductor but provides superior performance over longer cable runs. Its rigidity can make installation in tight spots more challenging, but its performance benefits far outweigh this drawback for high-performance applications.
Feature | RG59 | RG6 |
Conductor Size | Smaller (20 AWG) | Larger (18 AWG) |
Dielectric Insulation | Thinner | Thicker |
Frequency Handling | Up to 50 MHz | Up to 1 GHz or more |
Shielding | Single-layer braided | Dual-layer (foil + braid) |
Signal Loss | Higher attenuation | Lower attenuation |
Applications | CCTV, analog video | TV, internet, satellite |
Cost | Less expensive | More expensive |
Flexibility | More flexible | Less flexible |
Shielding in coaxial cables is designed to protect the signal from external interference. RG6, with its dual-layer shielding (foil and braided), offers enhanced protection against electromagnetic interference (EMI) and radio frequency interference (RFI). This makes RG6 more suitable for environments with significant external interference, such as areas with many electronic devices or outdoor installations. RG59, with its single braided shielding, is more effective against low-frequency interference but is less reliable in high-frequency applications.

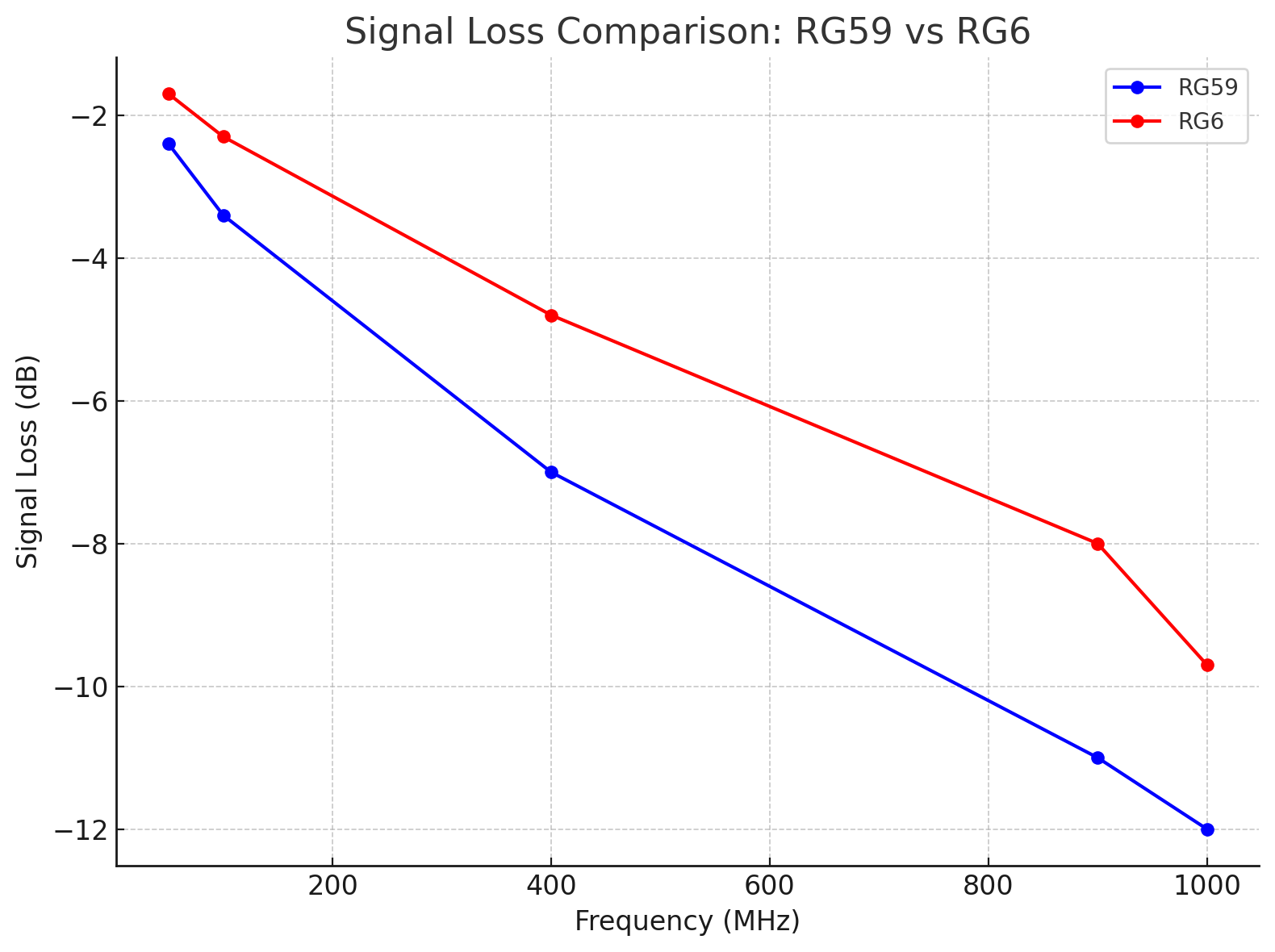

The table below compares the signal loss at different frequencies for RG59 and RG6 cables. The data shows that RG6 performs significantly better over longer distances, with lower attenuation.
Frequency | RG59 Signal Loss | RG6 Signal Loss |
50 MHz | -2.4 dB | -1.5 dB |
100 MHz | -3.4 dB | -2.3 dB |
400 MHz | -7.0 dB | -4.8 dB |
900 MHz | -11.0 dB | -8.0 dB |
1000 MHz | -12.0 dB | -9.7 dB |
Cable Type | Shielding Type | Effectiveness Against Interference |
RG59 | Braided Shielding | Protects against lower-frequency interference |
RG6 | Foil and Braided Shielding | Protects against both high and low-frequency interference |
If you need to transmit high-frequency signals, such as those required for high-definition TV, broadband internet, or satellite TV, RG6 is the best option. RG6’s ability to handle higher frequencies ensures better performance for these applications. If your installation only requires low-frequency signals, such as CCTV or analog video, RG59 is sufficient.
For long-distance installations, RG6 is the preferred choice due to its lower signal loss over extended runs. RG59 is better suited for short-distance connections, typically under 100 feet, where signal degradation is less of a concern. Additionally, RG6’s stronger shielding makes it ideal for outdoor installations or areas with high interference, while RG59 is better for indoor use in low-interference environments.
For high-definition TV, internet, and satellite TV installations, RG6 is the superior choice due to its ability to transmit high-frequency signals with minimal loss. RG6 ensures a stable, high-quality connection for these applications, making it the go-to cable for modern digital services.
For CCTV and analog video setups, RG59 is a cost-effective solution. While RG59 may not offer the same signal quality over long distances, it is ideal for short-range analog video transmission, where high-frequency performance is not critical.
Application Type | Best Cable Choice |
High-definition TV | RG6 |
Internet Connectivity | RG6 |
Satellite TV | RG6 |
CCTV Systems | RG59 |
Analog Video | RG59 |
Coaxial cables are available with different jacket types, such as plenum-rated and outdoor-rated jackets. Plenum-rated jackets are designed for installations in air ducts, where fire safety is a concern. Outdoor-rated jackets provide protection against environmental factors like UV light, moisture, and temperature extremes. When purchasing RG59 or RG6, consider the environmental conditions where the cable will be installed to ensure durability.
Coaxial cables are typically designed with either 50-ohm or 75-ohm impedance. RG59 and RG6 cables both feature 75-ohm impedance, which is ideal for video and audio transmission. Ensuring impedance matching between the cable and your equipment is crucial for maintaining signal integrity and preventing signal loss or distortion.
While RG59 is more affordable and sufficient for short-range applications, RG6 provides superior performance and is the better choice for high-bandwidth, long-distance installations. Consider your budget and performance needs when selecting between the two.
RG59 and RG6 coaxial cables differ in construction, performance, and applications. RG6 is perfect for high-frequency, long-distance tasks like TV, internet, and satellite, offering better signal quality and less loss. In contrast, RG59 is more suitable for short-range, low-frequency uses. For high-quality coaxial cables, OTTO offers reliable solutions tailored to various needs, ensuring optimal performance and durability.
A: RG59 is best for low-frequency, short-distance applications, while RG6 is ideal for high-frequency, long-distance transmissions.
A: Yes, RG6 can be used for CCTV systems, especially for longer cable runs and areas with high interference.
A: RG6 provides better shielding and lower signal loss, making it more suitable for high-frequency signals like TV and internet.
A: RG59 is ideal for CCTV and analog video, while RG6 is best for high-definition TV, satellite, and internet services.
A: Consider the frequency requirements, distance, and environment. RG6 is better for long runs and high frequencies, while RG59 works for shorter, lower-frequency applications.
