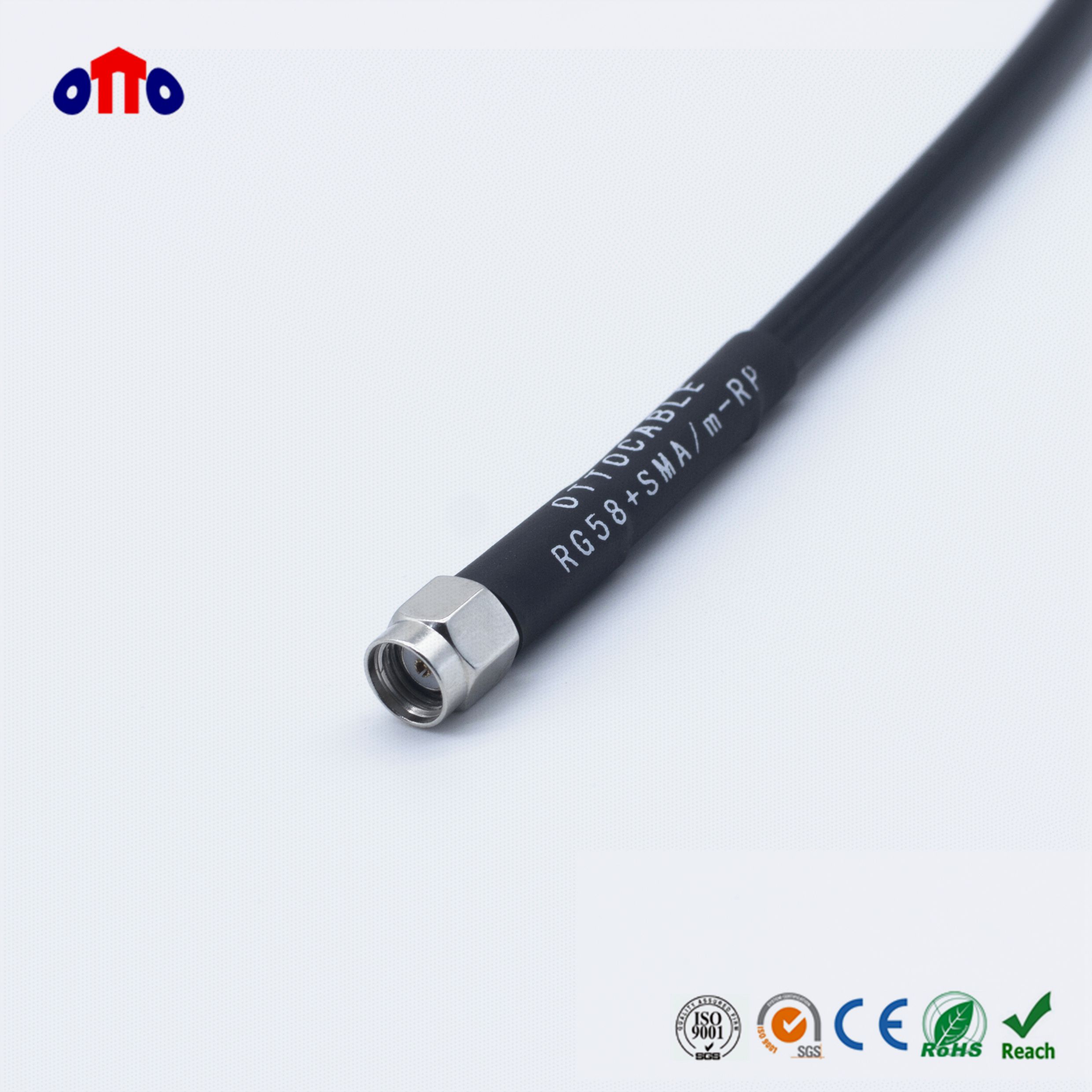

RG58 Coaxial Cable is one of the most reliable and flexible ways to use low-power radio frequency in a wide range of businesses. The detailed information in this guide covers the technical details, performance traits, and real-world uses of RG58 wires. It will help purchasing managers and engineers make smart choices. Because RG58 cable has a standard 50-ohm impedance and has been used reliably in wireless communications, antenna systems, and test equipment, it is important to know how to choose the right one for your project and for long-term operating efficiency.
To build a reliable RF system, you must first understand how the wire is put together on the inside. The carefully engineered building of RG58 cables ensures consistent electrical performance even when the environment changes. The inner circuit is usually made of bare copper that has been stranded, copper-clad aluminum (CCA), or copper-clad steel (CCS). Each has its own benefits that depend on the needs of the application.
The dielectric material between the inner wire and the shielding layer is very important for keeping the signal strong. The electrical qualities of solid polyethylene dielectric are very good, and it stays stable mechanically. This setup makes sure that the signal isn't lost too much, even in difficult
installation situations where wires move around a lot or the temperature changes a lot.
The shielding method is probably the most important part of how well RG58 Coaxial Cable works. Braided copper or CCA shielding with coverage levels between 70% and 95% is used by good producers. Higher coverage rates directly lead to better resistance to noise and less electromagnetic interference (EMI), which are things that become more important in places with a lot of electronics.
When it comes to frequency range, professional-grade RG58 wires keep their 50-ohm impedance, which stops signal reflections that can hurt system performance. When linking several parts in a single RF chain, this impedance matching is even more important.
Modern RG58 implementations offer excellent electrical performance measures that meet the strict needs of modern RF applications. The speed of propagation usually hits 66%, which means that signals are sent efficiently with little delay distortion. When exact timing relationships between various signal paths are needed, this specification becomes even more important.
Capacitance measurements of about 101 pF/m make electrical behavior predictable, which helps engineers figure out the system's performance parameters correctly during the design process. Specifications for return loss of ≥20dB make sure that signals don't reflect too much, so they stay intact throughout the transmission line.
Different frequencies have different attenuation properties, but good RG58 cables keep acceptable loss levels across the whole range they're meant to work in. Understanding these types of loss is important for designing the right system and avoiding over-engineering situations that raise project costs for no reason.
In industries like aerospace, automotive, and manufacturing, where cables need to work regularly in a wide range of temperatures, temperature stability is becoming more and more important. Good RG58 wires keep their electrical properties from -40°C to +85°C, so they work the same way no matter what the temperature is.
Most of the time, companies that make communication gear use RG58 wires to link sensitive RF parts in base stations, repeaters, and distributed antenna systems. The shielding properties of the cable keep nearby channels from interfering with each other, and the signal quality stays high even when the cable goes for a long distance.
For military and space uses, dependability and efficiency must be at their highest levels. It is important for mission-critical transmission systems that the RG58 lines they use are tough and can work in harsh conditions. Sometimes, special attachment shapes and jacket materials are needed for these uses to make sure they work right.
Radio frequency (RF) technology is being used more and more in medical tools for tracking, therapy, and diagnostic imaging. As long as the jacket is biocompatible and the cable itself works well, high-quality RG58 Coaxial Cable is great for these delicate tasks where signal integrity directly affects patient care.
Test and measurement tools use RG58 cables to make sure that readings are always correct and consistent. The cable's stable resistance and low loss make sure that test results show how the device really works and not measurement errors caused by the cable.
When you buy something professionally, you need cables that meet foreign standards. Getting ISO9001 approval shows that a company is dedicated to maintaining quality control throughout the whole production process. When building long-term relationships with suppliers for important uses, this certification becomes even more important.
RoHS and REACH certifications make sure that cable parts are environmentally friendly and follow current rules about dangerous chemicals. As rules get stricter and people in the electronics business become more concerned about the environment, these certifications become more important.
In situations where wires need to keep working in an emergency, fire resistance standards like ECE R118 are very important for extra safety. These higher safety standards are especially helpful for uses in the automotive and aircraft industries.
UL listings give users more trust when using products that need to meet recognized safety standards. These lists show that cables have been put through a lot of tests to make sure they are safe and work well in certain situations.
For project development to go smoothly, solutions that are specifically designed to meet the needs of the application are often needed. To meet the specific needs of each project, experienced manufacturers give a wide range of customization options, such as custom connector interfaces, non-standard cable lengths, and changed construction parameters.
The choice of connector has a big effect on how well and reliably the whole system works. Suppliers of good quality keep a lot of standard connectors in stock and can also make custom connections for uses that need special interfaces, like those for RG58 Coaxial Cable. This gives you the freedom to build the best system possible without sacrificing performance or dependability.
The materials used for jackets can be changed to fit the needs of different environments. You can choose from normal PVC for most uses, polyethylene for better chemical resistance, and low-smoke zero-halogen (LSZH) compounds for uses that need very little smoke during a fire.
Having engineering support during the design and implementation process helps make sure that the right cables are chosen and that the system is properly integrated. During the planning phase, experienced suppliers offer technical advice that helps find problems before they affect the project's schedule or performance.
You should think about more than just the original price if you want to build relationships with good providers. There are a lot of things to consider when judging a manufacturing capability. Some of these are production capacity, quality control methods, and testing tools. If you only buy from sellers with certain RF testing facilities, you can be sure that the goods will always work.
Having knowledge in certain parts of the business is very helpful during the specification process. Suppliers who have worked with flight for a long time know exactly what these tough jobs need and how to test them. For the same reason, knowing a lot about medical equipment means you know about biocompatibility and how to kill germs.
How well a project turns out is often based on how quickly you answer to specific needs. You can meet urgent needs with suppliers who have well-established engineering teams and flexible production methods. These suppliers won't have to lower quality or performance standards.
In order to make sure the quality of a product, it should have thorough testing methods that check its electrical performance, mechanical features, and resistance to the environment. When suppliers send specific test reports with every shipment, items like RG58 Coaxial Cable can be checked for quality and defects before they are sent out.
OTTO CABLE stands as a trusted RG58 Coaxial Cable manufacturer with decades of experience serving aerospace, medical, and communication equipment industries. Our ISO9001-certified manufacturing facility produces cables meeting the most demanding specifications while maintaining competitive pricing and reliable delivery schedules. Contact us to discuss your specific requirements and discover how our engineering expertise can optimize your next project's success.
