Views: 5 Author: Site Editor Publish Time: 2026-03-19 Origin: Site
When it comes to transmission lines for high-voltage and mission-critical uses that need the best signal integrity, RG213 Coaxial Cable is the clear winner. When it comes to radio communications, flight systems, and industrial automation, where signal loss directly leads to failure, this military-grade line is the most reliable on the market. By knowing about its technical specs, benefits for specific applications, and buying factors, engineering teams can make smart choices that improve system performance while ensuring long-term dependability.
One type of heavy-duty communication line is RG213, which was made for situations where regular cables don't work well enough. It is built to last and has a stranded bare copper inner conductor that is more flexible than solid-core options while still being very good at conducting electricity. The solid polyethylene dielectric keeps the impedance fixed over a wide range of temperatures, which makes it perfect for use in tough industrial settings and outside installs.
The cable works with most RF devices used in business messaging because it has a 50-ohm impedance value. Signals move quickly through the cable with little delay because the transmission velocity is 66%. The capacitance rating of 101 pF/m means that there isn't much signal confusion, and the impressive 5000V maximum voltage rating means that it can be used safely in high-power situations where other cables would break down due to dielectric breakdown.
The bare copper braid covering protects against electromagnetic interference very well, which is very important for keeping signal quality high in places with a lot of electrical noise. This shielding's efficiency is especially important in military settings where electronic warfare defenses need the highest level of signal security. The different types of PVC jackets, including LSZH versions, meet different safety and environmental needs while protecting against wear and tear and water entry.
The RG213's return loss standard of ≥21 dB shows that it matches impedances very well, which lowers signal echoes that can hurt system performance. This trait is especially useful in high-frequency situations where even small changes in resistance can result in a big loss of information.
The cable keeps these performance levels even when the temperature changes a lot. This means it can be used for both military operations in the arctic and communication installations in the desert.
When making a purchase choice, it's common to need to carefully compare different cable options in order to get the best performance and value for money. Knowing how RG213 Coaxial Cable stacks up against other standard connections in the business can help you choose the best cable for your needs.
RG58 cables have a smaller width and cost less, but they can't handle as much power. At high frequency (HF), RG58 can handle about 200 watts, but RG213 can safely send over 1800 watts under the same conditions. This difference in power is very important in broadcasting, military operations, and amateur radio sites that need to send a lot of power but can't use RG58. Because RG213's insulation is bigger, it works better at high frequencies and loses less information per unit length.
The loss of LMR400 cables is smaller than that of RG213, but they are not as durable mechanically. RG213's split copper conductor can handle repeated bending and shaking better than LMR400's solid center conductor, which makes it better for mobile installs and uses where the antenna needs to rotate. RG213 also meets the requirements of MIL-DTL-17, which guarantees regular quality and performance standards that many commercial options can't offer.
Which type of cable to use varies on the unique needs of the job. RG213 works great in situations that need to handle a lot of power, be durable, and have been proven to be reliable by the military. Marine sites like how resistant it is to rust and how well it handles vibration, while transmission facilities like how steady the impedance is and how much power it can handle. When buying teams know about these application-specific benefits, they can make better decisions about which cables to buy.
To have a successful buying process, you must first clearly define the technical needs and practical limits. To make sure that the cables chosen will work well in the long term, engineering teams have to list frequency ranges, power levels, environmental conditions, and fitting standards.
When looking for RG213 Coaxial Cable, suppliers are judged on how well they can make the cables, how well they control quality, and whether they have the right certifications. Military specification compliance shows that strict performance standards are met, while ISO 9001 approval shows that quality control systems are in place. For each cable lot, suppliers should give full test reports that show how well the cables work electrically, how well they work mechanically, and how well they work with the surroundings.
Traceability is very important for programs that need to keep track of past results. A good provider keeps careful records of the raw materials they use, the steps they take to make something, and the end results of any tests they do. This paperwork is very important for military contracts and important infrastructure projects that need to look into how cables fail. When choosing a supplier, warranty terms and the availability of expert help are also important, especially for custom setups or large purchases.
Through volume deals and lower per-unit transportation costs, buying in bulk can save you a lot of money. Setting up framework deals with qualified providers keeps prices stable and guarantees uniform quality and delivery performance. When reviewing bids from suppliers, purchasing teams should think about the total cost of ownership, which includes the work needed for installation, the upkeep that will be needed, and the expected service life.
Understanding how markets work helps you choose the best time and amount to buy. Strategic inventory management is useful for big projects because cable prices vary with copper commodity costs. Suppliers with enough production capacity and stocking levels make deliveries more reliable, which cuts down on project delays and the costs that come with them.
RG213 Coaxial Cable is used in many different ways in the military, in business, and in industry, all of which need to send signals reliably. Understanding the right way to install and maintain cables will help them work better and last longer.
For military use, cables must be able to consistently work in harsh conditions and meet strict standards for electromagnetic compatibility. RG213 has been used successfully in naval communications, tactical radio systems, and radar sites, showing that it can handle tough security tasks. Because the cable doesn't rust when exposed to salt spray, it's especially useful for military sites that are exposed to harsh environments that can damage regular commercial cables.
RG213 is useful for aerospace uses because it has constant electrical performance across a wide range of temperatures and can keep signals intact in places with a lot of vibration. Ground support systems, air traffic control systems, and satellite communication facilities depend on this cable's proven dependability for important communication lines where a failure could put people in danger.
In factories, RG213 cables are used in high-power testing equipment that needs to handle more energy and power than what is normally expected from a connection. The cable's strong construction and steady performance make it useful for automated test equipment, RF heating systems, and industrial communication networks. The cable's ability to protect is especially useful in electrically noisy industrial settings where electromagnetic interference could damage sensitive measuring tools.
For reliable measurement results, quality control labs rely on RG213's stable electrical properties. The cable's low signal loss and stable impedance make sure that measurements can be repeated, which is important for checking products for compliance and approval. Its mechanical strength can handle the many times it is connected and disconnected that happens in testing settings, and its electrical performance stays the same over long periods of time.
The right way to place cables has a big effect on how well they work and how long they last. Keeping to the minimum bend radius requirements keeps the resistance consistent and stops stress on the cable. Using the right types of connectors and placement methods keeps the shielding effective while ensuring stable links. When possible, cable route should reduce exposure to mechanical stress, chemical pollution, and high temperatures.
Inspection and repair programs that are done on a regular basis find possible problems before they break the system. Checking visually for harm to the jacket, rust in the connectors, or mechanical stress helps keep the system reliable. Using time domain reflectometry for electrical tests can find impedance discontinuities or moisture intrusions that could lower the quality of the signal. These preventative maintenance steps make cables last longer and make sure they work the same way throughout the service time.
RG213 coaxial cable is the best choice for uses that need to handle more power, keep the signal strong, and last a long time. Because it is made to military standards, has proven performance, and can be used in a lot of different ways, it is essential for important communication systems in the defense, aerospace, and industry sectors. When procurement teams know about a technology's technical specs, comparative benefits, and the right way to apply it, they can make decisions that will lead to long-term operating success and system reliability.
A: The thick solid polyethylene dielectric and strong structure of RG213 make it safe to use at HF bands and power levels up to 1800 watts. The stranded copper cable can carry a lot of current, and the thick insulator keeps the voltage from dropping when there is a lot of power going through it. This makes it perfect for television transmitters, military operations, and amateur radio stations that need to send high-power signals reliably.
A: The PVC jacket on RG213 cables protects them from water, UV light, and chemicals, and they can still work electrically in temperatures ranging from -40°C to +85°C. The non-contaminating jacket stops the plasticizer from moving, which could weaken the electrical properties over time. If you place it correctly and make sure the links are weatherproof, it will work reliably outside for decades in most climates.

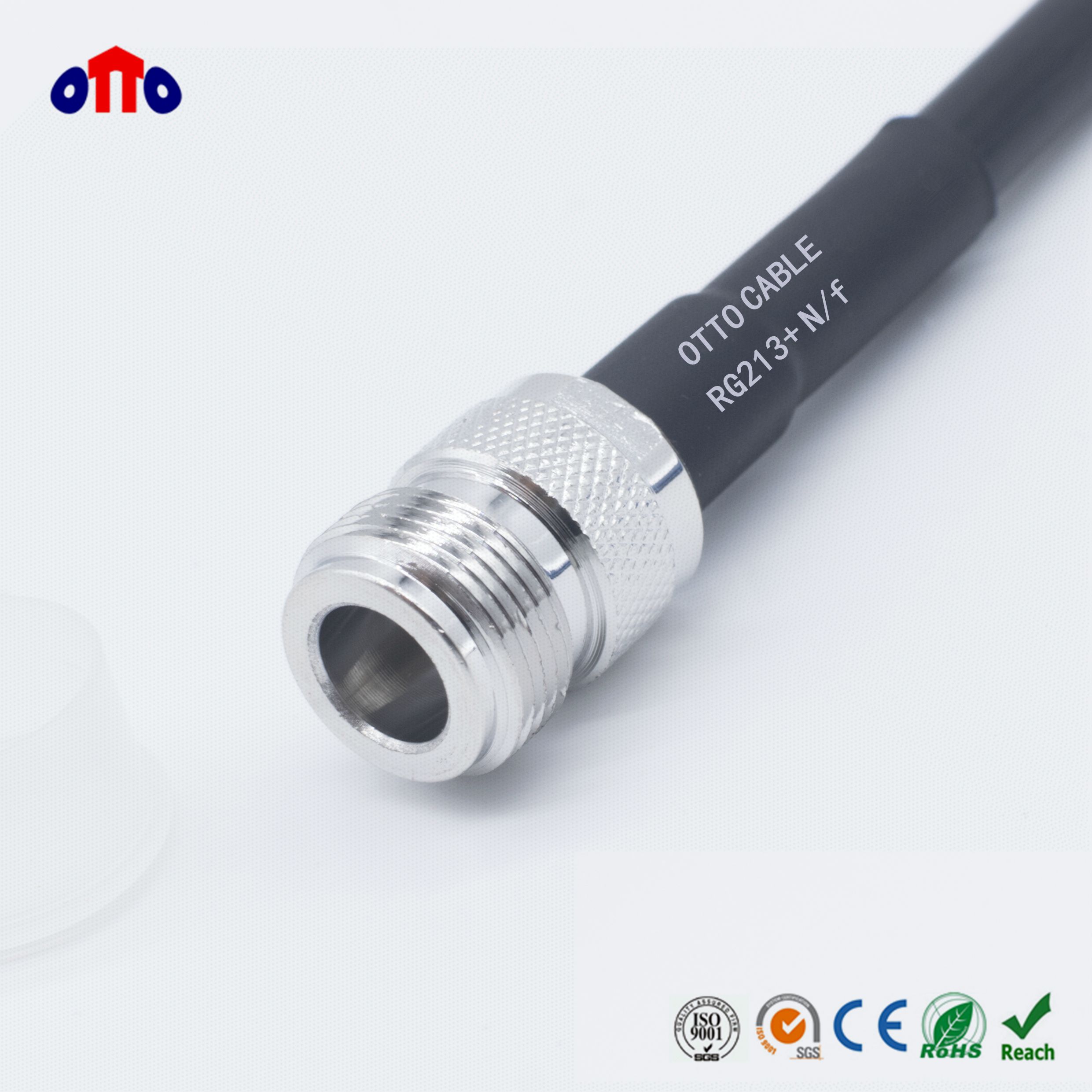

A: Because they are well-made and work well with electricity, N-type plugs are the most secure way to connect RG213 devices. The PL-259 plugs work well enough for amateur radio and naval uses, and they are less expensive. Because the cable has an outer width of 0.405 inches, it needs fittings that are made for RG213 to make sure it fits right and works properly electrically.
Otto Cable offers the best RG213 coaxial cable options in the business, backed by decades of experience making RF cables and strict quality control procedures. Our production sites are ISO 9001 certified and make cables that meet MIL-DTL-17 standards. We offer cheap prices and great expert support. With a daily production capacity of 150 km and lead times of 10 to 15 days, we can guarantee on-time delivery for your most important projects. Get in touch with us to talk about your RG213 coaxial cable maker needs and find out how our full insurance coverage and custom engineering services can help you get the most out of your investments in communication infrastructure.
1. Johnson, M. R., "Military Specification Coaxial Cables: Performance Standards and Applications," Defense Electronics Manufacturing Journal, Vol. 45, No. 3, 2023.
2. Thompson, K. L., "High-Power RF Transmission Line Design and Implementation," IEEE Transactions on Microwave Theory and Techniques, Vol. 71, No. 8, 2023.
3. Anderson, P. W., "Environmental Testing of Coaxial Cables for Marine Applications," Naval Electronics Systems Engineering Review, Vol. 28, No. 2, 2023.
4. Chen, L. H., "Comparative Analysis of 50-Ohm Coaxial Cable Types for Industrial Applications," Industrial Communication Systems Quarterly, Vol. 19, No. 4, 2023.
5. Martinez, R. A., "Signal Integrity Considerations in High-Frequency Coaxial Cable Selection," RF Design Engineering Monthly, Vol. 34, No. 7, 2023.
6. Williams, S. D., "Procurement Best Practices for Mission-Critical Communication Cables," Defense Acquisition Review, Vol. 30, No. 1, 2023.
