RG Cable Explained: RG58, RG6, RG142, RG213, RG316 And More

Have you ever wondered how your favorite devices transmit signals? RG cables play a crucial role in RF signal transmission.

In this article, we’ll explore the different types of RG cables, including RG58, RG6, RG142, RG213, and RG316.

You’ll learn their specifications, applications, and how to choose the right one for your needs.

Understanding RG Cables

What Does RG Stand For?

RG is an abbreviation for “Radio Guide.” This term originated from the military specifications used for radio frequency cables. The RG designation is followed by a number, indicating specific characteristics such as impedance and construction. For instance, RG58 and RG6 are common types of RG cables, each designed for different applications.

How RG Cables Work

RG cables are a type of coaxial cable, which means they consist of an inner conductor surrounded by insulation, a shielding layer, and an outer jacket. This design allows them to transmit signals effectively while minimizing interference. Here's a quick breakdown of how these components function:

● Inner Conductor: This part carries the electrical signal. Its material, typically copper or aluminum, affects performance.

● Insulation Layer: Surrounding the inner conductor, this layer prevents signal loss and protects against external interference.

● Shielding: This layer, often made of braided copper or aluminum foil, blocks electromagnetic interference from external sources.

● Outer Jacket: The final layer protects the cable from physical damage and environmental factors.

Importance of Impedance in RG Cables

Impedance is a critical factor in the performance of RG cables. It refers to the resistance a cable presents to the flow of electrical current. Different RG cables have specific impedance ratings, typically 50Ω or 75Ω. Here’s how impedance impacts performance:

When selecting an RG cable, matching the impedance to your equipment is essential. Mismatched impedance can lead to signal loss and degraded performance. Understanding these principles helps ensure you choose the right RG cable for your specific needs.

Common Types of RG Cables

Overview of RG Cable Types

RG cables come in various types, each designed for specific applications. Understanding these types helps you choose the right cable for your needs. Below, we explore some of the most common RG cable types, their specifications, applications, and the advantages and disadvantages of each.

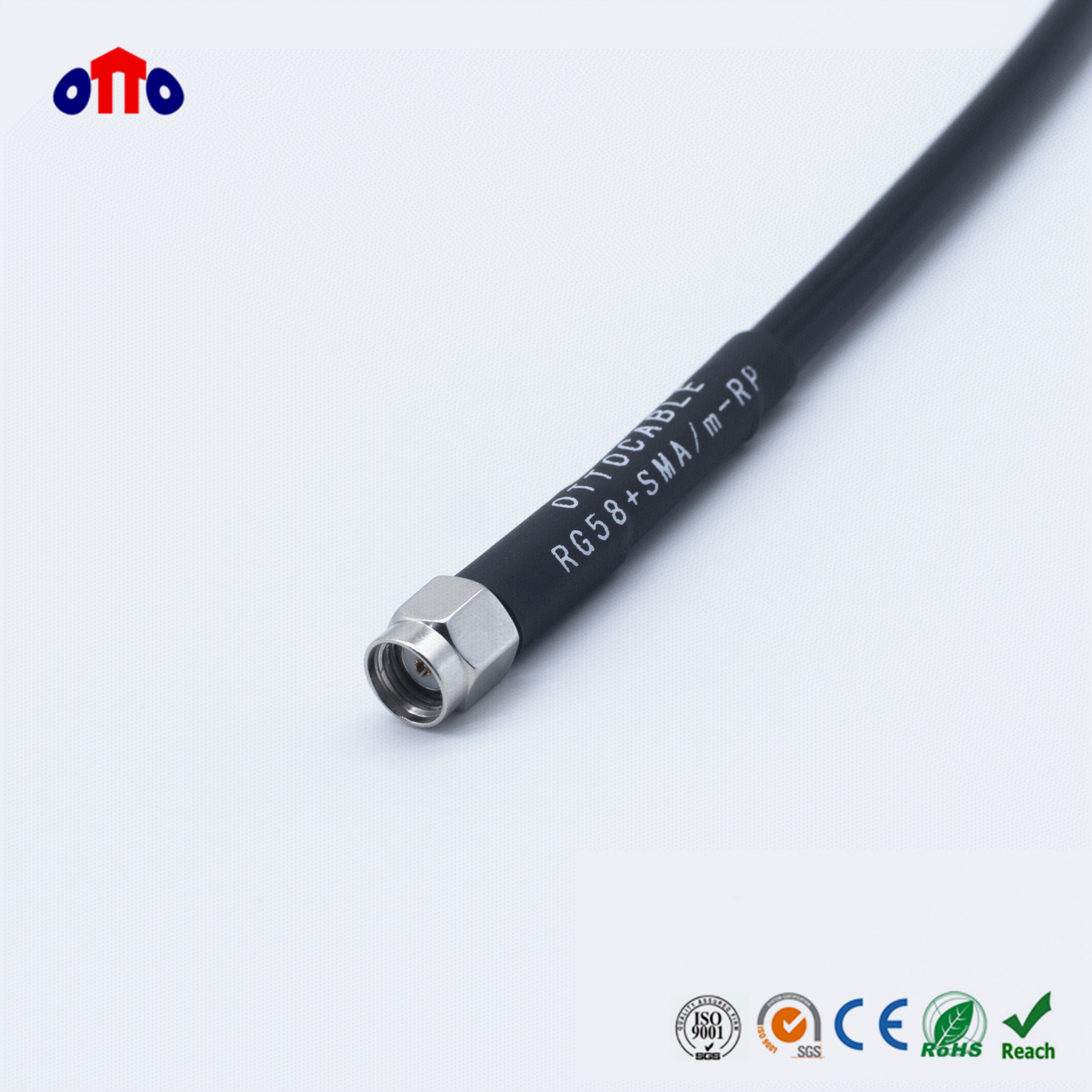

RG58

Specifications of RG58

RG58 is a popular coaxial cable known for its versatility. It has an impedance of 50Ω and an approximate diameter of 5.0 mm. The construction of RG58 includes a stranded inner conductor made of tinned copper (TC), bare copper (BC), or copper-clad steel (CCS). This design is surrounded by solid polyethylene (PE) insulation, which protects the inner conductor and minimizes signal loss. Additionally, a shielding layer made of TC or BC braid ensures effective interference protection.

Applications of RG58

RG58 cables are widely used in various applications due to their reliable performance. They are commonly found in amateur radio setups, where flexibility and low loss are crucial. In marine communication, RG58 provides dependable connections for radios and other equipment. Additionally, it is often used in laboratory environments for experiments and testing. You might also encounter RG58 in older Ethernet networks (10BASE2) and short antenna connections, showcasing its versatility across different technologies.

Advantages and Disadvantages

When considering RG58, it's essential to weigh its pros and cons.

Pros:

● RG58 cables are quite flexible, making them easy to install in tight spaces.

● They exhibit lower signal loss compared to thinner cables, which enhances performance in many applications.

Cons:

● On the downside, RG58 cables experience higher signal loss compared to thicker cables like RG213. This can be a limitation in long-distance applications, where maintaining signal integrity is critical.

In summary, RG58 offers a balance of flexibility and performance, making it a go-to choice for many users. Whether you're setting up a radio station or connecting equipment in a lab, RG58 is a solid option worth considering.

RG6

Specifications of RG6

RG6 is a widely used coaxial cable known for its robust performance. It features an impedance of 75Ω and has an approximate diameter of 6.9 mm. The construction of RG6 includes a thicker center conductor, which enhances its ability to transmit signals effectively. Additionally, RG6 is designed with multiple layers of shielding, providing excellent protection against interference. This construction helps maintain signal integrity, especially over longer distances.

Applications of RG6

RG6 cables are commonly used in various applications, primarily in the entertainment and communications sectors. They are the standard choice for cable TV connections, providing high-quality video and audio signals. In addition, RG6 is widely utilized for satellite TV systems, ensuring reliable transmission of signals from satellites to receivers. Furthermore, RG6 is the modern standard for broadband internet, making it essential for home audio and video setups, where clear signals are crucial for optimal performance.

Advantages and Disadvantages

When evaluating RG6, it's important to consider its strengths and weaknesses.

Pros:

● RG6 cables offer better shielding compared to many other types, which means they can effectively block interference. This quality is particularly beneficial when dealing with high-frequency signals, ensuring consistent performance.

● The thicker center conductor allows RG6 to support higher frequencies, making it ideal for modern digital applications.

Cons:

● On the downside, RG6 cables tend to be less flexible than RG58 cables. This can make installation in tight spaces more challenging, as they are bulkier and harder to maneuver.

In summary, RG6 is a reliable choice for anyone looking to set up high-quality audio and video systems, especially in environments where signal integrity is paramount.

RG142

Specifications of RG142

RG142 is a specialized coaxial cable known for its exceptional performance in demanding environments. It has an impedance of 50Ω and an approximate diameter of 5 mm. The construction of RG142 is robust, often featuring double silver copper braiding. This strong design not only enhances durability but also improves the cable's ability to transmit high-frequency signals effectively. The combination of materials used in RG142 ensures it can withstand various environmental challenges, making it a reliable choice for critical applications.

Applications of RG142

RG142 cables are commonly used in applications that require high reliability and performance. They excel in microwave and aerospace environments, where signal integrity is crucial. The cable's design makes it suitable for high-temperature applications, ensuring it maintains performance under challenging conditions. Whether in telecommunications or specialized laboratory settings, RG142 is a go-to choice for engineers and technicians who need dependable connections.

Advantages and Disadvantages

When considering RG142, it's essential to look at its strengths and potential drawbacks.

Pros:

● RG142 is known for its durability and reliability, especially in high-frequency applications. The double braiding provides excellent shielding, reducing signal loss and interference, which is vital in sensitive environments.

● Its robust construction allows it to perform well in extreme conditions, making it ideal for aerospace and microwave applications.

Cons:

● One of the main disadvantages of RG142 is its cost. Generally, it is more expensive than standard RG cables, which can be a consideration for budget-sensitive projects.

● While its performance is outstanding, the price may limit its use to applications where high reliability is non-negotiable.

In summary, RG142 is a high-performance choice for those needing a reliable coaxial cable in demanding situations. Its unique features make it suitable for specialized applications, ensuring it meets the rigorous standards required in various industries.

RG213

Specifications of RG213

RG213 is a robust coaxial cable designed for high-performance applications. It features an impedance of 50Ω and has an approximate diameter of 10.3 mm. The thicker construction of RG213 allows it to handle higher power levels while maintaining low signal loss compared to thinner cables like RG58. This design is particularly beneficial in scenarios where signal integrity is critical, making RG213 a reliable choice for demanding environments.

Applications of RG213

RG213 cables are commonly used in various applications, particularly in military and high-frequency systems. They are a preferred choice for radio communications, especially in amateur radio base stations, where reliable signal transmission is essential. The cable’s durability and performance make it suitable for outdoor installations and environments where exposure to the elements may occur. Additionally, RG213 is often utilized in broadcast and telecommunications, ensuring clear communication over long distances.

Advantages and Disadvantages

When considering RG213, it’s important to evaluate its advantages and disadvantages.

Pros:

● One of the standout features of RG213 is its ruggedness, making it ideal for high-power applications. The thicker design minimizes signal loss, ensuring efficient transmission even in challenging conditions.

● Its construction allows for excellent shielding, which helps reduce interference and maintain signal quality.

Cons:

● However, RG213 is bulkier compared to other coaxial cables, which can make installation in tight spaces more challenging. This bulkiness also contributes to its reduced flexibility, making it less suitable for applications requiring sharp bends or tight routing.

● While its performance is exceptional, the size and weight might limit its use in certain scenarios where lighter cables would be more appropriate.

In summary, RG213 is an excellent choice for users needing a reliable and high-performance coaxial cable, especially in high-power and military applications. Its unique features cater to those who prioritize durability and low loss in their setups.

RG316

Specifications of RG316

RG316 is a specialized coaxial cable known for its compact design and high-temperature resistance. It features an impedance of 50Ω and has an approximate diameter of 2.5 mm, making it one of the thinnest cables in the RG series. The construction of RG316 includes PTFE (Teflon) insulation, which provides excellent thermal stability and ensures reliable performance even in extreme conditions. This thin profile allows RG316 to fit into tight spaces where larger cables would be impractical.

Applications of RG316

RG316 cables are widely used in various applications, particularly in telecommunications and electronic equipment. Their thin design makes them ideal for direct burial installations, where space is limited and flexibility is crucial. Additionally, RG316 is often employed in the internal wiring of devices, ensuring reliable signal transmission in compact setups. Whether in aerospace, automotive, or medical equipment, RG316 proves to be a versatile choice for engineers and technicians alike.

Advantages and Disadvantages

Evaluating RG316 involves looking at its strengths and potential limitations.

Pros:

● One of the main advantages of RG316 is its excellent performance in tight spaces. Its thin profile allows for easy routing in crowded environments, making installation simpler and more efficient.

● The high-temperature capabilities of PTFE insulation ensure RG316 can withstand extreme conditions, making it suitable for applications where heat resistance is essential.

Cons:

● However, RG316 has limited power handling compared to thicker cables like RG213 or RG58. This means that while it excels in flexibility and heat resistance, it may not be the best choice for high-power applications.

● Users must consider the specific requirements of their projects, as the lower power capacity could restrict its use in certain scenarios.

In conclusion, RG316 is a fantastic option for those needing a flexible, high-temperature coaxial cable. Its unique properties make it suitable for various applications, especially in environments where space and heat resistance are critical.

Comparison of RG Cables

Comparative Analysis of RG58, RG6, RG142, RG213, RG316

When it comes to selecting the right RG cable, understanding the differences among various types is crucial. Below is a side-by-side comparison of key specifications, applications, and performance characteristics of RG58, RG6, RG142, RG213, and RG316.

This table clearly illustrates the unique characteristics of each cable type. For instance, RG6 is ideal for applications requiring higher frequencies and better shielding, while RG213 is favored in military settings due to its durability and low loss. RG316, on the other hand, excels in tight spaces and high-temperature environments.

Choosing the Right RG Cable for Your Needs

Selecting the appropriate RG cable involves considering several key factors. Here are some important points to keep in mind:

1.  Application: Identify the primary use of the cable. For instance, if you need it for cable TV or satellite systems, RG6 is the best choice. Conversely, for amateur radio setups, RG58 may be more suitable.

2.  Distance: Consider the length of the cable run. Longer distances may require cables like RG213, which have lower signal loss, ensuring quality transmission over greater lengths.

3.  Environment: Evaluate the installation environment. RG142 and RG316 are excellent for high-temperature and rugged conditions, while RG58 and RG6 are more flexible and easier to handle in standard setups.

4.  Power Handling: Assess the power requirements of your application. Cables like RG213 can handle high power, making them ideal for demanding applications, whereas RG316 has limited power handling due to its thinner design.

By carefully considering these factors, you can choose the right RG cable that meets your specific needs and ensures optimal performance in your application.

Installation and Maintenance of RG Cables

Best Practices for Installing RG Cables

Proper installation of RG cables is crucial for ensuring optimal performance and longevity. Here are some essential tips to consider during the installation process:

1.  Plan the Route: Before installation, plan the cable route carefully. Avoid sharp bends and kinks, as these can damage the cable and degrade signal quality. Use gentle curves instead.

2.  Use Appropriate Connectors: Always use connectors that match the cable type and impedance. Mismatched connectors can lead to signal loss and interference. Ensure that connections are secure to prevent any disconnections over time.

3.  Avoid Interference: Keep RG cables away from sources of electromagnetic interference, such as power lines or large machinery. This helps maintain signal integrity and reduces noise.

4.  Secure the Cable: Use cable ties or clips to secure the cable along its route. This prevents movement that could lead to wear and tear, especially in high-traffic areas.

Maintenance Tips for RG Cables

To prolong the lifespan of RG cables, regular maintenance is essential. Here are some effective maintenance tips:

1.  Inspect Regularly: Periodically check cables for signs of wear, such as fraying or cracking. Early detection of issues can prevent more significant problems down the line.

2.  Clean Connections: Dust and debris can accumulate on connectors, leading to poor signal quality. Use a soft, dry cloth to clean connectors and ensure a good connection.

3.  Avoid Excessive Force: When handling RG cables, avoid pulling or bending them excessively. This can cause internal damage that may not be immediately visible but can affect performance.

4.  Store Properly: If cables are not in use, store them in a cool, dry place away from direct sunlight. Proper storage prevents degradation of materials and ensures they remain in good condition.

By following these installation and maintenance practices, you can ensure that your RG cables perform optimally and have a long service life. Taking the time to install and care for these cables properly pays off in reliable performance and reduced downtime.

Brands and Manufacturers

Leading Manufacturers of RG Cables

When it comes to RG cables, choosing the right manufacturer is crucial for ensuring quality and performance. Several notable brands stand out in the industry, providing high-performance cables that meet various application needs. One such leader is Otto Cable Technology, renowned for its innovation and reliability in producing RG cables.

Notable Brands in the RG Cable Market

These manufacturers have built their reputations on delivering products that consistently meet industry standards. For example, Otto Cable Technology focuses on producing cables that excel in high-frequency applications, making them a preferred choice for professionals in telecommunications and broadcasting.

Importance of Choosing Reputable Manufacturers

Selecting a reputable manufacturer for RG cables is essential for several reasons. First, established brands often adhere to strict quality control measures, ensuring that their products perform reliably under various conditions. This is particularly important in critical applications, such as military or aerospace, where failure is not an option.

Moreover, well-known manufacturers typically offer better customer support and warranty options. This means that if issues arise, customers can rely on the manufacturer for assistance and solutions. Additionally, reputable brands invest in research and development, leading to innovations that enhance cable performance, such as improved insulation materials or advanced shielding techniques.

In conclusion, when considering RG cables, it's wise to choose products from trusted manufacturers. Doing so not only guarantees quality but also provides peace of mind, knowing that you are using reliable components in your installations.

Conclusion

Understanding RG cables is essential for various applications. Each type, like RG58, RG6, RG142, RG213, and RG316, serves unique purposes. Knowing their specifications helps in making informed choices.

When selecting an RG cable, consider your specific needs. Factors like application, distance, and environment are crucial. By choosing the right cable, you ensure optimal performance and reliability in your projects.
