Views: 2 Author: Site Editor Publish Time: 2026-03-05 Origin: Site

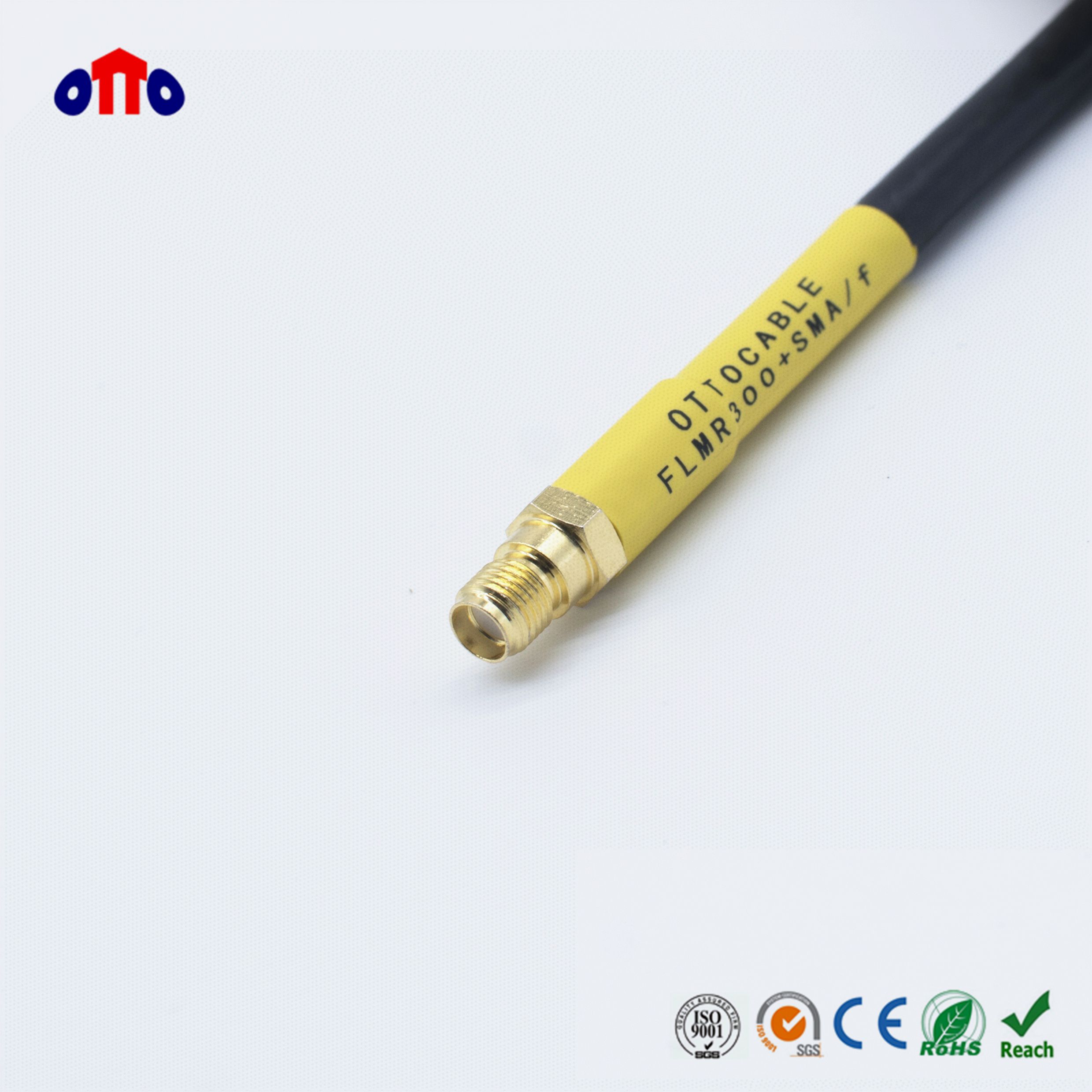

The OCT300 Coaxial Cable represents a premium solution for professionals seeking dependable antenna connectivity across wireless communication systems. As an equivalent to the industry-standard LMR300, this 50-ohm transmission line delivers exceptional signal integrity through its robust dual-shielding architecture and foam polyethylene dielectric construction. Engineered specifically for outdoor antenna connections to routers, modems, WLL phones, dongles, and internal patch antennas, the cable addresses critical performance requirements in communication equipment, aerospace, military, medical, and industrial automation applications.
The painstakingly specified construction characteristics of this RF transmission line, which are meant to meet the stringent needs of current wireless infrastructure, are the source of the engineering excellence that underpins this line. When procurement professionals have a thorough understanding of these technical specifications, they are better able to make educated decisions regarding their antenna systems.
From the very beginning, the cable is constructed using a high-purity bare copper or copper-clad aluminum (CCA) inner conductor. This inner conductor guarantees the highest possible conductivity and the least amount of signal degradation possible. The selection of this conductor has a direct influence on the cable's capacity to keep its impedance characteristics steady despite the presence of variations in the surrounding environment. Excellent electrical insulation is provided by the surrounding foam polyethylene dielectric material, which also maintains the crucial impedance of 50 ohms, which is essential for the interoperability of wireless systems.
An important step forward in the field of interference prevention is represented by the dual-shielding design. The main shielding is made of aluminum foil, which produces an efficient barrier against electromagnetic interference. The secondary shielding is made of tin copper braid, which offers extra mechanical protection and increased grounding capabilities. Additionally, this combination produces exceptional shielding efficacy, which guarantees reliable signal transmission even in areas that are characterized by electromagnetic noise.
Installations that are performed professionally need cables that are able to endure a variety of environmental conditions. There are a variety of jacket materials available, including PVC, PE, and LSZH (Low Smoke Zero Halogen) alternatives. Each of these materials is intended to meet the needs of a particular application. The PVC jackets give an exceptional level of durability for regular installations, whilst the PE jackets provide greater UV resistance for applications that take place outside. Critical infrastructure areas have strict fire safety criteria, and LSZH jackets are able to fulfill such requirements.
There are more color customization possibilities available than just the usual black and white setups. This enables integration teams to develop color-coding systems that simplify the processes for maintenance and troubleshooting. Within the realms of aerospace and military applications, the fire-resistant modification capability caters to certain regulatory needs.
The cable maintains a velocity of propagation at 85%, which translates to efficient signal transmission with minimal delay distortion. The capacitance parameter of 78 pF/m guarantees that the impedance matching is accurate over the whole frequency band that is used in contemporary wireless communications protocols. The cable has substantial performance margins that are able to manage voltage variations and guarantee that signal quality integrity is maintained. It has a voltage withstand rating of 2000 Volts DC and return loss parameters that are more than 20 dB.
It is necessary to have a grasp of how various kinds of coaxial cables function under real-world settings in order to choose the most suitable coaxial cable for antenna applications. In this comparison study, important performance parameters that have a direct influence on the dependability of the system and the success of its operations over the long term are investigated, including the advantages of OCT300 Coaxial Cable.
When compared to the conventional RG6 and RG11 cables that are often used in CATV installations, the OCT300 exhibits a much reduced level of attenuation throughout crucial frequency ranges. The OCT300 maintains losses below 4.5 dB in circumstances that are comparable to those that are experienced by RG6 cables, which normally display losses of 6-8 dB per 100 meters at 1 GHz. As a result of this decrease in signal degradation, longer antenna runs may be achieved without the need for signal amplification, which in turn reduces the complexity of the system and the number of possible failure sites.
In comparison to the solid polyethylene that is used in ordinary cables, the foam polyethylene dielectric that is utilized in OCT300 performs much better. Because of this difference in construction, the capacitance is reduced, and the velocity of propagation is increased, which ultimately results in superior signal integrity maintenance across greater distances.
Modern wireless environments present increasingly complex electromagnetic challenges. The dual-shielding arrangement of the OCT300 offers a much higher level of protection against interference in comparison to rivals that just have a single shielding unit. The results of independent testing show that the shielding efficacy is more than 90 dB, which is a major improvement over the performance of RG6 cables, which normally attain protection levels of 60-75 dB.
The improved shielding capabilities shows to be especially useful in installations that are located in close proximity to industrial equipment, cellular base stations, or other radio frequency sources that have the potential to create interference. The enhanced protection guarantees a constant signal quality without necessitating the use of costly filtering components or installation methods that are specialist.
The materials used in the production of the cable exhibit higher resilience to temperature cycling, moisture ingress, and mechanical stress when compared to alternatives that are more economical. Because it shows low performance loss after being exposed to temperature extremes ranging from -40 degrees Celsius to +85 degrees Celsius, it is suited for tough outdoor installations where traditional cables can break prematurely. Accelerated aging tests reveal there is minimal performance degradation.
Techniques of installation that are done correctly have a direct impact on the long-term dependability and performance of antenna wire systems. These tried-and-true approaches guarantee the highest possible return on investment while also reducing the amount of maintenance that will be required in the future.
Comprehensive planning, which includes precise distance measurements, route analysis, and environmental evaluation, is the first step toward successful installations at the beginning of the process. Using a time-domain reflectometer (TDR) or a vector network analyzer to test cables prior to installation allows for the identification of any manufacturing problems that may impair the functioning of the system. This preventative strategy eliminates the need for expensive troubleshooting once the installation has been finished.
The establishment of a grounding plan guarantees the provision of adequate electrical safety and the highest possible shielding efficacy. The grounding system must accommodate both DC grounding for equipment protection and RF grounding for interference mitigation. Additionally, ground loops, which are capable of introducing noise into receiver circuits that are sensitive, should be avoided by using proper grounding procedures.
Because the quality of the connector has a considerable influence on the performance of the system as a whole, selecting the right choice is essential for ensuring dependable antenna connections. The weatherproof sealing properties and low VSWR characteristics of N-type connections make them a good choice for applications that take place outside and need outstanding performance. When it comes to interior applications that need frequent separation, SMA connections provide much better performance, especially when paired with OCT300 Coaxial Cable for optimal signal integrity.
In order to avoid signal reflections and ensure impedance continuity, termination operations need to be carried out in accordance with the manufacturer's standards. In order to properly prepare connectors, it is necessary to have correct cable stripping measurements, dielectric trimming, and center conductor length adjustment. Under a wide range of climatic circumstances, these particulars provide the highest possible level of electrical contact and mechanical dependability.
Accessibility needs, protection against physical damage, and environmental exposure are all factors that must be taken into consideration while designing cable routing techniques. The impedance discontinuities that lead to signal reflections may be avoided by ensuring that the bend radius is maintained correctly. When it comes to permanent installations, the minimum bend radius for OCT300 is normally measured to be five times the diameter of the cable, whereas during installation it is often measured to be 10 times the diameter.
Mechanical protection systems including conduit, cable trays, and weatherproof enclosures extend cable life while maintaining serviceability. In industrial settings, where cables are subjected to dangers such as exposure to chemicals, excessive temperatures, or mechanical stress from the operation of equipment, these protection measures prove to be very significant.
In order to successfully source quality cables while efficiently controlling prices and delivery dates, professional procurement teams need to have a complete awareness of the dynamics of the supply chain. Approaches to strategic sourcing improve the dependability of supplies over the long term and further the development of partnerships with vendors.
The verification of production capabilities, quality systems, and technical certifications is the first step in the evaluation of the vendor organization. On the other hand, ISO 14001 certification displays environmental responsibility, while ISO 9001 certification implies that quality management systems have been implemented. certifications that are unique to the industry, such as MIL-STD conformity for military applications or UL listings for safety-critical installations, provide an extra layer of confidence that the product is suitable for the intended purpose.
The assessment of manufacturing capacity establishes whether or not suppliers are able to fulfill the volume needs and delivery deadlines of the project. In comparison to locations that rely on human assembly processes, establishments that are equipped with automated manufacturing capabilities often provide more consistent quality and shorter lead times. Site inspections or audits conducted by a third party check the capabilities that have been stated and uncover any possible supply chain concerns.
Comprehensive quality assurance processes defend against product flaws that might jeopardize system performance or necessitate costly field replacements. These faults could also be caused by production errors. Incoming inspection procedures should include electrical testing of impedance, attenuation, and return loss parameters. Via physical examination, the integrity of the jacket, the correctness of the markings, and the conformity of the dimensions with the standards are all verified.
It is important to set explicit performance goals, testing standards, and corrective action methods when entering into supplier quality agreements. Specification of statistical sample strategies, test procedures, and documentation criteria that support warranty claims and traceability should be included in these agreements. Ongoing conformity with predetermined criteria is ensured by conducting quality reviews on a regular basis.
The most efficient method of cost management strikes a compromise between unit pricing concerns and total cost of ownership variables, which include quality, delivery dependability, and technical support elements. The majority of the time, volume purchase agreements for products like OCT300 Coaxial Cable result in considerable cost savings while also guaranteeing the availability of supplies for current projects. However, in order to avoid incurring additional expenses for holding extra inventory, these agreements call for precise demand forecasting.
The establishment of price structures and delivery commitments that assist project planning is facilitated by long-term framework agreements. These agreements also provide suppliers with volume visibility, which is necessary for capacity planning. When it comes to these collaborations, stipulations for product modification, faster delivery, and technical assistance are often included. These clauses offer value beyond the simple supply of products.
The success of a partnership is strongly dependent on selecting manufacturers and suppliers that exhibit operational excellence, technical competence, and a dedication to ensuring the happiness of their customers. Procedures for making decisions that contribute to the success of a project over the long term are guided by comprehensive assessment criteria.
Otto Cable Technology is a prime example of the production requirements that are necessary for professional antenna applications. In addition to maintaining ISO 9001 and ISO 14000 certifications, the firm operates digital management platforms such as ERP, MES, and OMS systems for manufacturing and quality control. The company has decades of expertise in the design and manufacture of RF cables. When used to high-volume production runs, these methods guarantee that the product quality and delivery performance will remain constant.
The production capacity of the firm, which operates in three shifts, is capable of producing 150 kilometers of cable every single day, which enables lead times of 10-15 days or even shorter for urgent needs. Product availability and quality consistency are two things that procurement managers need to have in order for a project to be successful. This manufacturing capacity, when paired with complete testing of all cables before shipping, gives guarantee of these characteristics.
For modern antenna installations, specific combinations are often required, which are not something that can be addressed by ordinary catalog goods. Otto Cable's original equipment manufacturer (OEM) and original design manufacturer (ODM) capabilities allow for the creation of specialty connectors, conductor materials, jacket standards, and fire resistance ratings that are tailored to match the precise needs of certain applications. Because of this flexibility, there is no longer a need for field adjustments, which might potentially threaten either the performance or the warranty coverage.
The scope of technical support services goes beyond the provision of basic product supply and include application engineering help, installation instruction, and troubleshooting support. The use of these services is especially beneficial for complicated installations, which are characterized by the direct influence that the selection of cables and installation procedures have on the overall performance and dependability of the system.
Warranty plans that are comprehensive exhibit the manufacturer's confidence in the quality of the product while also safeguarding the investments of the target market. Otto Cable's minimum three-year warranty with free replacement of defective products provides exceptional protection compared to industry-standard one-year warranties. The company's dedication to providing excellent products and complete satisfaction to its clients is shown in this expanded coverage.
As part of the quality control processes, all cables are tested before they are sent. This is done to ensure that each product satisfies the electrical and mechanical standards that have been stated. Systems that provide traceability allow for the fast discovery and resolution of any quality problems that may arise, hence reducing the potential effect on client operations should they occur.
The OCT300 coaxial cable delivers the performance characteristics and reliability that modern antenna applications demand. Its LMR300-equivalent construction, dual-shielding architecture, and comprehensive customization options address the diverse requirements of communication equipment, aerospace, military, medical, and industrial automation applications. Professional procurement teams benefit from understanding the technical specifications, installation requirements, and supplier capabilities that ensure successful project outcomes and long-term system reliability.
A: The OCT300 provides superior electrical performance through its foam polyethylene dielectric and dual-shielding construction. These design elements deliver lower signal loss, better impedance stability, and enhanced interference protection compared to solid dielectric RG cables. The result is extended transmission distances and improved signal quality in demanding applications.
A: Wireless communication systems, antenna runs, and inter-cabinet connections gain significant performance advantages from OCT300 deployment. The cable's 50-ohm impedance matches modern wireless equipment requirements, while its low-loss characteristics support extended outdoor antenna connections without signal amplification.
A: The aluminum foil and tin copper braid combination provides superior electromagnetic interference protection while maintaining mechanical flexibility. This configuration achieves shielding effectiveness exceeding 90 dB, ensuring reliable signal transmission in electromagnetically noisy environments common in industrial and urban installations.
OTTO CABLE stands ready to support your antenna infrastructure projects with premium OCT300 coaxial cable solutions and comprehensive technical expertise. Our decades of RF cable manufacturing experience, combined with ISO-certified quality systems and rapid 10-15 day delivery capabilities, ensure your wireless communication projects receive the reliability and performance they demand. Contact us to discuss your specific requirements and discover how our OCT300 coaxial cable manufacturer capabilities can optimize your next antenna installation project.
1. Institute of Electrical and Electronics Engineers. "IEEE Standard for Coaxial Cable Performance Requirements in Wireless Communication Systems." IEEE Standards Association, 2023.
2. Telecommunications Industry Association. "TIA-568 Commercial Building Telecommunications Cabling Standard: RF Cable Performance Specifications." TIA Engineering Committee, 2022.
3. Military Communications Research Laboratory. "MIL-STD Compliance Requirements for RF Transmission Lines in Defense Applications." Department of Defense Technical Publications, 2023.
4. International Organization for Standardization. "ISO 11801 Information Technology: Generic Cabling for Customer Premises." ISO Technical Committee, 2022.
5. Federal Communications Commission. "RF Cable Installation Guidelines for Commercial Wireless Infrastructure." FCC Equipment Authorization Division, 2023.
6. Society of Cable Telecommunications Engineers. "SCTE Standards for Coaxial Cable Performance in Broadband Networks." SCTE Engineering Committee, 2022.
