Views: 2 Author: Site Editor Publish Time: 2026-03-04 Origin: Site

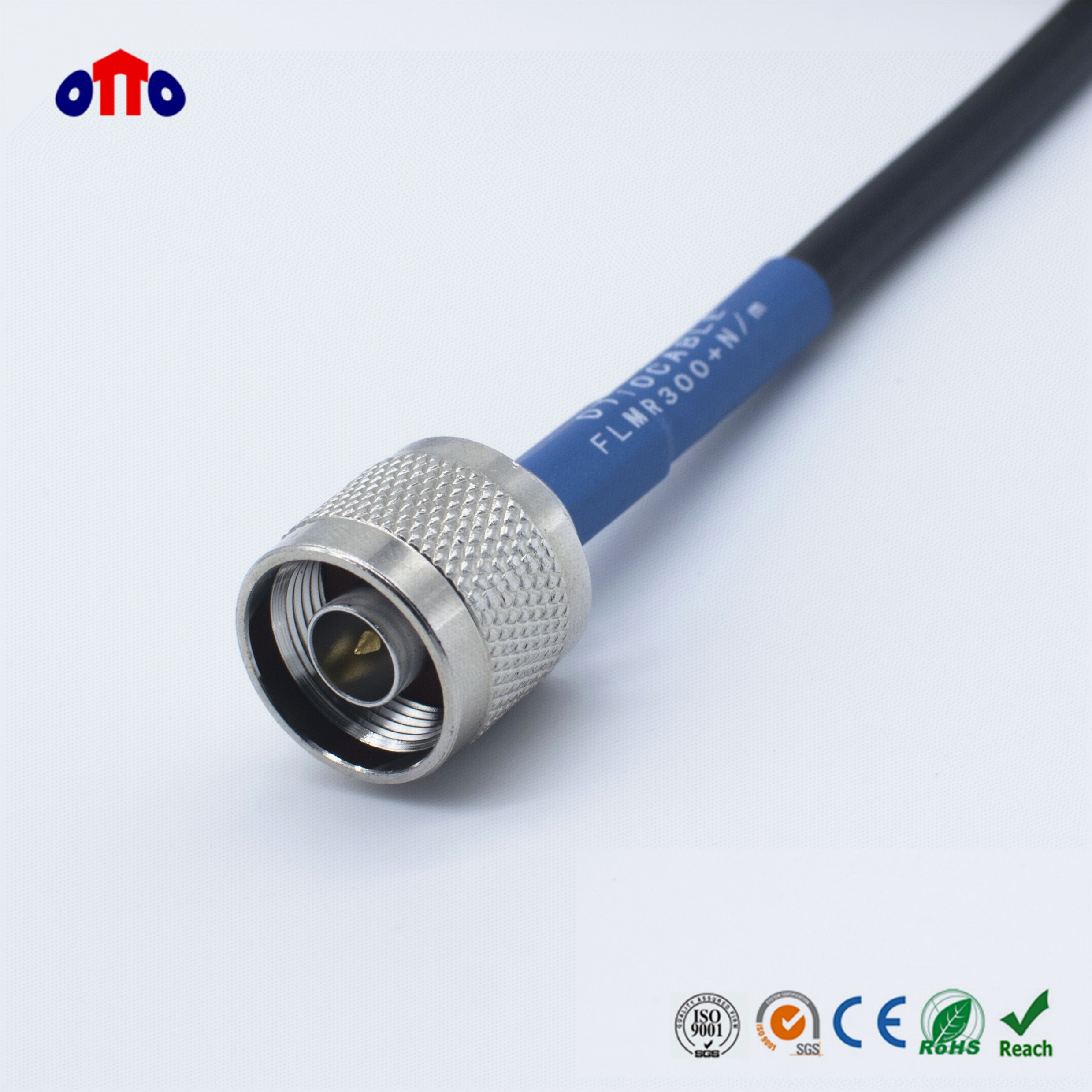

The OCT300 Cable is a big step forward in connecting internal patch antennas. It gives engineers and procurement professionals a reliable coaxial option that meets LMR300 requirements. This flexible cord connects outdoor antennas to important internal parts like routers, modems, and wireless dongles. It does this by having a 50-ohm resistance and a foam PE dielectric construction. The dual-shielding design with aluminum foil and tin copper braid keeps electromagnetic interference to a minimum while providing excellent signal protection for high-stakes communications applications.
Knowing exactly what your interconnect cables are made of is a very important part of building a good internal patch antenna system. The engineered performance qualities of OCT300 coaxial cable have a direct effect on signal integrity and system stability in a wide range of wireless uses.
The OCT300 cable has a complex multi-layer structure that works best for meeting 50-ohm impedance. The inner conductor is made of either bare copper or copper-clad aluminum (CCA), which makes it very conductive while also keeping costs low for large-scale uses. The foam polyethylene insulator material keeps its electrical properties fixed even when the temperature changes. This makes sure that it works well in harsh environments.
The dual-shielding design is a huge benefit for applications that use internal patch antennas. The first layer, made of aluminum foil, completely blocks electromagnetic interference. The second layer, made of tin copper braid, makes the protection stronger and more effective. In high-density electronic settings where data purity is very important, this mix works better than any other.
Knowing the electrical properties lets you precisely build systems and improve their performance. With a capacitance value of 78 pF/m and a velocity of transmission of 85%, OCT300 cable keeps signal delay to a minimum while still having great frequency response. The return loss standard of ≥20 dB shows that it can match impedances very well, which cuts down on unwanted echoes that can hurt antenna performance.
It can handle voltages up to 2000 Volts DC, which gives it a lot of safety headroom for high-power uses. The jacket spark test value of 4000 Volts RMS makes sure that the insulation will work well even in tough circumstances. These specs meet strict industry standards for medical devices, aircraft systems, and telecoms equipment.
To make sure they follow the rules and keep project risks to a minimum, modern buying teams need a lot of approval paperwork. ISO9001 quality management standards are followed when making OCT300 cables. This ensures regular production methods and quality records that can be tracked. RoHS and REACH licenses are examples of environmental compliance. They deal with limits on dangerous substances and chemical safety standards for global markets.
UL certification makes sure that building setups meet fire safety standards, and CE certification makes sure that they are compatible with electromagnetic fields for European markets. These licenses make buying things easier and speed up the approval process for projects in foreign markets, which helps multinational companies with their global deployment strategies.
The long-term efficiency and dependability of internal patch antenna systems depend a lot on how they were installed. To get the best signal transfer, when installing an OCT300 cable, you need to pay attention to mechanical stress, bend radius limits, and connector preparation.
Planning ahead and choosing the right tools are the first steps to a successful operation. Cable design should keep cables away from heat sources, sharp edges, and mechanical stress points that could damage the jacket. The minimum bend radius that is suggested keeps the dielectric from being compressed and the impedance properties constant along the whole cable run.
The environment is a very important factor in choosing the material for a jacket. Regular PVC jackets are cheap and work well in most indoor settings. LSZH (Low Smoke Zero Halogen) jackets, on the other hand, offer better safety for tight spaces or places with strict fire safety rules. PE jackets are better at keeping out wetness for uses that are exposed to high humidity.
To avoid damage to the conductors or insulation, cable preparation starts with accurate measurement and cutting with the right tools. To keep the required impedance characteristics, when installing a connector, you need to pay close attention to the center cable length, the placement of the dielectric, and the end of the shield. When you crimp something the right way, you make sure that the mechanical links are strong and can handle changes in temperature and pressure.
When routing, it's important to keep enough space between cables to keep electromagnetic interference to a minimum. Support gaps should keep the material from sagging too much and from being over-tensed, which could change its electrical properties. Documenting the route of cables and the specs for connectors makes upkeep and troubleshooting easier in the future.
Signal loss problems are usually caused by mistakes in preparing the connection or exceeding the bend radius limits during installation. By measuring VSWR, you can find impedance discontinuities that are caused by broken connections or dielectric materials that are too squeezed. Systematic testing at every link point finds trouble spots so they can be fixed more precisely.
Interference issues can happen when covering consistency isn't good enough or when grounding isn't done properly. Having the right shield closure at both ends is important for electromagnetic safety, and staying away from ground loops stops noise from getting in. Changes in the environment, like weather or mechanical stress, can have an effect on long-term performance if they are not taken into account when the installation is planned.
In order to choose the best cable option, you need to carefully consider its performance, cost, and the needs of your unique application. When compared to other technologies, OCT300 cable has clear benefits. It also stays competitive for internal patch antenna uses.
Compared to standard RG-series cables that are often used in older setups, OCT300 cable has better performance qualities. Compared to solid plastic options, the foam dielectric design has lower loss characteristics and better transmission speed. When compared to single-shield designs, dual-shielding construction is better at blocking interference. This is especially important in settings with a lot of electronics.
When compared to fixed coaxial solutions, OCT300 cable gives you more options for placement while still providing great electrical performance. The semi-rigid design strikes a balance between mechanical stability and ease of routing, allowing for complicated antenna setups without signal integrity being lost. Temperature stability is better than that of many flexible options, so it works the same way in all kinds of situations.
A study of the total cost of ownership shows that OCT300 cable has big benefits for medium to large-scale operations. Initial material prices may be higher than basic RG-58 options, but the better performance characteristics make the system simpler and lower the need for signal amplification. When uptime measures get better, maintenance costs go down and service intervals get longer.
Customization options add value by letting you choose the best connection lengths and connector setups. This gets rid of extra cable waste and cuts down on the work needed for placement. There are different cover materials and colors available, so different fitting needs can be met without having to specify different cables.
The OCT300 cable works very well in situations where it needs to match 50-ohm impedances consistently with little signal loss. The stable electrical properties and mechanical freedom of internal patch antenna systems make them useful for a variety of mounting setups. The ability to handle power works for both low-power sensor uses and high-power transmission systems.
Environmental versatility allows usage in a wide range of fields, from telecommunications centers that need to control temperature to difficult automotive uses. The chemical protection of the jacket materials on the market makes them suitable for use in industry settings where cleaning or process chemicals may be present.
To buy OCT300 cable strategically, you need to know how the market works, what your suppliers can do, and how to get the best total cost savings. To make sure that supply lines are reliable and that the best value is delivered, successful buying teams use a wide range of factors to evaluate suppliers.
Manufacturers that have been around for a while and have ISO approval can guarantee quality and provide steady production, which is important for big projects. OTTO CABLE works with a reputable company that has been making RF cables for decades and has full testing facilities. As part of its dedication to quality, the company does a lot of testing before shipping, and its three-year guarantee covers most of the risks that come with buying something.
Evaluating providers' production ability makes sure they can meet project deadlines and volume needs. Manufacturing plants that work in more than one shift and make a lot of product every day can accommodate last-minute projects. Lead times of 10 to 15 days help with planning the project, and emergency production skills can meet needs that come up out of the blue.
Customized solutions that improve system performance while making installation easier are becoming more and more important in modern buying strategies. Customization services for OCT300 cables include exact length cuts, a variety of connector choices, and jacket materials that are made to fit the needs of each application. These services get rid of the need for field changes and make sure that the system works well together.
Opportunities to work with an OEM add value through co-engineering help and application-specific improvement. Technical teamwork during the planning phase can help find ways to improve performance or cut costs that will help the project succeed in the long run. Private labeling services help system installers and equipment makers keep their brands consistent.
Bulk buying agreements save money and make sure that projects can keep getting the supplies they need. For project-scale purchases, minimum order numbers of 3000 meters make it possible to handle supplies for framework agreements. Volume pricing systems reward promises that are bigger while still allowing for changes based on the needs of the project.
To protect the interests of buying, contract terms should include quality standards, delivery dates, and performance promises. Warranty policies and policies for replacing broken products add extra security for mission-critical apps. When buying things internationally, the total cost of the job is affected by the payment terms and the currency used.
Because OCT300 cable is flexible and performs well, it can be used in a wide range of businesses and always gives the same operating benefits. Knowing about these benefits helps buying teams understand the strategic value offer for their needs.
The main benefit of OCT300 cable in internal patch antenna uses is that it keeps the signal pure. The low-loss properties keep signals from getting weaker over long cable runs, which means that signal amplification and all of its related complexity are not needed. Matching stable impedances makes sure that the power flows well and reduces echoes that can hurt system performance.
Long-term dependability in tough installation settings is provided by mechanical sturdiness. The strong jacket design protects against wear and tear, chemical exposure, and changes in temperature that could eventually hurt the performance of the cable. The flexibility of the material allows it to adapt to different route needs while keeping its electrical qualities stable over time.
The reliable performance and EMI security that are necessary for dense equipment placements are useful for telecommunications applications. For distributed antenna systems to support wireless connection throughout the building, data centers need signal quality that stays the same. The performance qualities of the cable make sure that it can reliably cover a space without being affected by electrical systems nearby.
For mission-critical communication systems, the strong structure and approved performance qualities are used in aerospace and military applications. Being able to handle tough environmental conditions while keeping the purity of the signal meets strict operating needs. Meeting military standards adds another layer of security to defense buying programs.
Distributed antenna systems are being used more and more in Internet of Things (IoT) deployments to make sure that sensor networks and communication devices have full wireless coverage. The OCT300 cable serves these uses by ensuring stable connections and little signal loss, which makes sure that data transfer stays the same. Cable-based systems can be expanded to meet the needs of growing IoT infrastructure.
To support higher bandwidth and lower latency needs, 5G network designs need better antenna systems with stable internal connections. The OCT300 line gives next-generation wireless devices the performance base they need while still working with infrastructure investments that have already been made.
The OCT300 Cable is a great choice for internal patch antenna uses because it works well, can be installed in a variety of ways, and has all the necessary safety certifications. The dual-shielding design and foam PE dielectric construction keep the signal integrity while allowing for different placement options and weather needs. Because it is made with high-quality materials, can be customized in many ways, and can be delivered quickly, OCT300 cable is the best choice for procurement teams looking for reliable connectivity solutions that balance performance needs with cost concerns in aerospace, industrial, and telecommunications applications.
A: The 50-ohm impedance matching and dual-shielding design of OCT300 Cable make sure that there is very little signal loss and great EMI protection. The electrical qualities of the foam PE dielectric are stable, and the design is flexible enough to handle the complicated routing needs that are common in internal antenna setups.
A: Yes, OCT300 Cable has different cover materials, such as PVC, PE, and LSZH, to meet the needs of different environments. The line can handle voltages up to 2000V DC and keeps working even when the temperature changes, so it can be used in harsh industrial settings.
A: Standard wait times for large orders are between 10 and 15 days, but fast production is available for pressing needs. OTTO CABLE's three-shift manufacturing operation provides flexibility to accommodate project schedules while maintaining quality standards.
A: OCT300 Cable is engineered as an LMR300 equivalent, providing identical electrical performance characteristics including 50-ohm impedance, similar loss characteristics, and compatible mechanical properties. This equivalency ensures reliable performance in applications originally designed for LMR300 cable.
With our full range of OCT300 Cable manufacturer skills and technical know-how, OTTO CABLE is ready to meet your internal patch antenna communication needs. Our ISO-certified production facilities deliver consistent quality while our customization services ensure optimal solutions for your specific applications. Contact us to discuss your project requirements and receive detailed specifications tailored to your needs. With a record of on-time deliveries and a guarantee that lasts for three years, OTTO CABLE provides the partnership foundation necessary for successful project execution and long-term operational excellence.
1. "RF Cable Performance Standards for Internal Antenna Systems," Institute of Electrical and Electronics Engineers Communications Standards, 2023.
2. Johnson, Michael R. "Low Loss Coaxial Cable Design Principles for Wireless Infrastructure Applications," RF Engineering Quarterly, Vol. 45, No. 3, 2023.
3. "Electromagnetic Compatibility Requirements for Telecommunications Equipment Interconnects," International Telecommunication Union Technical Standards, 2022.
4. Stevens, Patricia L. and Chen, David K. "Shielding Effectiveness Analysis in Multi-Layer Coaxial Cable Constructions," Journal of Electronic Materials Science, Vol. 38, No. 12, 2023.
5. "Quality Assurance Protocols for RF Cable Manufacturing and Testing," American National Standards Institute Industrial Standards Committee, 2023.
6. Rodriguez, Carlos M. "Cost-Benefit Analysis of Premium Coaxial Cables in Commercial Wireless Deployments," Telecommunications Economics Review, Vol. 29, No. 4, 2022.
