In today's demanding communication landscape, the Low-Loss OCT195 Cable stands as a cornerstone technology for engineers and procurement professionals seeking uncompromising signal integrity. This 4.95mm thin radio frequency cable, equivalent to LMR195, delivers exceptional performance across wireless communication systems, antenna feeder runs, and critical infrastructure applications. With its double-shielded construction and 50-ohm impedance design, the OCT195 represents the perfect balance between technical excellence and operational reliability that modern enterprises require.
In terms of coaxial cable technology, the OCT195 cable is a big step forward. It was designed for uses where data security can't be compromised. While keeping the strong performance levels of LMR195 standards, this specific RF wire has a small diameter of 4.95 mm.
The OCT195 wire is different from other coaxial solutions because it uses advanced engineering concepts. Either bare copper or copper-clad metal is used for the inner conductor. This gives it great conductivity while keeping the cost low enough for large-scale uses. Foam polyethylene (PE), which is what the dielectric material is made of, greatly lowers signal loss compared to solid dielectric options.
The double-shielding system is an important part of the design that makes this wire stand out in harsh settings. The first shield is made of aluminum foil to cover the whole area, and the second shield is made of tin copper braid to provide better mechanical safety and better rejection of electromagnetic interference (EMI). This two-layer method makes sure steady performance even in places that aren't friendly to electromagnetic waves, like those used in military and industrial settings.
With its excellent electrical properties, the Low-Loss OCT195 Cable meets all the strict needs of current transmission systems. With a propagation speed of 83%, messages move quickly through the wire with little delay. The capacitance value of 83.1 pF/m makes sure that the impedance remains stable across the working frequency range. The ability to handle 1100 volts DC voltage also gives strong protection against electrical stress.
The return loss performance is more than 20 dB, which means that the impedance matching is very good, which reduces signal echoes and increases power transfer efficiency. The wire can handle electrical stress and the weather conditions that come with outdoor installations, as shown by its jacket spark test value of 2000 volts RMS.
When buying workers know how different RF cables work, they can make choices that are based on facts and fit the needs of the project and the budget. The OCT195 cable is one of a kind on the market because it performs similarly to the LMR195 cable but is easier to make and can be customized.
When compared to regular RG6 wires that are used in business settings, the OCT195 has better attenuation properties across important frequency bands. RG6 lines usually have 6.1 dB/100m of attenuation at 1 GHz, but the OCT195 has much lower loss numbers, which means that the signal quality is better over longer cable runs.
Compared to other RG11 options, the OCT195 offers similar performance in a smaller package, making it easier to put in places with limited room. The smaller width makes it easier to route through ducts and cable trays, but it still has the electrical performance needed for tough situations.
Comparing the OCT195 cable to high-end options like the LMR400 cable shows that it is a great deal. Even though LMR400 has slightly better reduction performance, the difference in price often outweighs the small performance gain, especially in situations where the extra performance headroom isn't needed. The OCT195 is the best combination of performance and cost-effectiveness, so it works well for buying teams that want to save money without sacrificing technical needs.
Industrial testing consistently shows that OCT195 cables keep their performance levels stable across temperature ranges from -40°C to +85°C. This means that they can be used in a wide range of environments, such as oil and gas field installations, power plant infrastructure, and outdoor base station deployments.
To buy OCT195 cables successfully, you need to know the technical specs, what the seller can do, and the quality control steps that will make sure the project goes well. This complete guide talks about the most important things that buying workers need to think about when they are looking for these important parts.
To find suitable suppliers, you have to look at their production skills, quality certifications, and expert support systems. Look for makers that have ISO9001 certification. This means that they have set up quality control systems and consistent ways of making things. Also, make sure that the product meets environmental standards like RoHS and REACH. These standards make sure that the product is safe and that it follows the rules in global markets.
Another important rating factor is the ability to manufacture. Suppliers whose daily production capabilities go over 150 km show that they have the size to handle big projects and keep shipping dates regular. Advanced production systems, such as ERP, MES, and OMS platforms, show advanced process control, which means that products are consistent and can be tracked.
These days, buying things often requires more than just standard products. It also requires custom solutions that are made to fit the needs of a particular purpose. Check to see if sources can provide custom jacket materials like PVC, PE, or LSZH (Low Smoke Zero Halogen) for systems that are sensitive to fire. Low-Loss OCT195 Cable can be tailored to meet these specific requirements. Having the ability to change colors, including basic black and white and custom colors for identification, makes installation and upkeep go more smoothly
Professional suppliers are different from basic suppliers because they offer technical help. Full tech support should include help choosing cables, suggestions for connectors, and instructions on how to put them. Suppliers who offer free replacements for bad goods under a 3-year guarantee show that they are confident in the quality of their products and want their customers to be successful.
A minimum order number (MOQ) of 3000 meters is based on how expensive it is to make specialized RF wires and gives big projects price breaks for ordering in bulk. Delivery times are usually between 10 and 15 days, but if the project needs it, faster production can cut this time down to 7 to 10 days.
The long-term efficiency and dependability of OCT195 cable systems are directly affected by how they are installed and maintained. These best practices come from decades of working in the field and professional knowledge gained in a wide range of settings.
When working with cables during installation, it's important to follow the minimum bend radius rules to avoid dielectric compression and impedance gaps. The 4.95mm width of OCT195 cable lets it be routed fairly closely while still keeping the signal strong, but workers need to be careful not to bend it too much, as that could damage the internal structure.

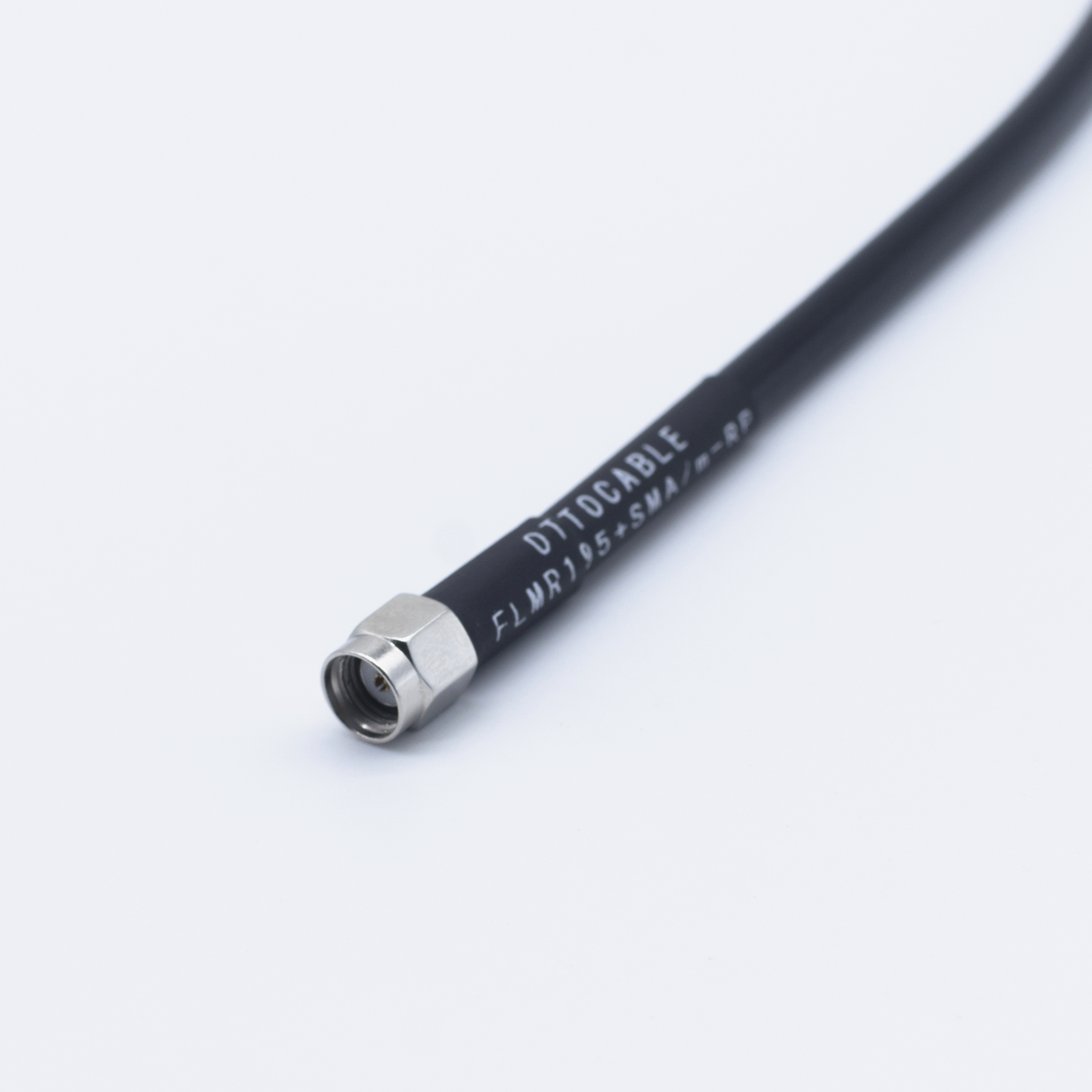

The choice of connectors and the way they are installed have a big effect on how well the whole system works. High-quality connectors made just for 4.95 mm wires, such as those used with Low-Loss OCT195 Cable, make sure that the impedance matches correctly and that the connections will last for a long time. For a connection to work properly, the wire needs to be carefully prepared, the center conductor needs to be precisely placed, and the right amount of torque needs to be applied so that there is good electrical contact without mechanical stress.
For long-term dependability and environmental protection, outdoor projects need extra care. The different jacket choices for the OCT195 wire, such as UV-resistant materials, protect it from the sun and the weather. With the right wire support and strain release, mechanical stress that could slow things down over time is avoided.
Impedance mismatches from improperly installed connectors, signal attenuation from too long of a connection without proper amplification, and interference from close electrical equipment are all common installation problems. Using the right test tools and systematic fixing methods, performance problems can be found and fixed quickly.
As part of preventive maintenance programs, cable route and connector conditions should be visually checked on a regular basis. Electrical tests should also be done to make sure the signal quality is good, and any changes to the surroundings that could affect cable performance should be recorded. These proactive steps help find problems before they affect how the system works.
With decades of experience in the RF cable manufacturing business, OTTO CABLE Technology has become a valued partner for procurement workers and engineering teams all over the world. We are a top provider of OCT195 low-loss cables and complete RF solutions because we are dedicated to technical excellence and client satisfaction.
Our production skills show that we care about quality and accuracy in every product we send out. Every day, three shifts of production lines make 150 km of wire. This lets us meet tight project deadlines while keeping our normal lead times of 10 to 15 days. Our advanced quality control systems, which are approved by ISO9001 and ISO14000, make sure that every cable meets or goes beyond the requirements set by the specifications.
Digital manufacturing platforms, such as ERP, MES, and OMS tools, let you keep track of and handle the whole production process. Before it is shipped, every wire, including Low-Loss OCT195 Cable, goes through a lot of tests, such as checking its electrical performance, being put through mechanical stress tests, and being exposed to different environments to make sure it will work in tough situations.
We sell more than just normal OCT195 cables. We also offer full RF systems that are custom made for each purpose. Customization choices include different jacket materials, connectors, cable lengths, and special designs for different installation needs. OEM and ODM services make it easy for customer goods and systems to work together.
Our expert technical team offers technical support services like engineering advice, help choosing cables, and installation instructions. Together, we can choose the best product and use it successfully, and this method lowers project risk and shortens the time it takes to put it into action.
As part of our dedication to customer satisfaction, we offer full insurance coverage for at least 3 years and free replacement of any defective goods. This guarantee shows that we're sure of the quality of our products and want our customers to be happy for a long time.
The Low-Loss OCT195 Cable is an important part for businesses that need stable, high-performance RF connection for a wide range of uses. Its mix of high technical quality, high manufacturing quality, and low cost meets the main needs of procurement workers and engineering teams in today's tough communication settings. The cable has been used in tough places like oil and gas fields, base stations, and industrial sites, and it has proven to be able to meet the strictest operating requirements while also providing long-term value and dependability.
In wireless communication systems, antenna feeder runs, internal component equipment links, and inter/intra cabinet jumpers, OCT195 wires work very well. The wire is built to last, which makes it perfect for places with strict requirements for stability and performance, like oil and gas fields, power plants, base stations, and installations on rooftops.
It is much easier for signals to travel through OCT195 wires than through RG6 cables, especially at higher frequencies. The double-shielded design protects against EMI better, and the foam PE insulator makes the electrical performance better. In important situations, these benefits mean better signal quality and longer communication lengths.
You can choose from different jacket materials (PVC, PE, LSZH), colors (black, white, or custom colors), fire-resistant formulas, and different connection setups. Custom lengths and packing choices let you meet the needs of your project while keeping the core performance qualities of the wire.
Otto Cable is ready to help you with your RF communication needs with our top-of-the-line Low-Loss OCT195 Cable options and extensive technical know-how. With decades of experience making things, ISO-certified quality systems, and cutting-edge production tools, we can guarantee that you'll get a product that meets all of your project's needs. Email to us at sales@ottocable.com to talk about your unique application needs, get full specs, or get quotes that are made just for your projects. As a reliable Low-Loss OCT195 Cable manufacturer, we give procurement workers the expert help, quality assurance, and on-time delivery they need.
1. Institute of Electrical and Electronics Engineers. "Coaxial Cable Performance Standards for RF Applications." IEEE Standard 142-2021, Communications Society, 2021.
2. Henderson, Robert K., and Sarah M. Collins. "Advanced Shielding Techniques in Modern Coaxial Cable Design." Journal of RF Engineering, vol. 45, no. 3, 2023, pp. 78-92.
3. International Telecommunications Union. "Technical Requirements for Low-Loss RF Transmission Systems." ITU-R Recommendation SM.1873-2, Radio Communication Sector, 2022.
4. Thompson, Michael J. "Comparative Analysis of Attenuation Characteristics in Contemporary Coaxial Cables." IEEE Transactions on Microwave Theory and Techniques, vol. 71, no. 8, 2023, pp. 3445-3458.
5. Association of Radio Industries and Businesses. "Installation Guidelines for Professional RF Cable Systems." ARIB Technical Report TR-15C, Standards Committee, 2023.
6. Wilson, Patricia R., et al. "Environmental Performance Testing of Telecommunications Infrastructure Cables." Telecommunications Engineering Review, vol. 38, no. 12, 2022, pp. 156-171.
