Coaxial cables are vital for high-speed data transfer in many systems. Over time, they can degrade or get damaged. This affects signal quality and performance.
In this article, we’ll explore effective methods to test coaxial cables. You’ll learn how to identify common issues and maintain optimal performance.
Coaxial cables play a vital role in modern networking, providing the backbone for internet, television, and satellite communication systems. These cables are designed to transmit data by using a central conductor, surrounded by insulation, a metallic shield, and an outer jacket. Though they are built to last, coaxial cables are susceptible to issues like physical damage, wear from bending, water infiltration, and electromagnetic interference. When problems arise, they can lead to poor connectivity, signal degradation, and frequent disconnects, which are frustrating for both consumers and businesses.
In many cases, the problem can be traced back to a faulty or degraded coaxial cable. Regular testing can help identify issues early, preventing more significant disruptions in service.
Coaxial cables function by transmitting electrical signals over long distances. These signals carry essential data for various communication systems, from cable TV to high-speed internet. The integrity of these signals is paramount to maintaining clear, high-quality communication. A compromised cable can lead to signal loss, interference, or distortion, impacting the overall performance of your devices.
Testing the coaxial cable helps you ensure that the signals travel through the cable without interruptions or degradation. Even a small break in the insulation or a slight misalignment in the conductor can result in noticeable issues like pixelated video, buffering, or slow internet speeds.
Several common issues can affect coaxial cables:
● Signal Loss: A cable can lose signal strength if it is too long or damaged.
● Physical Damage: Kinks, sharp bends, and pinched sections can interrupt the signal path, resulting in poor performance.
● Water Damage: Exposure to moisture can degrade the insulation and cause short circuits or other signal interference.
● Loose Connections: A poorly connected cable will often lead to intermittent or weak signals.
Knowing when to test your coaxial cable is essential. Some signs include:
● Buffering and Lagging: Common in internet and video streaming services when the cable is faulty.
● Pixelated or Blurry TV Screens: Poor signal quality can lead to these issues.
● Slow Internet Speeds: Cable degradation may cause inconsistent internet speeds or frequent disconnections.
Before diving into testing, it's essential to have the right tools. Here are some of the most common devices used for testing coaxial cables:
● Multimeter: A basic tool for checking continuity and detecting shorts.
● Coaxial Cable Tester: Specifically designed to assess the integrity and functionality of coaxial cables.
● Megger Insulation Tester: Used for checking the insulation resistance of cables, especially for high-voltage applications.

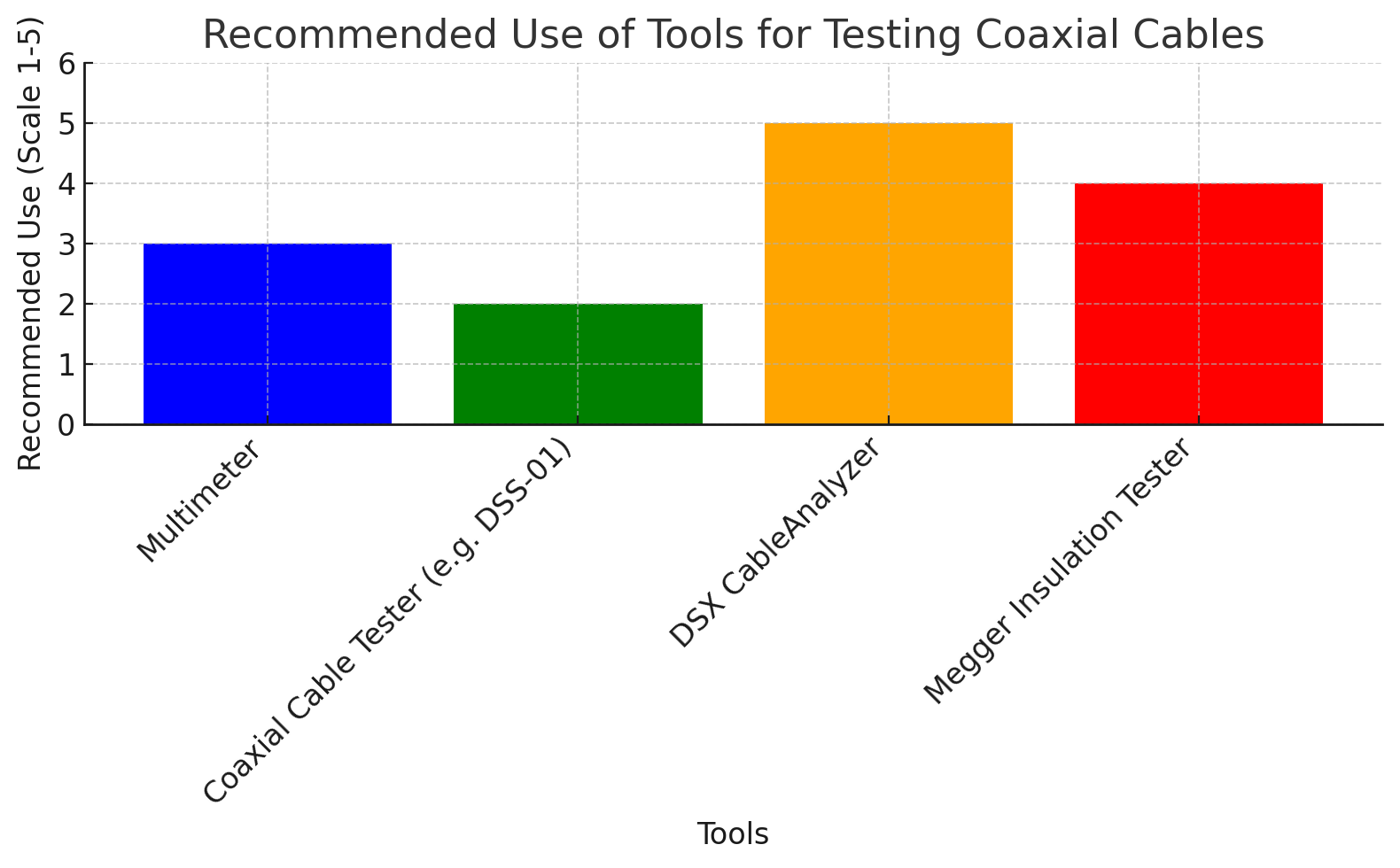

Tool | Purpose | Recommended Use |
Multimeter | Check for continuity and resistance | Basic testing for simple issues |
Coaxial Cable Tester (e.g. DSS-01) | Test signal presence and quality | Ideal for quick, simple signal checks |
DSX CableAnalyzer | Advanced diagnostics for impedance and signal integrity | Professional use for high-frequency performance |
Megger Insulation Tester | Check insulation resistance and degradation | For high-voltage systems or water damage testing |
The first step in testing any coaxial cable is to conduct a visual inspection. Look for:
● Physical Damage: Inspect the cable for any visible cracks, cuts, or fraying. These could lead to internal damage that impacts the signal.
● Bends and Kinks: Excessive bending or twisting can damage the cable, causing signal degradation or failure.
● Loose Connectors: Check if the connectors are securely attached to both ends of the cable. Loose or damaged connectors can result in intermittent or weak signals.
Using a multimeter to check continuity is one of the simplest and most effective ways to ensure your coaxial cable is intact. Here’s how to use it:
1. Set the Multimeter to Continuity Mode: This will help you check if the signal is passing through the cable correctly.
2. Touch the Probes to Both Ends of the Cable: Place one probe at the center conductor and the other at the outer metallic shield.
3. Check the Reading: If the multimeter beeps or shows a low resistance, the cable has continuity. If it shows an open circuit (no beep or high resistance), the cable is broken and needs to be replaced.
For a more precise test, use a professional coaxial cable tester, such as the NF-858C or DSS-01. These tools can quickly check if the coaxial cable is transmitting a valid signal. To test with a coaxial cable tester:
1. Connect the Tester: Attach one end of the coaxial cable to the tester.
2. Run the Test: The tester will analyze the signal integrity and indicate whether the cable is working properly.
3. Review the Results: A green indicator usually means the cable is functioning correctly, while a red indicator signals an issue.
Step | Action | Purpose |
Step 1: Visual Inspection | Check for visible damage, kinks, or frays. | Identify obvious physical issues |
Step 2: Continuity Testing | Use a multimeter to check for open circuits. | Ensure proper signal continuity |
Step 3: Signal Testing | Use a coaxial cable tester to check for signal quality | Validate the strength and integrity of the signal |
Step 4: Insulation Testing | Use a Megger tester to check insulation resistance | Ensure no interference from damaged insulation |
Multimeters are versatile tools that can check various electrical parameters, including the continuity of coaxial cables. When testing for continuity, the multimeter measures the resistance between the center conductor and the shield of the cable. If the resistance is low or zero, the cable is intact. If it reads an open circuit, it means the cable is damaged.
The NF-858C or DSS-01 are specialized testers for coaxial cables, designed to detect whether the cable is transmitting a signal. These tools are particularly useful because they automatically analyze the signal and show you if the cable is good or bad without requiring any manual interpretation of resistance values. They're especially handy for troubleshooting multiple cables in large installations.
Insulation resistance testing is crucial to detect issues like water damage or deteriorating insulation. The Megger insulation tester applies a high voltage to the coaxial cable and measures the resistance of the insulation. A high resistance value typically means the insulation is intact, while a low value indicates potential leakage or damage to the cable’s protective layer. This test is particularly important for cables exposed to harsh conditions.
For professional-grade testing, the DSX CableAnalyzer is one of the best tools for assessing coaxial cables. It can measure performance up to 1002 MHz, detect impedance anomalies, and provide accurate readings of signal integrity. The DSX CableAnalyzer automatically checks for issues like poor connectors, damaged cables, and mismatched impedance. It’s an essential tool for anyone dealing with high-frequency coaxial cables in commercial or industrial settings.
For applications involving high voltages, the Megger insulation tester ensures that the cable’s insulation remains intact under stress. It’s crucial for testing cables in high-use environments, like telecommunications and broadcasting.
Common issues that may be identified with advanced testing tools include:
● Impedance Mismatches: These occur when the cable or connectors are not properly matched, leading to signal reflection and loss.
● Water Infiltration: Moisture can degrade the insulation, leading to short circuits or signal degradation.
● Connector Issues: Improperly installed connectors can cause poor signal transmission or complete failure.
Issue | Cause | Resolution |
Signal Loss | Long cable runs, poor connectors | Use amplifiers or replace damaged connectors |
Physical Damage | Kinks, cuts, or pinches in the cable | Replace damaged sections of the cable |
Water Damage | Exposure to moisture or humidity | Replace water-damaged cables |
Loose or Improper Connections | Poor installation or wear | Reinstall connectors properly |
Improperly terminated connectors can cause a significant drop in signal quality. Ensure that connectors are securely attached to the cable, and use the correct type of connector for your application (e.g., BNC, F-type).
Check the entire cable for signs of damage, such as cuts, bends, or crimps. These physical damages can interrupt the signal. Additionally, interference from nearby electrical equipment can degrade the signal. Keep cables away from power lines and other sources of electromagnetic interference.
Coaxial cables have specific limits on the maximum length to maintain signal quality. If the cable run is too long, consider using an amplifier. Additionally, poorly installed splitters can cause signal degradation. Always use high-quality splitters that are compatible with the system.
To prevent future issues, install coaxial cables properly:
● Avoid tight bends or kinks in the cable.
● Use cable ties to secure the cable without compressing it.
● Ensure connectors are tightly and correctly installed.
Perform periodic tests to check for potential issues. Early detection of problems allows for quick fixes, preventing larger system failures down the road.
Clean coaxial cable connectors regularly with a soft cloth to prevent oxidation and dirt buildup. Store cables in dry conditions to avoid moisture-related damage. Protect the cables from physical wear by keeping them organized and avoiding unnecessary stretching or twisting.
Maintenance Task | Frequency | Purpose |
Clean Connectors | Monthly | Prevent oxidation and dirt buildup |
Check for Visible Damage | Every 3-6 months | Ensure there are no physical issues |
Inspect Cable Length and Routing | Every 6 months | Prevent signal degradation due to excessive length or poor routing |
Replace Aged Cables | Every 2-3 years (based on usage) | Maintain signal strength and reliability |
Regular testing of coaxial cables is crucial for ensuring high-quality signal transmission and preventing connection issues. By following the methods in this guide, you can quickly identify problems and troubleshoot effectively. Whether using basic tools like a multimeter or professional testers like the DSX CableAnalyzer, maintaining your cables will ensure long-term reliability. OTTO provides valuable products designed to help you keep coaxial cables in top condition, enhancing performance and extending their lifespan.
A: To test a coaxial cable for signal quality, use a coaxial cable tester like the DSS-01. This tool detects valid signal presence and ensures optimal performance.
A: Regular testing of coaxial cables helps identify problems like signal degradation or physical damage, ensuring uninterrupted service and maintaining high signal quality.
A: You can test a coaxial cable using tools such as a multimeter, coaxial cable tester, or professional testers like the DSX CableAnalyzer for more advanced diagnostics.
A: To check for continuity, use a multimeter. Connect the probes to the center conductor and shield of the coaxial cable. A reading close to zero indicates proper continuity.
A: Yes, a damaged coaxial cable can cause signal loss or degradation, resulting in slow internet speeds or connectivity issues. Regular testing can help detect such problems early.
A: Common issues include poor connector installation, physical cable damage, water infiltration, and excessive cable length. Testing helps identify and resolve these problems quickly.
