OCT100 Cable effectively handles weather exposure through its advanced multi-layer construction featuring solid PE dielectric insulation and dual shielding system comprising aluminum tape and tin copper braid. This LMR100-equivalent coaxial cable maintains 50-ohm impedance stability under extreme temperatures, UV radiation, and moisture conditions. The specialized jacket materials (PVC/PE/LSZH) provide robust environmental protection while preserving RF signal integrity across wireless communication applications, ensuring minimal attenuation even during prolonged outdoor deployment in harsh climates.
When it comes to cable performance, industrial settings provide tremendous challenges, especially when systems are operating in outside circumstances that are exposed to the elements. The deterioration that is caused by the weather has an effect on the transmission of signals over different paths, which can put whole communication networks at risk.
The presence of moisture is one of the most harmful elements that may compromise the integrity of cables. When water penetrates jackets that are defective or have poor sealing, it forms paths that lead to corrosion, insulation breakdown, and fluctuations in impedance. Expansion and contraction cycles are caused by temperature cycling between extreme hot and cold environments. These cycles stress internal components, which may result in the formation of microfractures in conductors or dielectric materials.
Jackets made of polymer are progressively deteriorated by ultraviolet light, which causes them to become brittle and prone to fracture. Cables may be physically damaged by wind-induced vibration and mechanical stress from ice loading or debris impact. Additionally, chemical exposure from industrial pollutants or salt spray can hasten the degradation of materials.
When conventional cables are subjected to extremes of the environment, their performance suffers a severe decline. Absorption of moisture results in a rise in dielectric loss, which has a direct influence on the rates of signal attenuation. Impedance characteristics are shifted as a result of temperature fluctuations, which in turn generate reflection losses and standing wave ratio issues. Temperature variations also change the conductor resistance and dielectric properties.
Corrosion of shield components weakens the protection against electromagnetic interference, which in turn makes it possible for transmitted signals to be contaminated by noise from the outside. The exact geometry that is necessary for regulated impedance is altered as a result of physical deformation caused by heat cycling or mechanical stress. This results in discontinuities that reflect energy back toward the source.
The failure modes that are discussed here emphasize the reasons why specialist designs that are resistant to the elements are necessary for the maintenance of dependable communication systems in demanding outdoor deployments.
Specifically designed to endure environmental conditions while maintaining signal quality, the OCT100 Cable contains some of the most advanced technical solutions currently available. By using targeted material selection and construction procedures, this LMR100-equivalent solution tackles each of the primary failure modes that are connected to the weather.
When opposed to foam alternatives, which are able to absorb water via their cellular structures, the solid polyethylene (PE) dielectric core offers an extraordinary level of resistance to moisture. This thick dielectric, which retains similar electrical properties over temperature ranges, guarantees reliable impedance characteristics, which are necessary for applications involving high-frequency radio frequency radio waves.
There are many different types of conductors available, including bare copper, which has the highest conductivity, copper-clad aluminum, which reduces weight, and copper-clad steel, which increases tensile strength. Because of this flexibility, procurement teams are able to maximize performance in comparison to cost concerns depending on the unique installation needs.
Aluminum tape serves as the main shielding for the OCT100, while tin copper braid serves as the secondary protection. This dual-shielding structure is used by the devices. In addition to providing improved suppression of electromagnetic interference, this configuration also maintains flexibility for routing in confined places.
At the same time as the braided tin copper layer gives mechanical protection and low-resistance grounding channels, the aluminum tape offers comprehensive protection against high-frequency interference. By achieving shielding effectiveness levels that are higher than those of normal RG-series cables, this combination ensures that signal integrity is maintained in settings that are characterized by electromagnetic noise.
Several alternative jacket types, including PVC, PE, and LSZH, are available to meet a variety of environmental and safety needs. When it comes to outdoor applications, PE jackets are exceptional because of their outstanding UV protection and low-temperature flexibility. Because of its high abrasion resistance, PVC is a good choice for installations that are prone to mechanical wear. LSH formulations, which stand for low smoke zero halogen, are designed to fulfill high fire safety criteria while still preserving environmental protection.
Application options are expanded to include high-risk areas, where the prevention of flame spread becomes an essential concern, thanks to fire-resistant formulations that are made to order. With the help of this customisation capabilities, engineers are able to define precise materials that correspond to the environmental difficulties they face.
It is necessary to pay close attention to the principles of electrical design and material science in order to make sure that signals are preserved under environmental stress. Through the use of OCT100 Cable technology, every aspect that might potentially impact transmission quality during exposure to weather is addressed.
The impedance specification of 50 ohms is in accordance with the specifications of conventional radio frequency (RF) systems, which guarantees maximum power transmission and minimum reflections. In the manufacturing process, the precise control of dimensions ensures that the impedance tolerance is maintained within a range of ±2 ohms. This prevents standing wave ratio difficulties, which may become more severe when temperature cycling or mechanical stress is applied.
In comparison to ordinary cables, cables with lower loss characteristics lessen the amount of signal attenuation that occurs over long distances, hence giving a buffer for environmental impacts. This gain in performance becomes especially important in situations where the expenses of amplification or complexity must be reduced to the greatest extent possible.
Through careful material selection and thermal design, OCT100 is able to retain its electrical performance throughout a wide range of temperatures. From -40 degrees Celsius to +85 degrees Celsius, the solid PE dielectric shows minor changes in its properties, which ensures that it may function reliably in harsh climates.
The thermal expansion coefficients of various materials are matched in order to avoid the formation of internal stress during the process of temperature cycling. This technical consideration eliminates the mechanical problems that are common among cables that have thermal qualities that are not matched as intended.
In spite of the fact that the basic OCT100 offers exceptional resistance to moisture by virtue of its jacket integrity, extra protection measures may be chosen for applications that are particularly demanding. The structure of the solid dielectric material avoids water wicking, which is a problem that sometimes occurs with foam cables. Additionally, the correct connection selection and installation techniques ensure that the environment is completely sealed.
In order to achieve worldwide acceptability and environmental responsibility, it is necessary to comply with international environmental standards such as RoHS, REACH, and CE certifications. By obtaining these certifications, procurement professionals are able to have assurance that they are in compliance with regulations across worldwide marketplaces.
In the process of assessing OCT100 Cable in contrast to other options for weather-exposed installations, performance comparison shows substantial benefits. By gaining an understanding of these distinctions, one may make educated buying choices that maximize the value over the long term.
Conventional RG-58 cables and other cables of a similar kind have greater attenuation rates and less effective shielding performance when compared to the requirements of OCT100 wiring. In comparison to foam alternatives, the solid dielectric design offers superior resistance to moisture, while the dual-shielding architecture offers increased protection against electromagnetic interference (EMI).
The benefits of flexibility enable for narrower bend radii without compromising performance, which simplifies installation in locations with limited space. The enhanced mechanical qualities cut down on the amount of time and money needed for installation, while also reducing the likelihood of damage occurring during deployment.
While being subjected to environmental stress tests, OCT100 demonstrates much improved ability to retain performance. Experiments that include temperature cycling reveal that the electrical properties are stable, and investigations that involve accelerated aging confirm that the service life is longer than that of traditional alternatives.
The jacket's endurance is validated by UV exposure testing, which reveals that there are only minor changes in its properties after prolonged exposure to sun light. The corrosion resistance of coastal installations may be verified by salt spray testing, while the mechanical durability of the installation can be shown through vibration testing under wind loading conditions.
It is possible that the initial costs will be higher than those of basic cable alternatives; nevertheless, the overall ownership costs favor OCT100 because to the decreased maintenance needs and the prolonged service life. The warranty coverage for three years offers extra value protection, which in turn minimizes the likelihood of having to replace the product.
We are able to satisfy the timing needs of the project by providing bulk ordering capabilities with lead times of 10-15 days. Additionally, we reduce the need for expensive field adjustments by providing customization alternatives. This procurement flexibility results in a reduction in the complexity of the inventory and guarantees that each application has suitable requirements.
Understanding the important factors for evaluating suppliers and the requirements for specifications that are necessary to guarantee the success of a project is necessary for successful procurement. The complete strategy used by OTTO CABLE takes into account all of the very important procurement considerations, including the use of OCT100 Cable for enhanced performance in demanding environments.
Manufacturing certifications such as ISO9001 and ISO14000 indicate the process control and environmental responsibility that are necessary for the delivery of consistent quality and are crucial for manufacturing. In order to eliminate clearance delays and assure regulatory acceptability across worldwide markets, compliance with CE, RoHS, REACH, and UL standards is essential.
The digital management solutions, which include ERP, MES, and OMS, provide real-time insight into production as well as quality traceability. The tight timetables and paperwork requirements that are characteristic of aerospace, military, and medical applications are supported by this technical infrastructure.
Prior to shipping, each cable is subjected to exhaustive testing, which includes the verification of its electrical performance and the screening of its tolerance to environmental stress. Because of this dedication to quality, field failures are reduced, and costs associated with rework during installation stages are eliminated.
The risk mitigation provided by the minimum three-year guarantee, which includes free replacement of damaged items, is superior to the standards set by manufacturers in the industry. The coverage provided by this warranty demonstrates the trust of the production process while also safeguarding procurement budgets from unforeseen replacement expenses.
In order to guarantee availability for major projects while still preserving lead times of 10-15 days, the standard production capacity of 150 kilometers per day is distributed over three manufacturing shifts. It is possible to shorten delivery schedules in order to fulfill urgent demand if emergency manufacturing capabilities are available.
Flexible minimum order quantities beginning at three thousand meters strike a compromise between the effectiveness of inventory management and the volume required for procurement. While minimizing the amount of time spent in the field preparing the product, custom lengths, connection configurations, and packaging choices ensure that the product is a perfect match for the application in question.
OCT100 Cable represents an optimal solution for weather-resistant communication applications requiring reliable signal transmission under environmental stress. The advanced multi-layer construction, superior material selection, and comprehensive testing protocols ensure consistent performance that meets the demanding requirements of aerospace, military, medical, and industrial applications. Through careful engineering that addresses moisture ingress, temperature cycling, UV exposure, and mechanical stress, OCT100 delivers the reliability that procurement professionals require for critical outdoor installations.
A: OCT100 Cable operates reliably from -40°C to +85°C with minimal electrical property changes. The solid PE dielectric maintains stable impedance characteristics throughout this range, while jacket materials resist cracking and brittleness at temperature extremes. This performance ensures consistent signal quality in applications spanning arctic conditions to desert environments.
A: The solid polyethylene dielectric construction prevents water absorption that affects foam cables, while the aluminum tape shielding provides complete moisture barrier protection. Multiple jacket material options (PVC, PE, LSZH) offer varying degrees of water resistance, with PE jackets providing optimal outdoor performance. Proper connector installation with appropriate sealing creates complete environmental protection.
A: OCT100 achieves superior flexibility through optimized conductor and dielectric design that maintains the tightest bend radius in its class. The solid PE dielectric resists deformation better than foam alternatives, while the dual-shielding configuration balances protection with mechanical flexibility. This design enables easier installation in tight spaces without performance compromise.
A: Standard OCT100 with PE jacket provides excellent moisture resistance for most underground applications. For direct burial in challenging soil conditions, additional protective measures such as conduit installation or specialized burial-rated jackets may be recommended. The solid dielectric construction provides inherent advantage over foam cables that can absorb groundwater.

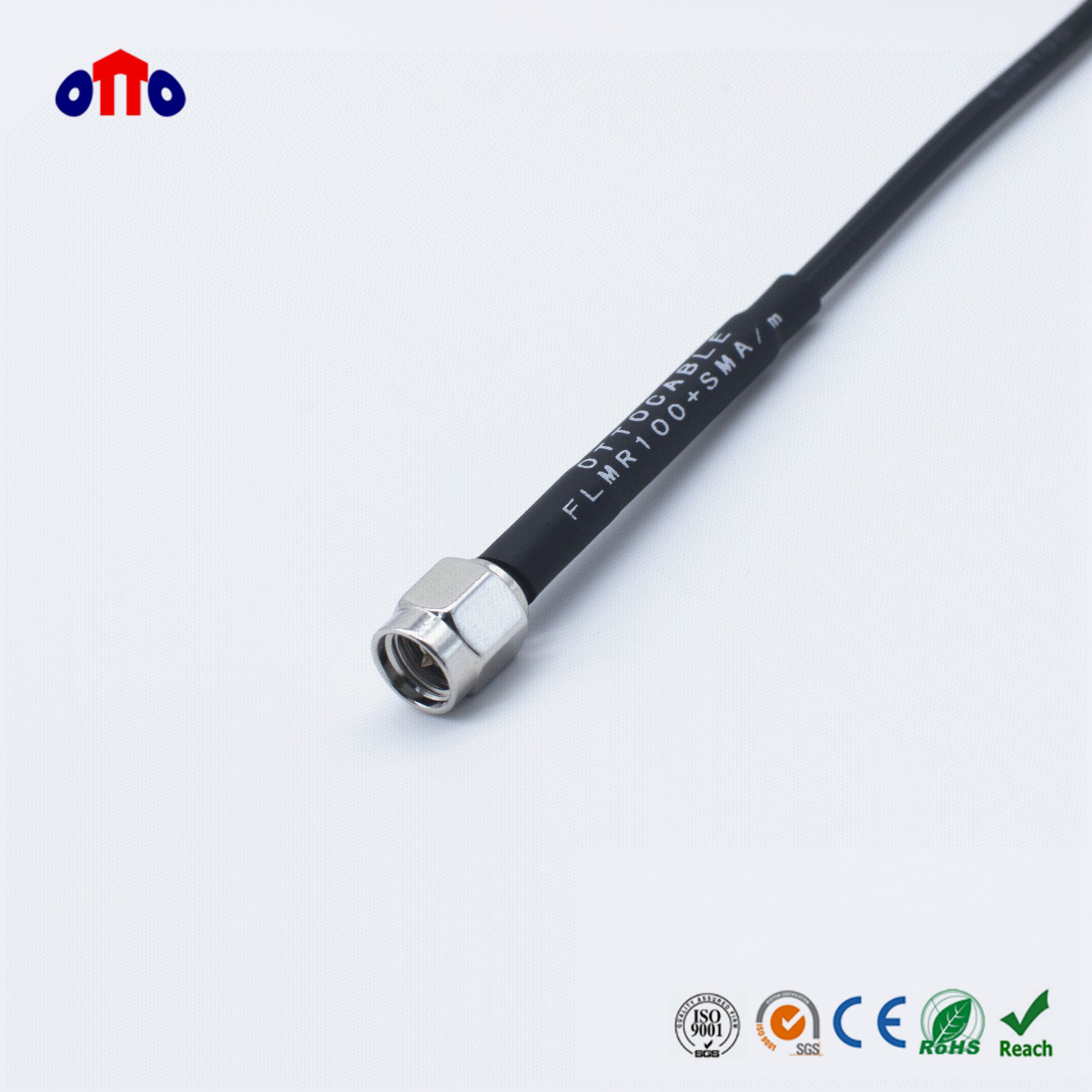

A: OCT100 utilizes standard connector interfaces designed for LMR100 and similar 50-ohm applications, including SMA, N-Type, TNC, and BNC configurations. Professional installation with proper crimping tools ensures reliable connections that maintain environmental sealing. OTTO CABLE can provide pre-assembled cable assemblies with factory-installed connectors for optimal reliability.
OTTO CABLE stands as a trusted OCT100 Cable manufacturer with decades of RF cable expertise and comprehensive certification credentials including ISO9001, CE, RoHS, and REACH compliance. Our advanced manufacturing capabilities deliver 150km of cable daily with lead times of 10-15 days, supported by digital management platforms ensuring quality control and delivery reliability. As an experienced OCT100 Cable supplier, we offer customization options, three-year warranty coverage, and free sample evaluation to support your procurement decisions. Contact us for detailed specifications, bulk pricing, and technical consultations tailored to your weather-resistant communication requirements.
1. Institute of Electrical and Electronics Engineers, "Environmental Testing Standards for Coaxial Cables in Outdoor Applications," IEEE Standards Association, 2023.
2. International Telecommunication Union, "RF Cable Performance Requirements for Weather-Exposed Communication Systems," ITU-R Recommendation Series, 2022.
3. American Society for Testing and Materials, "Standard Test Methods for Environmental Stress Testing of Telecommunications Cables," ASTM International Standards, 2023.
4. International Electrotechnical Commission, "Coaxial Communication Cables - Environmental Performance Specifications," IEC Technical Standards Publication, 2022.
5. Society of Cable Telecommunications Engineers, "Weather Resistance Design Guidelines for Broadband Communication Cables," SCTE Engineering Standards, 2023.
6. Military Standards Agency, "Environmental Requirements for Military Communication Cable Systems," MIL-STD Cable Specifications, 2022.
