Views: 0 Author: Site Editor Publish Time: 2025-10-14 Origin: Site
RG58 is a widely used coaxial cable, known for its flexibility and durability. With a 50-ohm impedance, it is perfect for applications like radio communications and networking. Impedance plays a crucial role in ensuring proper signal transmission and minimizing loss.
In this article, we will explore RG58's 50-ohm impedance and why it’s essential for optimal performance. You’ll learn about its uses, comparison with other coaxial cables, and best practices for installation and maintenance.
Impedance in coaxial cables refers to the resistance a cable offers to the flow of alternating current (AC) or radio frequency (RF) signals. It is measured in ohms (Ω) and plays a critical role in ensuring the efficient transfer of signals. In simple terms, the impedance of a coaxial cable determines how much signal is lost or reflected back at the connection points.
For RG58, the standard impedance is 50 ohms. This means the cable is designed to match the impedance of most RF devices, ensuring minimal signal loss and optimal performance over various distances.
The 50-ohm impedance of RG58 is specifically chosen for applications involving medium to short cable runs where minimal signal loss is essential. The ratio of the inner conductor and dielectric material used in the cable determines this impedance. RG58's 50-ohm configuration strikes a balance between power handling and signal integrity, making it suitable for a wide range of RF applications, such as radio communication and Ethernet networking.
The 50-ohm impedance of RG58 is commonly used in systems that require high power handling and low attenuation. It is frequently used in:
● RF communication systems such as amateur radio.
● Ethernet networks (especially Thin Ethernet).
● Broadcasting and other data transmission systems.
This impedance is also crucial in applications where cable flexibility and cost-effectiveness are important, as it offers a reliable performance for standard frequencies.
Impedance matching ensures that the impedance of the coaxial cable matches that of the devices it is connected to. Mismatched impedances lead to signal reflections, loss of signal strength, and potential damage to the equipment. In RF systems, where signal integrity is crucial, having the right impedance (50 ohms for RG58) is vital to avoid these issues.
In the case of RG58, maintaining impedance matching throughout the system ensures the maximum power transfer and prevents signal degradation, allowing signals to travel without unnecessary losses.

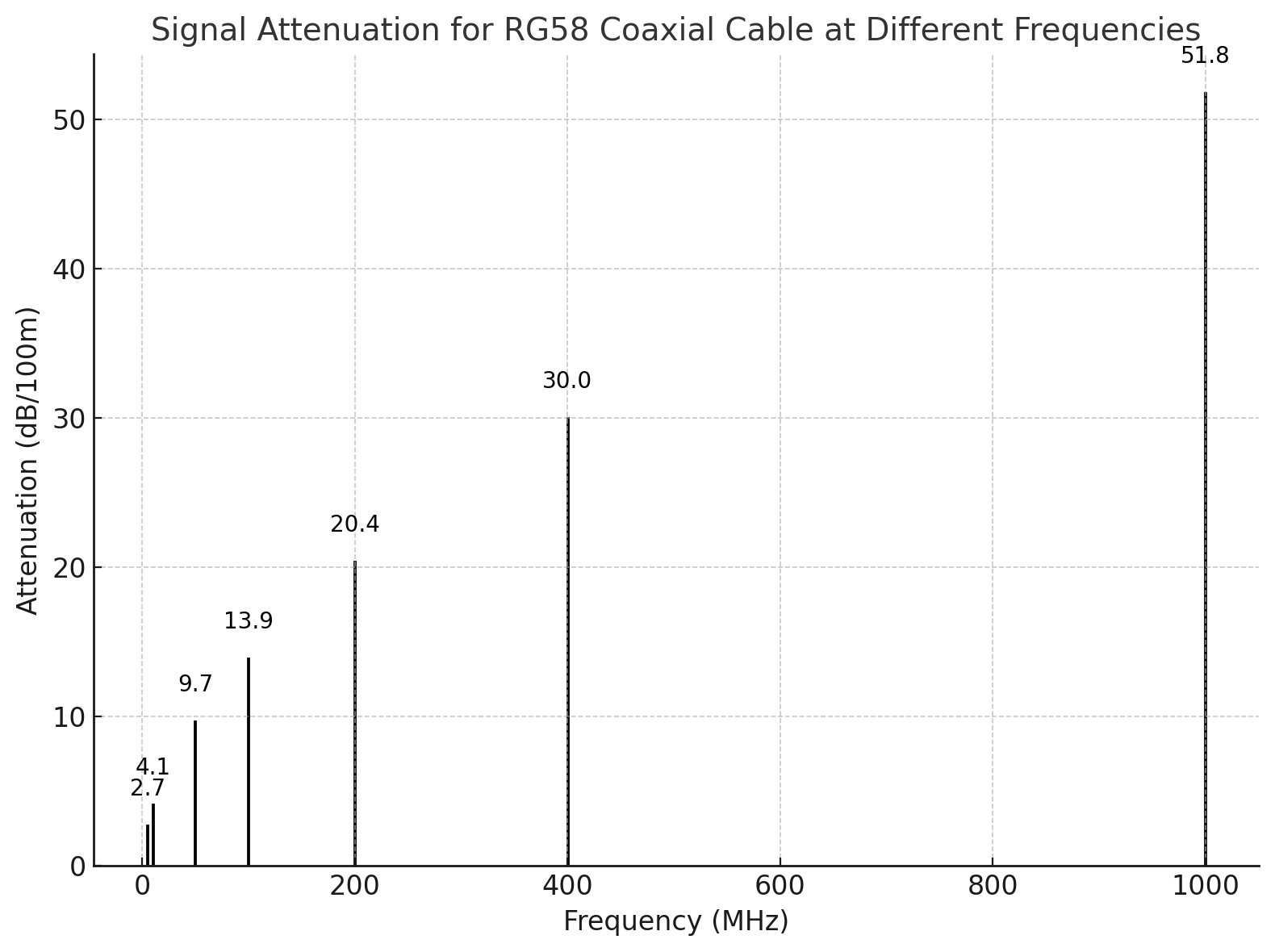

Signal loss, or attenuation, occurs as the signal travels through the cable, reducing in strength over distance. RG58, with its 50-ohm impedance, is designed to minimize attenuation, but the amount of loss depends on the frequency of the signal and the length of the cable. RG58 can effectively transmit signals at lower frequencies, but at higher frequencies (above 1 GHz), it may experience significant signal loss. This is why RG58 is best suited for short to medium cable runs in systems that don’t require ultra-high-frequency transmission.
RG58 is ideally suited for applications like:
● Amateur radio (HF/VHF/UHF bands): Its 50-ohm impedance ensures minimal signal loss and optimal performance for transmitting RF signals.
● Ethernet systems (Thin Ethernet): RG58 is commonly used in legacy networking systems, where its impedance aligns well with the network cards and other devices.
● Video transmission: The 50-ohm impedance provides a balanced signal transmission for short-distance video setups.
Understanding RG58’s impedance characteristics helps in making informed decisions about where to use the cable and how to set up an efficient RF system.
While RG58 has a 50-ohm impedance, RG59 uses a 75-ohm impedance. RG59 is typically used in applications that require less power and longer cable runs, such as CCTV systems and cable TV. Although RG59 has a lower attenuation rate at higher frequencies than RG58, it is less suitable for high-power applications. RG58, with its higher impedance, is preferred for transmitting high-power RF signals over shorter distances.
Key differences:
● Impedance: RG58 (50 ohms) vs RG59 (75 ohms).
● Applications: RG58 is better for high-power RF, while RG59 is often used for video and TV signals.
RG6 coaxial cable, like RG59, has a 75-ohm impedance, and it is commonly used for TV signal transmission over longer distances. Compared to RG58, RG6 is better suited for video applications and supports higher frequencies over longer runs. However, RG58 is superior when handling high-frequency RF signals, especially in radio communication setups.
Key differences:
● Impedance: RG58 (50 ohms) vs RG6 (75 ohms).
● Applications: RG58 for short-distance RF applications, RG6 for long-distance video and TV signals.
RG174 is a smaller, more flexible coaxial cable compared to RG58. It has a 50-ohm impedance, making it comparable to RG58, but with less power handling capacity. RG174 is more suitable for smaller-scale applications such as connecting antennas to reception equipment, where flexibility is more important than high power handling.
Key differences:
● Size and flexibility: RG174 is thinner and more flexible than RG58.
● Power handling: RG58 can handle higher power than RG174.
Coaxial Cable | Impedance | Typical Applications |
RG58 | 50 ohms | Amateur radio, Ethernet, short-range RF applications |
RG59 | 75 ohms | CCTV, cable TV, long-range video transmission |
RG6 | 75 ohms | Cable TV, satellite systems, broadband internet |
RG174 | 50 ohms | High-frequency applications, smaller spaces |
RG58 is an excellent choice for short to medium-range applications where signal integrity is critical. Its 50-ohm impedance makes it ideal for RF applications, ensuring reliable signal transmission. The advantages of RG58 include:
● Cost-effective: RG58 is affordable and widely available, making it a popular choice in commercial and amateur setups.
● Versatility: It is suitable for a range of applications, including radio communications, Ethernet, and video transmission.
● Ease of use: With its flexible construction, RG58 is easy to install and work with.
While RG58 is an excellent option for short-range and moderate-power applications, it has limitations. RG58 should not be used for extremely long cable runs due to its relatively high attenuation at higher frequencies. For applications requiring higher power handling or longer cable lengths, RG6 or RG213 might be better suited.
When choosing a coaxial cable, consider the power handling, distance, and frequency requirements. If you need a cable for a short-range, high-power RF application, RG58 is a great choice. However, for longer cable runs or higher-frequency transmission, RG6 or RG213 would be more suitable.
Advantage | Limitation |
Affordable and cost-effective | Not suitable for high-power transmission |
Flexible and easy to handle | High signal loss over long distances |
Ideal for short to medium distances | Not optimal for long-range applications |
Widely available and versatile | Limited for high-frequency systems |
The construction of RG58, including its dielectric material, inner conductor, and shielding, directly impacts its impedance. RG58 uses a polyethylene dielectric and a tinned copper braiding for shielding, which ensures that it maintains a stable 50-ohm impedance under normal operating conditions.
The length and bending of RG58 cable can affect its impedance. If the cable is bent too tightly or used for longer distances than recommended, the impedance may fluctuate, leading to signal loss or degradation. Always ensure that the cable is installed with proper care, avoiding sharp bends or excessive length.
Environmental conditions such as temperature and moisture can influence the performance of RG58. For instance, extreme temperatures or exposure to moisture can affect the insulation, potentially altering the impedance and causing signal issues.
To maintain the 50-ohm impedance of RG58, it is essential to install the cable properly. Avoid sharp bends, and ensure that the cable is not stretched or damaged during installation. Use connectors that are compatible with the cable’s impedance for the best performance.
Regularly inspect the RG58 cable for any visible signs of damage, wear, or corrosion. Ensure that the connectors are securely attached and that the cable is free from moisture or dirt. Performing periodic maintenance will help prevent performance issues.
To ensure optimal signal transmission, it’s crucial to use connectors designed for 50-ohm cables, such as BNC, SMA, or N-type connectors. Using mismatched connectors can result in impedance mismatching and signal loss.
Installation Tip | Reason |
Use the appropriate connectors (e.g., BNC, SMA) | Ensures impedance match and signal integrity |
Avoid sharp bends in the cable | Prevents distortion of impedance and signal loss |
Keep cable length to a minimum | Reduces signal loss and maintains optimal performance |
Regularly check for physical damage | Ensures uninterrupted signal transmission |
RG58 coaxial cable, with its 50-ohm impedance, is perfect for RF applications like amateur radio, Ethernet, and video transmission. Its affordability and flexibility make it ideal for short to medium-distance use. However, it may not suit high-power or long-distance needs.
To maximize RG58’s performance, proper installation and regular maintenance are essential. Choosing the right coaxial cable, like RG58, ensures clear and uninterrupted signal transmission. For reliable products, OTTO provides high-quality cables to meet all your RF setup needs.
A: RG58 coaxial cable has a nominal impedance of 50 ohms. This impedance is ideal for many RF applications, including radio communications and data transmission.
A: The 50-ohm impedance of RG58 is chosen for optimal power handling and minimal signal loss, making it suitable for RF and communication systems.
A: While RG58 is great for short to medium distances, its signal loss over long distances makes it unsuitable for high-power, long-distance applications.
A: RG58 is affordable, flexible, and provides reliable performance for various RF applications like Ethernet, radio communication, and video transmission.
A: The 50-ohm impedance ensures that the signal is transmitted effectively without reflection, minimizing signal degradation over the cable's length.
