Views: 3 Author: Site Editor Publish Time: 2026-02-11 Origin: Site

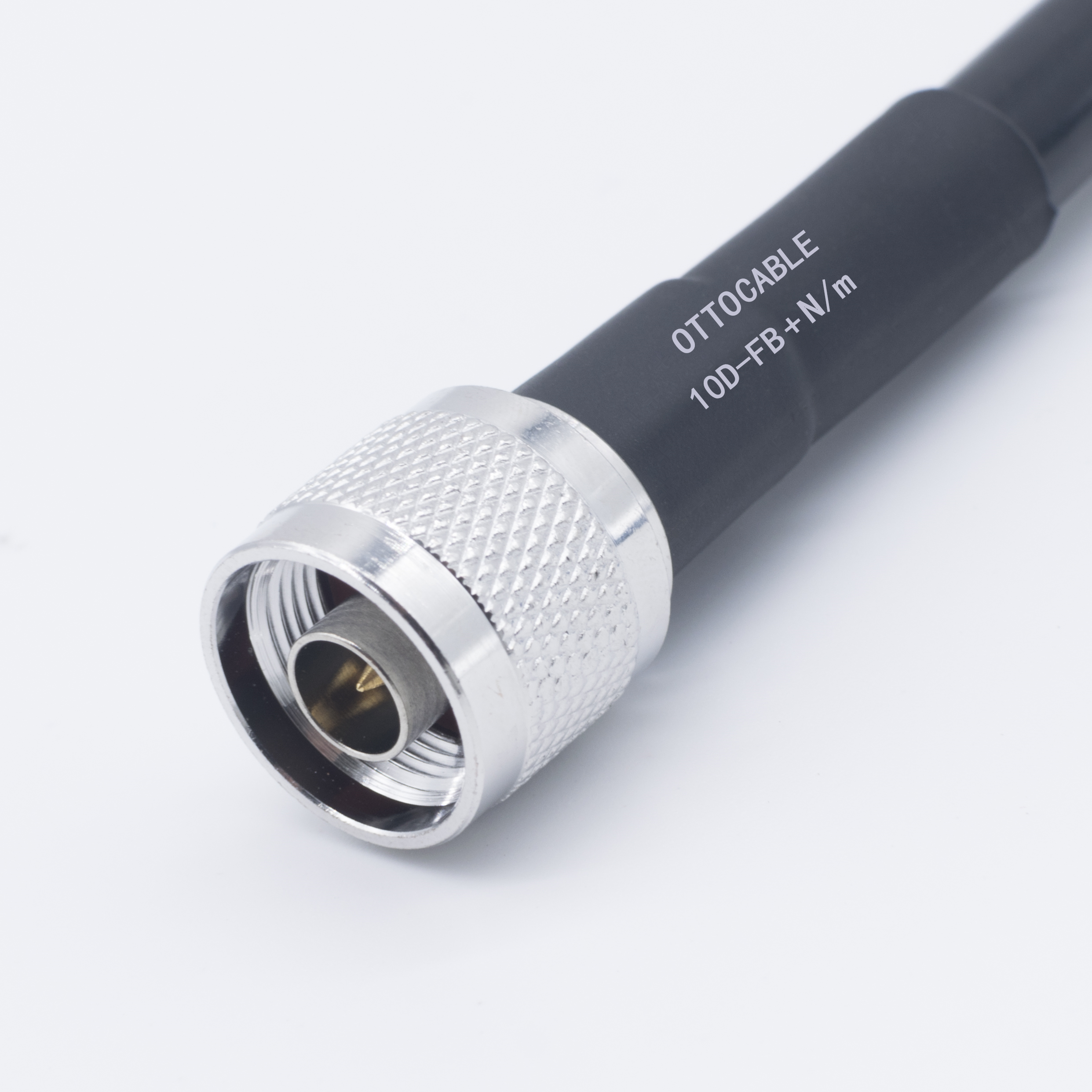

High-Quality 10D-FB Cable is a revolutionary way for businesses to fix their communication infrastructure that has weak cell connections. This high-quality coaxial cable has a 13mm width and a 50-ohm impedance. Its advanced foam polyethylene insulation and dual-layer shielding system directly address signal loss problems. The superior construction of the cable, which includes a bare copper inner conductor, aluminum tape foil, and tin copper braid shielding, effectively reduces signal loss while maintaining stable performance across frequencies up to 6 GHz. This makes it an essential part for secure wireless communications.
A lot of business and industrial buildings have trouble with weak cell signals, which slows things down and makes contact less reliable. These signal degradation problems are caused by a number of outdoor factors, such as building materials that block RF transmission, electromagnetic interference from nearby equipment, and devices that are too far away from signal sources to receive them.
Most of the time, physical objects get in the way of cell phone signals. When RF waves go through industrial settings, they are slowed down by things like concrete walls, metal structures, and dense building materials. Electronic equipment, electric lights, and other wireless devices can also cause interference, which can make signals less clear and slow down the whole system.
Signal loss due to distance is a big problem in big buildings where antennas have to connect to equipment that is hundreds of feet away. Standard coaxial lines often lose a lot of signal strength over these long distances, which can cause dropped connections and poor communication links that can hurt business operations.
The 10D-FB cable solves these problems with a 3.50mm inner conductor made of bare copper or copper-clad metal and a well-thought-out design. This large cable size lowers resistance and keeps power loss to a minimum while signals are being sent. The 10.00mm foam polyethylene insulator is very good at insulating and keeps the impedance properties the same along the length of the cable.
The dual-shielding design of this connection makes it different from other options. An aluminum tape foil layer with a diameter of 10.20 mm completely blocks electromagnetic interference. The outer tin copper braid with a diameter of 10.80 mm offers mechanical safety and more effective shielding. This mix keeps the signal strong even in tough RF settings.
When comparing the 10D-FB design to regular RG-type cables, it offers better reduction across the whole frequency range, from DC to 6 GHz. The foam dielectric structure gets 84% velocity of transmission, which is a lot better than solid dielectric options. The cable has a return loss standard of ≥20 dB, which means it reduces signal echoes that can hurt system performance.
To improve a signal by choosing the right cables, you need to know how the design of the cables affects how well they work with radio waves. The scientific principles behind sending signals effectively focus on reducing the number of ways they can be lost while increasing the number of ways they can be blocked from outside sources of interference. The High-Quality 10D-FB Cable is designed to maximize signal integrity and minimize loss, making it an excellent choice for optimal performance.
The two-layer shielding method in high-quality 10D-FB cables blocks all kinds of electromagnetic pollution. The fused aluminum foil completely covers the first protective layer, keeping outside signals that could mess up the data being sent out. The braided shield on the outside makes it stronger mechanically and blocks out more annoying signals.
This filtering arrangement is very important in places with a lot of radio waves (RF) where many wireless systems are working at the same time. Base stations, Wi-Fi networks, and other communication devices send and receive signals in complex ways that can badly affect signal quality if cables are not properly protected.
The signal transmission properties of foam polyethylene dielectric material are much better than those of rigid dielectric materials. The shape of the cells filled with air lowers the dielectric constant, which leads to a lower capacitance per meter (82 pF/m) and faster propagation. Because of these qualities, the information is amplified more and works better at high frequencies.
The foam structure stays the same along the length of the cable, which makes sure that the impedance is the same. This lowers the voltage standing wave ratio (VSWR), which can lead to signal echoes and power loss. This level of regularity is especially important for long cable runs, where small changes in impedance can add up to big problems with performance.
Signal strength and dependability are better in industrial setups that use quality 10D-FB cables than with standard cable options. Manufacturers of telecommunications equipment say that switching from solid dielectric lines to foam dielectric designs cuts signal loss by 20 to 30 percent. These changes mean that the range of the equipment is increased, the need for amplifiers is decreased, and the general stability of the system is increased.
To choose the right cable standards, you need to carefully think about the performance goals, the surroundings, and the needs of the application. As part of the decision-making process, frequency ranges, power handling needs, installation limitations, and long-term dependability standards for each deployment situation are looked at.
Different wireless transmission methods have different requirements for how well cables work. For cellular amplification systems working in the 700–2600 MHz bands, good attenuation performance is needed across this frequency range. GPS uses, on the other hand, need reliable performance at 1575 MHz. Knowledge of these special needs helps choose the best cables for the system's performance.
Indoor distributed antenna systems (DAS) have special problems, like needing a jacket that doesn't catch fire and a small bend radius. The 10D-FB cable's outer width of 13.00mm makes it very flexible while still being strong enough for building placements. Customized cover materials, such as PVC, PE, or LSZH, meet the needs of different building codes.
For outdoor installs, cables must be able to handle high and low temperatures, UV light, and water damage while still providing reliable electrical performance. The amounts of environmental protection offered by the PVC and PE jackets are different. For fixed outdoor installs, the PE jacket is better at being flexible in cold weather and resistant to UV light. The High-Quality 10D-FB Cable is designed with a robust PE jacket, ensuring long-lasting performance even in the harshest outdoor conditions.
Here are the most important external factors that affect the choice of cable:
• Temperature range: standard PVC jackets can handle temperatures from -20°C to +75°C, while PE jackets can handle temperatures from -40°C to +80°C.
• Levels of UV exposure: PE coats have UV protectors built in so they can be worn outside for a long time without breaking down.
• Moisture protection: Making sure connectors are properly sealed and cables are ready for use stops water from getting in, which can lead to long-term stability problems.
• Chemical exposure: Jacket substances that can withstand oils, acids, or corrosive atmospheres may be needed in industrial settings.
These environmental factors have a direct effect on how reliable a system is over time and how much upkeep it needs. This means that choosing the right cables is important for long-term performance.
To prove the quality of a cable, both its electrical performance and building standards must be checked. Manufacturers with a good reputation give thorough test results that include swept frequency readings, resistance proof, and data on how well the shielding works. These reports let buying teams check the performance of cables before they are put in place.
Conductor concentricity, dielectric uniformity, and shield coverage percentage are some of the important quality markers that can be seen during a physical check. High-quality cables have exact shapes all the way along their length, which makes sure that the resistance stays the same and there isn't much return loss across the entire frequency range.
When cables are installed correctly, they work better and last longer because they don't get damaged during the installation process. Understanding the limits on bend radius, how to prepare the connectors, and how to protect the surroundings will ensure that the system works at its best for the entire life of the cable.
Long-term performance traits are greatly influenced by cable handling during installation. Because 10D-FB cable has a 13mm width, it needs to have a minimum bend radius to keep the dielectric from deforming or the conductor from getting stressed. Maintaining bend radii that are more than 10 times the width of the cable protects both its electrical performance and its mechanical health.
When planning a route, it's important to stay away from sharp edges, too much stress, and high-power electrical equipment that could cause confusion. When cables are properly supported at regular times, stress doesn't build up and cause them to fail early or lose performance over time.
Professional connector installation needs special tools and methods to make sure links are stable and signal loss is kept to a minimum. The electrical performance and mechanical stability of the finished assembly are both affected by how precisely the cable length is cut, the dielectric is prepared, and the connectors are crimped.
Water ingress prevention is very important for outdoor setups because water can get in through links that aren't properly sealed. Professional-grade heat-shrink tubes and coaxial sealants protect against external pollution that causes corrosion and signal loss over time.
Monitoring a system on a regular basis can help find speed problems before they become active. Using network testers to do swept frequency tests can find problems like connection corrosion, moisture getting in, or mechanical damage that makes signal loss worse over time. Using High-Quality 10D-FB Cable in your setup can reduce the likelihood of these issues, ensuring better long-term performance and fewer maintenance needs.
Outdoor links should be visually checked, weatherproofing should be checked for soundness, and electrical systems should be tested on a regular basis to make sure they keep working as expected. Finding problems early on lets you fix them before the whole system breaks down.
To do effective buying, you need to find a balance between performance needs and cost concerns while also making sure you have solid supply chain partnerships. Knowing what the maker can do, what certifications are needed, and how quality control works helps you choose a provider that will help the project succeed in the long run.
When you evaluate a manufacturer, you look at their production skills, quality control systems, and expert help resources. Well-known companies keep complete testing labs with network monitors, environmental rooms, and mechanical testing gear to make sure that products work properly before they are sent out.
Compliance with certifications shows a dedication to environmental responsibility through RoHS and REACH certifications and international quality standards like ISO 9001 quality management. These approvals make sure that the whole supply chain uses consistent production methods and cares for the environment.
Often, industrial uses need to change standard cable setups to include different jacket materials, custom lengths, or connector sets that are built right in. If a manufacturer has its own engineering department, it can make unique solutions that meet the needs of a particular project while still meeting performance standards.
Because small-batch development is possible, unique designs can be tested before they are bought in large quantities. This feature is especially useful for one-of-a-kind installations where normal goods might not fully meet the needs of the job.
Reliable shipping plans help keep projects on track and keep inventory costs as low as possible. Leading makers keep enough raw materials on hand and enough production capacity to support normal shipping times of 10 to 15 days for custom designs. The ability to place a rush order gives you options for projects that need to be done quickly.
As little as 3000 meters are needed to place an order for common configurations. Smaller amounts can be ordered for custom designs or review samples. Knowing these needs helps with making purchases in a way that combines the cost of inventory with the safety of supplies.
High-Quality 10D-FB Cable is a complete answer to problems with improving mobile signals in a wide range of industrial and business settings. With its advanced design that includes a foam polyethylene insulator, dual-layer shielding, and precise production, this cable provides significantly better signal strength and stability than standard options. It can be used in challenging situations like cellular base stations and distributed antenna systems thanks to its technical features like 50-ohm impedance, low loss, and well-performing shielding. Choosing, installing, and maintaining things the right way ensures they work at their best, and buying from approved makers with a history of success helps projects turn out well.
A: When compared to solid dielectric cables, the 10D-FB cable design has a foam polyethylene insulator and dual-layer protection that greatly lower signal loss. The high-frequency performance is better thanks to the low capacitance and 84% velocity of transmission, and the complete shielding system protects better against electromagnetic interference that can weaken mobile signals.
A: To check the quality, you need to ask the maker for thorough test results that include swept frequency readings, impedance testing, and data on how well the shielding works. A visual check should ensure that the conductors are perfectly centered, that the dielectric structure is uniform, and that the shielding is sufficient. Suppliers with a good reputation will give you proof that they meet the industry standards and let you test samples.
A: Dielectric displacement and cable stress can be avoided by keeping the minimum bend radius greater than 10 times the cable diameter. Low-loss connections are guaranteed by using professional-grade tools and methods to properly prepare the connectors, and sealing the surroundings keeps wetness out. Long-term dependability is maintained by avoiding too much installation stress and giving cables enough support.
Otto Cable is ready to change the way you use communication systems with our top-of-the-line High-Quality 10D-FB Cable options, which are designed to work perfectly and reliably. We are a reliable company that has been making RF cables for decades. Our production processes are ISO 9001 certified, and we offer full technical help to make sure you get the best results. Email us at sales@ottocable.com to talk about your specific needs, get performance samples, or look into custom solutions made for your specific uses. See what a change professional-grade cable technology can make in how well your wireless system works.
