The 8D-FB Cable delivers exceptional stability for RF switching systems through its advanced dual-shield architecture and optimized electrical properties. This high-performance coaxial solution maintains signal integrity across frequencies up to 6 GHz, featuring foamed polyethylene dielectric and precision-engineered shielding that minimizes interference. Its robust construction ensures reliable operation in demanding industrial environments, making it indispensable for telecommunications infrastructure, antenna systems, and wireless communication networks where consistent performance directly impacts operational efficiency and system reliability.
This guide talks about why good cables are so important in RF switching systems, focusing on the 8D-FB cable in particular. Since RF switching is a key part of many important communication systems, especially in the industrial and
telecom sectors, it is important to have stable and effective wiring to protect signals and make sure systems work reliably. This article gives procurement workers a full picture of what an 8D-FB cable is, its special features, performance standards, installation tips, and smart sourcing ideas. This resource gives people who make decisions the information they need to choose and invest in cable solutions that make systems more stable and last longer while lowering the risks of buying.
Modern RF switching systems need cable options that can handle electromagnetic radiation, changes in temperature, and mechanical stress while still working properly electrically. Because modern communication networks are so complicated, cables need to not only meet current standards but also leave room for improvements and additions in the future.

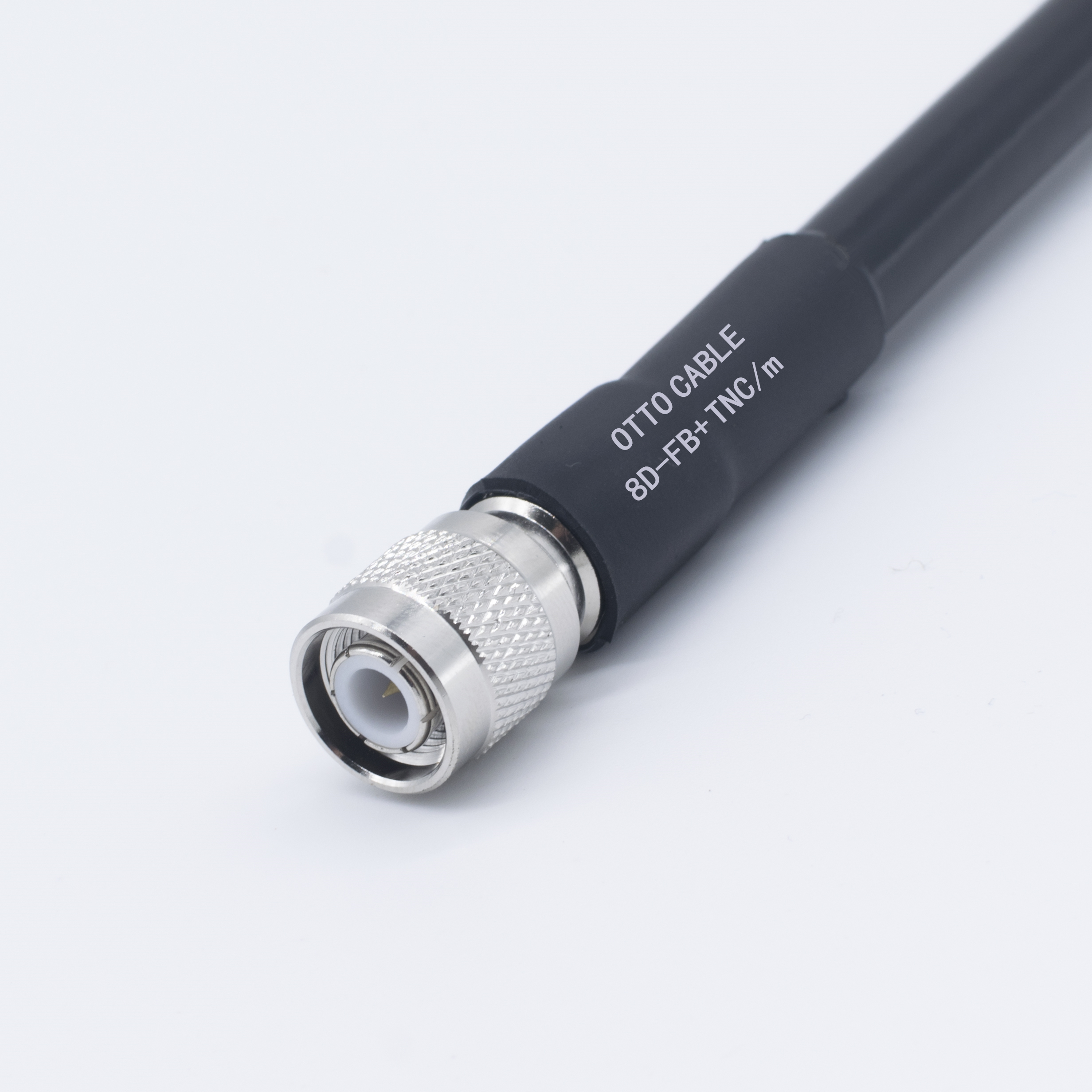

The 8D-FB cable is a high-tech way to connect cables that was made to handle the tough needs of RF switching systems. Due to its unique design that combines strength, good shielding, and excellent electrical qualities, this cable supports stable signal transfer even in harsh industrial settings. Because it doesn't get messed up by outside influences, it's a good choice for telecom equipment and other RF uses.
The 8D-FB cable has a complex, multi-layer design that is best for RF performance. At its center is a 2.80 mm inner conductor made of either bare copper or copper-clad metal. This gives it great transmission while keeping the cost low. The dielectric layer is made up of 7.80 mm of foamed polyethylene, which stops signal loss much more than solid dielectric materials.
There are two layers of protection in this cable, which makes it different from other options. Aluminum tape foil at 8.10 mm is used for the main shield, which blocks all electromagnetic radiation. At 8.70 mm, a secondary tin copper braid or tin copper covered aluminum braid adds extra strength and security. This design provides better protection while still allowing for installation in a variety of complicated routing situations.
The 8D-FB cable has the same electrical qualities across its frequency range because it operates at 50 ohm impedance. The foamed polyethylene insulator creates an 83% rate of propagation, which lets signals travel faster with less delay. The capacitance stays the same at 83 pF/m, and the line can handle voltages of up to 1300V, which is good for high-power uses.
When procurement teams know about these core features and practical benefits, they can make sure that the cables they choose meet the security and durability needs of their systems. Because it has low loss and is well-built, this cable can be used in mission-critical situations where signal fading is not acceptable.
The 8D-FB cable is different from regular coaxial lines because it has better shielding and a different material makeup that makes noise and signal loss much less noticeable. Performance measures show that the signal integrity is better in demanding RF switching settings, which means less downtime and more accurate transmission. The cable meets strict international standards for quality and safety, making it a reliable choice that lowers the risks of buying something.
The foamed polyethylene dielectric in 8D-FB cables is better than the solid polyethylene dielectrics that are usually used in RG-series cables. The 8D-FB has lower insertion loss at frequencies that are common in cellular and wireless systems. This means that the signal strength at the receiving end is greater. This trait is especially useful for long cable runs, where losses can add up and have a big effect on how well the system works.
Return loss performance is higher than 22 dB, which means that the impedance matching is very good and there isn't much signal bounce. This rule makes sure that receivers send as much power as possible to antennas while lowering standing wave ratios that could hurt sensitive RF gear. Signal distortion doesn't happen at connector ports or when the cable turns because the impedance profile stays the same along the length of the cable.
You can choose an outer jacket made of PVC, PE, or LSZH, which gives you the freedom to choose the best environmental safety for your installation needs. For outdoor use, PE coats are better at blocking UV rays, while LSZH versions meet fire safety standards in protected areas. The ECE R118 fire resistance grade makes sure that the product meets standards for the car and transportation industries.
Electrical specs don't change when the temperature stays stable across industrial working ranges. The two shields work together to protect against mechanical forces while keeping the important air-filled dielectric structure that helps with low-loss performance. This part helps buyers figure out the technical pros and cons of a product, which helps them make smart choices for important business uses.
For 8D-FB cables to work well and last as long as possible in RF switching systems, they need to be installed correctly and maintained regularly. This part gives detailed instructions made just for engineering teams, with a focus on ways to avoid common problems. Maintenance tips, such as how to do regular checks and fix problems, help keep cables in good shape and stop expensive fails.
To protect the foamed dielectric structure from damage, cable handling during installation must adhere to minimum bend radius standards. Sharp bends can squeeze the foam, which can change its resistance and create signal return points. Installing teams should use the right ways to support cables and relieve strain to keep plugs and cable ends from being mechanically stressed.
To keep the cable's electrical performance features, connector setup needs to be done with great care. To get the best electromagnetic interference reduction from the dual-shield design, both shield layers must be properly grounded. By weatherproofing outdoor setups, you keep water out, which could damage the insulating properties and cause metal parts to rust.
Visual checks done on a regular basis find possible problems before they affect how well the system works. Watch out for harm to the jacket, rust on the connectors, or signs of mechanical stress at the support points. By using network monitors to measure VSWR, problems like water getting in or connection wear can be found before they become completely broken.
Taking care of these practical issues makes sure that procurement not only works on getting good products but also on keeping the system stable over time. Setting repair schedules based on how exposed the system is to the world and how important it is to the system helps predict when replacements will be needed and avoids unplanned downtime.
To get 8D-FB cables the right way, you need to look at providers' certifications, product quality, and service trustworthiness. This part talks about how to choose reliable makers and gives you information about the top global providers. It talks about buying strategies like bulk orders, OEM customization choices, warranty issues, and shipping plans that make the supply chain more reliable and save money.
Compliance with certification is one of the most important criteria used to evaluate possible sellers. ISO 9001 quality management systems show that industrial methods and quality control procedures have been set up and are used. Environmental licenses like RoHS and REACH show that you are committed to following the rules and being good to the earth. UL listings give users more peace of mind when they need to meet North American safety standards.
Project plans are directly affected by manufacturing skills, such as production capacity and lead times. When it comes to suppliers, those who have good inventory management and fluid production schedules can handle both regular orders and urgent needs. Being able to test for quality at the source level cuts down on the need for inspections when the product arrives, giving customers trust in the consistency of the product.
Volume purchasing deals can save you a lot of money and make sure that projects don't run out of supplies. But buying teams have to weigh the costs of keeping goods against the risks of price changes and items going out of style. By making framework deals with multiple suppliers, you can be sure of a steady supply while keeping prices low.
Customization choices add value by getting rid of unnecessary tasks and lowering the total cost of installation. Installation methods can be sped up by suppliers who offer pre-terminated parts, custom lengths, or special jacket materials. Procurement experts can find the best cabling options for their industrial RF switching needs by weighing price against long-term value and help after the sale.
The 8D-FB cable's main benefit is that it has been shown to make systems more stable and cut down on downtime in telecom and industrial RF uses. Real-world applications show a big return on investment by making operations more efficient and improving data quality. As technology keeps getting better, it gets easier to meet the changing needs of next-generation RF switching systems.
The cable's low loss and steady impedance matching make it useful for cellular amplification devices. For base station sites to cover large areas, the signals must be sent reliably over long cable runs without the use of repeaters or amplifiers. The 8D-FB cable's better attenuation performance directly leads to better signal quality and coverage area.
The dual-shield design is what keeps transmission safe for industrial automation systems that work in places with a lot of electromagnetic noise. Cables that can block outside noise while keeping weak signal levels are needed in factories with variable frequency drives, welding equipment, and other electrical interference sources.
The ability to work at 6 GHz frequencies leaves room for new wireless standards and higher data needs. As communication systems move to higher frequencies and more complex modulation schemes, the electrical performance margins built into 8D-FB lines make sure that systems will still work without having to rebuild infrastructure.
This part gives procurement and engineering teams data-driven reasons for why spending in 8D-FB cables improves performance over time and makes sure that important communication systems will still work in the future. These lines are a good choice for long-term system planning because they have been shown to be reliable and can be used with a variety of technologies.
It turns out that the 8D-FB cable is an important part for keeping RF switching systems stable in a wide range of industry settings. The advanced dual-shield structure, improved dielectric properties, and strong environmental protection give it clear performance benefits over other options. The technical specs of this cable, which include a 50-ohm impedance, 83% rate of transmission, and frequency support up to 6 GHz, make it a forward-looking choice for changing communication needs. When making strategic choices about cables that affect system stability, operational efficiency, and long-term infrastructure investments, procurement pros should know about these performance characteristics.
A: The 8D-FB cable comes with a number of jacket choices, such as PE and LSZH materials that are very resistant to UV light and protect the environment well. The dual-shield design keeps wetness out and keeps the electricity performance stable in a range of temperatures. Fire resistance grades, such as ECE R118, make sure that safety rules are followed.
A: Because the insulator in 8D-FB cables is foamed polyethylene, it has better attenuation properties than solid materials in RG cables. The faster speed of 83% transmission and better protection make the signal more reliable over long distances and in places with a lot of interference.
A: Manufacturers with a good reputation usually offer guarantees that cover material flaws and performance standards for at least three years. Full expert support includes help with application building, the ability to set up things in a way that fits your needs, and quick response times for important applications.
If engineering teams are looking for a reliable 8D-FB cable maker partner, they should look at OTTO CABLE's wide range of skills and industry knowledge. High-performance coaxial cables that meet strict quality standards are made in ISO-certified factories that also offer customization choices for specific uses. Get in touch with us to talk about your unique needs and get full technical specs. Our tech team has decades of experience developing RF cables and can help you choose the best cables and integrate them into your system.
1. Institute of Electrical and Electronics Engineers. "IEEE Standard for Coaxial Cable Specifications in RF Applications." IEEE Communications Society Standards, 2023.
2. Radio Frequency Systems Technical Manual. "Low-Loss Coaxial Cable Performance in Cellular Infrastructure Applications." RFS Engineering Publications, 2022.
3. Telecommunications Industry Association. "TIA-968 Technical Standards for RF Cable Performance in Switching Systems." TIA Standards Committee, 2023.
4. International Electrotechnical Commission. "IEC 61196 Series: Coaxial Communication Cables Standards and Testing Procedures." IEC Technical Committee 46, 2022.
5. Society of Cable Telecommunications Engineers. "Best Practices for RF Cable Installation in Industrial Environments." SCTE Operational Practice Guidelines, 2023.
6. European Telecommunications Standards Institute. "ETSI EN 300 019: Environmental Engineering for Telecommunication Equipment and RF Cables." ETSI Technical Committee, 2022.
