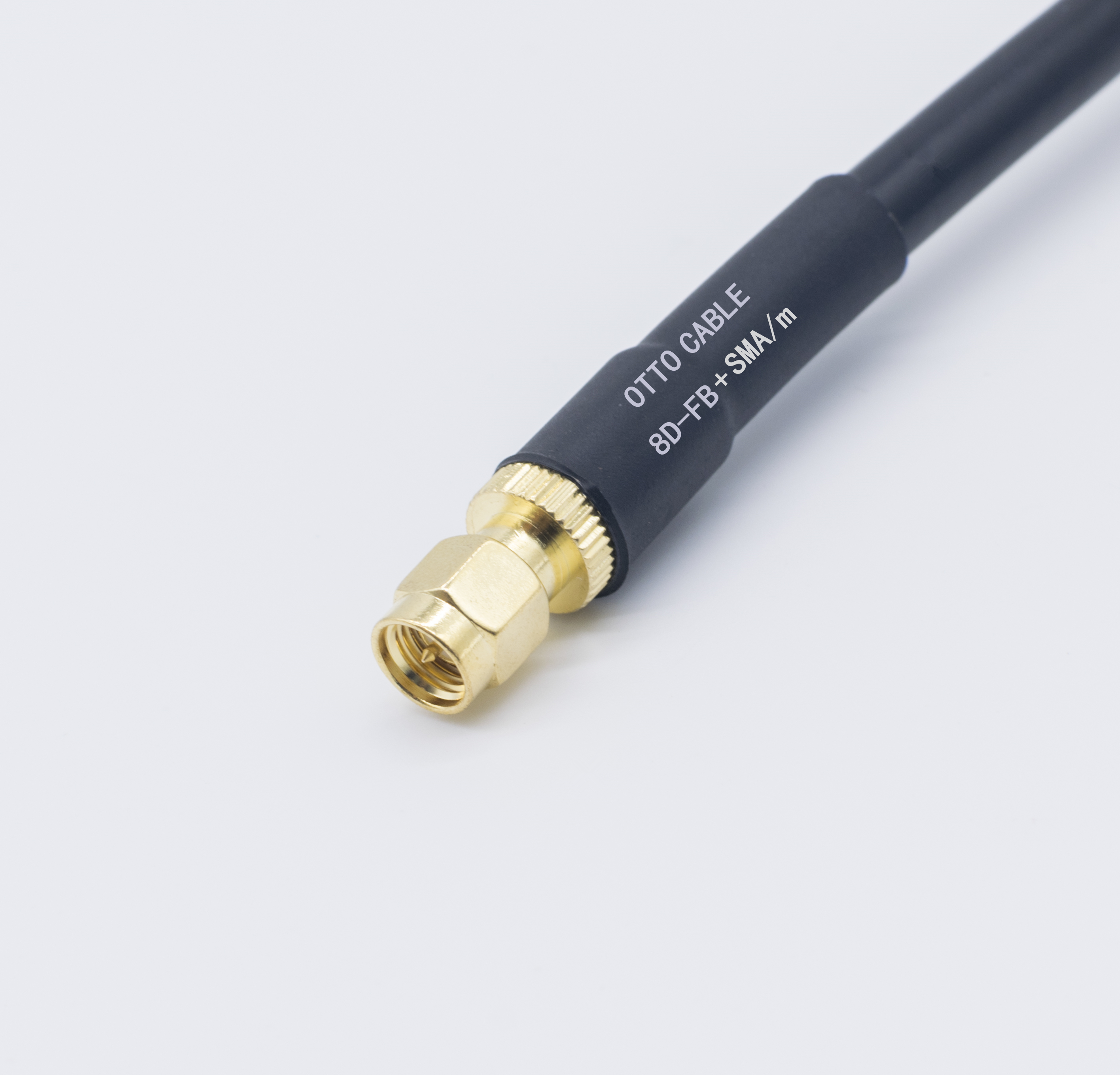

The 8D-FB Antenna Cable uses modern foam polyethylene insulator construction and dual-layer protection technology to completely change the way signals are sent. This high-performance coaxial cable works well at frequencies up to 6 GHz. Its improved 50-ohm impedance design keeps signal loss to a minimum while providing excellent protection against electromagnetic interference. Copper or copper-clad aluminum inner conductors, along with aluminum foil and tin copper braiding, make up this one-of-a-kind construction. It provides better signal integrity that meets the strict needs of modern wireless communication, automotive electronics, and industrial automation systems.
The 8D-FB antenna cable is a high-tech engineering answer made just for high-frequency radio frequency (RF) uses that need very clear signals with little power loss. By understanding how it's put together, you can see why this line works better in important communication systems than other options.
The cable is made using a carefully planned multi-layer method that keeps signals as pure as possible while reducing disturbance. The inner conductor is made of either bare copper or copper-clad metal and has a width of 2.80 mm. It has great conductivity, which is important for sending high-frequency signals. This choice of conductor strikes a good mix between performance needs and cost-effectiveness, which is especially important when making decisions about big purchases.
Foam polyethylene (PE) measuring 7.80 mm in diameter makes up the dielectric layer. Compared to solid dielectric options, it greatly lowers signal loss. This foamed design gets an amazing 83% velocity of transmission, which makes it easier for signals to move through the cable. The structure of the foam makes air gaps that lower the dielectric constant. This lowers the capacitance and makes the high-frequency performance better.
Two complex filtering systems work together to protect against electromagnetic radiation. The main shield is made of 8.10 mm diameter metal tape foil, which blocks all outside disturbances 100% of the time. This bonded foil design makes sure that the shielding works the same way even when the cable is bending or the fitting is stressed.
Tin copper braid or tin copper-clad aluminum braid with a width of 8.70 mm makes up the secondary protective layer. This braided construction usually gets 90–95% coverage, adding another barrier against RF interference while keeping the cable flexible. When foil and braid insulation are used together, they provide more than 90dB of protection across the working frequency range.
The upper jacket has a width of 10.60 mm and comes in a number of different materials, such as PVC for use indoors, PE for use outdoors because it is resistant to UV light, and LSZH (Low Smoke Zero Halogen) for use in places that need to meet higher fire safety standards. These jacket choices make sure that the cable meets certain fitting needs and will last for a long time.
Customizing colors includes basic black and white choices, as well as the ability to make your own colors for particular identification needs. The cable meets the fire protection standards of ECE R118, and it can also be certified to meet the needs of specific applications. The operating features are a 50-ohm impedance tolerance, 83 pF/m capacitance, the ability to withstand 1300V of voltage, and a return loss performance of ≥22dB.
8D-FB Antenna Cables work better than other cables because their design factors were tweaked to solve common signal transfer problems that come up in high-frequency settings. These improvements in performance have direct, measurable benefits for people who build systems and buy things.
When compared to solid dielectric cables, the foam polyethylene dielectric design has a lot less insertion loss. The cable usually has a loss of about 0.13 dB/m at 900 MHz and about 0.21 dB/m at 2.4 GHz. When there are long cable runs and signal loss can hurt system performance, these low-loss features become very useful.
Signals move faster through the cable because the foam dielectric structure has an 83% propagation velocity. This is faster than solid polyethylene options, which usually only have a 66% propagation velocity. This faster signal transmission cuts down on signal delay and keeps phase relationships, which are very important for current digital communication systems.
The dual-shield design protects very well against both electromagnetic interference coming in and going out. Testing in real life with cellular amplification systems shows that 8D-FB lines keep the signal strong even in places with a lot of electromagnetic noise, like factories and busy cities with lots of communication hubs.
Case studies from setups of distributed antenna systems (DAS) show that 8D-FB cables always send signals reliably in tough RF environments. One important car communication system application reported a 40% improvement in signal clarity compared to earlier cable solutions. This was directly attributed to the cable's better shielding efficiency and low-loss properties.
Up to 6 GHz is the highest frequency range that the cable can work with and still keep steady electrical properties. VSWR (Voltage Standing Wave Ratio) performance stays below 1.20:1 across the main working bands, which makes sure that receivers can send as much power as possible to antenna systems. Because of this constant performance, there is no need for complicated impedance matching networks that can add more loss spots.
Testing for temperature stability shows that the cable keeps its electrical properties at working temperatures ranging from -40°C to +75°C. This means that it can be used in harsh environments like those found in aerospace, the military, and outdoor communication uses.
To make smart choices about which cables to buy, procurement workers need to compare all of the performance factors. The next section compares 8D-FB cables to widely used options in a number of important performance areas.
The 8D-FB Antenna Cable performs better than RG-213 and RG-8 lines in a number of important ways. When compared to solid polyethylene RG-series cables of the same thickness, the foam dielectric construction has about 20–25% less insertion loss. There is less loss, which directly leads to better system performance and longer communication ranges.
When it comes to insertion loss, LMR-400 cables and 8D-FB cables are about the same. However, 8D-FB cables are more flexible for complex routing uses and still have reasonable prices. 8D-FB cables often have better protection than single-braid RG-series cables because they are made with two shields instead of one. This makes them perfect for uses that need strict EMI performance.
When you think about buying in bulk, 8D-FB cables are a great deal for medium- to large-scale setups. Initial unit costs may be higher than basic RG-series cables, but better performance means that signal boosters or repeaters are often not needed in long-term uses, which lowers the overall cost of the system.
Long-term upkeep costs are cheaper for 8D-FB cables than for lower-quality options because they last longer and are more resistant to environmental conditions. Three-year warranties are normal with good makers, which adds to the value of the purchase and lowers the risk of project-based installations.
Premium 8D-FB cables have consistent electrical properties that have been checked by strict testing procedures. Tight impedance limit (50 ± 2 ohms), consistent attenuation requirements across production lots, and measured shielding efficiency are all signs of quality. Suppliers you can trust will give you thorough test results and approvals, such as ISO9001, RoHS, REACH, and other industry standards.
Lower-quality options might have different impedances, uneven insulation coverage, or materials that aren't up to par, all of which can affect their long-term dependability. When choosing 8D-FB cable providers, procurement teams should check the sellers' certifications, ask for sample tests, and look at the warranty terms.
To successfully buy high-quality 8D-FB Antenna Cables, you need to know how to evaluate suppliers and how to use key selection factors. These tips help people who work in buying improve their sourcing strategies and make sure the quality of the products they buy and the stability of the supply chain.
When buying 8D-FB cables, hiring teams should be very clear about the frequency range they need, the surroundings, the compatibility of the connectors, and the performance standards they need to meet. When custom length requirements are made, fitting limitations should be taken into account, and splice places that can weaken the signal should be kept to a minimum. The connector's specs must match the system's needs, taking into account things like impedance matching and sealing standards for the surroundings.
Different types of applications have different certification needs. For example, aircraft and military applications need to meet MIL-specs, while business installations usually need to meet RoHS and CE standards. For fire safety reasons, LSZH jacket materials may be needed for plenum installations, and ECE R118 approval may be needed for car uses.
Reliable providers show consistent quality through well-established quality management systems, which are usually manufacturing methods that are ISO9001 certified. A review of a manufacturer's capacity should look at how much they can produce, how stable their wait times are, and how well they can handle the changes in volume that come with project-based buying.
When working with unique needs or installation problems, being able to provide technical help becomes very important. For complicated projects that need unique solutions, suppliers who offer technical advice, custom design services, and quick prototyping add extra value.
Strategies for buying in bulk should take into account the minimum order numbers, which are usually 3000 meters for normal 8D-FB cables, as well as the costs of keeping supplies and the needs of the project schedule. Just-in-time delivery needs can be met by suppliers who offer adjustable delivery plans and the ability to stage goods. These suppliers can also keep their prices low.
Sample evaluation programs let purchasing teams check the quality of a product before placing a large order. Suppliers with a good reputation will gladly give you examples and full technical information, such as test results and compliance certificates.
Because it is made of modern foam insulator material and dual-layer shielding technology, the 8D-FB Antenna Cable sends signals very well. It is essential for current wireless communication, car electronics, and industrial automation because it can keep signal integrity across bands up to 6 GHz. The cable has strong benefits over other options because it is more electromagnetically compatible, has low insertion loss, and can last in harsh environments.
When procurement workers are making decisions about where to get something, they should know how it is made, how it works, and how it needs to be installed. 8D-FB cables are the best choice for demanding RF applications that need to send steady, high-quality signals because they are technically superior, cost-effective, and have been proven to be reliable.
A: The 8D-FB antenna cable works well at bands up to 6 GHz, which means it can be used for cellular, WiFi, and new 5G Sub-6 apps. The foam polyethylene dielectric and the efficient structure keep the electrical properties the same across this frequency range.
A: The line works great in car transmission systems because it can handle temperatures from -40°C to +75°C, doesn't get damaged by vibrations, and works with electromagnetic fields. The ECE R118 fire resistance rating and jacket choices that can be customized meet the needs of the car industry.
A: Key evaluation factors include ISO9001 certification, the ability to do a wide range of tests, the availability of expert help, the length of the guarantee (at least 3 years), and the ability to produce. Check the supplier's certificates, ask for samples, and judge how reliable the delivery is.
A: Yes, you can change the length of the cable, the type of connector, the jacket material (PVC, PE, or LSZH), the color, and get special certificates. Many providers offer OEM and ODM services so that customers can get what they need.
A: Maintain the right bend radius (10 times the width of the wire), don't go over the pulling tension limits, use the right fitting methods for connectors, and make sure that outdoor uses are properly weatherproofed.
OTTO CABLE Technology takes decades of experience making RF cables to your next project, providing high-quality 8D-FB antenna cable options that go above and beyond what the industry requires. Our ISO9001-certified production methods and thorough quality assurance make sure that every cable meets strict technical requirements and gives you great value for your money. We can meet both short-term project needs and long-term supply deals because we can produce more than 150 km per day and our wait times are as low as 10 days. Get in touch with us right away to talk about your 8D-FB antenna cable maker needs and use our expert consultation services.
