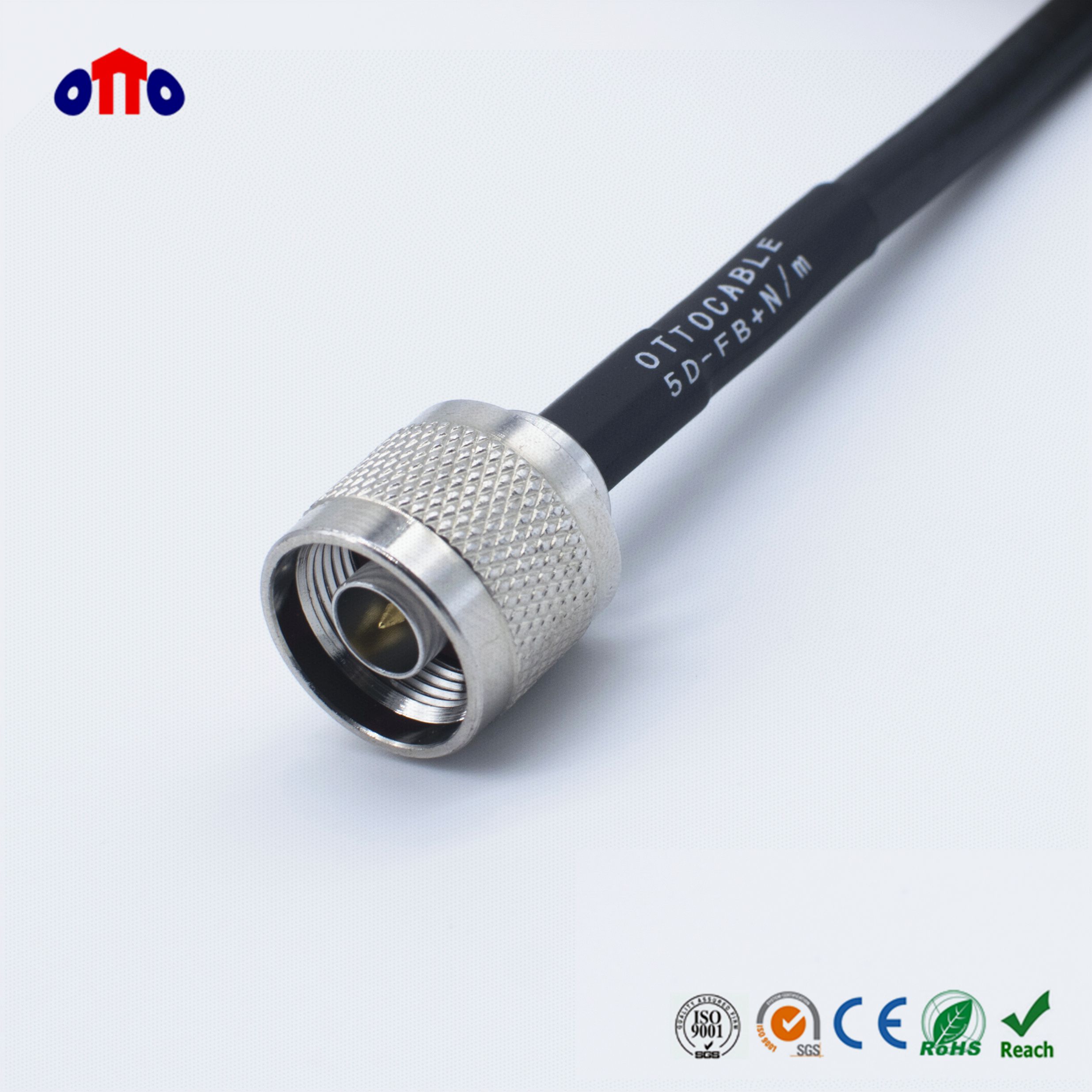

The 5D-FB cable represents a breakthrough in coaxial transmission technology, specifically engineered to maximize signal strength across extended antenna distances. This advanced cable design features a 1.80mm solid copper conductor paired with foam polyethylene dielectric insulation and dual-layer shielding, delivering exceptional signal integrity with minimal attenuation. Unlike conventional cables that suffer from significant power loss over distance, the 5D-FB cable maintains robust signal transmission through its optimized 50-ohm impedance matching and superior construction quality. Its enhanced center conductor size and dual shielding system ensure reliable performance in demanding applications ranging from cellular repeaters to radar systems, making it the preferred choice for engineers who cannot compromise on signal quality.
The capability of coaxial cables to preserve the integrity of the signal even when it is sent across difficult transmission channels is the source of their technical brilliance. Cables that are capable of delivering continuous performance while also avoiding power loss and electromagnetic interference are becoming more necessary for modern communication systems.
Additionally, the design of this specific coaxial cable comprises a number of essential components that have a direct influence on the quality of the signal transmission. In order to achieve the highest possible conductivity and minimize resistance losses, the 1.80mm inner conductor is constructed out of high-purity copper components. When compared to normal alternatives, this conductor diameter is much bigger, which results in increased current-carrying capacity as well as better signal handling capabilities.
The dielectric layer is made up of foam polyethylene with a diameter of 5.00 millimeters. It provides outstanding insulation qualities while yet retaining the exact impedance of 50 ohms that is necessary for wireless systems. Through the use of foam construction, signal velocity degradation is reduced, resulting in an 81% velocity of propagation rate that is superior to that of many traditional cable designs on the market.
The use of advanced shielding techniques is required in order to provide protection from electromagnetic interference. In order to provide total protection against interference from the outside world, the cable is constructed using a dual-shield design that is thorough and begins with aluminum tape foil measuring 5.20 millimeters in diameter. Tin copper braid with a diameter of 5.70 millimeters is included into the secondary shielding layer, which results in the creation of a sturdy barrier that preserves signal purity even in conditions that are high in electrical noise.
This arrangement, which utilizes dual shielding, is capable of achieving a return loss performance of at least 22 decibels, so guaranteeing low signal reflection and maximum power transmission to antennas that are attached. The arrangement of these shielding layers results in the formation of an efficient electromagnetic barrier, while at the same time preserving the cable's flexibility for use in challenging installation settings.
PVC, PE, or LSZH materials are used in the construction of the outer jacket, which has a diameter of 7.50mm and offers thorough protection against environmental elements. A number of different fire resistance standards, including ECE R118 certification, are met by these jacket alternatives, which guarantees that they are in accordance with international safety criteria. A demonstration of the cable's superior insulating qualities and long-term durability under rigorous working circumstances is provided by its capacity to resist a voltage of 1000V.
In order to make informed judgments on procurement in professional installations, it is necessary to carefully evaluate cable parameters in comparison to application requirements. It is possible to make educated decisions that strike a compromise between cost concerns and the requirements for technical performance if one is aware of the variations in performance that exist between the different coaxial alternatives.
The parameters of signal attenuation are the key differentiator that affects system performance when it comes to analyzing the various cable connections available. At frequencies greater than 1 GHz, traditional RG6 cables have much higher loss rates, despite the fact that they are more effective in terms of cost for shorter distances. In 5D-FB cable versions, the increased conductor size and foam dielectric structure enable demonstrable benefits in signal retention over long distances. These enhancements may be seen in increased signal retention.
When compared to other 4D-FB options, the benefits of greater conductor diameter in high-frequency applications are shown. The bigger center conductor helps to decrease resistance losses while simultaneously enhancing power handling capability. As a result, it is appropriate for applications that need greater transmission power levels. These features prove to be very useful in spread antenna systems and cellular repeater installations, both of which are situations in which the quality of the signal directly influences the performance of coverage.
Instead of focusing just on the initial cable price, the whole cost of ownership should be taken into consideration throughout the procurement assessment process. It is common for higher-performance cables to justify their cost by reducing the amount of maintenance that is required, improving the dependability of the system, and extending the service life. Because of their greater shielding efficacy and environmental protection, premium coaxial cables result in fewer service calls and lower replacement costs during the lifespan of the installation.
It is a common discovery among project managers that making an investment in high-quality cable infrastructure may cut down on the amount of time spent troubleshooting and make overall system performance metrics better. Additionally, the increased signal integrity that is offered by advanced coaxial designs often removes the need for extra amplification equipment. This helps to balance the higher material costs that are incurred by simplifying the architecture of the system.
Specific cable properties are required for various installation settings in order to guarantee the highest possible level of performance. It is possible that indoor applications may place a higher priority on fire resistance ratings and flexibility, whilst outdoor installations will need increased weather protection and durability against ultraviolet light. Because of the availability of jacket materials and colors that may be modified, procurement teams are able to select cables that satisfy both the technical and aesthetic criteria.
Dual-layer designs provide higher shielding efficacy, which is beneficial for industrial areas that have high levels of electromagnetic interference caused by electromagnetic interference. The use of foil and braid shielding in conjunction with one another offers full protection against both low-frequency magnetic fields and high-frequency electric fields, therefore guaranteeing dependable operation in electrostatically demanding settings.
The practical benefits of modern coaxial cable technology are shown via real-world deployment scenarios, which cover a wide range of industries and applications. Having a thorough understanding of the appropriate installation procedures and application criteria guarantees the highest possible system performance and lifespan.
Within the context of distributed antenna systems, the maintenance of signal quality between distant antennas and central equipment is strongly dependent on the presence of low-loss cable infrastructure. Additionally, the better signal retention qualities of 5D-FB cables make it possible to run longer cable lines without the need for intermediate amplification. This simplifies the design of the system and reduces the costs of the equipment. Larger conductor designs provide a number of benefits, including increased power management and decreased insertion loss, which are especially advantageous for cellular repeater deployments.
When it comes to maintaining data throughput rates over a wide range of environmental circumstances, mobile broadband applications need a continuously stable signal quality. The higher shielding efficacy avoids interference from neighboring wireless services while also preserving signal integrity in electromagnetic situations that are densely populated. When it comes to urban deployments, where numerous wireless services are operating in close proximity to one another, these traits establish their importance.
Cable infrastructure that is capable of managing high-power transmission levels while retaining signal purity is required for professional broadcasting systems. Premium coaxial cables have a higher power handling capability and a lower voltage standing wave ratio (VSWR), both of which guarantee that they transfer power to transmitting antennas in an effective manner. The enhanced performance of return loss ensures that reflected power, which has the potential to cause harm to sensitive transmission equipment, is reduced.
Foam dielectric structure offers a large reduction in attenuation, which proves to be beneficial for satellite communication systems that operate at higher frequencies. Advanced dielectric materials are able to attain a velocity of propagation of 81%, which makes it possible to minimize signal latency while still preserving impedance stability over a broad frequency range. When it comes to applications that need exact timing or phase relationships, these properties prove to be very crucial.
Cable installation procedures that are done correctly have a direct influence on the long-term performance and dependability of the system. Conductor damage and impedance fluctuations, both of which have the potential to undermine signal quality, may be avoided by ensuring that acceptable bend radius parameters are maintained. Due to the flexibility that stranded braid construction offers, it is possible to perform intricate routing while yet preserving structural integrity when subjected to mechanical stress.
Sealing connection interfaces against the environment needs particular attention in order to prevent moisture from entering, which might damage the dielectric qualities of the connector. Utilizing the right weatherproofing materials and procedures allows for the extension of cable life while also keeping electrical performance constant. In order to detect possible problems before they have an effect on the functioning of the system, it is helpful to systematically evaluate exterior installations.
For cable procurement to be successful, it is necessary to do a thorough analysis of the capabilities of the suppliers, the certifications of the products, and the quality assurance procedures. The ability of procurement teams to find trustworthy sources for vital infrastructure components is facilitated by their understanding of the dynamics of the market and the connections with suppliers.
The establishment of ties with accredited producers guarantees access to items that are manufactured in accordance with international quality standards. In the same way that specialized cable certifications such as CE, RoHS, and REACH compliance establish regulatory conformity, ISO9001 certification indicates a commitment to quality management systems. The performance and dependability of a product may be guaranteed by suppliers that supply detailed testing data.
The scheduling of projects and the control of costs are two aspects that are highly impacted by manufacturing capacity and lead time capabilities. It is possible for suppliers to satisfy both planned projects and emergency replacement needs if they maintain appropriate inventory levels and flexible production schedule. In order to facilitate system development while also guaranteeing compatibility prior to full-scale acquisition, the capability to deliver small-batch prototype is essential.
For the purpose of satisfying certain performance or installation criteria, modern communication systems often call for the use of customized cable designs. Cables with distinctive jacket materials, connection arrangements, or electrical requirements that are customized to specific applications may be provided by suppliers that provide customisation services. Because of this adaptability, there is no longer a need for field adjustments that might potentially negatively impact performance or dependability.
Having the ability to provide technical help becomes very necessary throughout the stages of system design and troubleshooting. The provision of technical support and application advice by suppliers is a significant factor in ensuring the appropriate selection of cables and the correct implementation. Access to technical documents, installation guidelines, and performance data is beneficial for both the original design of the system and the continuing maintenance tasks that are performed thereafter, especially when using 5D-FB cable for improved performance.
The establishment of strategic connections with dependable cable suppliers offers benefits that extend beyond the initial cost savings on procurement procedures. Relationships with preferred suppliers often involve access to new technological advances, preferential allocation during times of supply shortages, and advance notice of product modifications. These relationships tend to be especially beneficial for firms who are in charge of managing many projects or that need product requirements that are constant across installations.
With regard to cable infrastructure, the total cost of ownership is substantially influenced by the policies of warranty coverage and after-sales service. When it comes to reducing the financial risk associated with premature cable failure, suppliers that provide longer warranty terms and prompt replacement procedures contribute significantly. The availability of local technical assistance and processes for quick replacement helps to reduce the amount of time that the system is down while maintenance is being performed.
For antenna applications that are particularly demanding, sophisticated coaxial cables have established themselves as the standard due to their higher electrical performance, strong construction, and proven durability. For the success of a system over the long term, the benefit of investing in high-quality cable infrastructure has been shown by the experience of the industry.
There is a demonstrable increase in system performance metrics as a result of the higher signal transmission capabilities of 5D-FB cables. Lower attenuation rates make it possible to extend cables for longer distances without the signal degrading, which in turn reduces the need for intermediate amplification facilities. The increased power handling capability allows for greater transmission levels to be supported while simultaneously preserving the integrity of the signal and avoiding intermodulation distortion.
The frequency response properties of these cables tend to stay consistent throughout a large bandwidth range, which makes them acceptable for use in contemporary broadband applications. By maintaining an impedance matching of 50 ohms, the system is able to maximize power transmission while also lowering standing wave ratios, which might potentially impair system efficiency. When it comes to applications that need great dependability and constant performance, these electrical qualities prove to be very crucial.
The sturdy structure of premium coaxial cables guarantees that they will function reliably in a wide range of climatic situations. In order to support both indoor and outdoor installations while still keeping constant electrical qualities, temperature stability from -40 degrees Celsius to +85 degrees Celsius is required. The use of UV-resistant jacket materials helps to extend the service life of outdoor applications by preventing the degradation that can occur from prolonged sun exposure.
Providing consistent operation in industrial locations where exposure to impurities might degrade normal cables, moisture resistance and chemical compatibility are two characteristics that assure reliable operation. The thorough environmental protection that is offered by excellent construction helps to decrease the amount of maintenance that is required while also assuring that the system will work consistently over the lifespan of the installation.
5D-FB cable technology represents the optimal solution for long-distance antenna applications requiring uncompromising signal quality and reliability. The combination of enhanced conductor design, dual-layer shielding, and robust environmental protection delivers measurable performance improvements while reducing long-term maintenance costs. Professional installations benefit from the superior electrical characteristics, extended service life, and future-proof design that accommodates evolving technology requirements. For organizations prioritizing system reliability and performance, investing in quality coaxial cable infrastructure provides the foundation for successful communication systems.
A: The enhanced performance stems from its 1.80mm solid copper conductor, foam polyethylene dielectric, and dual-layer shielding system. This construction provides lower signal attenuation, improved power handling, and superior electromagnetic interference protection compared to standard alternatives.
A: The aluminum foil and tin copper braid combination creates comprehensive electromagnetic protection while achieving ≥22dB return loss performance. This dual-layer approach effectively blocks external interference while minimizing signal reflection for maximum power transfer efficiency.
A: Long-distance antenna systems including cellular repeaters, distributed antenna systems, satellite communications, radar installations, and wireless broadband networks achieve significant performance improvements through reduced signal loss and enhanced reliability.
A: Foam dielectric construction reduces signal velocity degradation while maintaining precise 50-ohm impedance matching. The 81% velocity of propagation rate and lower dielectric constant minimize signal delay and attenuation compared to solid dielectric alternatives.
A: These cables operate reliably across -40°C to +85°C temperature ranges with 1000V voltage withstand capability. Available jacket materials including UV-resistant PVC, PE, and LSZH options provide comprehensive environmental protection for diverse installation scenarios.
OTTO CABLE stands as a leading 5D-FB cable manufacturer with decades of specialized experience in RF transmission solutions. Our ISO9001-certified manufacturing facilities produce high-performance coaxial cables meeting stringent industry standards including CE, RoHS, and REACH compliance. We deliver customized cable solutions with 10-15 days lead times, backed by comprehensive 3-year warranties and responsive technical support. Our engineering team provides expert guidance for optimal cable selection and system design optimization. Contact us to discuss your specific requirements and experience the OTTO CABLE advantage in premium RF cable solutions.
