Views: 3 Author: Site Editor Publish Time: 2026-03-04 Origin: Site
High Quality 10D FB Cable serves as the backbone of modern WISP and WiMax network infrastructures, delivering exceptional signal integrity across frequencies up to 6 GHz. This premium coaxial solution addresses critical challenges faced by network operators, including signal degradation over extended cable runs and electromagnetic interference in dense RF environments. The cable's sophisticated construction featuring dual-layer shielding and gas-injected foam polyethylene dielectric en
sures minimal attenuation while maintaining stable 50-ohm impedance characteristics essential for wireless communication systems.

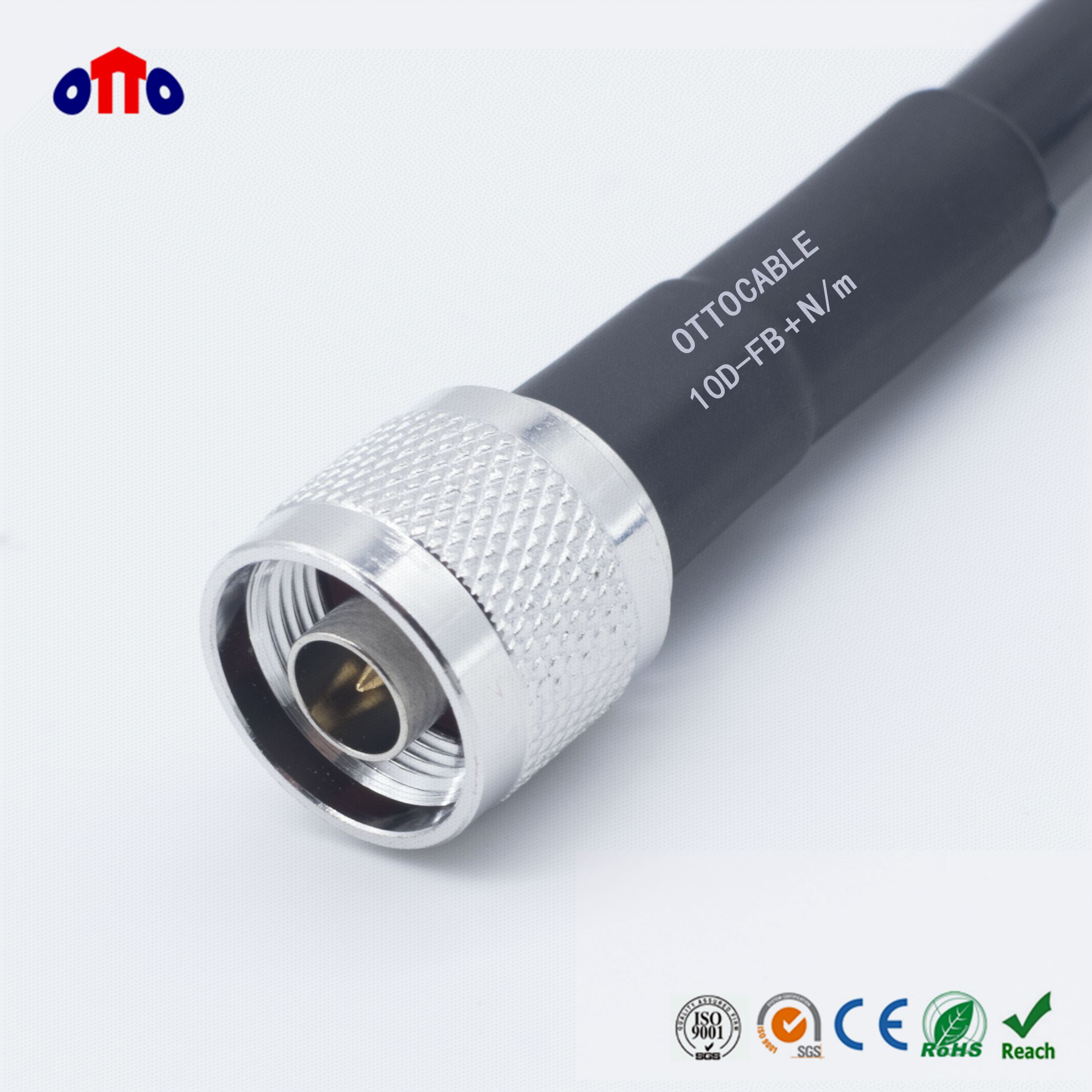

A complex technical approach to the transmission of radio frequency signals is represented by the designation "10D-FB cable." The term "10D" refers to the cable diameter classification, while the term "FB" refers to the foam-based dielectric construction. The outside diameter of this premium cable is 13 millimeters, and it is constructed with components that have been painstakingly crafted to give outstanding performance qualities. The center conductor is made of either copper-clad aluminum or bare copper measuring 3.50 millimeters in diameter. This combination offers superior conductivity while preserving flexibility for applications that need intricate routing.
Since the dielectric core is made out of foam polyethylene with a thickness of 10.00mm, it considerably minimizes worries regarding the signal velocity factor while still retaining constant impedance characteristics. This gas-injected foam design provides higher electrical qualities in comparison to solid dielectric alternatives. As a consequence, the capacitance is reduced to 82 pF/m, and the velocity of propagation is increased to 84%. Aluminum tape foil with a diameter of 10.20 millimeters is included into the dual-shielding architecture, which is then followed by tin copper braid or tin copper-clad aluminum braid with a diameter of 10.80 millimeters. This provides full protection against electromagnetic interference.
Performance characteristics show that the cable is suitable for use in wireless applications that are very demanding. Additionally, the impedance tolerance of 50 ohms guarantees the preservation of signal integrity across the whole frequency spectrum. Additionally, the return loss criterion of ≥20 dB guarantees that there is minimum signal reflection. When it comes to high-power transmission situations, which are often encountered in base station and repeater installations, the voltage withstand capacity of 6000V offers large safety margins.
Directly translating into practical benefits for WISP and WiMax installations are the electrical features that are being discussed here. Low attenuation features reduce the amount of signal loss that occurs over long cable lengths, which in turn reduces the amount of equipment that is required for intermediate amplification. Because of the high shielding efficacy, interference from neighboring radio frequency sources is prevented, which is essential in areas with a crowded spectrum in which numerous wireless services are operating concurrently.
This cable is very often used by WISP operators for the purpose of connecting outside antennas to interior equipment rooms, which may include cable lengths that are longer than one hundred meters. In addition to enabling flexibility for routing via conduits and cable trays, the foam dielectric structure ensures that the signal integrity is preserved across these lengths without compromising it. WiMax network installations are able to reap the benefits of the cable's capacity to concurrently handle send and receive signals without generating any passive intermodulation distortion.
In cellular amplification systems, where signal quality has a direct influence on coverage area and user experience, the cable's sturdy structure proves to be a vital asset. The UV-stabilized jacket and moisture-resistant construction are crucial aspects for outdoor installations since base station applications need cables that retain constant performance throughout temperature fluctuations and weather conditions. Both of these characteristics are necessary for outdoor installations.
In the process of comparing various cable options, signal attenuation emerges as the most important distinguishing feature. Standard RG6 cables often demonstrate a loss of 6-8 dB per 100 meters at 1 GHz, but High Quality 10D FB Cable reaches roughly 4.3 dB under comparable circumstances. This performance advantage results in a reduction in the number of signal amplification stages that are needed across the network, which in turn expands coverage regions and reduces the costs associated with infrastructure.
Beyond the fundamental measures of attenuation, the comparison also takes into account the efficacy of shielding and the endurance of mechanical components. Although 8D-FB cables provide comparable design principles in a more compact form, they also forfeit power handling capability and long-term dependability when exposed to harsh environmental conditions. On the other hand, 12D-FB alternatives provide a slight improvement in electrical performance; nevertheless, they present difficulties in routing and lead to greater installation costs since they need a bigger bend radius.
In RF situations that are densely populated, premium cables are distinguished from regular alternatives by their greater interference resistance characteristics. When opposed to single-shield RG6 variations, which generally have a shielding efficiency of 60-70 dB, the dual-shield design of grade 10D-FB often offers a shielding efficacy of 90 dB. In metropolitan installations, where cellular, broadcast, and emergency service broadcasts produce complicated interference patterns that may compromise the operation of wireless networks, this increased protection proves to be of essential importance.
The uniformity of the manufacturing process has a direct impact on the dependability of the network and the long-term operating expenses. Comprehensive quality control procedures are implemented by premium manufacturers. These procedures include impedance sweep testing, concentricity verification, and shield coverage analysis. Throughout the whole of its operating lifetime, these quality standards guarantee that every cable segment will continue to exhibit the performance characteristics that have been stipulated.
A crucial decision point for procurement experts is the selection of copper or copper-clad aluminum center conductors. Copper conductors are the more common option. Copper-clad alternatives may lower the prices of materials, but they may also pose possible reliability difficulties in situations with severe vibrations or in applications that need frequent connection installation and removal. Copper conductors that are made of pure copper provide higher mechanical stability and constant electrical performance regardless of the temperature.
It is necessary for economic analysis to take into account both the initial costs of purchase and the long-term operating expenditures. The improved performance characteristics of premium cables frequently repay the cost via decreased infrastructure complexity and maintenance needs. Although premium cables fetch higher unit pricing, their superior performance characteristics justify the expenditure. The capacity to attain desired signal levels with fewer amplification stages results in a reduction in the amount of power that is used and removes possible failure sites across the network.
Strategies that include bulk procurement may have a substantial influence on the overall economics of a project. The majority of the time, manufacturers will provide volume discounts, which, when compared to standard alternatives, will make premium cable solutions more competitive in terms of total cost of ownership. Furthermore, the longer guarantee periods that are supplied with quality cables offer protection against premature failure and the expenses that are connected with replacement.
A complete examination of particular deployment requirements, which may include frequency range, power levels, and environmental conditions, is the first step in the successful selection of cables. WISP applications that operate in permitted spectrum bands need cables that have been approved for those particular frequency ranges. High Quality 10D FB Cable certification ensures that the applications comply with regulatory standards and that the parameters of signal transmission are optimized. In order to avoid overheating or dielectric breakdown, the power handling capability of the cable must be flexible enough to support peak transmission levels while still allowing for enough safety margins.
When it comes to cable selection, environmental factors are of the utmost importance, especially for outdoor installations that are subjected to extremes of temperature, moisture, and ultraviolet radiation. When choosing between PVC, PE, and LSZH variations for the jacket material, the process is determined by the installation environment as well as the local requirements governing fire safety. Formulations that are UV-stabilized avoid jacket damage when exposed to direct sunlight, whilst choices that are fire-resistant may be necessary for installations that take place inside of commercial buildings.
Because impedance mismatches at connection points may have a considerable influence on the overall performance of the system, connector compatibility is another important selection element to consider. For the purpose of preserving a constant impedance of 50 ohms along the whole signal route, the center conductor diameter of the cable and its dielectric characteristics must be in accordance with the connection requirements that have been selected. In order to fully realize the performance potential of the cable, it is necessary to have quality connectors that perfectly match the impedance of the cable.
Installation methods that are performed by professionals guarantee the highest possible cable performance and lifespan. Dielectric compression and impedance fluctuations, both of which are detrimental to signal quality, may be avoided with effective manipulation of bend radius. The minimum bend radius for 10D-FB wire normally falls anywhere between 65 and 80 millimeters, which necessitates careful route design in order to go through confined locations or around obstructions.
When it comes to vertical runs and outdoor installations that are vulnerable to wind loads, the spacing between cable supports becomes very important. Additionally, in order to minimize cable sag and mechanical stress, which may have an effect on electrical properties over time, support intervals should not exceed the parameters provided by the manufacturer. Proper drip loops and environmental enclosures are two examples of weather-proofing strategies that may be used for exterior connections. These approaches eliminate the possibility of moisture penetration while preserving thermal expansion accommodation.
The processes for grounding and bonding must be in accordance with the local electrical rules while simultaneously reducing the creation of ground loops, which may cause noise to be introduced into the signal channel. The prevention of electromagnetic interference and the avoidance of safety dangers connected with probable electrical faults are both accomplished by the proper grounding of shields at equipment sites. For the purpose of future maintenance reference, the paperwork for the installation should contain schematics of cable routing, support locations, and test results.
Before activating the network, comprehensive testing is performed to evaluate the quality of the installation and the functionality of the system. The use of vector network analyzers to perform sweep frequency measurements allows for the identification of impedance discontinuities and excessive attenuation, both of which have the potential to affect signal quality. Taking measurements of return loss over the entire frequency range of operation guarantees that reflected signals will continue to fall within the allowed limits for dependable operation.
It is important to conduct cable testing that includes both electrical and mechanical verification processes. During a visual examination, any physical damage, poor connection installation, or insufficient weather protection that might lead to premature failure are identified. Through the whole of the installation, continuity testing ensures that the shield grounding and center conductor integrity are in adequate condition.
For the purpose of future troubleshooting and maintenance actions, baseline measurements may be obtained via the documentation of test results. Through the use of performance trends over time, it is possible to identify potential issues before they have an influence on network operation. This enables proactive maintenance, which in turn reduces interruptions to service.
Implementing extensive vendor qualification procedures that assess manufacturing capabilities, quality systems, and long-term dependability is the first step in developing procurement strategies that are designed to be effective. Certified manufacturers that have quality management systems in accordance with ISO 9001 exhibit their dedication to maintaining consistent manufacturing processes and making ongoing improvements. The presence of other certifications, such as RoHS compliance, REACH conformance, and UL listings, is evidence that the product complies with international safety and environmental requirements. This ensures that products like High Quality 10D FB Cable meet the highest standards for performance and reliability.
When it comes to large-scale installations that need considerable cable quantities within a condensed amount of time, production capacity assessment becomes very essential. The ability to meet urgent orders while still keeping quality standards is available to manufacturers that have many manufacturing lines and a enough inventory of raw materials. Contingency planning should be included in lead time commitments in the event that there are interruptions in the supply chain or unanticipated surges in demand, both of which might have an effect on project timetables.
Premium providers are distinguished from commodity vendors by their ability in providing technical assistance. It is not enough to just offer the product; additional value may be added by providing engineering support with cable selection, bespoke design services, and application-specific advice. When it comes to connection selection, installation procedures, and performance optimization, suppliers that have experienced technical personnel are able to give advise that results in an overall improvement in the success of the project.
The construction of a wireless network often necessitates the modification of cables or the design of customized configurations that are not accessible via normal product lines. The use of tailored length requirements eliminates waste and superfluous splice sites, while the use of custom jacket colors makes it possible to facilitate simple identification in complicated installations. It is possible that fire-resistant formulations may be required for installations that take place inside of commercial or institutional buildings.
Partnerships with original equipment manufacturers (OEMs) provide chances for private labeling and bespoke packaging, which serve the branding needs of integrators. Preferential pricing, priority production scheduling, and unique product features that distinguish market offers are common examples of the kind of characteristics that are associated with these interactions. When it comes to specialized market niches, the ability to include certain performance qualities or distinctive building elements might give a competitive edge.
It is important that the quality assurance processes for bespoke items be comparable to or even above the standards that are applied to regular offers. In order to guarantee that changed goods continue to fulfill the criteria of the application and continue to be covered by the manufacturer's warranty, sample approval processes, production testing requirements, and delivery inspection procedures are implemented.
The selection and deployment of High Quality 10D FB Cable represents a critical decision point that influences long-term network performance, operational costs, and reliability outcomes. This comprehensive analysis demonstrates how technical specifications, manufacturing quality, and procurement strategies combine to deliver superior value for WISP and WiMax network infrastructures. The cable's proven performance characteristics, including low attenuation, excellent shielding effectiveness, and robust environmental durability, make it an optimal choice for demanding wireless applications where signal integrity cannot be compromised.
A: The foam polyethylene dielectric and dual-shielding construction of 10D-FB cable provide significantly lower signal loss and better interference rejection compared to standard RG6. While RG6 typically exhibits 6-8 dB loss per 100 meters at 1 GHz, quality 10D-FB achieves approximately 4.3 dB under similar conditions. The enhanced shielding effectiveness (90 dB vs 60-70 dB) proves critical in congested RF environments.
A: Properly installed 10D-FB cable with UV-stabilized jacket typically provides 15-20 years of reliable service in outdoor environments. Factors affecting lifespan include exposure to extreme temperatures, moisture, and mechanical stress. Regular inspection of connector weather-proofing and support structures helps maximize operational life.
A: Yes, manufacturers typically offer customization including specialized jacket materials (LSZH, fire-resistant), custom colors for identification, specific lengths to minimize waste, and modified electrical characteristics for unique applications. OEM partnerships can provide private labeling and exclusive features for integrator requirements.
A: Standard products usually ship within 10-15 days for quantities up to several kilometers. Large volume orders or custom specifications may require 3-4 weeks depending on manufacturer capacity and material availability. Rush orders can often be accommodated with expedited production scheduling.
A: Comprehensive testing should include swept frequency measurements using vector network analyzers to verify impedance characteristics and return loss performance. Visual inspection identifies physical damage or connector installation issues. Certificate of conformance documentation provides traceability for warranty claims and regulatory compliance.
OTTO CABLE stands as your trusted High Quality 10D FB Cable supplier, delivering exceptional RF solutions engineered for demanding WISP and WiMax deployments. Our ISO 9001 certified manufacturing processes and comprehensive quality assurance protocols ensure consistent performance across every cable assembly. With decades of specialized experience in 50-ohm RF cable systems, we provide customized solutions that meet your exact specifications while maintaining competitive pricing and reliable delivery schedules.
Our technical expertise extends beyond product supply to include engineering support, application guidance, and comprehensive warranty protection that safeguards your infrastructure investment. Contact us today to discuss your High Quality 10D FB Cable requirements and discover how our proven solutions can enhance your network performance and operational reliability.
