Antenna Cable mistakes can significantly impact system performance and increase operational costs across industrial applications. These miniature coaxial cables, measuring just 2.80mm in overall diameter, face unique challenges in GPS systems, cellular communications, and WLAN installations. Common errors include improper impedance matching, excessive cable lengths causing signal degradation, incorrect connector selection for micro-coaxial interfaces like MMCX and MCX, and inadequate environmental protection planning. Understanding these pitfalls helps procurement professionals and engineering teams optimize their RF infrastructure investments while ensuring reliable 50-ohm transmission performance in space-constrained applications.


Understanding RG174 Antenna Cable Basics

The first step toward a successful deployment of radio frequency (RF) systems is to have an awareness of the technical qualities that distinguish RG174 coaxial cables from other types of cables used in the telecommunications sector. These specialty cables are intended exclusively for applications that need inventive solutions without sacrificing signal integrity. They represent a key balance between miniaturization and performance, and they were built primarily for applications that have space limits.


Core Technical Specifications

RG174 coaxial cables have a typical impedance of 50 ohms, which allows them to be compatible with conventional radio frequency (RF) equipment used in wireless communication systems. The structure of the cable includes a stranded inner conductor, which is commonly made out of bare copper, copper-clad aluminum, or copper-clad steel, depending on the needs of the particular application. When compared to solid conductors, this stranded design offers improved flexibility, making it possible to deploy electrical lines in confined locations while yet ensuring that good electrical contact is maintained.

In order to achieve its dielectric qualities, the dielectric material makes use of solid polyethylene (PE), which has exceptional electrical properties and thermal stability. An electromagnetic interference shield made of copper braid is placed around the dielectric to give protection. This shield generally achieves coverage of between 85 and 90 percent. When it comes to the outer jacket, you have the choice of selecting from PVC, PE, or LSZH materials. Additionally, color customization is possible to fulfill the criteria for unique project identification.


Application Environments and Limitations

When it comes to GPS navigation systems, these small cables are exceptional because their diameter of 2.80 millimeters enables them to be routed through car dashboards and electrical enclosures that are tight. The compatibility of RG174 with micro-coaxial connectors is advantageous for cellular communication equipment because it enables clean connections to be made between circuit boards and external antennas. Wireless local area network applications take use of the cable's adaptability for antenna placement while preserving impedance characteristics that are constant.

It is essential, however, to have a thorough awareness of the constraints when making judgments on purchase. A greater amount of attenuation is introduced due to the smaller conductor size when compared to bigger cables such as RG58 or LMR195. As a result of this property, effective cable lengths are limited, and careful signal budget estimates are required throughout the configuration stages of the system.

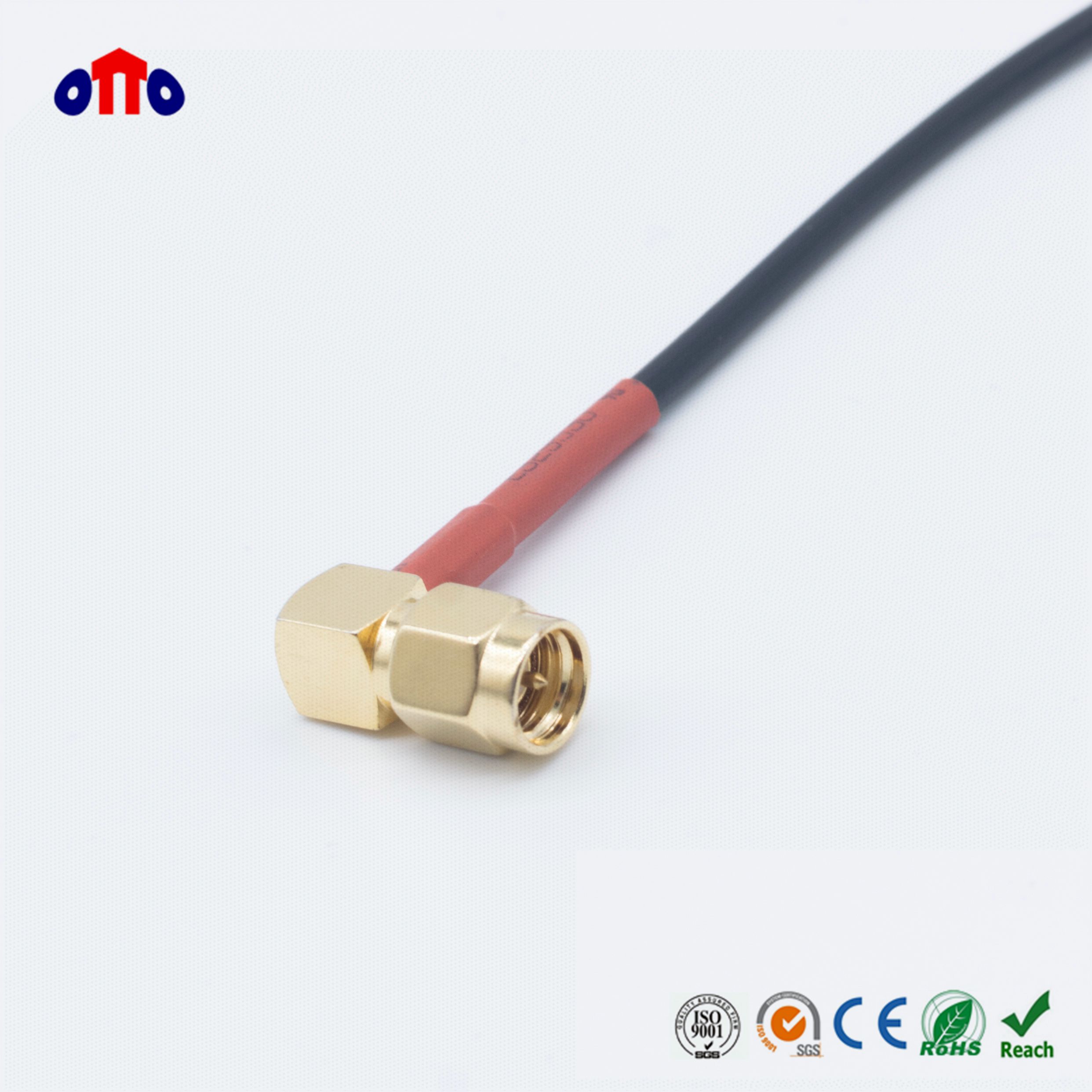

RG174+SMA 弯公_副本




Common Mistakes in Selecting and Using RG174 Antenna Cables

The implementation of RG174 Antenna Cable solutions presents engineering teams and procurement professionals with a number of obstacles that are repeated over and over again. Inadequate technical specifications review or a misunderstanding of the cable's operating limits inside complicated RF environments are often the causes of these errors.


Impedance Mismatching and Connector Incompatibility

When connecting RG174 cables to appliances that have differing impedance ratings, one of the most common mistakes that people do is. Impedance of 50 ohms is the norm for the majority of radio frequency (RF) applications; nevertheless, there is some legacy equipment that runs at 75 ohms. This mismatch results in standing wave patterns, which lower the quality of the signal and, over time, may cause damage to receiver circuits that are particularly sensitive.

An other crucial decision point that commonly leads to errors is the choosing of the connector. Micro-coaxial connections that are particular to RG174 cables, such as MMCX, MCX, U.FL, or SMA versions, are required because of the tiny diameter of these cables. Using connections that are too large results in the creation of mechanical stress points and reduces the flexibility advantage that the cable has. In addition, the application of tension during the installation of the connection in an incorrect manner might cause damage to the fragile braid shield or distort the dielectric substance.


Cable Length and Signal Loss Miscalculations

Numerous choices regarding procurement do not take into consideration the connection that exists between the length of the cable and the signal attenuation in RG174 system installations. Because of its small shape, the cable inevitably results in a greater loss per meter as compared to alternatives that are bigger. At a frequency of 1 GHz, the usual attenuation reaches around 106 decibels per one hundred meters, which may have a significant influence on the performance of the system across longer paths.

Considering that cable performance changes depending on the surrounding environment, temperature fluctuations add another layer of complexity to loss predictions. The temperature coefficients that impact both attenuation and impedance stability over operating ranges need to be taken into consideration for installations that are carried out in contexts such as automobiles or outdoor settings.


Environmental Protection Oversights

Another typical error is the selection of jacket materials that are not suitable for the particular environmental conditions that are being considered. Standard PVC jackets provide sufficient protection for interior installations; nevertheless, they may deteriorate fast if they are subjected to hazardous conditions such as ultraviolet radiation, severe temperatures, or chemical pollutants. The use of LSZH (Low Smoke Zero Halogen) materials is mandated by fire safety requirements in some buildings, while marine applications need the use of specifically designed jacketing to prevent corrosion caused by seawater.

Moisture infiltration via connections that are not adequately sealed might result in a slow decline in performance that is not noticeable until after lengthy durations of operation. This delayed failure pattern often results in costly debugging efforts and downtime for the system during crucial parts of the operating process.


How to Avoid These Pitfalls: Best Practices and Expert Tips


RG174 Antenna Cable implementation must be approached in a methodical manner that takes into account both the technical requirements and the long-term operational factors in order to be successful. By drawing on decades of knowledge in RF engineering, these approaches help to ensure that the performance of the system is dependable while also decreasing the expenses throughout its lifespan.


Comprehensive System Planning and Design

The first step in effective planning is to do extensive estimates of the signal budget, taking into consideration all of the potential causes of loss along the transmission line. Attenuation of the cable, loss occurring during connector insertion, and safety margins for fluctuations in the environment are all included in this. Accurate modeling of these factors is possible using professional radio frequency design software, which eliminates the need for expensive redesign efforts during the installation stages.

A basic impedance matching is just one aspect of component compatibility testing; other mechanical variables, such as connection retention force, cable bend radius restrictions, and thermal expansion coefficients, are also taken into account. In order to eliminate mistakes in the field installation process that might threaten long-term dependability, it is helpful to provide comprehensive installation drawings that define minimum bend radii from the beginning.


Quality Assurance and Supplier Evaluation

Developing strategic alliances with well-established manufacturers that uphold thorough quality control systems greatly lowers the likelihood of obtaining items that do not meet the required standards. You should look for suppliers that have been certified to ISO 9001 and have shown that they comply with applicable industry standards. For example, MIL-C-17 for military applications and CE marking for European deployments are both examples of such standards.

Validation of electrical performance may be accomplished via the use of sample testing programs prior to making substantial purchases of big quantities. There are many important criteria that need to be validated, including impedance consistency, attenuation at working frequencies, and shield efficacy assessments. The documentation of test findings offers essential baseline data that may be used for future operations including troubleshooting.


Installation and Maintenance Protocols

The technical team should get the appropriate installation training in order to assist avoid damage during the cable routing and termination operations. The use of suitable strain relief at connection locations, the avoidance of sharp edges that may cut through the outer jacket, and the observance of minimum bend radius criteria are all essential practices.

The tightness of the connectors, the integrity of the jacket, and the overall performance of the system should be monitored by frequent VSWR tests as part of any regular inspection program. Detection of deterioration trends from an early stage enables proactive replacement to take place before a total failure would impede operations.


Comparative Insights: RG174 Vs Alternative Antenna Cables

In order to determine whether it is appropriate to specify RG174 cable as opposed to other kinds of cable, it is necessary to do a thorough study of the application requirements, taking into account the cost and performance trade-offs. The procurement teams are able to make more informed choices that maximize the efficiency of the system while adhering to the restrictions of the budget thanks to this comparison.


Performance Characteristics Comparison

As a result of its higher flexibility in comparison to RG58, RG174 is an excellent choice for applications that need frequent repositioning or installation within confined locations. On the other hand, this adaptability is accompanied with a larger attenuation, which is roughly 2.5 times higher than that of RG58 at 1 wavelength. In situations when cable runs are less than three meters and mechanical flexibility is more important than worries about signal loss, the trade-off becomes more attractive.


However, RG174 Antenna Cable adds PTFE dielectric material for improved temperature performance, which allows it to deliver diameter properties that are comparable to those of RG316. This improvement is beneficial for applications that are subjected to intense climatic conditions; nonetheless, it results in a large rise in the price of materials. Generally speaking, the selection is determined by the particular temperature range needs as well as the available budget allocation.

When compared to RG174, LMR195 is an option that has a low loss and retains a good degree of flexibility while simultaneously lowering attenuation by around forty percent. Because of its wider diameter (4.95mm as opposed to 2.80mm), the cable may be less suitable for use in very small installations; nonetheless, it offers superior performance for cable runs of intermediate length.


Cost-Benefit Analysis Considerations

Just one component of the overall system expenditure is comprised of the price of the materials. There are a number of factors that substantially contribute to lifetime economics, including installation labor, long-term dependability, and future replacement costs. When it comes to installation, RG174's benefits often compensate for increased material costs by reducing the amount of manpower that is required and improving the accessibility of the system for future maintenance.

It is important to take into consideration the advantages of standardization when making choices about procurement. This is because keeping uniform cable types across numerous projects simplifies inventory management and the needs for technician training. The implementation of these operational improvements may result in significant cost reductions over time, especially for businesses who are in charge of handling large-scale installations.


Procurement Guide: Buying RG174 Antenna Cable for B2B Clients

Procurement strategies that are successful strike a compromise between the technical needs and the commercial factors in order to guarantee the highest possible value while still keeping quality standards. The use of this systematic strategy helps to prevent frequent buying errors, which might jeopardize the results of a project.


Technical Specification Development

Specifications that are comprehensive should include information on all of the important electrical and mechanical factors, such as impedance tolerance, attenuation limits at certain frequencies, and environmental requirements. For the purpose of preventing compatibility difficulties and ensuring correct system integration, clear connection standards are essential.

The requirements for quality must take into account both the expectations for long-term dependability and the uniformity of the production process. When evaluating suppliers, it is helpful to have references to industry standards like MIL-C-17 or commercial equivalents. These references give objective benchmarks. Additionally, ensuring traceability and quality verification capabilities is something that may be accomplished by providing test documentation requirements.


Supplier Evaluation Criteria

The qualifications of the manufacturer should include certificates for quality systems, practical expertise in the business, and the ability to provide technical support skills. In general, businesses who have a proven track record in RF applications are able to deliver higher product consistency and application knowledge. Conduct a thorough analysis of the production capabilities, including the deployment of statistical process control and automated testing environments.

Taking into account geographical factors might have an impact on delivery times, the availability of technical help, and the efficiency of communication. Local or regional suppliers often give better responsiveness for urgent needs and chances for face-to-face technical engagement, despite the fact that global procurement might bring economic benefits.


Conclusion

Successful RG174 antenna cable implementation requires careful attention to technical specifications, proper installation practices, and strategic supplier selection. The most common mistakes stem from inadequate planning, improper component matching, and insufficient quality control measures. By understanding these cables' unique characteristics and limitations, engineering teams can harness their flexibility advantages while avoiding performance pitfalls. Effective procurement strategies emphasize long-term value over initial cost savings, ensuring reliable system operation throughout extended service life. With proper specification development and supplier partnership, RG174 cables deliver exceptional performance in space-constrained RF applications across diverse industrial environments.


FAQ


Q1: What is the maximum recommended length for RG174 antenna cables?

A: The optimal length depends on frequency and acceptable signal loss. Generally, keeping runs under 3 meters minimizes attenuation concerns for most applications. At 1 GHz, each meter adds approximately 1 dB of loss, so calculate your signal budget accordingly.


Q2: Can RG174 cables handle high-frequency applications above 3 GHz?

A: While RG174 can operate at frequencies above 3 GHz, attenuation increases significantly with frequency. Consider alternatives like RG316 or semi-rigid cables for optimal performance in high-frequency applications where signal integrity is critical.


Q3: How do I ensure proper impedance matching with RG174 installations?

A: Verify that all system components maintain 50-ohm impedance throughout the signal path. Use appropriate connectors designed specifically for RG174, and avoid adaptors that might introduce impedance discontinuities or mechanical stress points.
