Coaxial cables are a backbone of modern communication, ensuring stable signal transmission across various devices. But why are they still essential in a world of fiber optics and wireless technology?
In this guide, we’ll explore the different types of coaxial cables, their applications, and how to choose the right one for your needs. You’ll learn about their role in delivering signals for everything from cable TV to industrial systems and discover key buying tips to ensure optimal performance.
A coaxial cable consists of four main layers, each playing a crucial role in signal transmission and protection:
1. Center Conductor/Core: Usually made of copper or copper-clad steel, the core carries the electrical signals. This is where the RF signals flow through the cable.
2. Dielectric Insulator: Surrounding the core, the dielectric insulator maintains a consistent spacing between the core and the outer shield. This layer prevents signal degradation and ensures proper impedance.
3. Braided Shield: The shield, typically made of metal, blocks external interference from affecting the signal. This protective layer helps to maintain signal integrity, especially in environments with electromagnetic noise.
4. Outer Jacket: The outer layer is a protective coating that shields the inner components from physical damage and environmental factors, such as moisture, sunlight, and temperature fluctuations.
These components work together to ensure that the signal remains strong and undistorted, even when traveling over long distances.
Coaxial cables transmit signals by carrying electrical current through the central conductor. The dielectric insulator ensures that the signal flows correctly by preventing contact between the conductor and the shield. The braided shield prevents unwanted interference from external sources, while the outer jacket protects the entire assembly.
Coaxial cables are preferred for RF signals because they can carry high-frequency signals over long distances with minimal signal loss, making them ideal for applications like television broadcasting, internet data transmission, and communications networks.
One of the major advantages of coaxial cables is their ability to maintain signal quality. Due to the shielding, coaxial cables are highly resistant to electromagnetic interference (EMI) and radio frequency interference (RFI). This ensures that the signal stays clear and strong, even when the cable is routed near other electrical equipment.
In environments with high noise levels, such as industrial settings or near power lines, coaxial cables provide reliable transmission without compromising signal integrity.
Coaxial cables are designed to withstand various environmental conditions. Their robust construction ensures that they can handle physical wear and tear, making them suitable for both indoor and outdoor installations. In addition, coaxial cables can perform in extreme temperatures, ensuring that the signal remains stable across a wide range of environmental conditions.
The versatility of coaxial cables makes them suitable for many applications, including television and satellite services, broadband internet, audio systems, and industrial communications.
Impedance: 75 Ohms
Commonly used for residential and commercial TV, internet, and cable modems. RG-6 is the industry standard for most modern cable installations due to its ability to transmit signals over medium to long distances with minimal signal loss.
Impedance: 50 Ohms
Primarily used in radio communications, test equipment, and other short-range applications. RG-58 offers high flexibility and is often found in lab environments, though it is not ideal for long-distance signal transmission due to higher attenuation compared to other cables.
Impedance: 75 Ohms
A thicker coaxial cable ideal for long-distance installations. RG-11 is often used for backbone runs in cable systems, where low attenuation and high performance over long distances are required.
Impedance: 75 Ohms
RG-59 is a more flexible coaxial cable that is commonly used in CCTV systems and short-distance video connections. While it’s ideal for short runs, RG-59 is not suitable for longer cable lengths where signal loss becomes a concern.
Impedance: 50 Ohms
A flexible, low-loss coaxial cable used for short outdoor antenna runs. LMR®200 is commonly used in wireless systems, where flexibility and low loss are essential for maintaining signal quality.
Impedance: 50 Ohms
Used for long-distance RF and wireless system applications. LMR®400 cables offer excellent performance in transmitting signals over long distances with minimal attenuation.
Impedance: 50 Ohms
A heavy-duty cable designed for the most demanding environments. LMR®600 is perfect for large-scale outdoor installations, especially where extreme weather conditions and heavy physical demands are a concern.

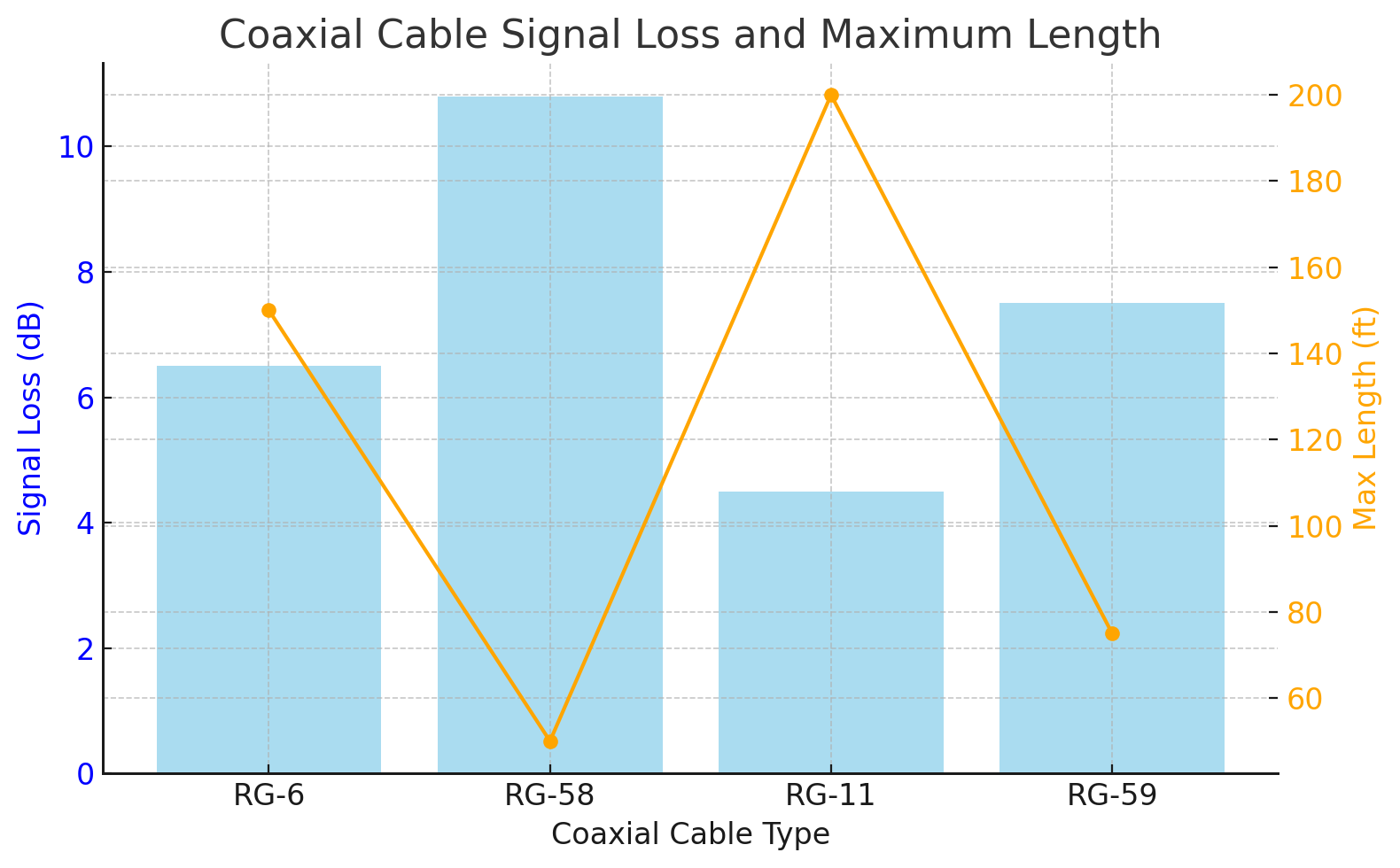

Cable Type | Impedance | Best Use Case | Typical Length | Signal Loss (per 100 ft) |
RG-6 | 75 Ohms | Residential TV, Satellite, Internet | Medium to Long | Low |
RG-58 | 50 Ohms | Radio Communications, Test Equipment | Short | Higher |
RG-11 | 75 Ohms | Long-Distance TV, Broadband | Long | Very Low |
RG-59 | 75 Ohms | CCTV, Short Video Connections | Short | Moderate |
LMR®200 | 50 Ohms | Outdoor Antenna Runs | Short | Low |
LMR®400 | 50 Ohms | Wireless Systems, Long Runs | Long | Very Low |
LMR®600 | 50 Ohms | Industrial, Large Outdoor Installations | Very Long | Ultra-Low |
Coaxial cables are the backbone of television signal delivery. They transmit both analog and digital signals from antennas, cable boxes, and satellite dishes to TVs, ensuring reliable and clear reception. RG-6 and RG-11 cables are the most commonly used for this purpose, with RG-6 being ideal for home installations and RG-11 for long-distance cable runs.
Application Area | Coaxial Cable Type | Common Uses |
Home Entertainment | RG-6, RG-59 | TV connections, Cable modems, Satellite dishes |
Internet & Networking | RG-6, LMR®400 | Broadband internet, Wi-Fi extension |
Audio Systems | RG-58, RG-316 | Digital audio, Subwoofer connections |
Industrial & Military | RG-11, LMR®600 | Aerospace, Military communications, RF testing |
Coaxial cables play an essential role in broadband internet installations. Many cable internet providers use coaxial cables to transmit internet signals to the "last mile" before reaching homes or businesses. RG-6 cables are most often used for this purpose due to their superior signal transmission capabilities.
Coaxial cables are also commonly used in home audio systems, particularly for digital audio connections like subwoofers or surround sound systems. Their resistance to interference makes them ideal for maintaining sound clarity, even over longer cable runs.
In industrial, military, and aerospace environments, coaxial cables are used for their reliability and performance in harsh conditions. From radar systems to military communications, coaxial cables ensure high signal integrity, even in environments with high levels of electromagnetic interference.
Impedance matching is crucial when selecting coaxial cables. Mismatched impedance can result in signal reflections and loss. For most TV and broadband applications, a 75-ohm coaxial cable is ideal, while 50-ohm cables are better suited for high-power applications such as radio systems and wireless communication.
The length of a coaxial cable directly impacts signal quality. Longer cables tend to experience higher signal loss, especially at high frequencies. Choosing the right cable thickness can mitigate some of this loss. For long-distance runs, thicker cables like RG-11 are recommended to minimize attenuation.
Factor | Description | Recommended Action |
Impedance | Ensure the impedance matches your equipment (50 Ohm or 75 Ohm). | Match impedance to avoid signal loss. |
Cable Length | Longer cables cause more signal attenuation. | Choose the shortest possible cable for better performance. |
Durability | Consider cables with UV protection and outdoor rating for external use. | Opt for weatherproof cables for outdoor installations. |
Connector Type | Match connectors (e.g., SMA, F-Type, N-Type) to your devices. | Ensure proper connector compatibility. |
For outdoor installations, it’s essential to choose coaxial cables that are specifically designed to withstand environmental elements. Look for cables that have weather-resistant jackets and are rated for outdoor use to protect against UV degradation, moisture, and temperature fluctuations.
The right connector ensures a proper connection between devices and coaxial cables. Common types include SMA, N-Type, and F-Type connectors. Ensure that the connector you choose matches your equipment to avoid signal loss or connectivity issues.
Connector Type | Impedance | Typical Use | Common Applications |
SMA | 50 Ohms | Screw-on connector | Radios, Antennas |
F-Type | 75 Ohms | Screw-on, most common | Cable TV, Internet, Satellite |
N-Type | 50 Ohms | Heavy-duty screw-on | Commercial, Industrial setups |
TNC | 50 Ohms | Weatherproof snap-on | Mobile phones, RF equipment |
While it’s tempting to cut costs, opting for the cheapest coaxial cable might compromise performance. Focus on finding the best value by balancing cost and quality. Consider factors like the cable's impedance, shielding, and construction to ensure the best performance for your specific needs.
Using the wrong impedance in a coaxial cable can result in signal loss, reflections, and poor performance. Always match the impedance of your cable to your device to ensure optimal signal quality.
Selecting the correct cable length is crucial. Too long of a cable can cause signal degradation, while too short a cable may result in insufficient reach. Choose a cable length that is just enough to meet your needs.
For high-performance applications, investing in quality coaxial cables is essential. Cheap cables may result in poor signal transmission, signal loss, and decreased longevity. Opt for high-quality cables designed for your specific use case.
Coaxial cables are crucial for various applications, including TV, internet, and industrial systems. Choosing the right type ensures optimal performance. When buying, consider factors like impedance, cable length, and environment to guarantee reliable signal transmission. OTTO provides high-quality coaxial cables that meet diverse needs, offering durability and excellent performance across all applications. Make an informed decision today for superior signal quality and longevity.
A: A coaxial cable is a type of electrical cable used to transmit radio frequency signals. It consists of a central conductor, insulation, a braided shield, and an outer jacket.
A: Consider factors like impedance, length, environment, and the specific application. Matching the impedance and selecting the appropriate cable type ensures optimal signal transmission.
A: RG6 is ideal for short to medium cable runs, such as TV and internet connections, while RG11 is better for long-distance installations due to its lower signal loss.
A: Yes, coaxial cables designed for outdoor use have weather-resistant jackets that protect them from UV rays, moisture, and other environmental factors.
A: Impedance matching ensures minimal signal loss and prevents reflection. Using the correct impedance for your equipment, such as 50 Ohms or 75 Ohms, is crucial for maintaining signal integrity.
