Views: 0 Author: Site Editor Publish Time: 2025-12-29 Origin: Site
Have you ever wondered how your favorite devices communicate? Coaxial cables play a crucial role in this process.
In this guide, we’ll explore what coaxial cables are and their basic structure. You’ll also learn about their importance in communication and broadcasting, along with insights into Otto Cable Technology as a leader in the field.
Coaxial cables are essential for transmitting signals in various applications. Understanding their structure is key to appreciating their functionality. A coaxial cable consists of four main components, each serving a specific purpose.
The central conductor is the heart of the coaxial cable. Typically made of copper, it allows electrical signals to pass through efficiently. This material is favored for its excellent conductivity, which minimizes signal loss.
● Key Features:
○ High conductivity
○ Minimal resistance
○ Supports high-frequency signals
Surrounding the central conductor is the insulating layer, often referred to as the dielectric. This layer is crucial for maintaining signal integrity by preventing interference. Common materials for this layer include polyethylene and foam plastic.
Material | Purpose |
Polyethylene | Provides solid insulation |
Foam Plastic | Reduces weight and enhances flexibility |
The dielectric ensures that the central conductor is separated from the outer shield, maintaining the quality of the transmitted signal.
Next, we have the metallic shield layer. This component is designed to block electromagnetic interference (EMI) and radio frequency interference (RFI). It acts as a barrier, protecting the inner conductor from external noise, which is vital for maintaining a clear signal.
● Benefits of the Shield Layer:
○ Reduces signal degradation
○ Enhances overall performance
○ Essential for high-frequency applications
Finally, the outer sheath encases the entire assembly. Typically made from PVC or flame-retardant materials, it protects the internal components from physical damage, moisture, and abrasion.
● Functions of the Outer Sheath:
○ Provides durability
○ Ensures safety in installations
○ Meets fire safety standards (e.g., UL ratings)
Each part of a coaxial cable plays a critical role in its overall performance. The central conductor ensures efficient signal transmission, while the insulating layer maintains signal integrity. The metallic shield protects against interference, and the outer sheath provides durability and safety.
By understanding these components, you can appreciate why coaxial cables are so effective in various applications, from telecommunications to broadcasting. They work together to deliver reliable performance, making them a top choice in the industry.
Coaxial cables come in various types, each designed for specific applications and performance needs. Understanding these types can help you choose the right cable for your project. Here, we’ll explore coaxial cables based on impedance, RG standards, and low-loss options.
Coaxial cables are primarily categorized by their impedance, which is measured in ohms. The two most common types are 50 ohm and 75 ohm cables, each suited for different applications.
These cables are widely used in radio and wireless communications. Their design makes them ideal for applications like GPS and Distributed Antenna Systems (DAS). Otto Cable, for instance, specializes in 50-ohm products, ensuring they meet the demands of various wireless technologies.
● Applications:
○ Radio transmission
○ Wireless communications
○ High-frequency signal transmission
In contrast, 75-ohm coaxial cables are perfect for television and video applications. They are commonly used in setups involving cable modems and satellite receivers. For example, RG-6 and RG-59 are popular standards in this category, providing reliability for video signals.
Cable Type | Impedance | Best Used For | Key Features |
RG-6 | 75 Ohm | Cable modems, satellite receivers | Thick insulation, low loss |
RG-59 | 75 Ohm | CCTV, short distances | Flexible, higher signal loss |
When comparing 50-ohm and 75-ohm cables, it’s essential to consider their applications. While 50-ohm cables excel in RF applications, 75-ohm cables are optimized for video signals. Using the correct impedance for your application is crucial, as mismatched cables can lead to signal loss and degradation.
Coaxial cables also follow RG standards, which define their specifications. Here’s a brief overview of common RG models:
● RG-6: Known for its thick insulation, RG-6 minimizes signal loss over long distances, making it ideal for high-frequency applications.
● RG-59: This model is better suited for shorter runs, commonly used in security cameras and analog video.
● RG-174 A/U: A compact option, RG-174 is perfect for wireless applications where space is limited.
● RG-58: Designed for RF power transmission, RG-58 is widely used in amateur radio setups.
● RG8: This classic RG-series cable aligns with Otto's focus on 50-ohm products, ensuring robust performance.
Selecting the appropriate RG standard depends on your specific requirements. Consider factors like distance, frequency, and application type. For example, if you need to transmit a signal over a long distance, RG-6 might be your best bet. Conversely, for short-range applications, RG-59 or RG-174 could be more suitable.
Low loss coaxial cables are engineered to minimize signal attenuation, making them ideal for high-frequency scenarios. These cables are designed for applications where signal integrity is crucial.
● Importance of Low Loss Cables:Reduces signal degradation over long distances
○ Essential for high-performance communications
Otto Cable offers models like Low Loss RG58 and Low Loss 500, both designed to deliver exceptional performance in demanding environments. These cables are perfect for applications such as distributed antenna systems and high-frequency device integration, ensuring reliable signal transmission without significant loss.
By understanding the types of coaxial cables available, you can make informed decisions that will enhance your communication systems and ensure optimal performance.
Coaxial cables are widely used in various industries due to their versatility and reliability. Their unique design enables them to transmit signals effectively in multiple applications, making them essential in modern technology. Let’s explore some of the key applications of coaxial cables.
In the realm of wireless communications, coaxial cables play a vital role. They are integral to the functionality of GPS devices, Distributed Antenna Systems (DAS), and Active Cellular Systems (ACS).
● Role in GPS Devices: Coaxial cables connect antennas to receivers, ensuring accurate signal reception. This precision is crucial for navigation and location-based services.
● DAS and ACS: In these systems, coaxial cables help distribute signals across large areas, enhancing coverage and connectivity. The ability to maintain signal integrity over long distances is essential for effective communication.
Application | Importance | Example Use |
GPS Devices | Accurate signal reception | Navigational systems |
Distributed Antennas | Enhanced coverage in large areas | Urban cellular networks |
Active Cellular Systems | Reliable connectivity | Mobile communication systems |
Coaxial cables are also fundamental in radio communication, particularly in amateur radio and base stations. Their design minimizes signal loss, which is critical for clear and reliable transmission.
● Importance of Low Signal Loss: In radio applications, even minor signal degradation can lead to poor audio quality or dropped connections. Coaxial cables ensure that signals maintain their strength, providing a better experience for users.
● Example: Otto Cable's coaxial cables are specifically designed for radio communication setups, offering low-loss options that enhance performance in various environments.
Another significant application of coaxial cables is in high-frequency device integration. They are commonly used to connect RF transceivers and wireless modems, facilitating seamless communication between devices.
● Connecting RF Transceivers: Coaxial cables provide a reliable link between transceivers and antennas, ensuring effective transmission of radio signals.
● Real-World Examples: In many commercial and industrial settings, coaxial cables are used to connect devices such as routers, modems, and wireless access points. This connectivity is vital for maintaining high-speed internet and communication services.
Device Type | Connection Type | Benefits |
RF Transceivers | Coaxial to Antenna | Strong signal transmission |
Wireless Modems | Coaxial for Internet Connectivity | High-speed data transfer |
Routers | Coaxial for Network Integration | Reliable network performance |
Coaxial cables are not just cables; they are the backbone of many essential technologies. Their applications span across various sectors, ensuring that we stay connected in our increasingly digital world. From wireless infrastructure to radio communication and high-frequency device integration, coaxial cables are integral to modern communication systems.
When selecting coaxial cables, quality and compliance are vital factors to consider. They ensure safety, performance, and reliability in various applications. This section will explore important certifications and standards, as well as quality management practices that guarantee the best products.
Coaxial cables must meet specific certifications and standards to ensure they are safe and effective. Here’s a look at some key certifications:
● CE (Conformité Européenne): This mark indicates compliance with European health, safety, and environmental protection standards. It is essential for products sold in the European market.
● RoHS (Restriction of Hazardous Substances): RoHS compliance ensures that cables do not contain harmful materials like lead, mercury, or cadmium, promoting environmental safety.
● REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals): This regulation focuses on chemical safety, ensuring that substances used in products are safe for human health and the environment.
● UL (Underwriters Laboratories): This certification verifies that products meet specific safety standards, which is crucial for electrical components.
Certification | Purpose | Importance |
CE | Ensures compliance with EU regulations | Necessary for market access |
RoHS | Limits hazardous substances | Promotes environmental safety |
REACH | Evaluates chemical safety | Protects health and environment |
UL | Validates safety standards | Essential for electrical safety |
Example: Otto Cable adheres to these certifications, ensuring their products are safe and reliable. This commitment to compliance not only protects consumers but also enhances the brand’s reputation in the industry.
Quality management is another critical aspect of coaxial cable production. Certifications like ISO9001 and ISO14000 play significant roles in maintaining high standards.
● ISO9001: This certification focuses on quality management systems. It ensures that a company consistently meets customer and regulatory requirements, leading to enhanced customer satisfaction.
● ISO14000: This set of standards focuses on environmental management. It helps organizations minimize their environmental impact while complying with applicable laws and regulations.
Quality Standard | Focus Area | Benefits |
ISO9001 | Quality management systems | Consistent product quality |
ISO14000 | Environmental management | Reduced environmental impact |
How Quality Assurance Impacts Your Purchase: When you choose products from companies with these certifications, you can trust that they have robust quality management processes in place. This ensures that the coaxial cables you purchase will perform reliably and safely.
Example: Otto Cable demonstrates a strong commitment to quality through its extensive research and development (R&D) and quality control (QC) teams. They continuously improve their products, ensuring they meet the highest standards. This dedication to quality assurance translates into better performance and reliability for their customers.
Incorporating quality and compliance into the production of coaxial cables is essential for ensuring safety and performance. By understanding these aspects, you can make informed decisions when selecting coaxial cables for your needs.
When it comes to purchasing coaxial cables, making the right choices is crucial for ensuring optimal performance and reliability. Here are some essential tips to guide you through the buying process, covering everything from impedance matching to connector selection.
One of the first considerations when buying coaxial cables is impedance. Using the correct impedance is vital for maintaining signal integrity.
● Importance of Using the Correct Impedance: Most coaxial cables come in either 50 ohms or 75 ohms. Using a cable that matches the impedance of your devices will help prevent signal loss and distortion.
● Consequences of Mismatched Components: If you connect components with mismatched impedances, you may experience reflections, which can degrade the quality of the signal. This can lead to poor performance in applications like video transmission or radio communication.
Shielding is another critical factor that affects the performance of coaxial cables. Different types of shielding offer various benefits.
● Types of Shielding:
○ Single Shielding: Provides basic protection against electromagnetic interference (EMI).
○ Double Shielding: Offers enhanced protection, suitable for environments with moderate interference.
○ Quad Shielding: The best option for high-interference areas, such as urban environments or industrial settings.
Shielding Type | Benefits | Ideal Use Case |
Single Shielding | Basic EMI protection | Residential installations |
Double Shielding | Moderate EMI protection | Commercial applications |
Quad Shielding | Maximum EMI protection | High-interference environments |
When to Choose Quad-Shielded Cables: If you're in an area with heavy electronic interference, quad-shielded cables are the way to go. They provide the highest level of protection, ensuring that your signal remains clear and strong.
Length is another important aspect to consider when purchasing coaxial cables.
● Understanding Attenuation and Its Impact: Attenuation refers to the loss of signal strength over distance. Longer cables can lead to greater attenuation, which may affect performance.
● Tips for Measuring and Purchasing the Right Length: Measure the distance between your devices carefully, and consider adding a little extra length to accommodate routing and installation challenges. It’s better to have a bit more cable than to find yourself short.

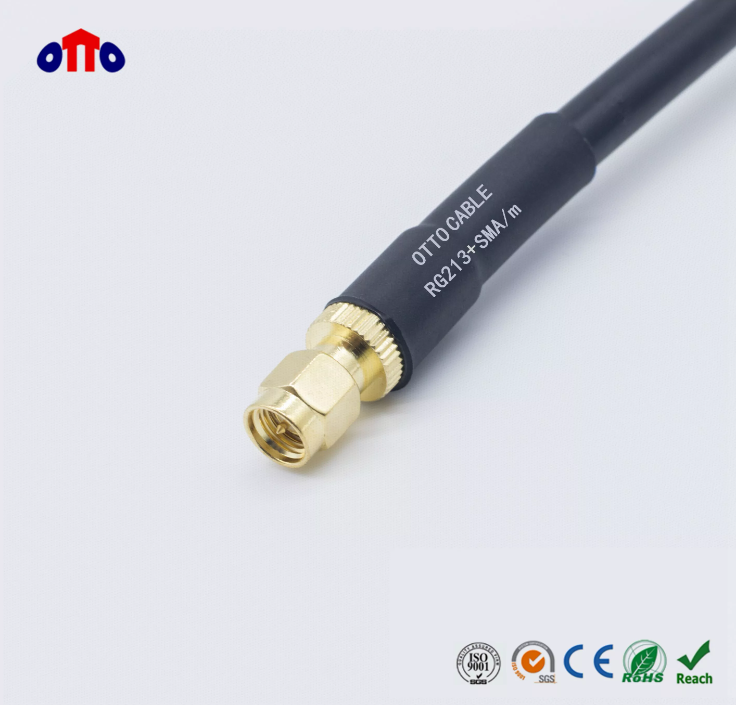

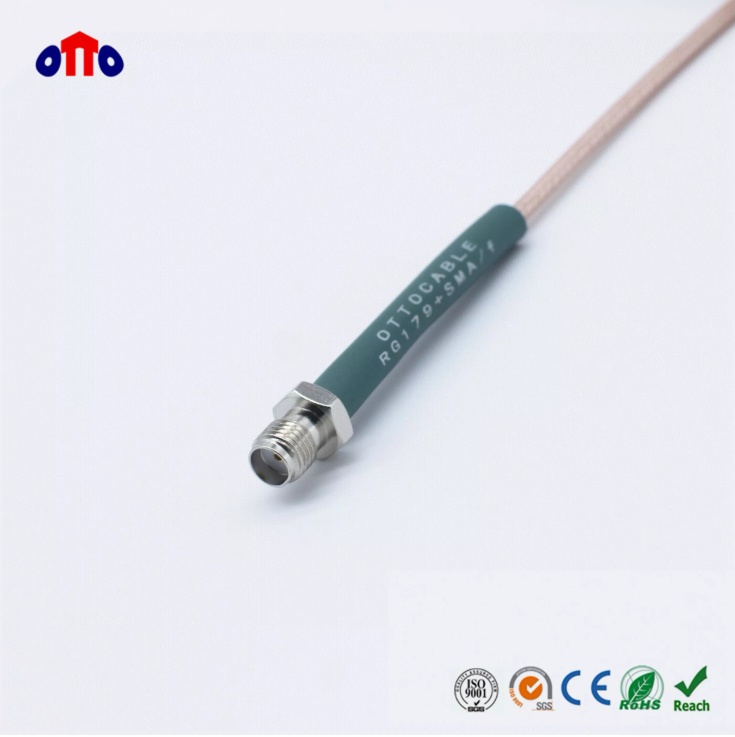

Connectors are essential for ensuring a secure and reliable connection between your coaxial cable and devices.
● Overview of Common Connectors:
○ F-Type: Commonly used for cable TV and satellite connections.
○ BNC: Often used in professional video applications and test equipment.
○ SMA: Ideal for RF applications, particularly in wireless communications.
○ N-Type: Suitable for high-power applications and outdoor use.
Connector Type | Best Use | Key Features |
F-Type | Cable TV, satellite | Easy to install, widely available |
BNC | Video applications | Secure connection, quick disconnect |
SMA | RF applications | Compact design, high frequency |
N-Type | Outdoor and high-power applications | Weatherproof, robust connection |
How to Select the Right Connector for Your Application: Consider the devices you are connecting and the environment in which they will be used. For example, if you are connecting a cable modem, an F-Type connector is likely your best choice.
Example: Otto Cable offers pre-equipped connectors for easy integration, simplifying the installation process and ensuring reliable connections.
Finally, the jacket rating of a coaxial cable is crucial for safety and performance, especially in specific installations.
● Importance of Jacket Ratings for Safety: The jacket protects the inner components from physical damage and environmental factors. Look for ratings that indicate the cable is suitable for the intended environment.
● Recommendations for In-Wall and Outdoor Installations: For in-wall installations, choose cables rated for in-wall use (such as CL2 or CL3 ratings). For outdoor use, ensure the cable is UV-resistant and rated for direct burial if necessary.
By keeping these tips in mind, you can make informed decisions when purchasing coaxial cables, ensuring that you select the right products for your specific needs and applications.
Coaxial cables are essential for various applications, including wireless communication and video transmission. Key factors to consider include impedance, shielding, length, and connectors.
When purchasing, think about your specific needs to ensure optimal performance. For quality coaxial cables, consider trusted sources like Otto Cable Technology. They offer reliable products that meet industry standards.
