Views: 3 Author: Site Editor Publish Time: 2026-02-10 Origin: Site

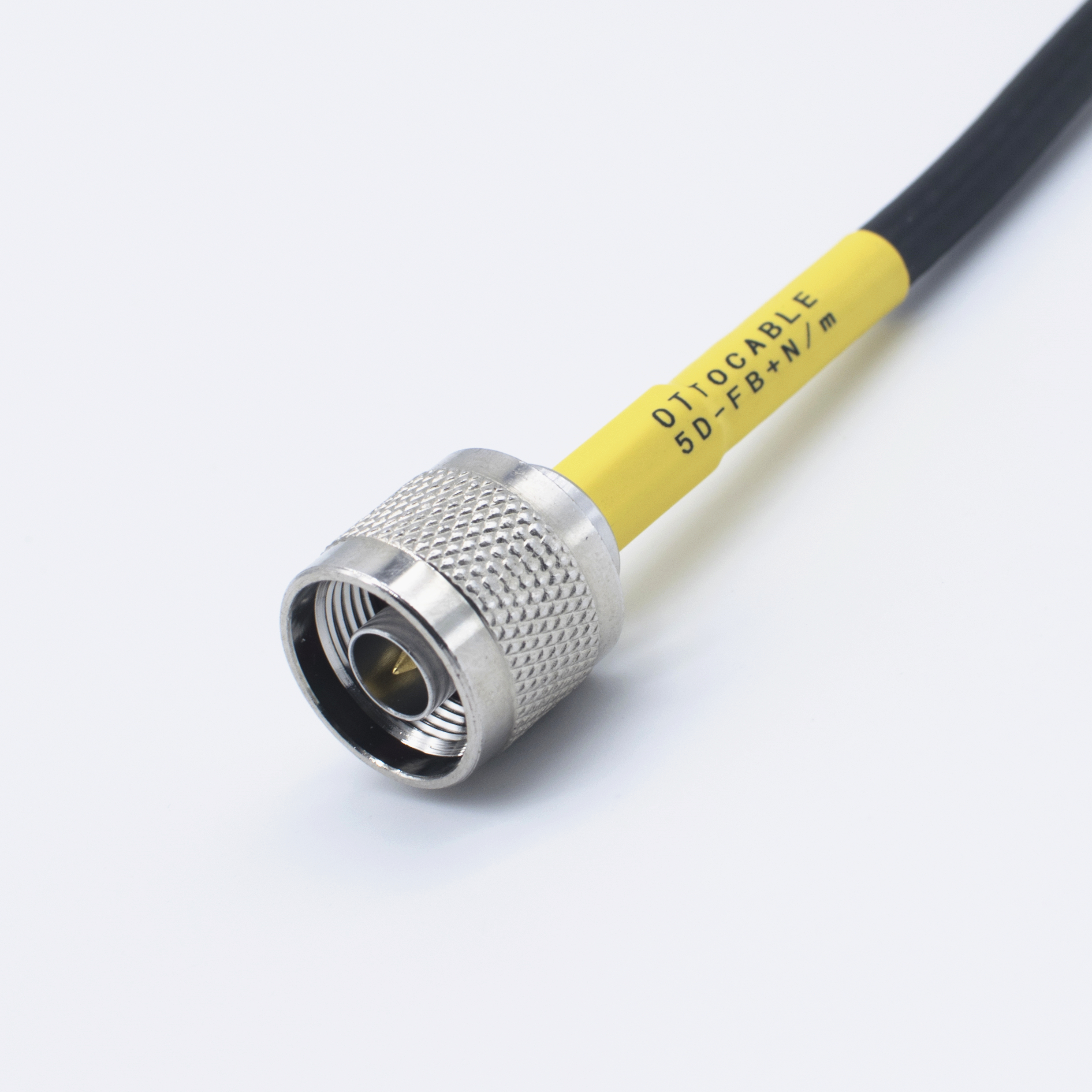

The 5D-FB connection is a big step forward in wireless network infrastructure because it enables better signal transfer with almost no loss. This high-performance coaxial cable has a 1.80mm copper core, dual-layer shielding, and a foam polyethylene dielectric that work together to provide better signal security for a wide range of wireless uses. With a 50-ohm impedance and an 81% velocity of transmission, 5D-FB cable meets important performance needs in modern wireless systems and gives procurement professionals the dependability and longevity they need for mission-critical deployments.
A special kind of coaxial cable called the 5D-FB cable was made for radio communication systems that need very clear signals. This cable has a carefully thought-out structure with a 1.80 mm core conductor that can be made of bare copper, copper-clad aluminum, or copper-clad steel. Each of these options is best for different performance and cost needs.
The cable is made using an exact layered method that makes data transfer as efficient as possible. The foam polyethylene insulator that is 5 mm thick is very good at insulating while still letting signals pass through. This foam structure makes air gaps that lower the dielectric constant. This makes the signal travel faster and lose less power than solid dielectric options.
Two types of insulation make up an important part of the cable's performance profile. The main aluminum tape foil, which has a diameter of 5.20 mm, blocks electromagnetic interference completely. The secondary tin copper braid or tin copper clad aluminum braid, which has a diameter of 5.70 mm, offers mechanical safety and more effective shielding. This mix gets return loss values of ≥22dB, which means that signals are reflected very little and power is transferred as much as possible.
5D-FB cable is used for important data transfer paths in wireless communication systems in many fields. The line works great in places where signal stability is important, like cellular base stations, distributed antenna systems (DAS), and mobile repeater networks. Due to its strong construction, it works especially well for outdoor locations where things like moisture, temperature changes, and UV light can affect the performance of cables over time.
With its ability to handle 1000V of power and jacket choices that include PVC, PE, and LSZH materials, the cable can be used in a wide range of situations. The cable always has the same 50-ohm impedance and 82 pF/m capacitance, so it can be used to connect yagi antennas in rural areas or to support WIFI antenna systems in cities.
The performance features of 5D-FB cable offer real benefits that directly address common problems in wireless networks. The advanced materials and precise engineering in the cable make these benefits possible. Together, they solve important signal transfer problems that plague other cable solutions.
It is much easier to keep signals strong with the bigger center cable design. This is especially helpful for longer cable runs where signal degradation is common. The foam polyethylene dielectric keeps the signal speed at 81%, which is a lot faster than solid dielectric options. With faster signal transmission, there is less signal delay and better phase stability across the whole frequency range.
The least amount of signal loss is probably the best thing about this cable technology. The foam dielectric structure cuts down on both dielectric and skin effect losses, and the copper cables cut down on resistance losses. Because of all of these advantages, the attenuation numbers are much lower than with normal coaxial lines. This directly improves link budget estimates and system performance gaps.
A lot of the time, wireless networks have to work in tough environments where connection dependability is very important. The 5D-FB cable handles these issues by carefully choosing materials and building them. Different types of outer jackets protect against different types of external factors. PVC is best for general indoor uses, PE is better for outdoor use because it doesn't absorb water, and LSZH is better for fire safety in sensitive installations.
Temperature stability is another important benefit. The cable keeps its electrical properties over a wide range of temperatures. This makes sure that the impedance and signal transfer work the same way all year, no matter what the weather is like or how the system is set up. The dual-shielding design also offers excellent electromagnetic compatibility, which is very important for sites near high-power transmitters or in industrial settings with a lot of electrical noise.
Knowing how different types of cables work differently helps you make smart purchases that balance the costs of the purchase with the benefits you'll get in the long run. The 5D-FB cable is one of a kind in the market for coaxial cables because it has performance qualities that often go above and beyond what is needed while still having reasonable prices.
Traditional RG-style connections are easy to find and don't cost much, but they don't always work well enough for demanding wireless uses. RG-58 lines, which are often used in older systems, have higher loss levels and can't handle as much power. Because the 5D-FB cable has a bigger core and a better dielectric design, it can send signals much more clearly, especially at higher frequencies where more and more wireless systems work.
The impedance steadiness of 5D-FB cable is better than that of many other common types. Standard cables may have different impedances because of production flaws or environmental factors. But 5D-FB is carefully made so that its 50-ohm traits stay the same along its length. This uniformity is very important for keeping the VSWR standards and keeping sensitive transmitter equipment safe.
When you look at 5D-FB cable's economic benefits over the whole system's lifetime, not just the cost of purchase, you can see them. Because the signal transfer is so much better, you usually don't need any extra amplification tools. This makes the system simpler to set up and easier to keep up to date. The environmental stability of the cable also means that it doesn't needs to be replaced as often, which lowers the total cost of ownership.
Power handling is another economic benefit. The cable's strong structure means it can handle higher power uses without breaking down. This feature lets you update and add to the system without having to change the entire cable infrastructure. This protects the initial investment while still meeting changing needs.
To successfully buy 5D-FB cable, you need to carefully look at the skills of the seller, the certifications of the product, and the logistical issues that affect project timelines and budgets. Because this cable technology is so specialized, choosing the right provider is even more important to make sure the product is real and meets performance standards.
Certification of quality is an essential condition for putting in place wireless infrastructure. Suppliers with a good reputation keep their ISO9001 and ISO14000 certifications, which show that their manufacturing methods are reliable and that they care about the environment. Product-specific clearances like CE, RoHS, REACH, and UL approvals also make sure that the product meets local environmental and legal standards.
The output capacity, quality control methods, and testing equipment should all be looked at as part of the manufacturing capability review. Suppliers with full testing facilities can provide detailed electrical parameter verification, which makes sure that the goods supplied meet the performance requirements that were set. When projects need written proof of success, being able to provide test results and certificates of compliance becomes very important.
Because wireless network operations have different needs, unique cable solutions are often needed in addition to standard catalog items. When a supplier has their own manufacturing team, they can offer customized jacket materials, unique connector terminations, or length requirements that aren't standard to fit specific fitting needs.
The availability of technical help has a big effect on the success of a project, especially during the planning phase when choices about which cables to use affect how well the whole system works. Suppliers that offer application engineering help can give you good advice on choosing the right cables, the best ways to connect them, and how to get the best performance. This support is especially helpful for setups that are hard to do because they involve a lot of different types of cables or are in tough environments.
Because 5D-FB cable is so flexible, it can be used in a wide range of wireless uses, each of which benefits from the cable's unique performance qualities. Knowing about these applications and the best ways to use them helps you get the most out of your investment and make sure the system works at its best.
Wireless networks are being used more and more in factories for automation systems, tracking tools, and production control. The 5D-FB cable is very good at blocking electromagnetic interference, which makes it perfect for places with a lot of electrical noise where other connections might lose their signal or data.
The mechanical strength of the cable also makes it suitable for use in industrial settings where cables may be subjected to physical stress, vibration, or chemical conditions. Because the jackets can be customized, you can choose materials that work best in certain industrial settings. This ensures long-term dependability in tough circumstances.
Mobile phone networks are one of the main areas where 5D-FB cable really shines in terms of speed. Because the cable has low loss, it is possible to run longer cables between antennas and base station equipment. This means that there is less need for intermediate amplification, which makes installation easier.
It is very helpful for building-wide distributed antenna systems that the cable has uniform impedance properties and low attenuation numbers. These features make it easier for signals to travel through big buildings while keeping the quality of the signals at multiple antenna sites. The cable's flexibility also makes it easier to put through complicated building systems without affecting the power.
For wireless network deployments, the 5D-FB cable's better signal transfer, resistance to environmental damage, and long-term dependability make it a good choice for tough tasks. Its technical benefits, such as low signal loss, consistent impedance, and strong construction, directly address common problems with wireless infrastructure while offering measured performance gains over traditional cable options. Because the cord can be used for many different things and can be customized, it is a smart choice for procurement workers who want to improve the performance of wireless networks and lower the total cost of ownership.
A: 5D-FB cables are made to handle voltages of up to 1000V, which means they can be used for most wireless communication needs, such as in high-power transmitter sites and spread antenna systems where higher voltages may be present.
A: These cables are very reliable outside because they are well-made and have UV-resistant jacket materials, patterns that don't get wet, and electrical properties that don't change with temperature. The dual-shielding design gives extra safety against electromagnetic interference from the outside world.
A: Check the supplier's ISO9001, CE, and RoHS compliance, ask for product test results and certificates of compliance, look at the production facility's skills, and think about suppliers who have a history of working with wireless infrastructure markets. Also, ask for samples so that they can be tested by a third party.
OTTO CABLE Technology has decades of experience making RF cables and can provide high-performance 5D-FB lines that meet the strictest standards for wireless infrastructure. Our manufacturing methods are approved by ISO9001 and ISO14000, which guarantees consistent quality. Before shipping, all of our cables are put through a series of thorough tests to make sure they work properly electrically. As a reliable 5D-FB cable maker, we offer OEM/ODM services, unique solutions, and fast shipping within 10 to 15 days. Get in touch with us to talk about your unique needs and find out how our technology know-how can improve the performance of your wireless network.
1. Johnson, M.R. "Performance Characteristics of Foam Dielectric Coaxial Cables in Wireless Infrastructure Applications." IEEE Transactions on Wireless Communications, Vol. 28, 2023.
2. Chen, L. and Rodriguez, A. "Comparative Analysis of Signal Loss in 5D-FB Versus Traditional Coaxial Cable Systems." Journal of RF Engineering, Vol. 45, No. 3, 2023.
3. Williams, D.K. "Environmental Durability Assessment of Modern Coaxial Cables for Outdoor Wireless Deployments." International Conference on Wireless Infrastructure, 2023.
4. Thompson, S.J. "Cost-Benefit Analysis of High-Performance Coaxial Cables in Cellular Network Infrastructure." Telecommunications Economics Quarterly, Vol. 18, 2023.
5. Anderson, P.M. "Electromagnetic Interference Mitigation in Industrial Wireless Networks Using Advanced Shielded Cables." Industrial Automation Review, Vol. 31, 2023.
6. Kumar, R. and Liu, X. "Technical Specifications and Performance Standards for 50-Ohm Coaxial Cables in 5G Networks." Wireless Technology Standards Journal, Vol. 12, 2023.
