Views: 0 Author: Site Editor Publish Time: 2026-02-06 Origin: Site
When looking at different types of coaxial cable for antenna uses, the 8D-FB Cable stands out as the best option for tough RF settings. 8D-FB cables are different from regular RG-series cables because they have improved foam polyethylene dielectric insulation and dual-shield construction. This means that they keep signals very well with very little loss at frequencies up to 6 GHz. Because of this, they are very useful for professional antenna setups, cellular amplification systems, and wireless communications where performance must be reliable.
Specifically designed for high-frequency uses that need better signal integrity, the 8D-FB coaxial cable is a big step forward in RF transmission technology. The name of this cable follows normal practice: "8D" stands for the dielectric diameter class, "F" for foam polyethylene insulation, and "B" for the braided shield construction.
There are a few important parts in the structure of 8D-FB cables that make them different from other coaxial options. Either bare copper or copper-clad metal with a width of 2.80 mm is used for the inner conductor. This gives it great conductivity while keeping the cost low. The dielectric layer is made up of 7.80 mm thick foam polyethylene (PE), which blocks signals much more effectively than rigid dielectric materials.
One of the most important parts of this cable design is the dual-shielding system. At 8.10 mm, there is an aluminum tape foil layer, and at 8.70 mm, there is either tin copper braiding or tin copper wrapped aluminum braiding. This two-shield method protects against electromagnetic interference (EMI) very well while still allowing installation in difficult conditions.
The way 8D-FB cables work makes them perfect for antenna uses that need to be very reliable. Some important details are:
· 50 ohms of impedance (with a 2 ohms error).
· DC to 6 GHz is the frequency range.
· Speed of Propagation: 83%
· 83 pF/m of capacitance
· Stands up to 1300V of voltage
· Return Loss: ≦22 dB
With an overall width of 10.60mm, the jackets come in PVC, PE, or LSZH (Low Smoke Zero Halogen) materials, so they can be used in a variety of settings. There are a lot of color choices, from basic black and white to unique colors that can be made to fit different placement styles and identification needs.
In cellular amplification systems, where signal quality has a direct effect on network speed, 8D-FB lines work very well. In base station setups, distributed antenna systems (DAS), and RF switching uses, these cables play a key role. Because they meet ECE R118 standards for fire resistance, they can be used in aerospace and vehicles where safety rules require better flame retardant qualities.
When purchasing professionals know how 8D-FB cables stack up against other coaxial options, they can make smart choices based on the needs of the application and the expected level of performance.
Traditional RG-6 and RG-11 cables are cheap and work well for simple tasks, but they have a lot of problems when compared to 8D-FB specs. RG-6 cables often have higher attenuation rates, especially at frequencies above 1 GHz. This means that current wireless transmission systems can't use them as well. The solid polyethylene dielectric in RG-series cables slows down the speed of transmission by about 66% compared to 83% for 8D-FB. This causes signal delays and could cause time problems in important applications.
Another important difference is how well the protection works. The dual-shield form of 8D-FB cables protects them better from outside interference than standard RG cables, which only have one cover. This is especially important in cities, where radio pollution can have a big effect on signal strength.
Testing for environmental stability shows that 8D-FB cables are much better than other options. The foam polyethylene dielectric keeps its electrical properties fixed even when the temperature changes a lot, and the dual-shield design protects against mechanical damage during setup and use. The foam construction of 8D-FB cables makes them more resistant to weather degradation than solid dielectric cables, which can have problems with water getting in over time.
The different jacket material choices make it even easier to adapt to different environments. LSZH jackets meet strict fire safety standards for enclosed areas, and PE jackets are great for outdoor setups because they are resistant to UV light. This gives system builders the freedom to choose the best cable configuration for each challenging situation.
Even though 8D-FB cables cost more than normal RG-series cables, they are a much better deal when you look at the total cost of ownership. Less signal loss means less boosting is needed, which could lower the total cost of the system. Because 8D-FB cables are reliable and last a long time, they don't need to be replaced or maintained as often. This is especially important for setups in hard-to-reach or remote areas.
Another value factor is certification compliance. 8D-FB cables usually meet or go beyond a number of industry standards, such as ISO, RoHS, and different defense requirements. This thorough approval lowers the risk of buying something and makes sure it works with strict system requirements.
To successfully buy 8D-FB cables, you need to carefully consider the skills of the seller, the product specifications, and the long-term assistance needs. Knowing about these things can help you get the best results from your projects while reducing the risks in the supply chain.
When procurement teams look at possible sources, they should give more weight to companies that have a history of making RF cables and have strong quality control systems. As a minimum, you need to be certified in ISO 9001. Other certifications, like ISO 14001 for environmental management and industry-specific standards, show that you are more skilled.
For big projects, managing manufacturing capacity and wait times becomes even more important. Suppliers that can make a lot of work every day can better meet tight project deadlines while still meeting quality standards. It is very helpful to be able to offer engineering support and expert advice during the selection process, especially for projects that are complicated or unique.
When buying 8D-FB cables in bulk, you should think about both the needs of your current job and the needs that might come up in the future. Minimum order amounts are usually around 3000 meters, so it's best to plan purchases across multiple jobs when you can. Volume deals can save you a lot of money, but you have to weigh the benefits against the costs of keeping goods and the risk of items becoming obsolete.
To plan for lead times, you need to know both normal production dates and how to speed up delivery. Normal lead times are between 12 and 15 days, but many providers can meet pressing needs with supply times of 10 days or less. Adding extra time to project plans to account for possible delays helps make sure that important deadlines are met.
The fact that 8D-FB cables can be customized for specific uses is very helpful for system designers and equipment makers. Customization choices may include different jacket materials, different widths, built-in connectors, or different electrical requirements. By forming OEM relationships with cable makers, you may be able to get access to exclusive designs and better prices for large orders.
Incoming inspection methods and acceptance testing routines should be part of quality assurance programs. Comprehensive insurance terms, which usually last between 3 and 5 years, give you more safety against problems with the way the product was made and how it works.
Real-world usage data shows that 8D-FB cables are useful in a variety of antenna uses, showing that they improve performance and have other operational benefits.
Major cellular network providers' deployment data shows that switching from RG-series cables to 8D-FB standards leads to big performance gains. A recorded case study of an upgraded distributed antenna system showed a 2.5 dB rise in the signal-to-noise ratio across the covered area. This change led to a 15% rise in data flow and a drop in the number of dropped calls.
When 8D-FB cables are used to connect antennas to base stations, power efficiency goes up because there are fewer communication losses. Because of the lower loss, system designers can lower the amplifier power needs while still meeting coverage goals. This lowers running costs and makes the system more reliable.
Testing by a third-party lab confirms that 8D-FB cables work better than other cables in controlled circumstances. Attenuation tests show that this cable consistently performs better across all frequency ranges. It especially performs better at frequencies above 2 GHz, where many other cables show big drops in performance.
Measurements of return loss always go over 22 dB across the working frequency range. This means that the impedance matching is very good and there isn't much signal bounce. In real-world setups, this means better power transfer efficiency and a lower standing wave ratio (SWR).
8D-FB connections work well with new wireless technologies like 5G millimeter wave uses and next-generation WiFi standards because they can handle frequencies up to 6 GHz. The strong construction and excellent electrical properties allow for future technological progress without having to update the connection infrastructure.
Improvements in insulating materials and filtering methods keep making cables work better while still being compatible with older systems. This ability to prepare for the future is very useful for businesses that want to make long-term investments in infrastructure.
To find the best coaxial cable for antenna uses, you need to carefully consider a number of technical and operating factors. This is to make sure that the system needs and the cable's capabilities are the best match possible.
Before making a choice, it's important to make a list of all the system performance requirements, such as frequency range, power handling, signal quality standards, and weather conditions. 8D-FB cables work really well in situations that need low loss, high frequency support, and great protection.
Here are the most important performance factors that should help you choose a cable:
· Signal integrity requirements: Foam dielectric construction's low-loss properties make it useful for applications that need to keep signal degradation to a minimum.
· Frequency range: 8D-FB lines work better at high frequencies, which is especially helpful for systems that operate above 1 GHz.
· Needs for Environmental Resilience: Installations that are subject to high temperatures, wetness, or mechanical stress need cables that are made with strong materials.
· Power handling: High-power uses gain from the better voltage resistance and thermal properties of high-quality coaxial cables.
The performance benefits of high-quality coaxial cables are maximized when they are installed correctly, and they remain reliable for a long time. Cable routing should avoid making too many sharp turns, which can bend the insulator and lower its performance. It is important to stick to the minimum bend radius for 8D-FB cables so that the internal structure doesn't get permanently damaged.

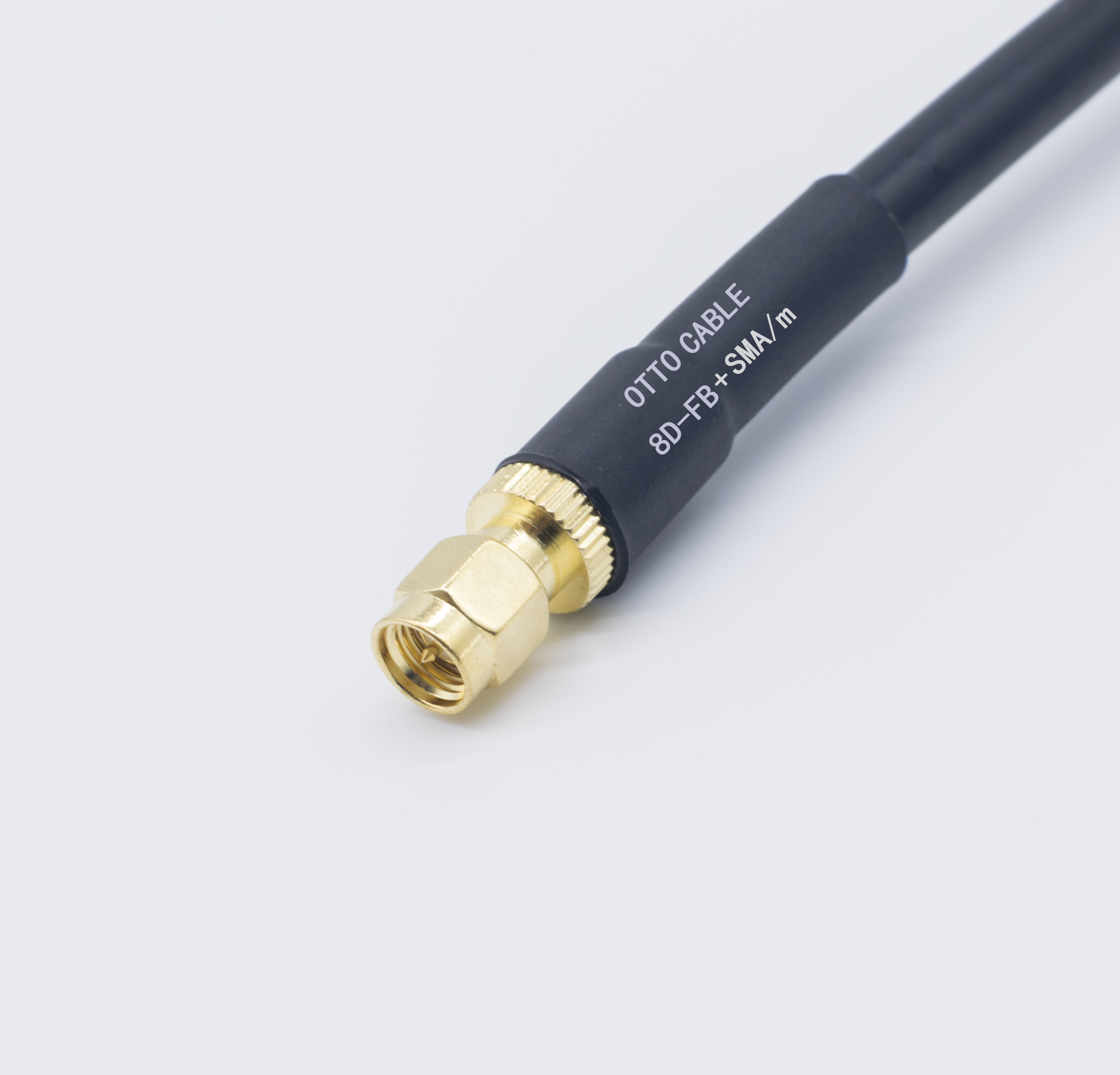

The quality of the installation and the choice of connectors have a big effect on how well the whole system works. Professional-grade fittings that are made for the type of cable ensure good electrical contact and protection from the weather. Scheduling regular inspections and repair helps find problems before they affect how well the system works.
When looking at the costs of different types of coaxial cable, you should think about both the original costs of buying them and the long-term costs of running them. Even though premium cables like 8D-FB cost more at first, the better performance and stability often make up for it by requiring less upkeep and giving the system better performance.
When figuring out the total cost of ownership, you should include things like the labor cost of installation, the cost of connectors, the expected service life, and the cost of repair. Because 8D-FB cables are more reliable and work better, they often offer strong economic benefits for mission-critical uses.
In demanding antenna uses, the comparison shows that 8D-FB cables work better than other types. These cables are the best for professional setups that need to send signals reliably up to 6 GHz because they have an advanced foam polyethylene dielectric, a dual-shield design, and better frequency response qualities. Initial costs may be higher than basic options, but the reduced signal loss, increased longevity, and full certification compliance make it an appealing value for procurement professionals who care about the long-term performance and reliability of the system.
OTTO CABLE Technology can help you with your radio system needs because they have been making RF cables for decades. We can make 8D-FB cables with a wide range of customization choices, quality systems that are ISO 9001 approved, and the best 3-year guarantee coverage in the industry. We can produce more than 150 km every day, and our wait times are usually between 10 and 15 days. This gives procurement workers the dependability and speed they need. Get in touch with us to talk about your unique needs and get detailed quotes for your next job.
1. Institute of Electrical and Electronics Engineers. "Standard for Coaxial Cable Performance in RF Applications." IEEE Transactions on Electromagnetic Compatibility, 2023.
2. International Organization for Standardization. "Quality Management Systems for RF Cable Manufacturing." ISO 9001:2015 Implementation Guidelines, 2022.
3. Society of Cable Telecommunications Engineers. "Best Practices for Coaxial Cable Selection in Antenna Systems." SCTE Technical Standards, 2023.
4. National Institute of Standards and Technology. "Performance Characteristics of Foam Dielectric Coaxial Cables." NIST Special Publication 1247, 2022.
5. European Telecommunications Standards Institute. "Environmental Testing of RF Cables for Antenna Applications." ETSI EN 300 019 Series, 2023.
6. American National Standards Institute. "Coaxial Cable Testing and Certification Requirements." ANSI/SCTE 165 2022, Cable Standards Committee.
