When it comes to high-power wireless communications, the 8D-FB Cablestands as a critical component that bridges the gap between performance demands and operational reliability. This 50-ohm coaxial cable excels in cellular amplification systems and RF device switching applications operating at frequencies up to 6 GHz, delivering exceptional signal integrity through its advanced foam polyethylene dielectric and dual-shielding architecture. The cable's superior construction enables wireless infrastructure to maintain stable performance under demanding conditions while minimizing transmission losses.
The 8D-FB coaxial cable is an example of a complex technical solution that was developed particularly for wireless applications that depend on mission-critical functionality. When it comes to analyzing cable options for high-power wireless infrastructure, having a solid understanding of its design and requirements is very necessary.
The 8D-FB cable has a multi-layer architecture that has been painstakingly constructed to guarantee that the signal transmission is at its highest possible level. The inner conductor is made of either bare copper or copper-clad aluminum and has a diameter of 2.80 millimeters. This allows for great conductivity while preserving cost effectiveness. When compared to solid dielectric alternatives, the dielectric material is made up of foam polyethylene (PE) measuring 7.80mm, which results in a considerable reduction in the amount of signal attenuation.
The main shield in the dual-shielding system is made up of aluminum tape foil, which is 8.10 millimeters in thickness. This is followed by tin copper braid or tin copper-clad aluminum braid, which measures 8.70 millimeters. This arrangement offers great protection against electromagnetic interference, which is essential for preserving signal integrity in settings with a high concentration of radio frequency (RF) sources. The outer jacket, which may be made of PVC, PE, or LSZH materials and measures 10.60 millimeters in thickness, offers versatility in terms of fire safety compliance while also providing protection against the environment.
In order to show that the cable is suitable for demanding applications, critical electrical properties are demonstrated. The impedance of 50 ohms is in accordance with the specifications necessary for conventional radio frequency (RF) equipment, and the velocity of propagation of 83% guarantees effective signal transmission. Due to its capacitance of 83 pF/m and its voltage tolerate capacity of 1300V, the cable is capable of handling high-power applications in a completely safe and dependable manner.
An impedance matching that is good is indicated by a return loss specification of ≥22 dB, which minimizes signal reflections that might potentially be detrimental to the operation of the system. Because it has these criteria, the 8D-FB is especially well-suited for use in cellular base stations, distributed antenna systems, and other forms of wireless infrastructure in where the quality of the signal has a direct influence on the efficiency of operations.
Wireless applications in the modern era sometimes need for tailored solutions in order to fulfill particular installation requirements. The jacket color possibilities for the 8D-FB cable include black, white, and different custom colors. This allows the cable to satisfy a wide range of customisation requirements. Configuring fire resistance to satisfy ECE R118 standards or other special needs ensures compliance with local building codes and safety laws. Fire resistance may also be modified to suit other unique requirements.
When it comes to high-power wireless systems, cables are required to be able to manage significant amounts of radio frequency energy while also preserving signal integrity over long distances. These issues are addressed by the 8D-FB cable, which has an optimal design and material choices.
A significant contribution to the reduction of signal attenuation is made by the foam polyethylene dielectric, which is especially essential in the case of lengthy cable lengths that are typical in wireless infrastructure construction. The design of gas-injected foam yields lower dielectric constant values than solid dielectric cables, which immediately translates to decreased insertion loss and enhanced system efficiency. Solid dielectric cables need higher dielectric constant values.
This manifests itself in the form of observable enhancements to the performance of the system in real applications. Cellular base stations that make use of 8D-FB cables have enhanced signal-to-noise ratios, which in turn enables them to provide greater coverage regions while simultaneously reducing their power usage. When it comes to dispersed antenna systems, where signals have to travel significant distances via building infrastructure, the low-loss features of the cable prove to be very advantageous.
In many cases, wireless infrastructure must function in difficult environmental circumstances. These environments might range from rooftop installations that are subject to harsh weather to subterranean tunnels that have problems with moisture. These issues are addressed by the development of the 8D-FB cable, which is accomplished via the careful selection of materials and the production procedures.
Providing powerful protection against electromagnetic interference while keeping flexibility to meet complicated routing needs, the shielding system that is comprised of copper braid and aluminum foil protects against interference. Engineers have the ability to pick materials that are suitable for certain climatic circumstances, such as emphasizing UV resistance for outdoor installations or fire safety for inside applications, thanks to the outer jacket alternatives.
A typical source of discomfort in the deployment of wireless systems is addressed by the design of the cable, which strikes a balance between mechanical strength and installation flexibility. The 8D-FB preserves adequate flexibility for normal installation processes while giving higher performance in comparison to typical RG-series alternatives. This is in contrast to rigid hard-line cables, which also need specific connections and installation techniques.
The performance characteristics, cost implications, and long-term dependability of cable solutions for wireless applications are all factors that procurement managers need to take into consideration when assessing these solutions. Within the market, the 8D-FB cable has a distinct position that is situated between the flexible RG-series cables and the stiff hard-line alternatives.
Although standard RG-series cables are often more cost-effective, they frequently display greater attenuation rates, which may be troublesome in applications that need high power. An option that is often used is the RG-213 cable, which makes use of solid polyethylene dielectric, which results in increased signal losses over greater distances. The foam dielectric architecture of the 8D-FB, on the other hand, produces around 20-30% lower attenuation, which corresponds to better system efficiency and decreased power consumption.
In spite of the fact that they provide superior electrical performance, hard-line coaxial cables are much more expensive and create major installation issues. The 8D-FB offers a compromise, offering a significant portion of the performance benefit of hard-line while preserving the installation flexibility and cost-effectiveness that are ideal for the majority of wireless applications.
The total cost of ownership, which goes beyond the original cable price, has to be carefully considered when large-scale wireless networks are being implemented. The greater performance features of the 8D-FB often justify higher initial prices. These advantages include lower system power needs, increased coverage efficiency, and enhanced dependability.
When calculating return on investment, the cable's proven longevity and three-year guarantee both lower the amount of money spent on maintenance and the amount of time the system is down. When it comes to mission-critical applications, where service outages incur considerable operational costs, these variables become more crucial than they would otherwise be.
There are a variety of wireless applications, each of which has a unique set of criteria that determine the ideal cable selection. The low-loss features and frequency responsiveness up to 6 GHz of the 8D-FB are beneficial to cellular infrastructure. These properties allow the 8D-FB to handle both current 4G networks and upcoming 5G sub-6GHz installations.
It is necessary to have cables that are able to retain signal quality over lengthy ranges while also giving installation flexibility in order to have distributed antenna systems installed in big buildings or campuses. The 8D-FB is especially well-suited for these applications because of its balanced performance profile, which makes it appropriate for situations in where both electrical and mechanical qualities are important.
In order to successfully acquire 8D-FB cables, it is necessary to have a comprehensive awareness of the capabilities of the suppliers, quality requirements, and delivery factors. Supply chains that are dependable and capable of supporting both regular maintenance and large-scale deployment schedules are required by the industry for wireless infrastructure technologies.
In the process of assessing prospective suppliers, certifications and quality systems provide essential insights into the capabilities and dependability of the production process. You should look for suppliers that have quality management systems that are certified to ISO 9001 and applicable product certifications such as compliance with CE, RoHS, and REACH standard. The presence of these certificates is indicative of systematic methods to quality control and environmental responsibility.
These standards are shown by OTTO CABLE, which has maintained its ISO9001 and ISO14000 certifications while simultaneously deploying digital management platforms such as ERP, MES, and OMS systems. They are able to create 150 kilometers of cable per day because to their three-shift production capabilities, which allows for lead times of ten to fifteen days or even shorter for urgent situations.
Procurement methods that are effective manage the possibility of interruptions in the supply chain by using proper contract terms and maintaining positive relationships with suppliers. In light of the imperative nature of wireless infrastructure applications, warranty provisions take on an especially significant level of significance. Protection against expensive system failures is provided by comprehensive warranties that cover both material faults and performance standards.
In order to comply with the needs of the project and the strategies for inventory management, minimum order quantities and delivery dates must be aligned. The standard minimum order quantity for 8D-FB cables is three thousand meters, which is sufficient for the majority of infrastructure projects while also allowing for economies of scale in procurement.
Beyond the provision of products, it is important to assess the technical support skills and engineering services offered by suppliers. When it comes to optimizing system performance, complex wireless installations sometimes call for tailored solutions or further technical consulting. Suppliers that are able to supply OEM and ODM capabilities give a significant amount of flexibility for applications that are more specialized.
The provision of free samples makes it possible to do a comprehensive assessment prior to committing to big orders, which helps to reduce the risks associated with the project and ensures compatibility with certain system requirements. During the periods of installation and troubleshooting, the immediacy of technical help becomes much more important.
The installation processes, system design, and continuing maintenance procedures of 8D-FB cables need to be carefully considered in order to achieve the highest possible level of performance potential. The deployment of the cable in the correct manner guarantees that the better properties of the cable will convert into quantifiable benefits to the system.
Installation procedures that are done correctly have a direct influence on the long-term performance of cables and the dependability of systems. Impedance changes that might potentially deteriorate signal quality should be avoided by avoiding bend radii that are excessive. The versatility of the 8D-FB provides for substantial routing freedom while still keeping electrical standards when it is placed appropriately.

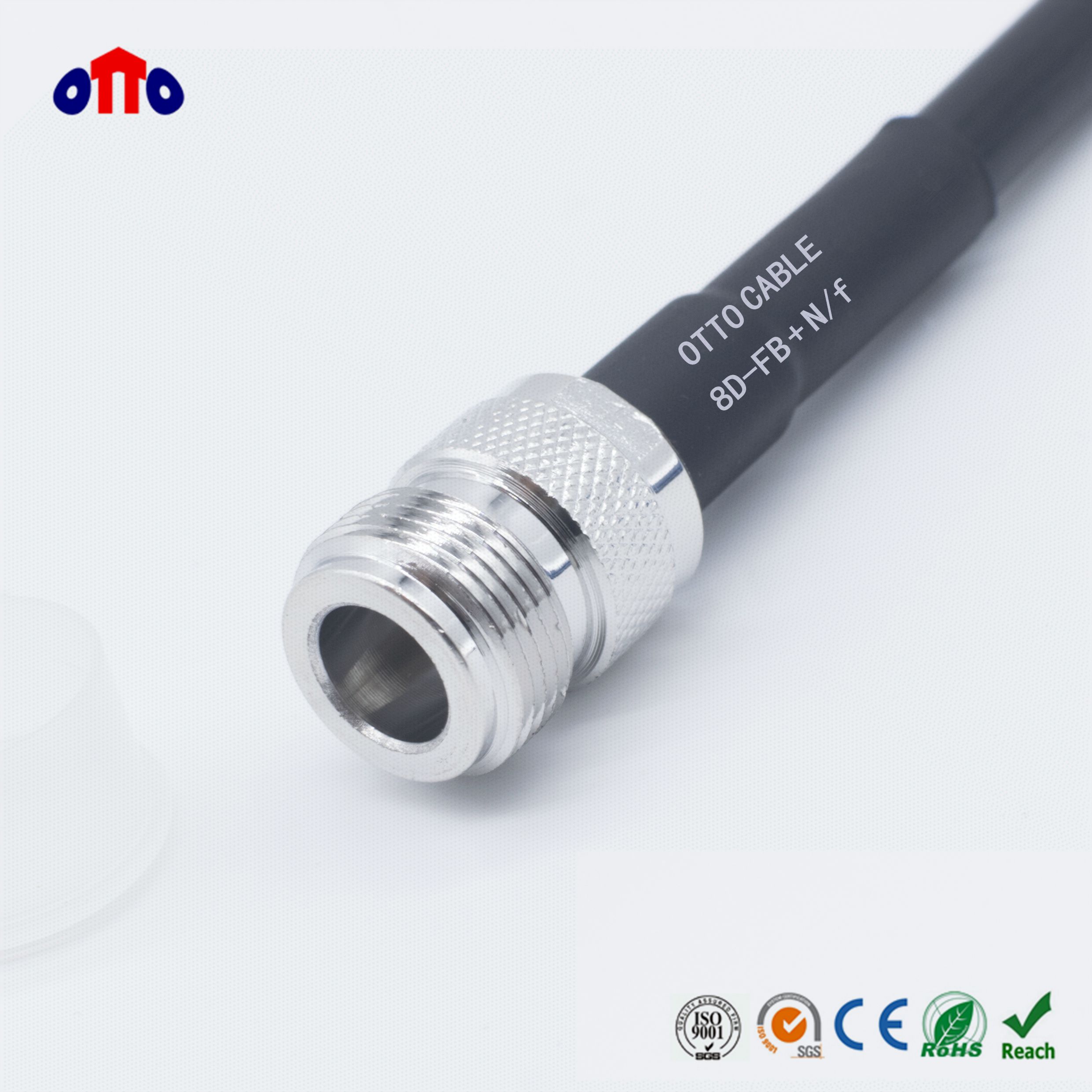

Both the choice of connectors and the quality of their installation have a major impact on the overall performance of the system. For the purpose of ensuring good impedance matching and weather sealing, it is recommended to make use of connectors that have been particularly built for 8D-FB cables. Training from a professional installer and the use of appropriate equipment reduce the likelihood of performance problems that are connected to the installation.
Through routine inspection and testing, possible problems may be identified before they have an effect on the functioning of the system. Visual examinations of exposed cable portions may indicate environmental deterioration or corrosion of connectors, both of which have the potential to impair the quality of the signal. The system impedance matching is verified and components that have degenerated are identified by periodic VSWR measurements.
When it comes to outdoor installations, environmental monitoring becomes especially crucial since temperature fluctuations and exposure to moisture may have an impact on the stability of the system over the long run. Maintaining optimum performance throughout the cable's service life requires proper weatherproofing as well as an inspection plan that is performed on a regular basis.
When integrating 8D-FB cables into wireless infrastructure, it is important to take into consideration the needs for future upgrades and the progression of technology. Current wireless technologies are supported by the cable's frequency response of 6 GHz, which also provides headroom for applications that may be developed in the future.
Additionally, the documentation of cable installations, which includes the routing courses and connection locations, makes it easier to perform future maintenance and alterations to the system. Reducing the amount of time spent troubleshooting and supporting effective system administration are both benefits of proper labeling and record-keeping.
The 8D-FB Cable delivers exceptional performance for high-power wireless applications through its advanced foam dielectric construction and dual-shielding design. Its 50-ohm impedance, low attenuation characteristics, and environmental resilience make it an optimal choice for cellular infrastructure, distributed antenna systems, and other demanding wireless applications. When properly selected and installed, these cables provide reliable signal transmission while offering the flexibility and cost-effectiveness required for modern wireless deployments.
A: 8D-FB cables utilize foam polyethylene dielectric instead of solid polyethylene, resulting in approximately 20-30% lower signal attenuation. The dual-shielding system with aluminum foil and copper braid provides superior electromagnetic interference protection compared to single-shield RG cables.
A: With reliable performance up to 6 GHz, 8D-FB cables accommodate current 4G LTE frequencies while providing headroom for 5G sub-6GHz applications. This frequency response ensures compatibility with existing infrastructure and future technology upgrades.
A: PVC jackets offer good general-purpose protection and cost-effectiveness. PE jackets provide enhanced UV resistance for outdoor applications. LSZH jackets minimize toxic emissions during fire conditions, making them suitable for indoor installations where fire safety regulations apply.
OTTO CABLE Technology stands ready to support your high-power wireless infrastructure needs with premium 8D-FB Cable solutions backed by decades of RF cable manufacturing expertise. Our ISO9001-certified manufacturing processes and comprehensive quality testing ensure every cable meets the demanding requirements of modern wireless applications. With our three-shift production capacity delivering 150km daily output and industry-leading 10-15 days lead times, we provide the reliability and responsiveness your projects demand. Contact us to discuss your specific requirements and discover why leading wireless infrastructure providers choose OTTO CABLE as their trusted 8D-FB Cable supplier.
1. "Coaxial Cable Performance Analysis in High-Frequency Wireless Communication Systems," IEEE Transactions on Microwave Theory and Techniques, Vol. 68, No. 4, 2020.
2. "Low-Loss Cable Design for 5G Infrastructure Applications," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 31, No. 8, 2021.
3. "Foam Dielectric Coaxial Cables: Performance Characteristics and Applications," Microwave Journal, Vol. 63, No. 12, 2020.
4. "Electromagnetic Interference Mitigation in Wireless Infrastructure Cabling," IEEE Electromagnetic Compatibility Magazine, Vol. 10, No. 3, 2021.
5. "Environmental Testing Standards for Coaxial Cables in Outdoor Wireless Applications," IEC Technical Committee 46 Working Group 3 Report, 2021.
6. "Cost-Benefit Analysis of Premium Coaxial Cables in Large-Scale Wireless Deployments," Wireless Infrastructure Association Technical Bulletin, No. 2021-03, 2021.
