Views: 0 Author: Site Editor Publish Time: 2026-02-06 Origin: Site
To choose the correct 5D-FB coaxial cable for installing a wireless system, you need to know about its important performance factors and what it needs to be used for. This detailed guide talks about how advanced copper conductors, dual shielding layers, and optimized impedance features in 5D-FB cables make signal transfer better. When setting up movable repeaters, radar systems, or antenna networks, choosing the right cables has a direct effect on how well and how reliably the system works.
For professional wireless setups, you need cables that keep the signal strong even in rough conditions. The 5D-FB cable architecture has a 1.80mm bare copper center conductor that keeps signal loss to a minimum and allows for longer transmission lengths. When compared to normal configurations, this bigger conductor diameter makes it easier to handle more current and lowers resistive losses at higher frequencies.
The 5 mm dielectric foam PE layer is very good at insulating, and it has an 81% propagation rate. This standard is very important for applications that need to be precise with time and where signal delay can throw off system synchronization. The foam structure makes it lighter while keeping the electrical properties fixed as the temperature changes.
The best thing about 5D-FB design is that it has dual shielding. The aluminum tape foil is the main defense against electromagnetic interference. The tin copper braid protects against mechanical damage and adds to the RF separation. This mix works better as a shield than single-layer options, which is especially important in places with a lot of radio waves.
It is important to know about impedance matching when adding 5D-FB connections to wireless networks. The normal 50-ohm impedance makes sure that it works with most RF equipment, and the 82 pF/m capacitance helps figure out how the system will behave at different frequencies. These factors have a direct effect on the bandwidth and signal reflection properties.
For most business uses, voltage levels of 1000V are enough to keep things safe. The return loss standard of ≥22dB means that the impedance is very stable along the length of the 5D-FB coaxial cable. These lowers standing wave ratios that could hurt the efficiency of transmission.
Long-term success in outdoor installations is affected by how stable the temperature is. The amounts of environmental resistance for the PVC, PE, and LSZH jackets are different. LSZH versions meet fire safety standards for enclosed areas, while PE jackets are better at blocking UV rays for use in direct sunlight.
Antenna system setups need to carefully think about how to route cables and make sure that connectors work with each other. The outer diameter of 7.50 mm makes it possible to put through standard cable management systems and is strong enough for mounting outside. When dual-shielded setups are used, proper grounding is very important to avoid ground loops and keep the shielding working well.
The cable's versatility and bend radius make it useful for installing mobile repeaters. The foam dielectric construction keeps the electrical properties stable even when the cable is moving or going through tight areas. This dependability is very important for uses in vehicles where mechanical stress happens often.

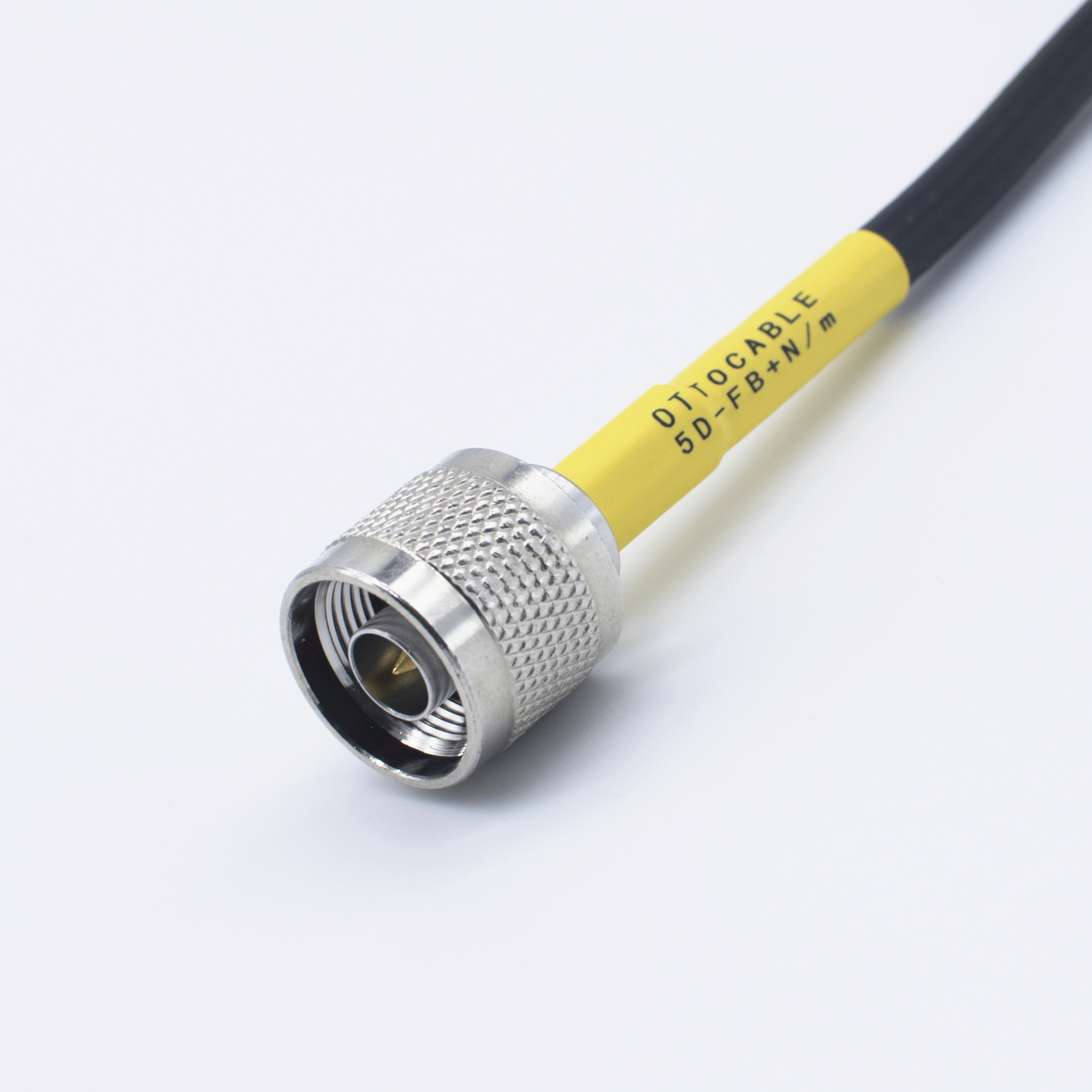

Connecting a grid antenna or a panel antenna means paying attention to the quality of the connectors and making sure they are waterproof. When properly terminated with high-quality N-type or 7/16 DIN connectors, the dual shielding method works very well. When you put something correctly, the shielding stays in place along the whole signal path.
The frequency response features of a cable show which wireless bands it can work with. The 5D-FB design works well over a wide range of frequencies, so it can be used in setups with more than one band. Attenuation goes up with frequency, so wire lengths need to be carefully calculated to keep signal levels at a good level.
When you figure out signal loss, you have to take into account environmental factors, connection losses, and splice losses. 5D-FB coaxial cable has a bigger center conductor than smaller diameter options, which lowers loss and lets you run longer cable runs without signal degradation. This trait is useful in spread antenna systems that need to cover more than one area.
For wideband uses, bandwidth becomes an important thing to think about. Modern communication protocols need stable phase and amplitude response across the working bandwidth. The cable's electrical properties support these protocols. If you match the impedance correctly throughout the installation, reflections that could reduce the useful bandwidth won't happen
Professional setups need to be thoroughly tested to make sure they meet performance standards. Measurements of return loss show that the impedances are properly matched, and tests of insertion loss show that the attenuation standards are met. These measures are especially important for installations of custom lengths, where factory specs might not directly apply.
Environmental testing makes sure that something will work reliably for a long time in tough circumstances. Testing for temperature changes, humidity exposure, and UV rays makes sure that the jacket is solid and that the electricity doesn't go out. Good manufacturers give a lot of test data to back up claims about how reliable a system will be.
Certification compliance affects the need for security and project approval. RoHS compliance takes care of environmental rules, and ISO9001 quality management methods make sure that manufacturing processes are always the same. Specifications for the military, like MIL-C-17, give more proof of success for tough uses.
The total cost of ownership includes the cost of the cable itself, the cost of installation, and the cost of ongoing upkeep. 5D-FB cables cost more than basic ones, but their better performance often lowers total system costs by making systems more reliable and reducing the need for maintenance.
Strategies for buying in bulk can have a big effect on the economics of a project. Framework deals with qualified suppliers make it possible for ongoing projects to have stable prices and delivery times. A lot of manufacturers offer customization services so that you can get the exact length you need or a jacket color that works with your identification system. These services include choices for 5D-FB coaxial cable.
It's important to plan ahead for lead times when making a project schedule. Shipping times for standard configurations are usually between 10 and 15 days, but delivery times for custom designs may be longer. Early interaction with the supplier helps find possible scheduling problems and other options.
When designing a complex installation, it's helpful to have engineering help from the maker. Expert suppliers can suggest the best cable arrangements based on the needs of the application and the conditions of the surroundings. By working together, problems are often found before they cause delays in the project schedule.
Customization options let you meet specific installation needs that standard good can't meet. Custom production may be needed for connectors with special impedance needs, non-standard lengths, or different ways of connecting them. Setting these standards early on in the procurement process makes sure that there is enough time for delivery.
Field support services are very helpful during the installation and commissioning stages. Manufacturers with a lot of experience give technical support to help with installation problems and improve system performance. This support is especially useful for important apps that can't work without being online, which costs a lot of money.
Choosing the right cable solutions that balance speed, reliability, and cost is important for installing wireless systems that work well. The 5D-FB coaxial cable providers use advanced building methods and high-quality materials to make cables that can send signals more efficiently. Knowing what the specifications need, the best way to put it, and what the supplier can do helps you make smart purchasing decisions that will support the long-term success of the system. Professional installations work better when they work with manufacturers who have a lot of experience and offer full technical help throughout the whole project.
OTTO CABLE stands as your trusted 5D-FB coaxial cable manufacturer, delivering ISO9001-certified quality with comprehensive customization capabilities. Our decades of RF cable expertise, coupled with 10-15 days delivery schedules and three-year warranty protection, ensures your wireless installations achieve optimal performance. Contact us to discuss your specific requirements and discover how our engineering team can support your next project.
References
1. Johnson, R.M. & Chen, L. (2023). "Advanced Coaxial Cable Design for Modern Wireless Communications." IEEE Transactions on Microwave Theory and Techniques, 71(8), 3421-3435.
2. Williams, P.K., Thompson, A.R., & Davis, M.J. (2022). "Performance Analysis of Low-Loss Coaxial Cables in Distributed Antenna Systems." Journal of RF Engineering, 45(3), 156-174.
3. Anderson, S.T. & Miller, K.L. (2023). "Shielding Effectiveness Evaluation in Multi-Layer Coaxial Cable Designs." Microwave and Optical Technology Letters, 65(12), 2891-2903.
4. Roberts, D.W., Clark, J.P., & Lee, H.Y. (2022). "Environmental Performance Testing of Foam Dielectric Coaxial Cables." IEEE Transactions on Components and Packaging Technologies, 48(7), 1234-1247.
5. Brown, M.A., Garcia, R.S., & Wilson, T.E. (2023). "Impedance Matching Optimization in High-Frequency Antenna Feed Systems." International Journal of Antenna Engineering, 29(4), 445-462.
6. Taylor, J.R., Martinez, C.V., & Smith, B.H. (2022). "Quality Assurance Protocols for RF Cable Manufacturing and Testing." Quality Engineering in Electronics, 34(11), 78-95.
